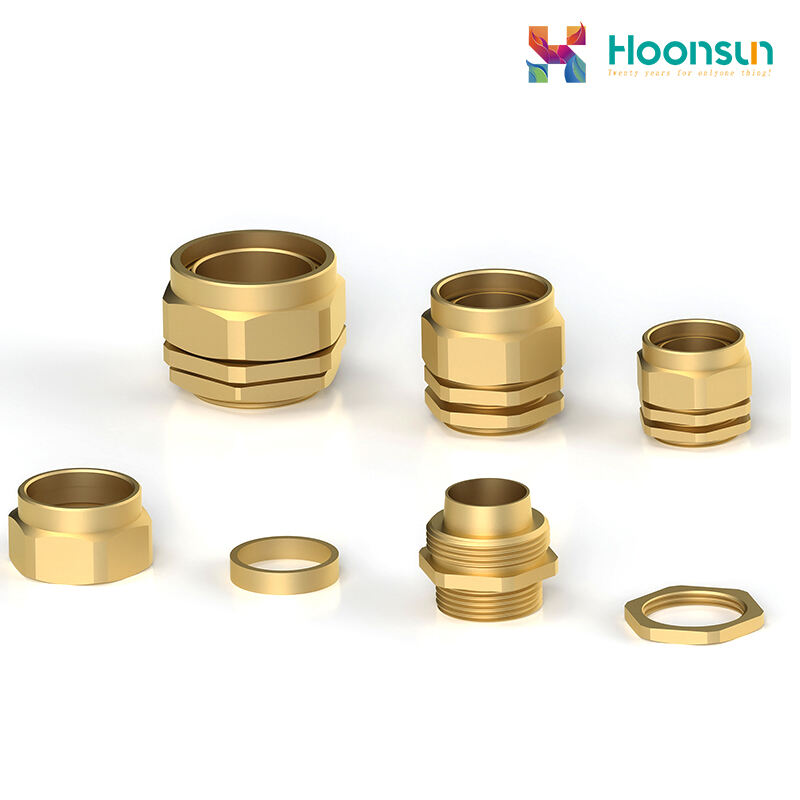

BWL Cable Gland
Explosion-proof & sealing: Blocks flammables, prevents ignition transmission.
Secure clamping: Fixes cables firmly, resists pulling and vibration.
Harsh-environment resistant: Dustproof, waterproof, corrosion-proof.
Easy installation: Simple operation, no complex tools required.
- Overview
- Specifications
- Description
- Recommended Products
Overview
PRODUCT PARAMETER
Welcome to Our Website,We Are Happy to Serve You
| Fitting Material: | Brass | |||||||

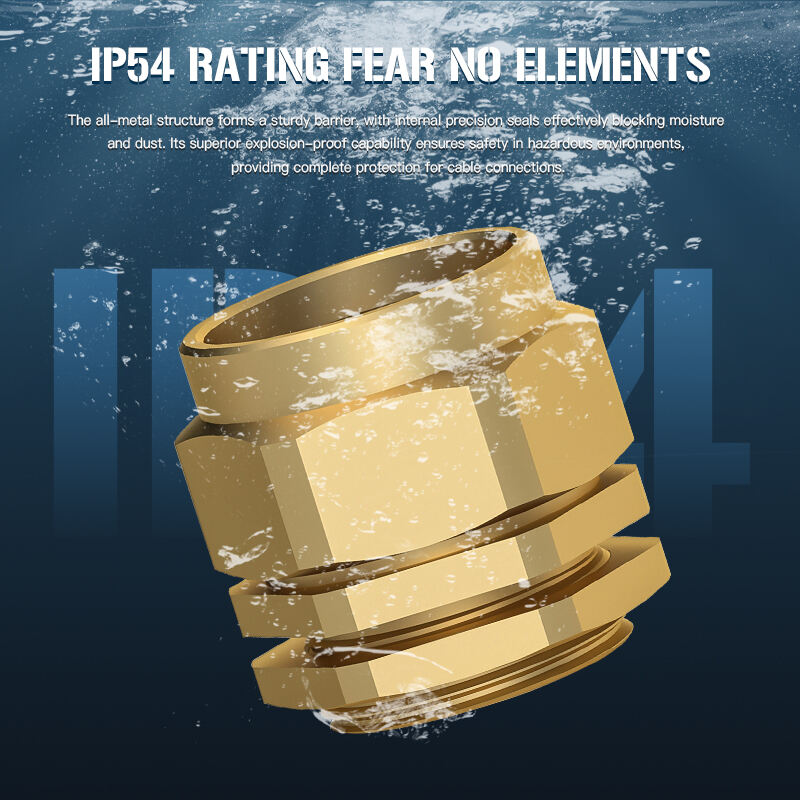

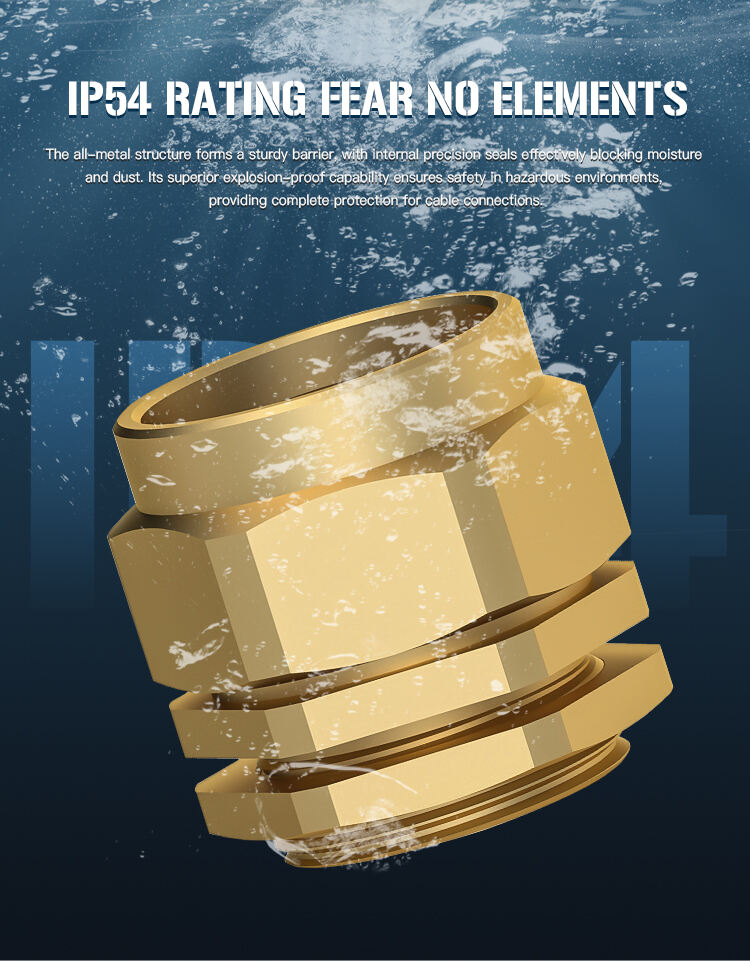

| Protection Degree: | IP54 | |||||||

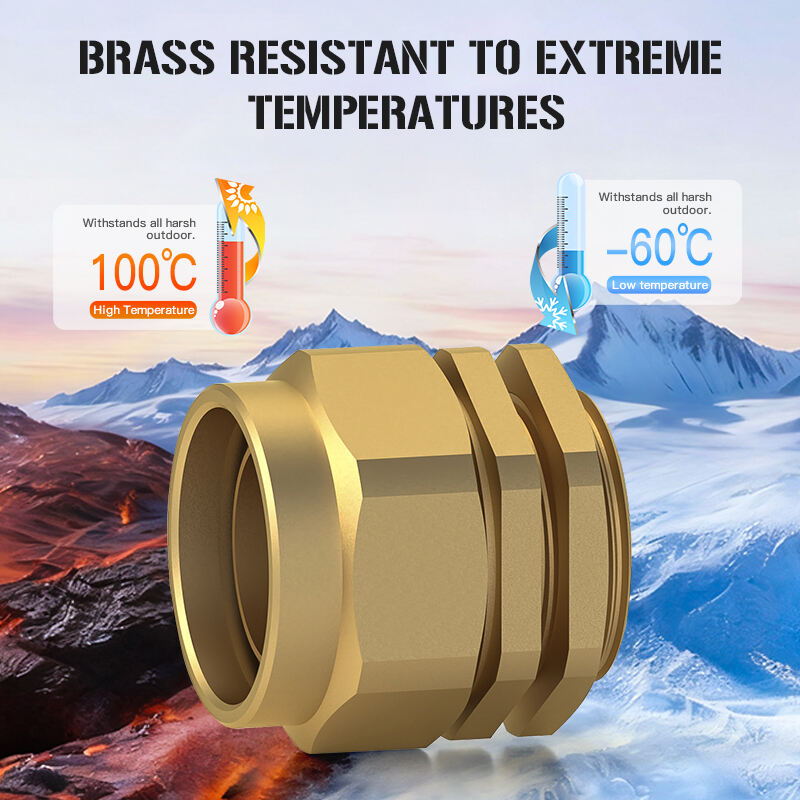

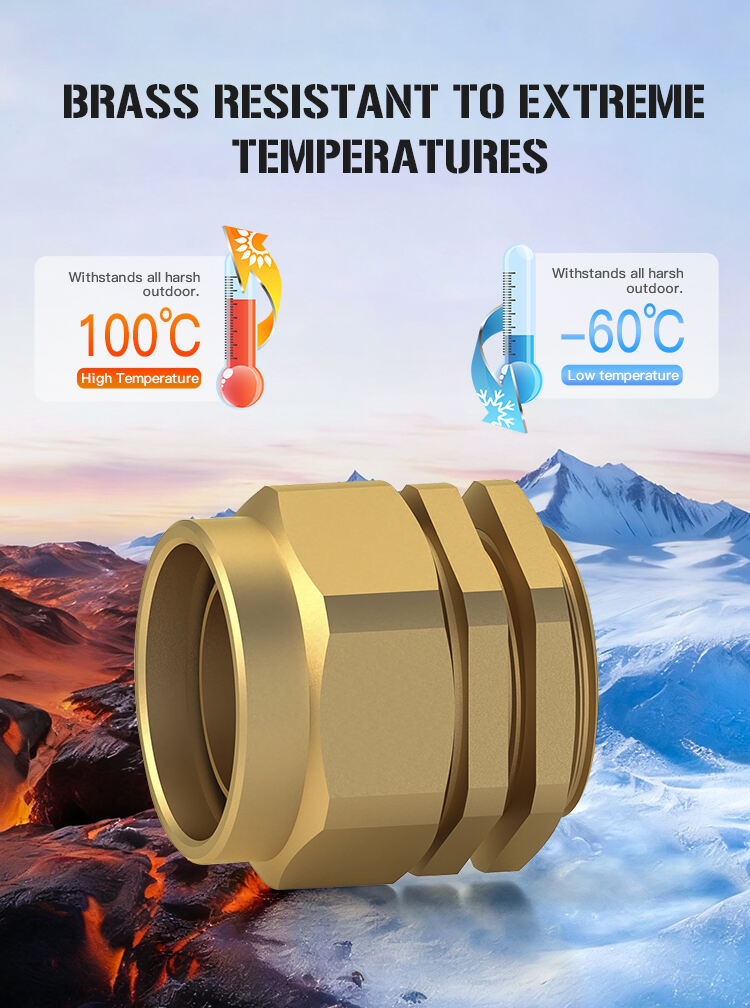

| Temperature: |
Static state:-60 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃ |
|||||||
Introduction
An explosion-proof cable gland is designed to secure and protect electrical cables in hazardous areas. It prevents sparks, flames, or hot gases from escaping equipment, ensuring safety in explosive environments such as oil, gas, and chemical industries.
High Safety Protection
The main benefit of explosion-proof cable glands is safety. They contain any internal explosion and stop it from spreading to the surrounding atmosphere, reducing the risk of fire or accidents.
Strong and Durable
Made from high-quality materials like brass or stainless steel, these glands resist corrosion, pressure, and impact. Their tough structure ensures reliable performance even in harsh industrial conditions.
Excellent Sealing Performance
Explosion-proof cable glands offer great waterproof and dustproof sealing. Most models reach IP66 or IP68, keeping electrical systems safe from moisture, dust, and gas.
Easy to Install
They are easy to assemble and disassemble without special tools. The design allows quick installation while maintaining high safety standards.
Wide Applications
Commonly used in oil refineries, chemical plants, marine platforms, and mining, they fit both armored and unarmored cables, ensuring flexibility across industries.
Conclusion
Explosion-proof cable glands combine safety, durability, and convenience. With excellent sealing, corrosion resistance, and reliable performance in dangerous areas, they are the ideal choice for protecting electrical systems in explosive environments.
Specifications
unit: mm
| Thread | Range | GLThread Length | AGThread O.D. | HJoint Length | Spanner size | Code | ||
| Mn. | Max. | |||||||
| M20×1.5 | 14 | 21.1 | 10 | 20 | 17 | 24 | HX-BWL-20L | |
| M20×1.5 | 11.7 | 16.1 | 10 | 20 | 17 | 22/23 | HX-BWL-20S | |
| M25×1.5 | 20 | 27 | 10 | 25 | 23 | 34 | HX-BWL-25L | |
| M25×1.5 | 19 | 24 | 10 | 25 | 23 | 31 | HX-BWL-25S | |
| M32×1.5 | 26 | 33.0 | 10 | 32 | 23 | 40 | HX-BWL-32L | |
| M32×1.5 | 24.0 | 30.5 | 10 | 32 | 23 | 36 | HX-BWL-32S | |
| M40×1.5 | 33 | 41 | 10 | 40 | 25 | 45/48 | HX-BWL40L | |
| M40×1.5 | 30 | 37 | 10 | 40 | 25 | 45 | HX-BWL40S | |
| M50×1.5 | 44 | 55.7 | 15 | 50 | 32 | 55/63 | HX-BWL-50L | |
| M50×1.5 | 38.2 | 50.1 | 15 | 50 | 30 | 55 | HX-BWL-50S | |
| M63×1.5 | 56 | 68 | 15 | 63 | 38 | 78 | HX-BWL63L | |
| M63×1.5 | 50 | 62 | 15 | 63 | 38 | 6872 | HX-BWL63S | |
