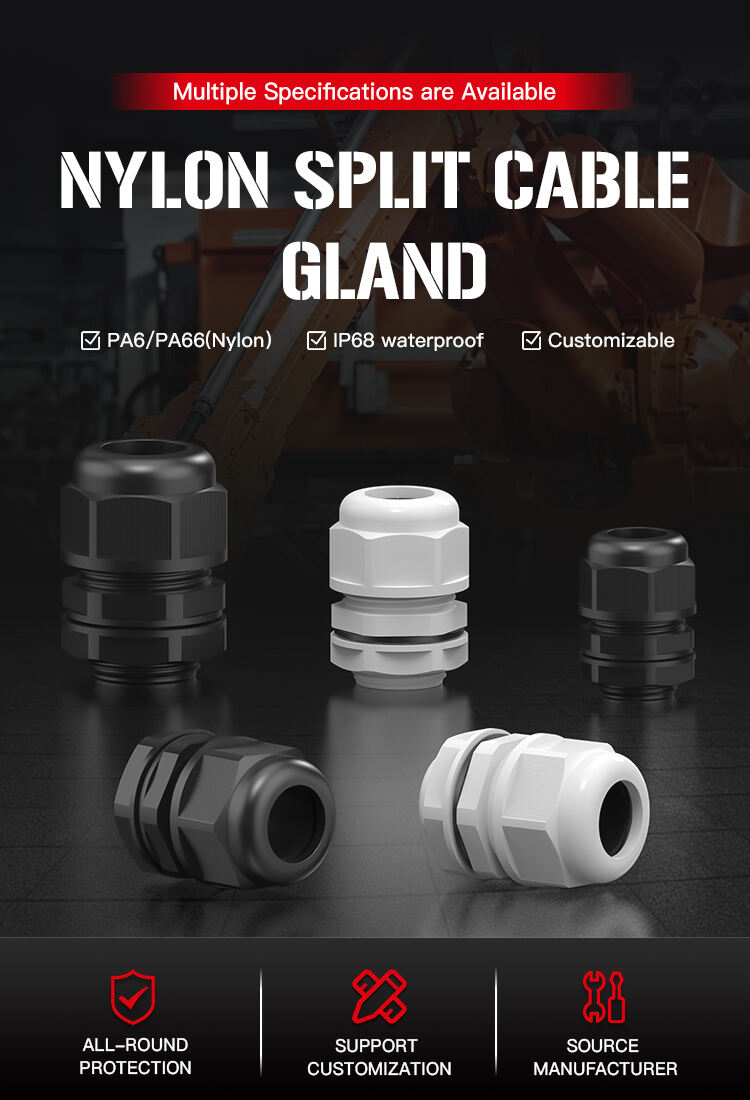

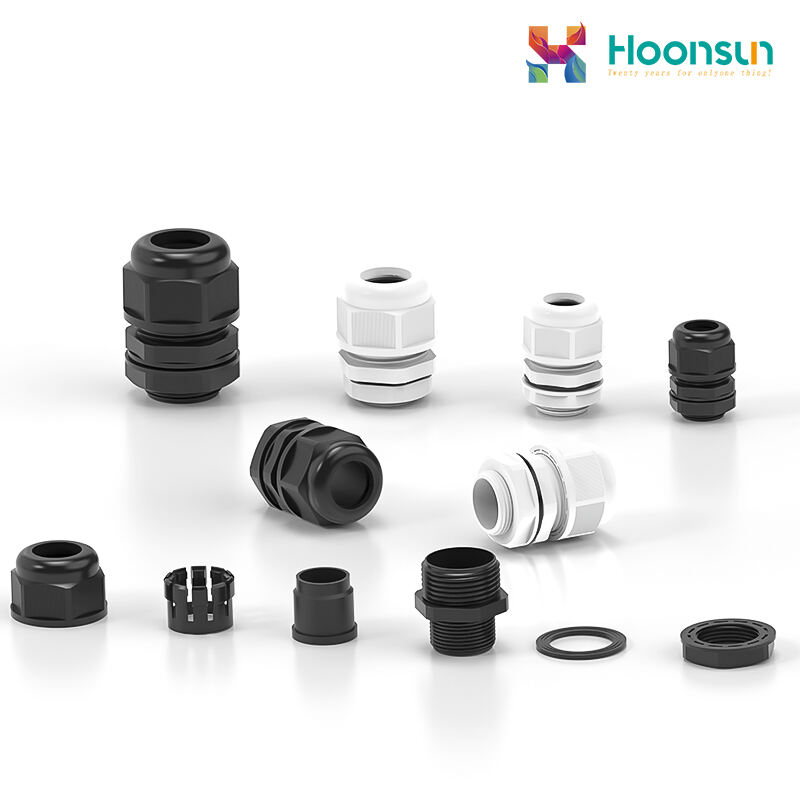

Nylon Split Cable Gland
Split-type convenient assembly and disassembly: Adopts a detachable structure, allowing installation without threading through both ends of the cable. Suitable for scenarios with pre-wired cables, terminated ends, or narrow equipment spaces, significantly reducing the difficulty of later maintenance and modification.
Nylon material advantages: Made of high-quality nylon, lightweight, cost-effective, and anti-aging. With certain impact resistance, it is not easy to deform or crack, suitable for indoor and outdoor general industrial environments, balancing practicality and cost performance.
Reliable sealing protection: Maintains a complete sealing structure even after splitting, with a protection level of IP68. Effectively dustproof, waterproof, and resistant to mild oil stains, isolating external impurities and protecting cable joints from damage.
Flexible and wide adaptation: Compatible with various cable specifications, and the installation angle can be flexibly adjusted after splitting. Suitable for multiple scenarios such as automation equipment, control cabinets, and terminal boxes, especially ideal for post-installation needs in pre-wired systems.
- Overview
- Specifications
- Description
- Recommended Products
Overview
PRODUCT PARAMETER

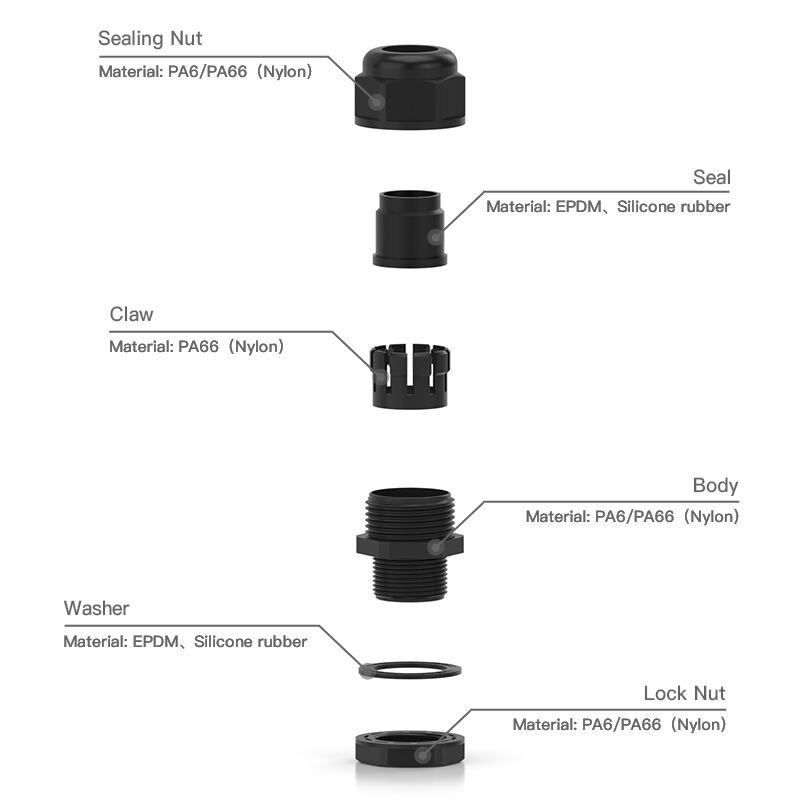

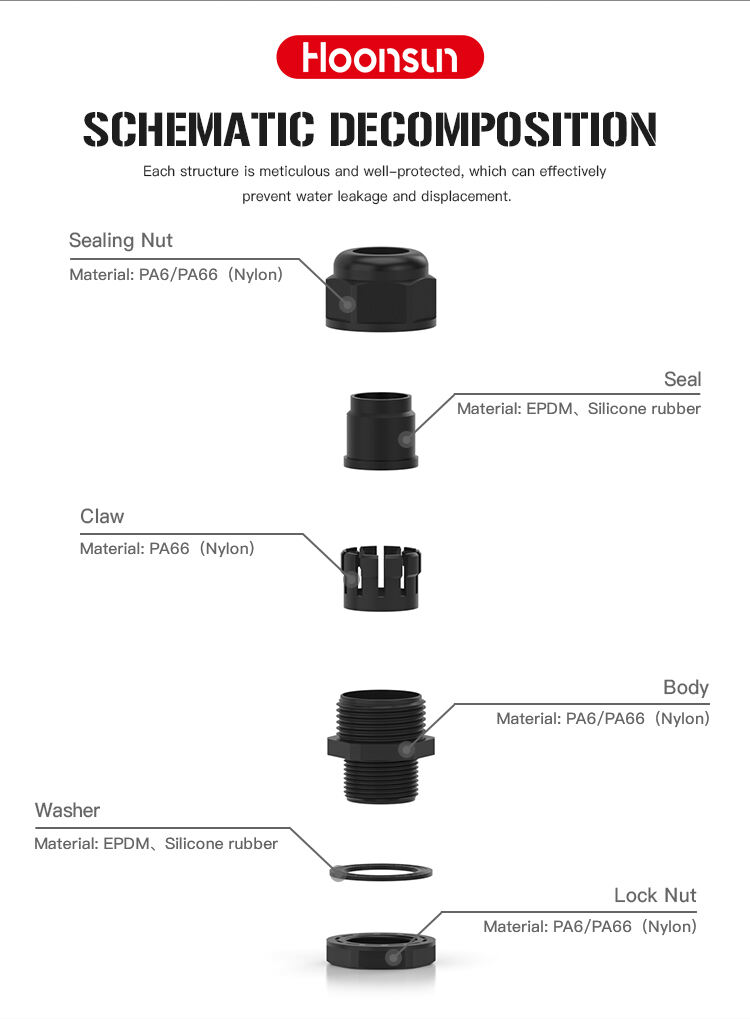

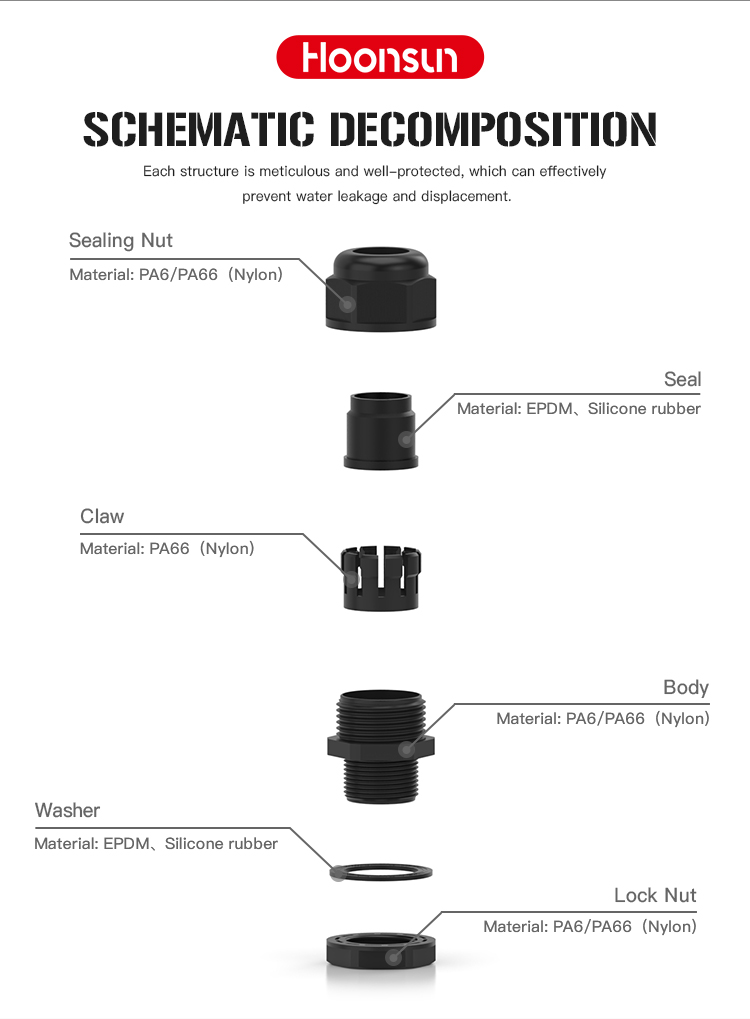

| Fitting Material: | PA6/PA66(Nylon) | |||||||||
| Material For Clamping Jaws: | PA66(Nylon),UL94-V2 | |||||||||
| Material For Sealing Components: | EPDM,Silicone rubber | |||||||||
| O-ring Material: | EPDM,Silicone rubber | |||||||||
| Protection Degree: | IP66-10 bar | |||||||||
| Temperature: |

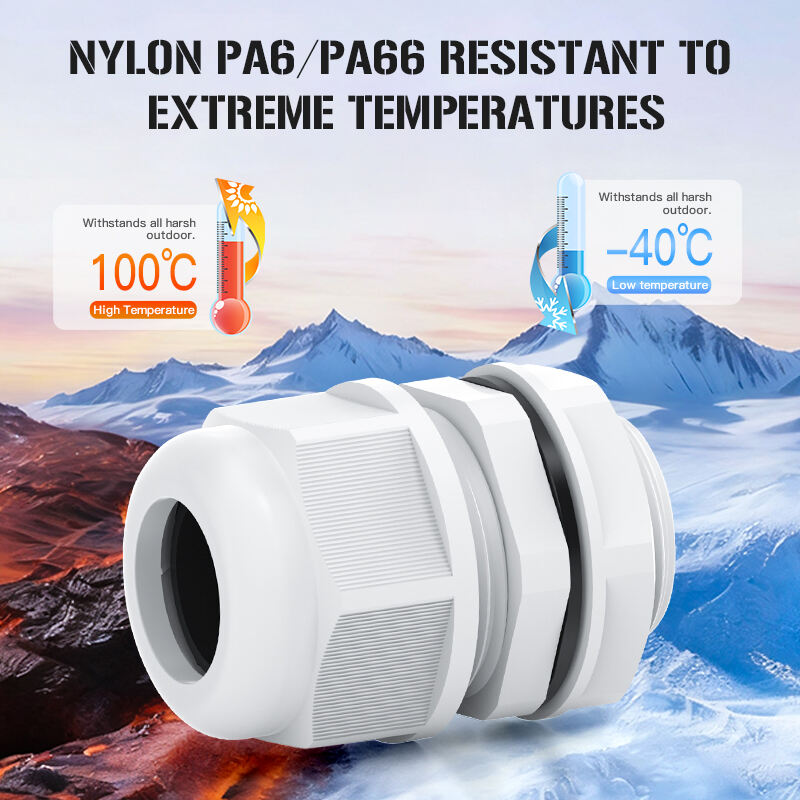

Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃ |
|||||||||
| Color customization: | Grey,Black,other color customized | |||||||||
The Nylon Split Cable Gland is an innovative solution designed for applications requiring cable sealing and strain relief without the need to disconnect pre-terminated cables. Made from high-grade PA66 nylon material, this gland offers superior mechanical performance, flexibility, and long-term durability in both indoor and outdoor environments.
Its split-body design allows users to install or remove the gland easily around existing cables or pre-assembled connectors. This not only saves installation time but also avoids the risk of cable damage. The gland provides a secure IP68-rated seal, protecting cables from water, dust, oil, and other environmental contaminants.
Lightweight yet tough, the nylon construction ensures excellent impact resistance, UV stability, and corrosion protection, making it ideal for automation systems, control cabinets, robotics, renewable energy, and communication equipment.
With available thread types such as PG, NPT, and Metric, the Nylon Split Cable Gland ensures international compatibility and simple integration into various equipment designs. It complies with CE, RoHS, and UL standards, providing a reliable and cost-effective solution for professional cable management.
Key Features
Split design for pre-terminated cable installation
Made from flame-retardant PA66 nylon
IP68 waterproof and dustproof protection
Quick installation and strong strain relief
UV and corrosion resistant
CE / UL / RoHS certified
Specifications
unit: mm
| Item | CR | GL | AG | A&F | Code |
| M12×1.5 | 3-5.5 | 8.5 | 12 | 18/19 | HX-NL.MG12-5.5 |
| M12×1.5 | 4-8 | 8.5 | 12 | 18/19 | HX-NL.MG12-8 |
| M16×1.5 | 4-8 | 10 | 16 | 22/19 | HX-NL.MG16S-8 |
| M16×1.5 | 6-10 | 10 | 16 | 22/22 | HX-NL.MG16-10 |
| M20×1.5 | 6-12 | 10 | 20 | 27/24 | HX-NL.MG20S-12 |
| M20×1.5 | 9-14 | 10 | 20 | 27/27 | HX-NL.MG20-14 |
| M22×1.5 | 6-11 | 10 | 22 | 27/27 | HX-NL.MG22-11 |
| M22×1.5 | 10-14 | 10 | 22 | 27/27 | HX-NL.MG22-14 |
| M25×1.5 | 10-14 | 10 | 25 | 33/27 | HX-NL.MG25S-14 |
| M25×1.5 | 12-16 | 10 | 25 | 33/33 | HX-NL.MG25-16 |
| M25×1.5 | 13-18 | 10 | 25 | 33/33 | HX-NL.MG25-18 |
| M32×1.5 | 15-22 | 15 | 32 | 41/42 | HX-NL.MG32-22 |
| M32×1.5 | 18-25 | 15 | 32 | 41/42 | HX-NL.MG32-25 |
| M40×1.5 | 20-26 | 20 | 40 | 50/52 | HX-NL.MG40-26 |
| M40×1.5 | 24-31 | 20 | 40 | 50/52 | HX-NL.MG40-31 |
| M50×1.5 | 25-33 | 22 | 50 | 62/62 | HX-NL.MG50-33 |
| M50×1.5 | 31-41 | 22 | 50 | 62/62 | HX-NL.MG50-41 |
| M63×1.5 | 39-46 | 25 | 63 | 75/75 | HX-NL.MG63-46 |
| M63×1.5 | 44-51 | 25 | 63 | 75/75 | HX-NL.MG63-51 |
| M75×2.0 | 50-60 | 25 | 75 | 92/92 | HX-NL.MG75-60 |
| M75×2.0 | 56-66 | 25 | 75 | 92/92 | HX-NL.MG75-66 |
| M90×2.0 | 58-68 | 25 | 90 | 110/110 | HX-NL.MG90-68 |
| M90×2.0 | 66-77 | 25 | 90 | 110/110 | HX-NL.MG90-77 |
| ltem | CRφ | GL | AG | A&F | Code | |||||
| PG7 | 3-5.5 | 8 | 12.5 | 17/19 | HX-NL.MPG7-5.5 | |||||
| 4-8 | 8 | 12.5 | 17/19 | HX-NL.MPG7-8 | ||||||
| PG9 | 3-5.5 | 8.2 | 15.2 | 22/19 | HX-NL.MPG9-5.5 | |||||
| 4-8 | 8.2 | 15.2 | 22/19 | HX-NL.MPG9-8 | ||||||
| PG11 | 4-7 | 10 | 18.6 | 24/22 | HX-NL.MPG11-7 | |||||
| 6-10 | 10 | 18.6 | 24/22 | HX-NL.MPG11-10 | ||||||
| PG13.5 | 7-12 | 10 | 20.4 | 27/24 | HX-NL.MPG13.5-12 | |||||
| 10-14 | 10 | 20.4 | 27/24 | HX-NL.MPG13.5-14 | ||||||
| PG16 | 6-11 | 10 | 22.5 | 27/27 | HX-NL.MPG16-11 | |||||
| 10-14 | 10 | 22.5 | 27/27 | HX-NL.MPG16-14 | ||||||
| PG21 | 10-16 | 12 | 28.3 | 36/33 | HX-NL.MPG21-16 | |||||
| 13-18 | 12 | 28.3 | 36/33 | HX-NL.MPG21-18 | ||||||
| PG29 | 15-22 | 12 | 37 | 46/41 | HX-NL.MPG29-22 | |||||
| 18-25 | 12 | 37 | 46/41 | HX-NL.MPG29-25 | ||||||
| PG36 | 20-26 | 14 | 47 | 57/52 | HX-NL.MPG36-26 | |||||
| 24-31 | 14 | 47 | 57/52 | HX-NL.MPG36-31 | ||||||
| PG42 | 25-33 | 15 | 54 | 64/62 | HX-NL.MPG42-33 | |||||
| 31-41 | 15 | 54 | 64/62 | HX-NL.MPG42-41 | ||||||
