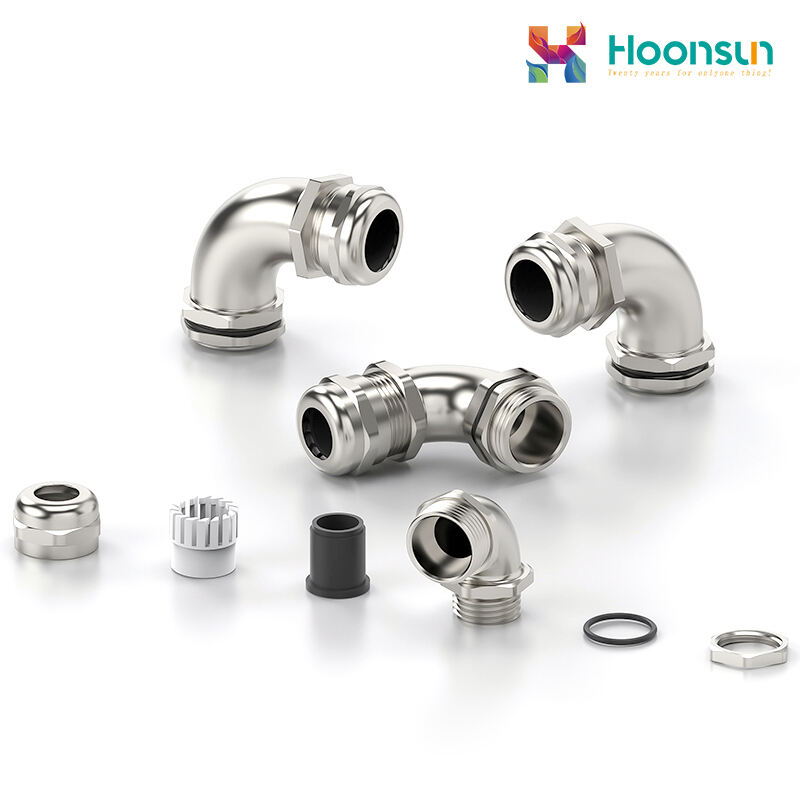

Right angle 90° Cable Gland
90-degree turning design: Bent at a right angle to change cable routing direction. Avoids excessive cable bending that damages the insulation layer, suitable for wiring in tight spaces or corners.
Easy and flexible installation: Compact structure, no complex positioning or adjustment needed. Can be assembled manually or with simple tools, compatible with different cable specifications for strong wiring adaptability.
Basic protection performance: Equipped with sealing, dustproof and anti-pulling functions. Protects cable joints from impurity intrusion and external damage, ensuring stable signal or power transmission.
Multi-scenario adaptation: Suitable for both indoor and outdoor general environments, applicable to industrial equipment, building wiring, electrical control cabinets and other scenarios. Some explosion-proof models can meet the needs of high-risk environments.
- Overview
- Specifications
- Description
- Recommended Products
Overview
PRODUCT PARAMETER
Welcome to Our Website,We Are Happy to Serve You

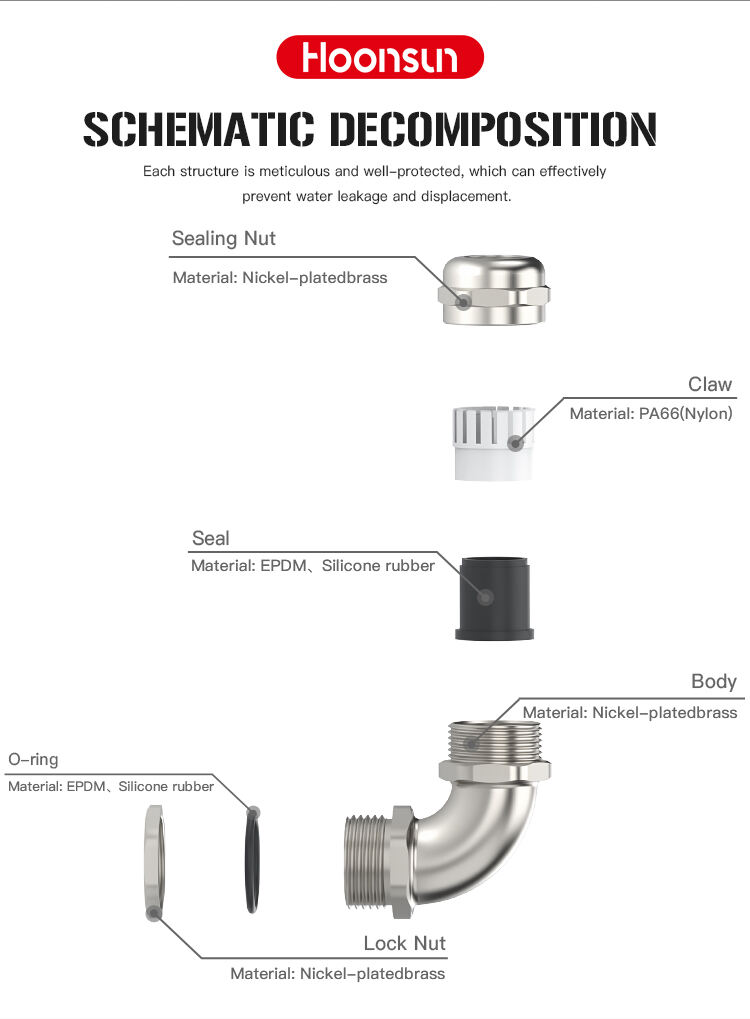

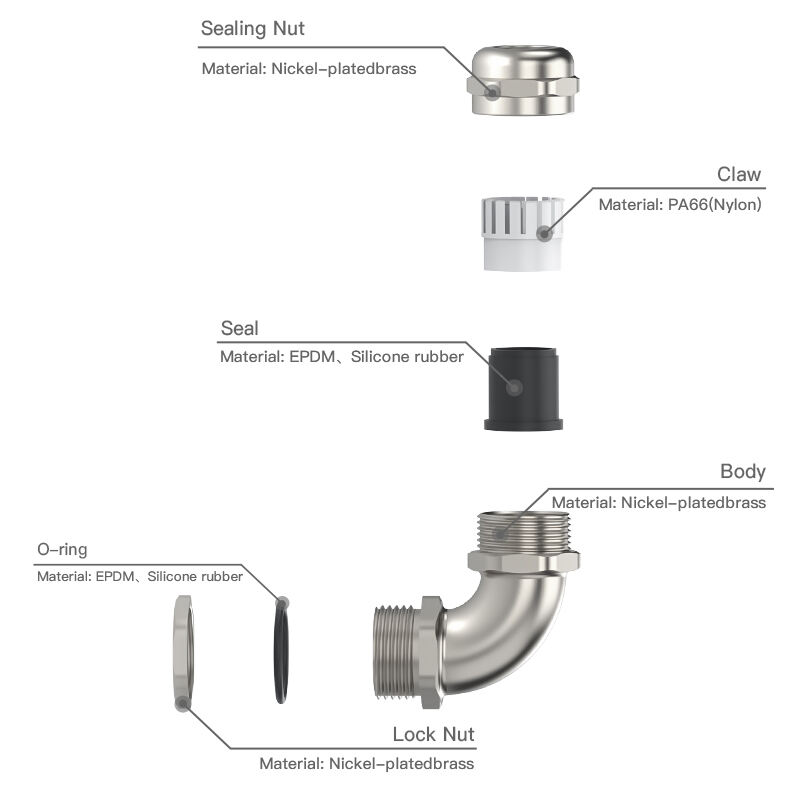

| Fitting Material: | Nickel-platedbrass | ||||||
| Material For Clamping Jaws: | PA66(Nylon),UL94-V2 | ||||||
| Material For Sealing Components: | EPDM,Silicone rubber | ||||||
| O-ring Material: | EPDM,Silicone rubber | ||||||
| Protection Degree: | IP66-10 bar | ||||||
| Temperature: |
Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃ |
||||||
The 90-Degree Cable Gland is a precision-engineered connection solution for applications requiring cable entry at an angle. Its right-angle structure allows efficient routing of cables in confined or space-limited installations while maintaining full mechanical protection and environmental sealing.
Manufactured from nickel-plated brass or stainless steel, the gland offers excellent corrosion resistance, impact strength, and long-term durability. The right-angle design prevents excessive cable bending and mechanical strain, significantly extending cable service life in dynamic or high-vibration environments.

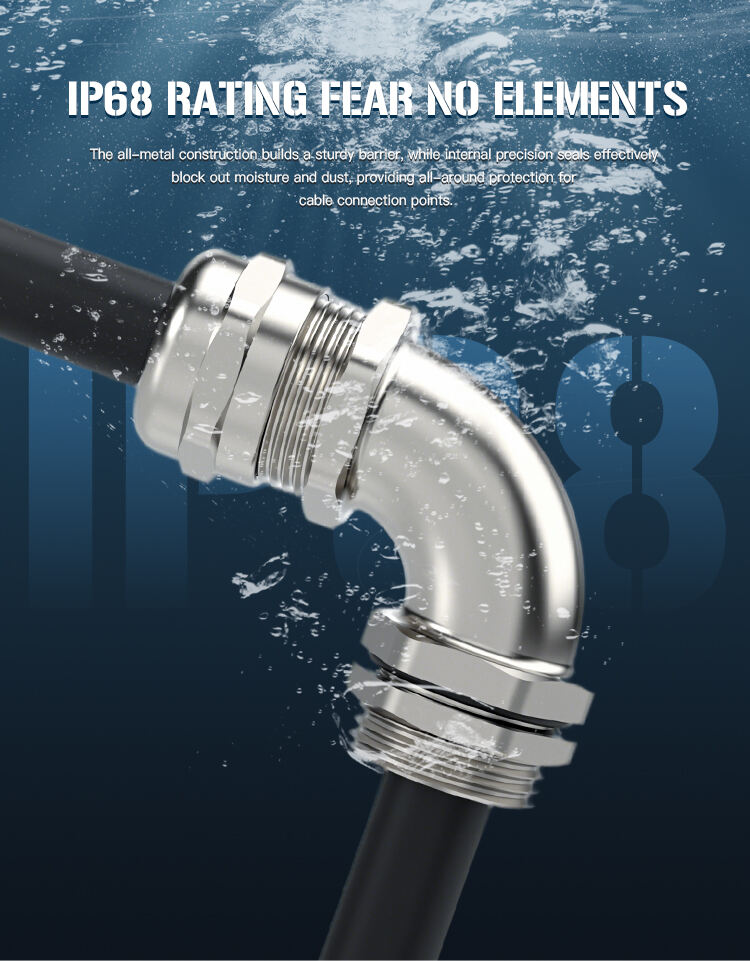

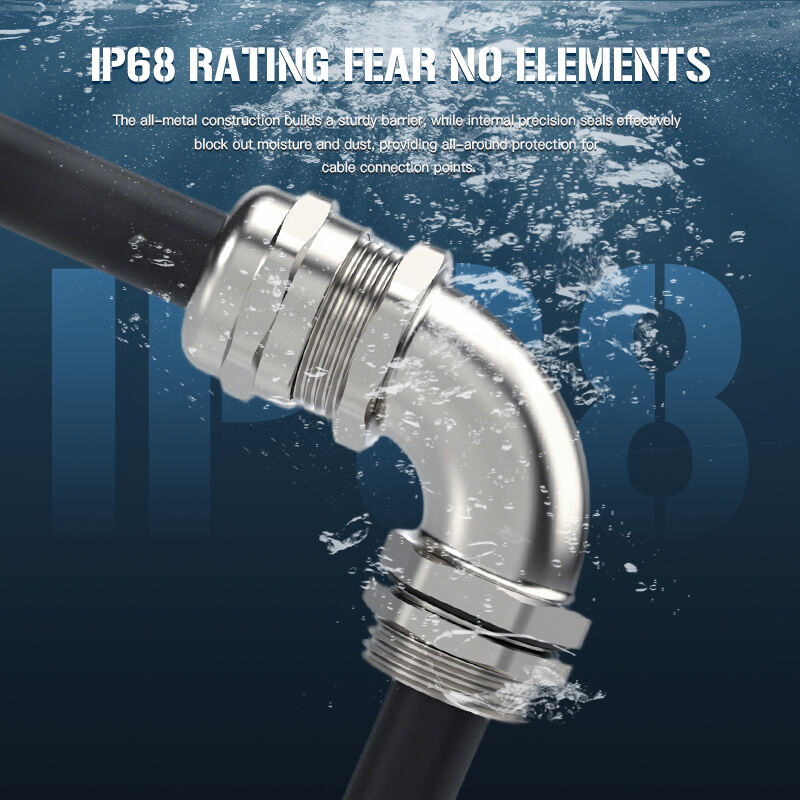

Equipped with a high-quality sealing ring and compression mechanism, the gland provides IP68 waterproof and dustproof protection, safeguarding cables from moisture, oil, and contaminants. It delivers exceptional strain relief and vibration resistance, ensuring stable cable positioning and secure electrical connections even in challenging industrial conditions.
The 90-degree configuration improves cable management efficiency and system aesthetics, making it ideal for control panels, automation systems, marine installations, machinery, and robotics where space and cable routing precision are critical.
Available in PG, NPT, and Metric thread standards, this gland meets CE, UL, and RoHS certifications. Combining superior design, functionality, and reliability, the 90-Degree Cable Gland offers a professional, space-saving solution for modern industrial wiring systems.
Specifications

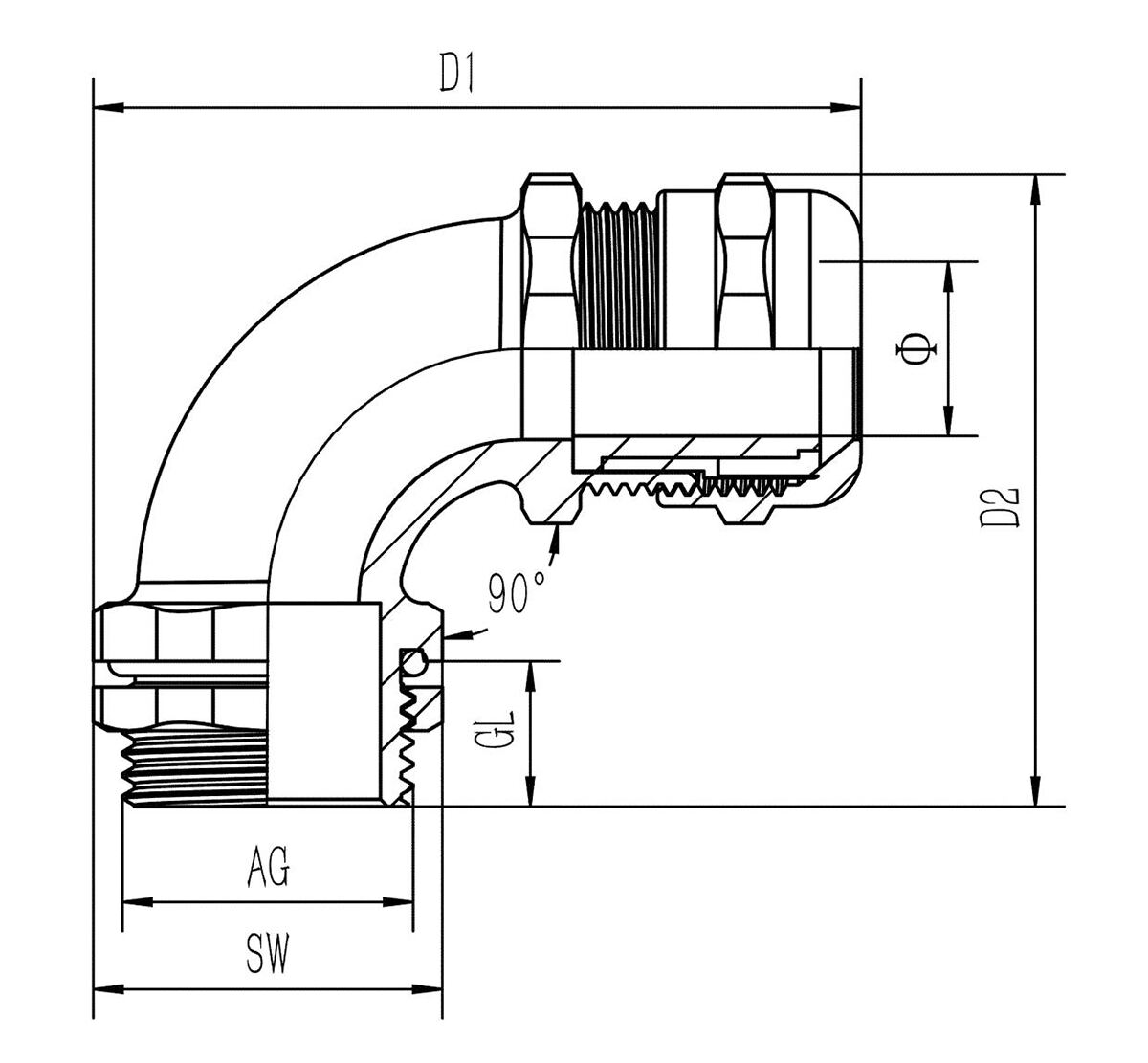

unit: mm
| Item | Range | GLThread Length | Spanner size | D1 | D2 | Code |
| M12×1.5 | 4-8 | 10.0 | 20/22/14 | 53 | 45 | HX-NW.M12-8 |
| M16×1.5 | 4-8 | 10.0 | 20/22/18 | 53 | 44.5 | HX-NW.M16 |
| M20×1.5 | 6-12 | 10.0 | 22/25/22 | 55 | 47 | HX-NW.M20 |
| M25×1.5 | 13-18 | 10.0 | 30/30/27 | 66 | 54 | HX-NW.M25 |
| M32×1.5 | 15-22 | 12.0 | 34/34/35 | 69 | 60 | HX-NW.M32 |
| M40×1.5 | 22-32 | 16.0 | 50/55/43 | 106 | 93 | HX-NW.M40 |
| M50×1.5 | 25-32 | 16.0 | 50/55/55 | 106 | 92 | HX-NW.M50 |
| M63×1.5 | 37-44 | 18.0 | 64/73/68 | 128 | 116 | HX-NW.M63 |
| PG7 | 4-8 | 10.0 | 20/22/14 | 52 | 44 | HX-NW.PG7-8 |
| PG9 | 4-8 | 10.0 | 20/22/18 | 53 | 45.5 | HX-NW.PG9 |
| PG11 | 5-10 | 10.0 | 20/22/20 | 53 | 46.5 | HX-NW.PG11 |
| PG13.5 | 6-12 | 10.0 | 22/24/22 | 55 | 47 | HX-NW.PG13.5 |
| PG21 | 13-18 | 12.0 | 30/35/31 | 68 | 60 | HX-NW.PG21 |
| PG29 | 18-25 | 15.0 | 40/43/40 | 85.5 | 75 | HX-NW.PG29 |
| PG36 | 25-32 | 16.0 | 50/55/50 | 105 | 92 | HX-NW.PG36 |
| PG42 | 25-32 | 16.0 | 50/55/55 | 106 | 92 | HX-NW.PG42 |
| PG48 | 37-44 | 18.0 | 64/73/68 | 128 | 116 | HX-NW.PG48 |
| G/NPT threads are avllable | ||||||
