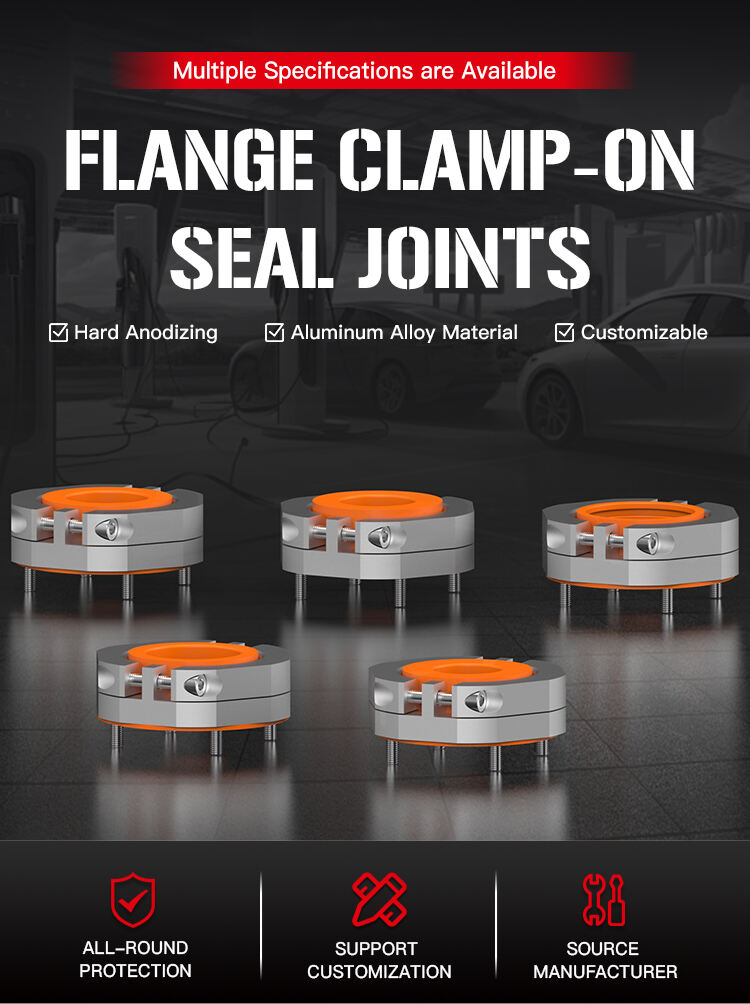

Flange Clamp - on Seal Joints

Flange clamping fixation: Adopts flange + bolt locking structure, ensuring tight connection and strong load-bearing capacity. Firmly fixes large-diameter or heavy cables, effectively resisting loosening caused by strong pulling and vibration to guarantee connection stability.

High-grade sealing protection: Precision sealing structure, reaching IP67 and above protection level. Excellent dustproof, waterproof, oilproof and corrosion-resistant performance, suitable for harsh working conditions such as high pressure, humidity and high impurity content.

Adaptation to large-specification needs: Specifically designed for large-diameter cables and heavy-duty equipment, compatible with various thick-specification cables. Meets high standards for joint load-bearing and sealing in industrial equipment, large units and other applications.

Stable installation and strong adaptability: Installed through flange positioning, achieving better sealing when fitting the equipment surface. Compatible with different equipment interfaces, the structure remains stable after installation, and is not prone to deformation or leakage during long-term use.

Overview
Specifications
Description
Recommended Products

Overview

PRODUCT PARAMETER

Welcome to Our Website,We Are Happy to Serve You

Fitting Material:				Aluminum Alloy
Surface Treatment:				Hard Anodizing
Temperature:				-40℃~+150℃
Flammability Rating:				VO
Ingress Protection:				IP55
Tensile Strength value:				≥200N(Static)
When to use it:				High-voltage DC Charging Pile It needs to be disassembled and assembled several times No custom wrenches are required Customized colors are available

The Flange Tightening Connector is a professional-grade mechanical fitting engineered to provide robust and leak-proof connections between conduits and equipment housings. Manufactured from nickel-plated brass or stainless steel, it delivers excellent mechanical stability, corrosion resistance, and sealing performance under harsh industrial conditions.

Its flanged compression design ensures superior clamping force and vibration resistance, maintaining a stable connection even in high-stress or high-pressure applications. The integrated sealing ring provides IP68 waterproof and dustproof protection, effectively preventing ingress of moisture, oil, or contaminants.

Ideal for automation systems, marine installations, heavy machinery, and energy distribution equipment, the connector enhances both structural reliability and cable protection. It also simplifies installation while maintaining secure grounding continuity.

Available in PG, NPT, and Metric threads, the Flange Tightening Connector complies with CE, UL, and RoHS standards, making it a trusted component for modern electrical and mechanical systems requiring high precision, durability, and safety.

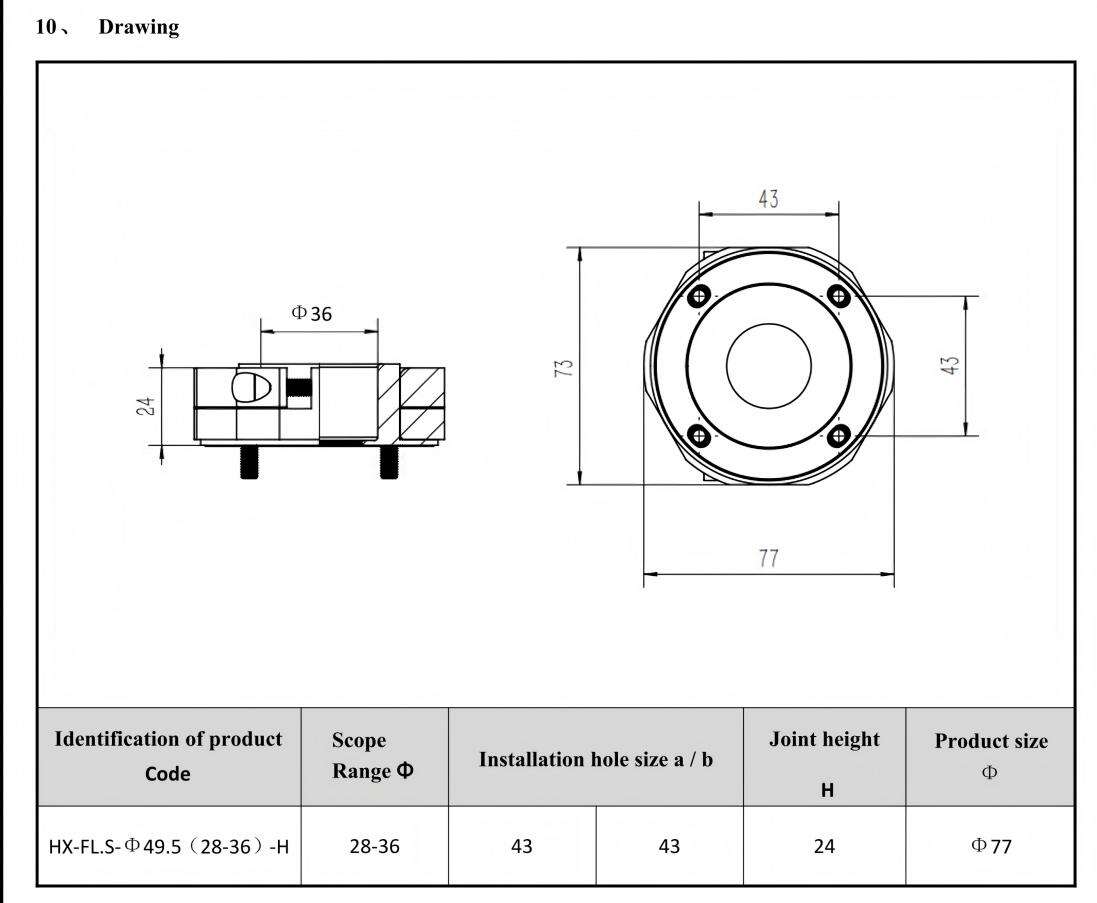

Specifications

unit: mm

Item	mm	a/bmm	SW/Amm	H	ML	L=30/16	Code
φ49.5(3442)-H	34-42	21.5/21.5	73/477	24	M530/M516	2/4	HX-FLφ49.5(34-42)-H
φ49.5(3442)-H	34-42	21.5/21.5	73/477	24	M530/M516	2/4	HX-FLφ49.5(34-42)-H(black)
φ49.5(28-36)-H	28-36	21.5/21.5	73/477	24	M530/M516	2/4	HX-FLφ49.5(28-36)-H
φ49.5(28-36)-H	28-36	21.5/21.5	73/477	24	M530/M516	2/4	HX-FLφ49.5(28-36)-H(black)
φ49.5(23-31)-H	23-31	21.5/21.5	73/477	24	M530/M516	2/4	HX-FLφ49.5(23-31)-H
φ49.5(23-31)-H	23-31	21.5/21.5	73/477	24	M530/M516	2/4	HX-FLφ49.5(23-31)-H(black)
