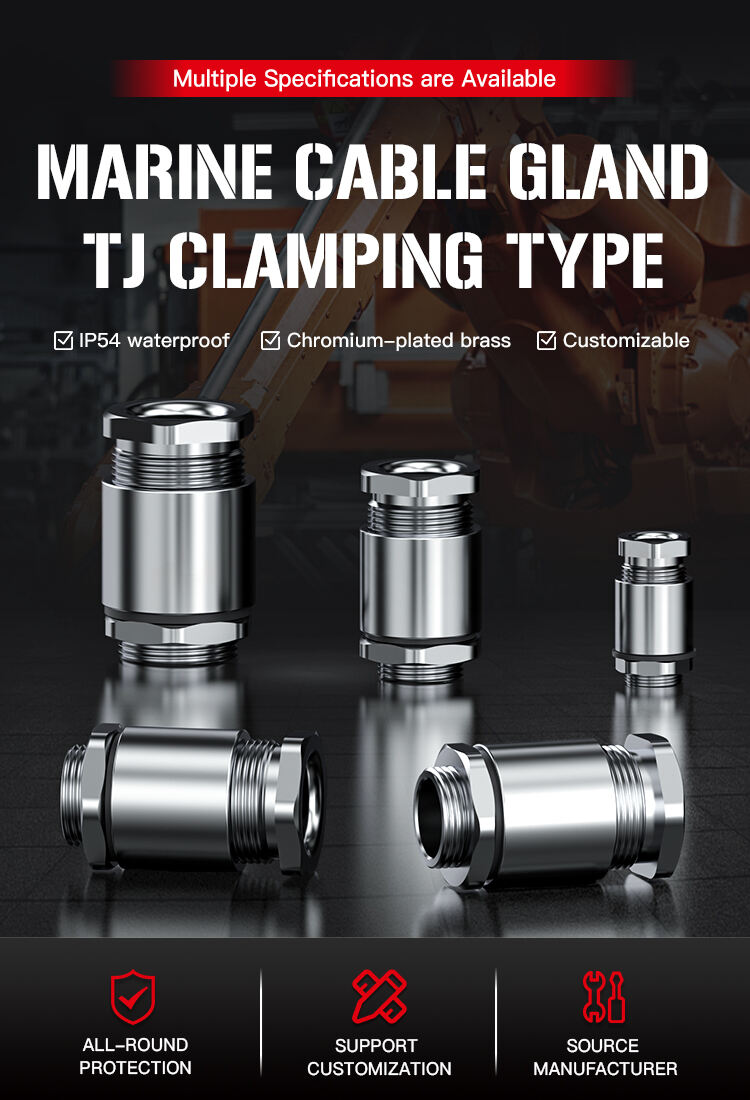

Marine Cable Gland - TJ standard Type
High-Quality Material: Usually made of brass with chrome plating; some products have brass with nickel plating shells. It has high corrosion resistance and mechanical strength, adapting to harsh marine environments such as humidity and salt spray.

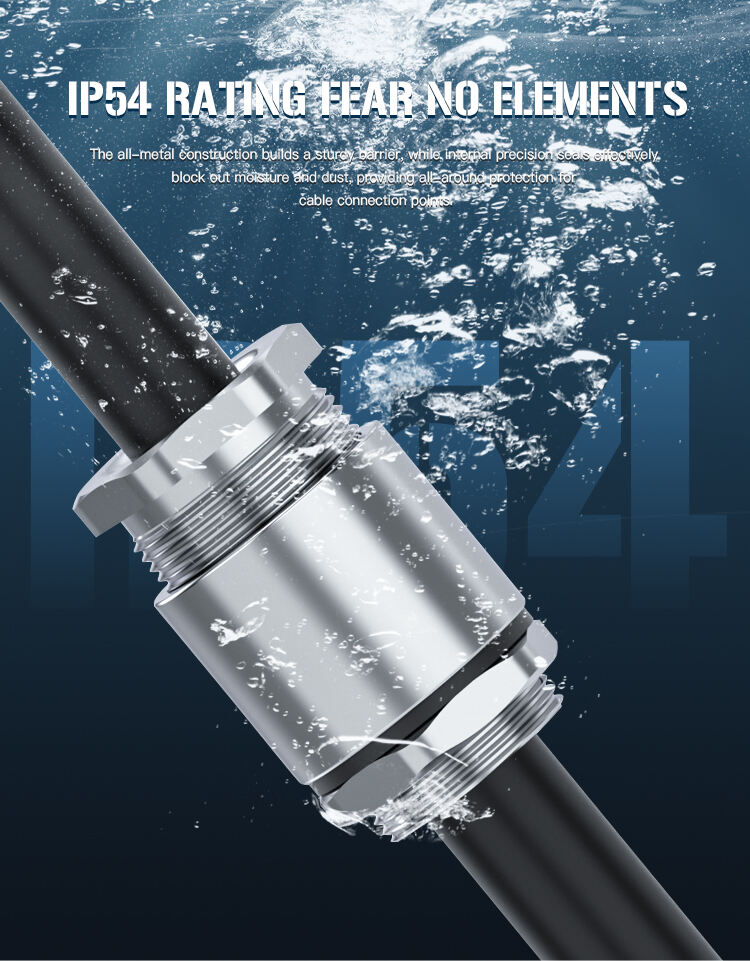

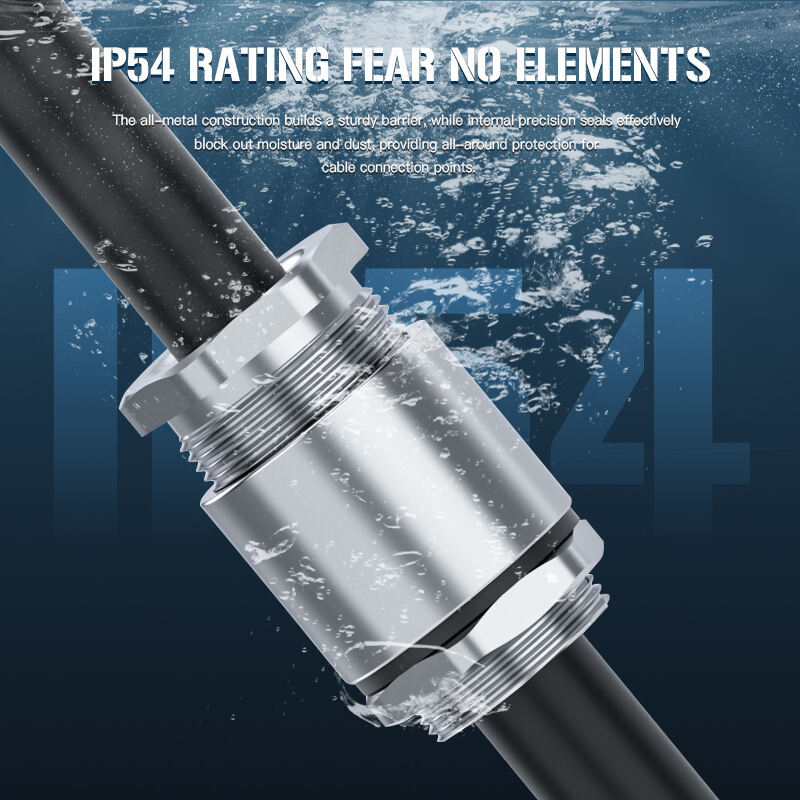

Reliable Protection Performance: Within the specified bayonet range, the protection level can reach IP54 by tightening the clamping body or using an O-ring to compress the gland, effectively providing dustproof and waterproof protection. Some products can reach IP68 with more excellent waterproof performance.

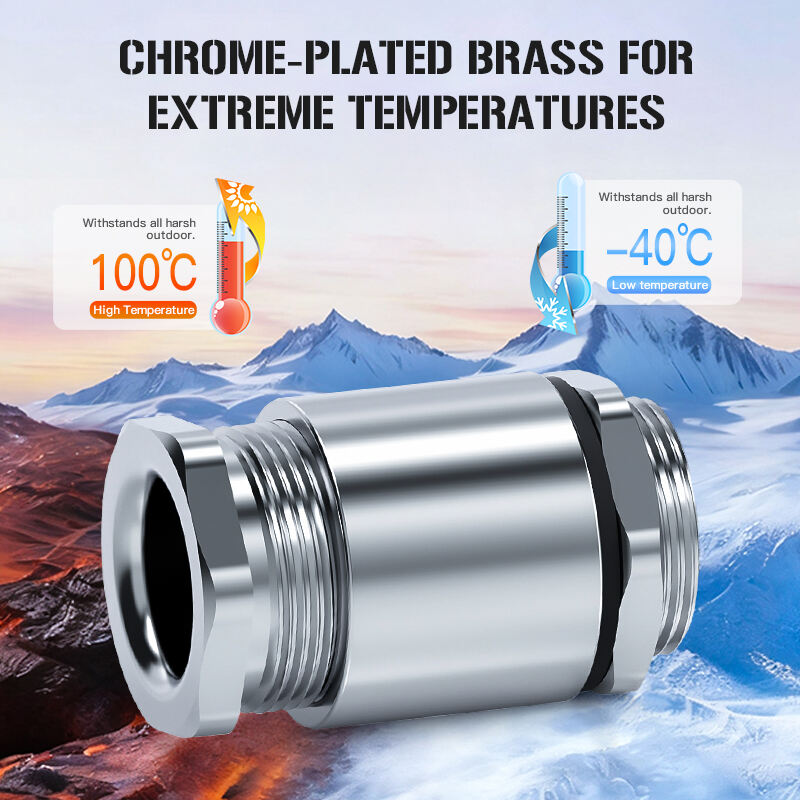

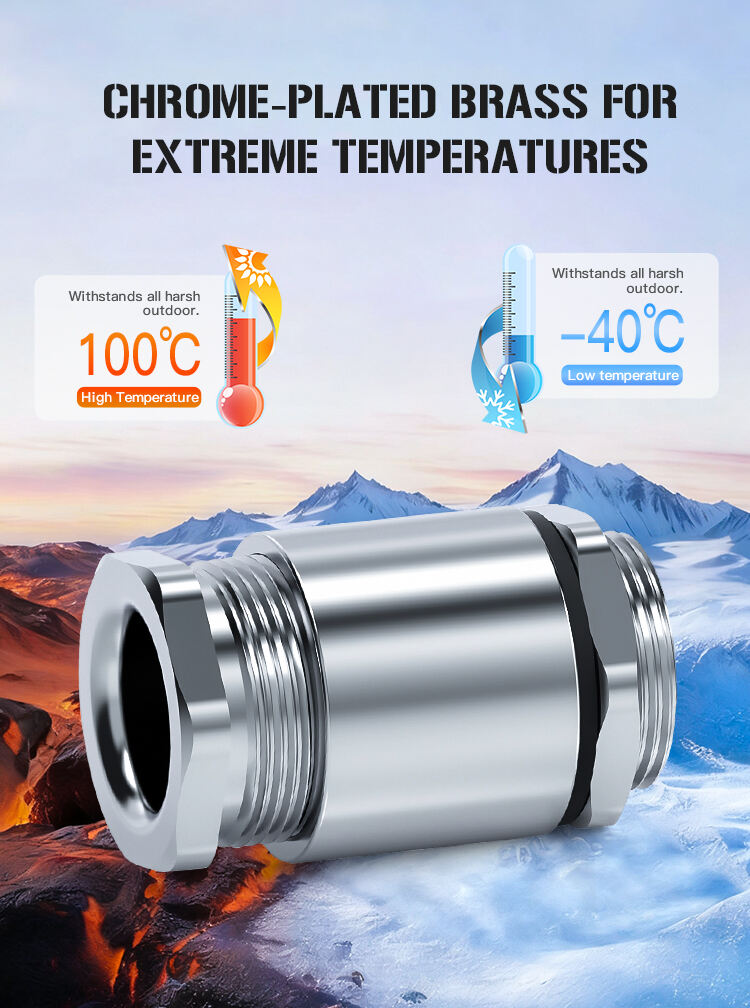

Wide Operating Temperature Range: Static operating temperature ranges from -40℃ to 110℃ (up to 120℃ for a short time); dynamic operating temperature ranges from -20℃ to 80℃ (up to 100℃ for a short time), meeting the usage needs of ships under different working conditions.
Strong Adaptability: Various thread specifications (e.g., M16×1, M20×1.5) are available, compatible with a wide range of cable outer diameters from 5-7mm to 48-57mm, with broad application scope.
- Overview
- Specifications
- Description
- Recommended Products
Overview
PRODUCT PARAMETER
Welcome to Our Website,We Are Happy to Serve You

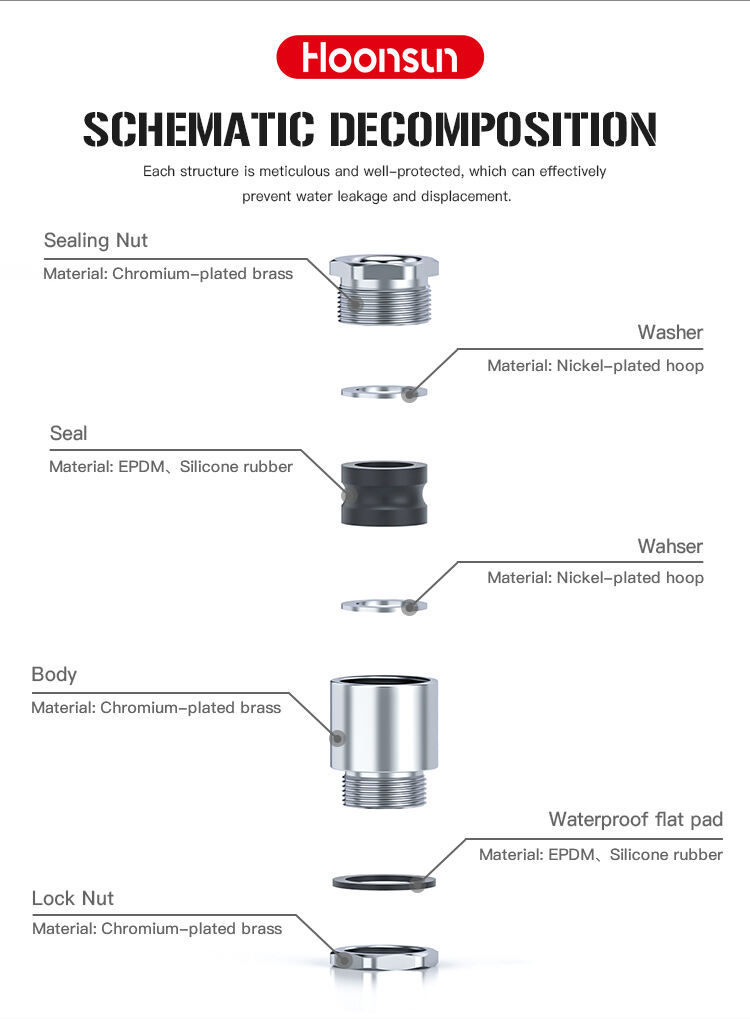

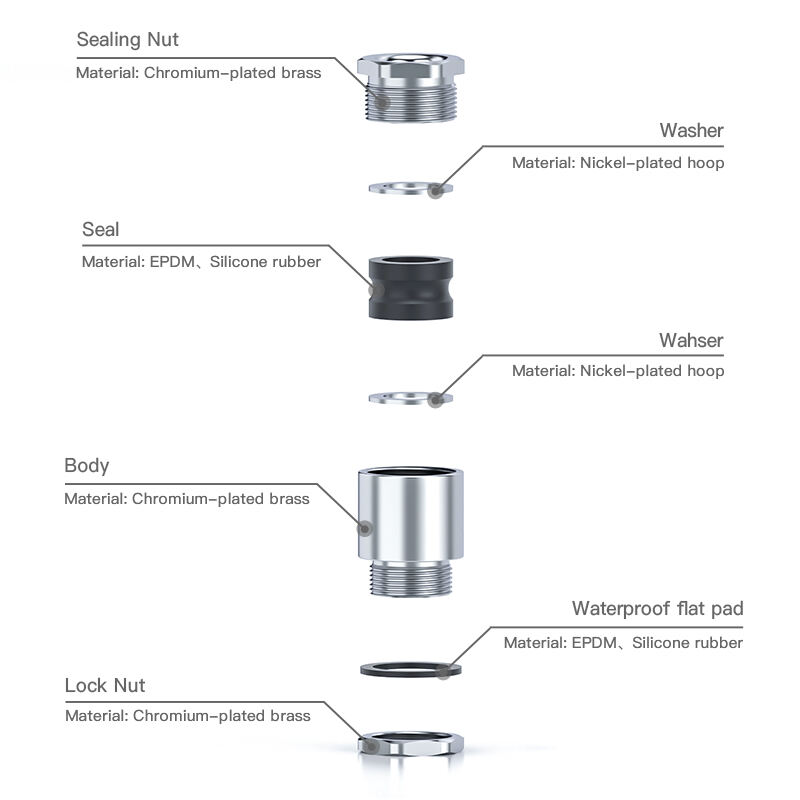

| Fitting Material: | Chromium-plated brass | |||||||
| Material For Sealing Components: | EPDM,Silicone rubber | |||||||
| O-ring Material: | EPDM,Silicone rubber | |||||||
| Metal Washer: | Nickel-plated hoop | |||||||
| Protection Degree: | IP54 | |||||||
| Temperature: | Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃ | |||||||
Meta Description
High-quality marine cable gland with excellent corrosion resistance, waterproof sealing, and long-term reliability for harsh offshore environments.
Product Advantages
• Superior Corrosion Resistance
Made from 316 stainless steel or nickel-plated brass, the marine cable gland provides outstanding protection against saltwater, humidity, and chemical corrosion. Ideal for ships, ports, and offshore platforms.
• Excellent Waterproof and Dustproof Performance
Rated up to IP68, ensuring perfect sealing under high humidity or water immersion. Prevents moisture, oil, and dust from entering cable junctions.
• Strong Mechanical Protection
Engineered for high vibration and impact resistance, maintaining cable stability even in rough sea conditions.
• Wide Temperature Range
Performs reliably from -40°C to +120°C, suitable for extreme marine and coastal environments.
• Flame-Retardant and Safe
Complies with marine safety standards, offering flame-retardant and anti-explosion properties to ensure operational safety on board.
• Easy Installation and Maintenance
Compatible with PG, NPT, and Metric threads for global use. Designed for quick assembly and replacement, reducing maintenance time.
• Long Service Life
High-strength materials and precision sealing components guarantee durability and long-term reliability in offshore conditions.

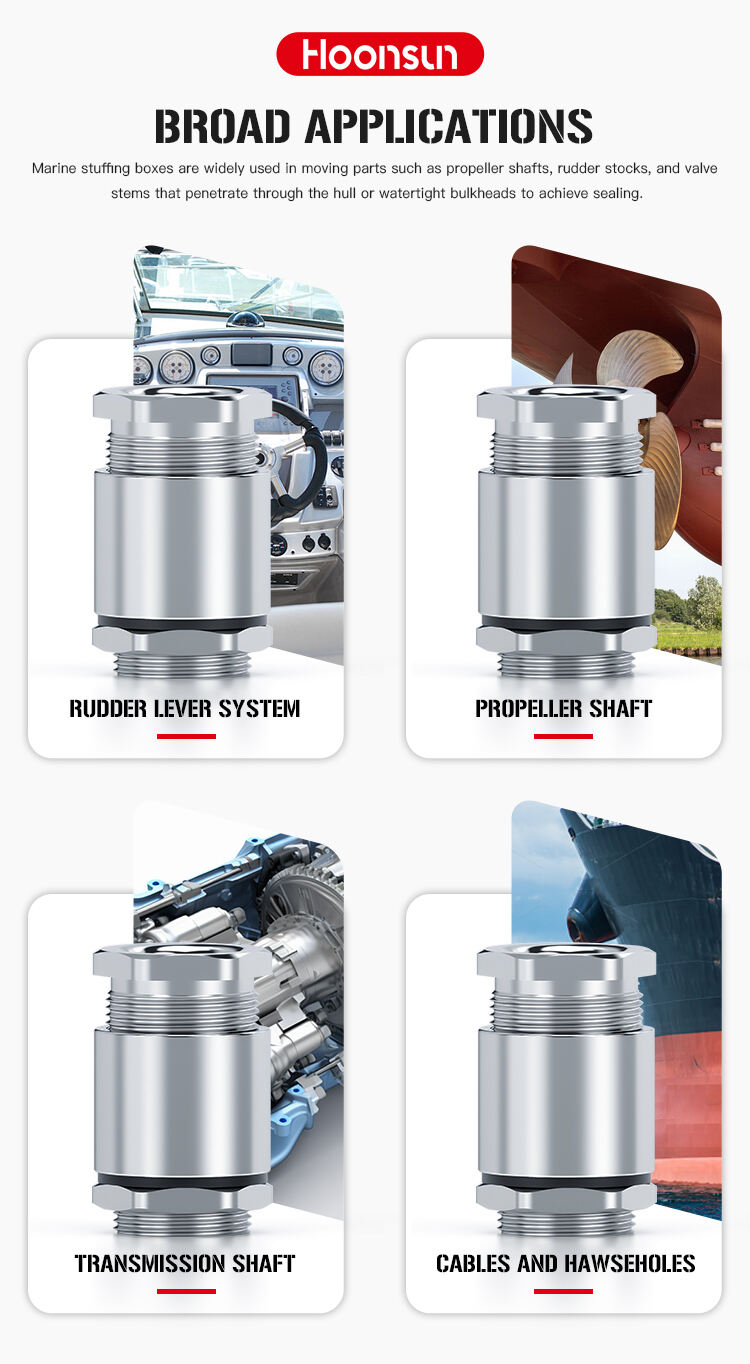

Applications
Ship electrical control systems
Offshore oil platforms
Marine lighting and navigation equipment
Ship communication systems
Port and dockside power systems
Key Benefits
316 stainless steel, anti-corrosion & rustproof
IP68 waterproof and dustproof
Vibration-resistant & flame-retardant
Works in harsh saltwater environments
Complies with CE, UL, and marine standards
Specifications
unit:mm
| Item | Range | AGThread | GLThread Length | DBody OuterDiameter | HJoint Length | Spanner size | Code |
| TJ8 | 5-7 | M14×1 | 9 | 19 | 28 | 18 | HX-TJ8 |
| TJ13 | 6-12 | M18×1 | 10 | 24 | 35 | 22 | HX-TJ13 |
| TJ16 | 11-15 | M22×1.5 | 12 | 31 | 40 | 30 | HX-TJ16 |
| TJ19 | 1418 | M27×1.5 | 12 | 34.5 | 42 | 32 | HX-TJ19 |
| TJ24 | 17-23 | M30×1.5 | 12 | 40 | 44 | 36 | HX-TJ24 |
| TJ28 | 22-27 | M36×1.5 | 15 | 46.5 | 46 | 45 | HX-TJ28 |
| TJ34 | 26-33 | M42×2 | 15 | 54 | 48 | 50 | HX-TJ34 |
| TJ42 | 32-41 | M52×2 | 15 | 60 | 54 | 57/59 | HX-TJ42 |
| TJ50 | 40-49 | M58×2 | 15 | 69 | 56 | 64/68 | HX-TJ50 |
| TJ58 | 48-57 | M68×2 | 20 | 77.5 | 60 | 76 | HX-TJ58 |
