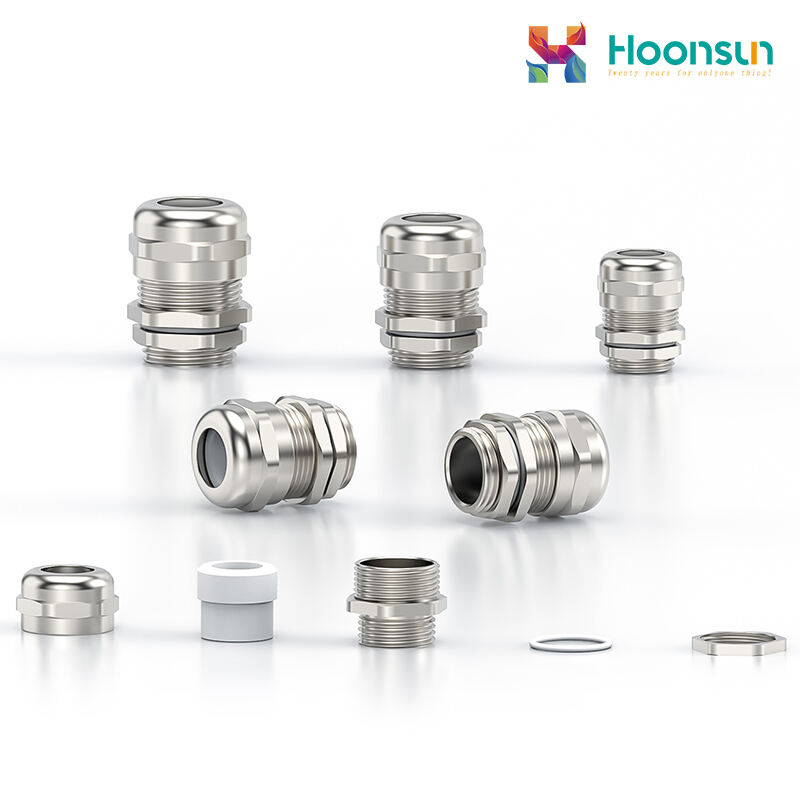

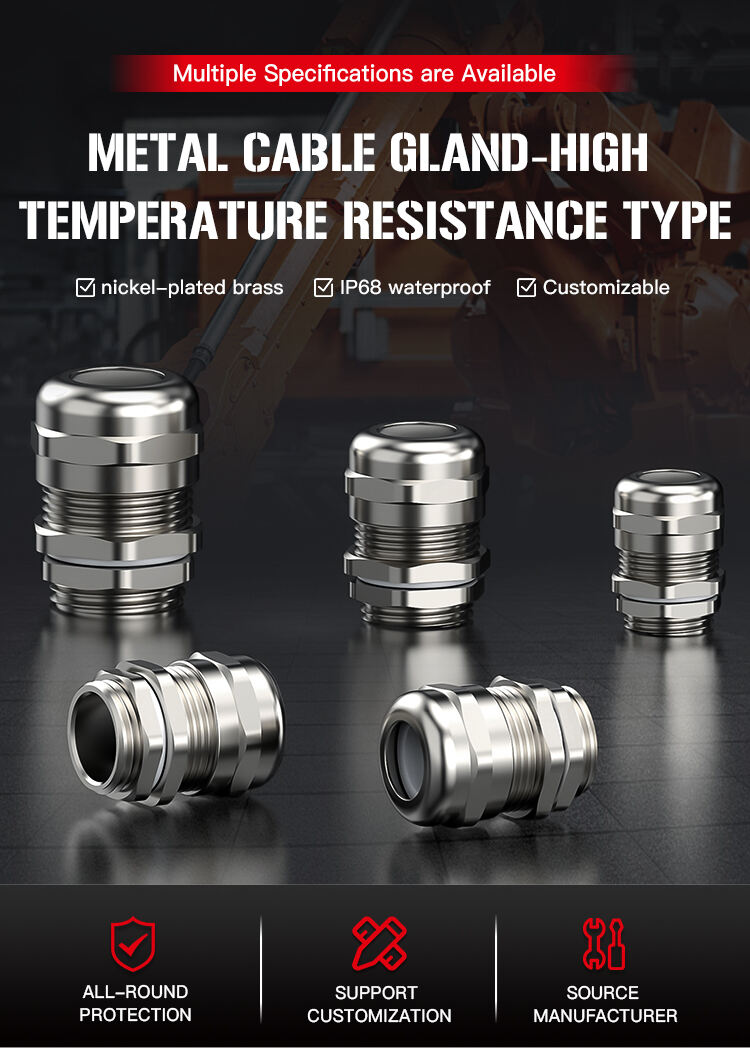

Metal Cable Gland-High Temperature Resistance Type NGS
The Metal High-Temperature Cable Gland provides exceptional performance in environments where standard glands cannot withstand heat or thermal stress.
- Overview
- Specifications
- Description
- Recommended Products
Overview
PRODUCT PARAMETER
Welcome to Our Website,We Are Happy to Serve You

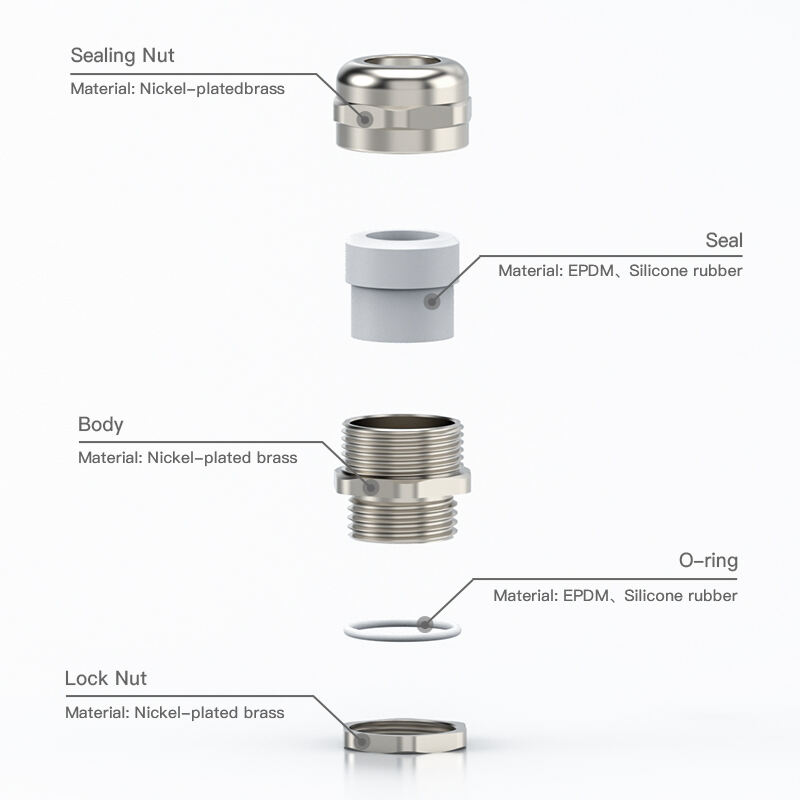

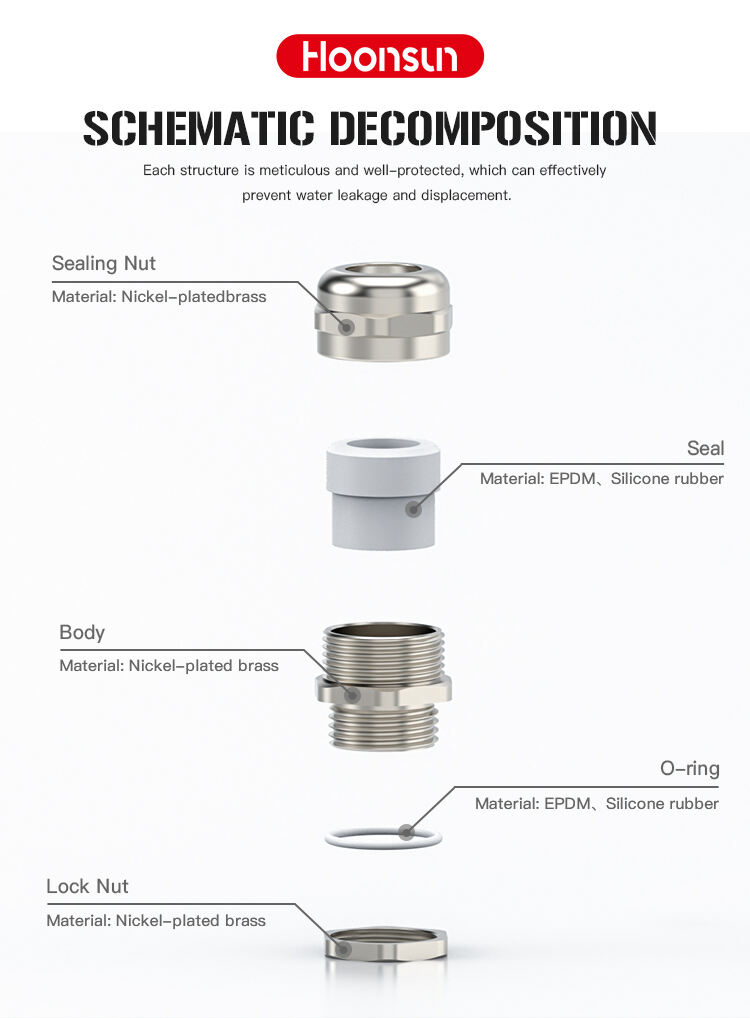

| Fitting Material: | Nickel-platedbrass | |||||
| Material For Sealing Components: | EPDM, Silicone rubber | |||||
| O-ring Material: | EPDM, Silicone rubberr | |||||

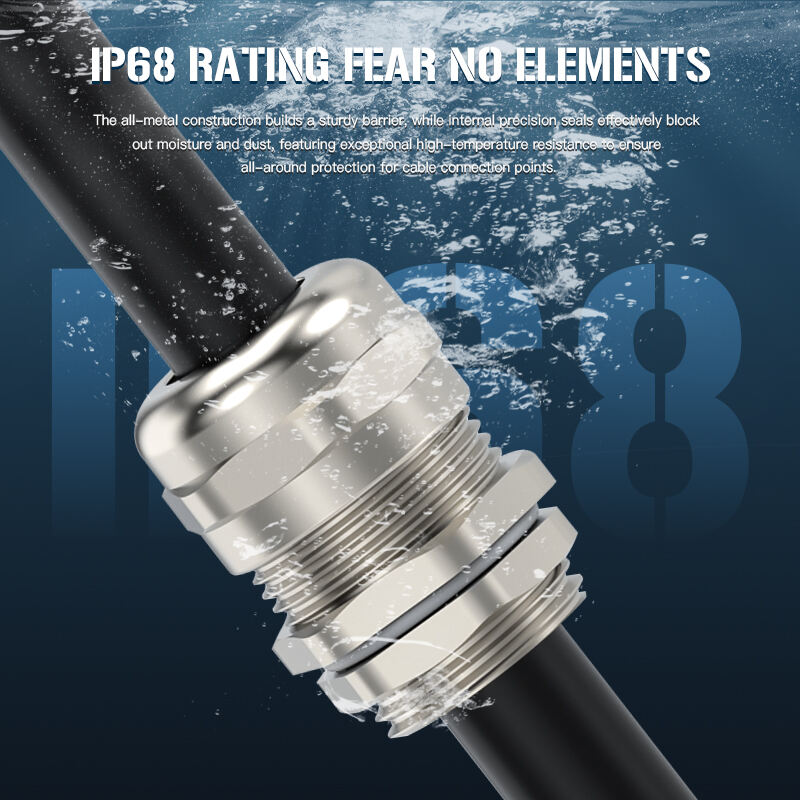

| Protection Degree: | IP68-10 bar | |||||

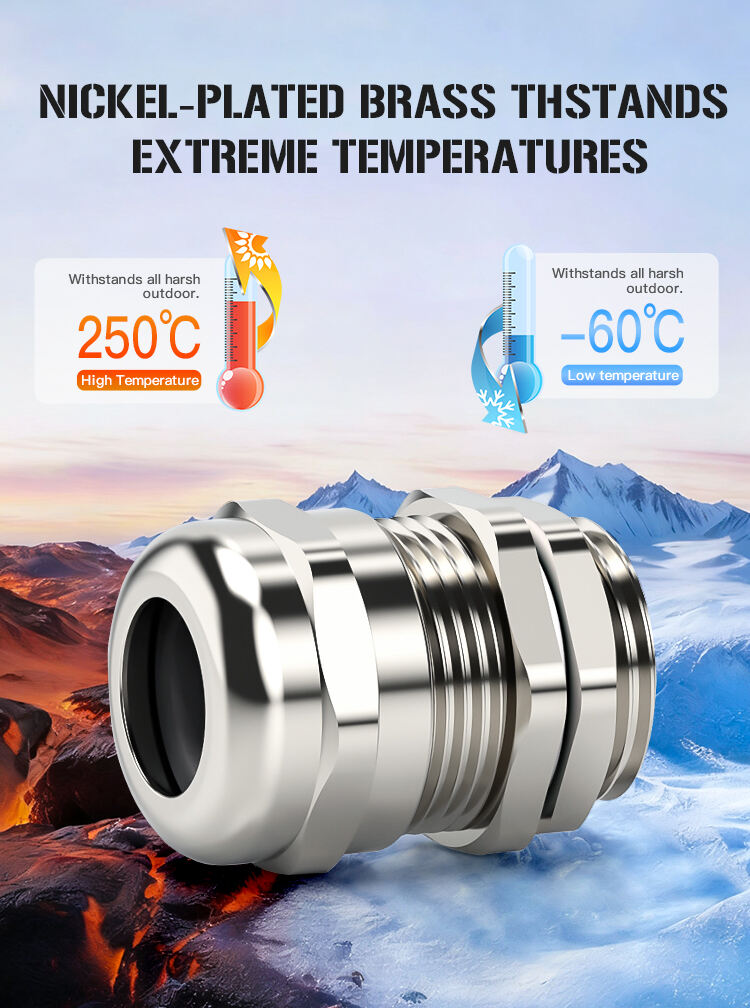

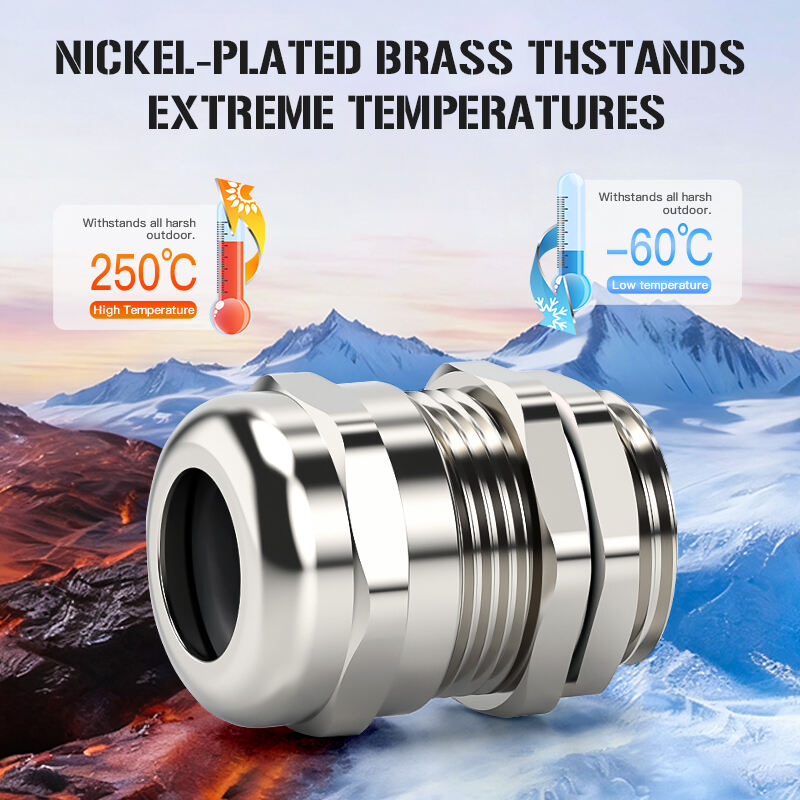

| Temperature: | Static state:-60 to 250℃ | |||||
The Metal High-Temperature Cable Gland provides exceptional performance in environments where standard glands cannot withstand heat or thermal stress. Made from 316 stainless steel with specialized heat-resistant seals (silicone or fluororubber), it operates reliably in temperatures ranging from -60°C to +250°C.

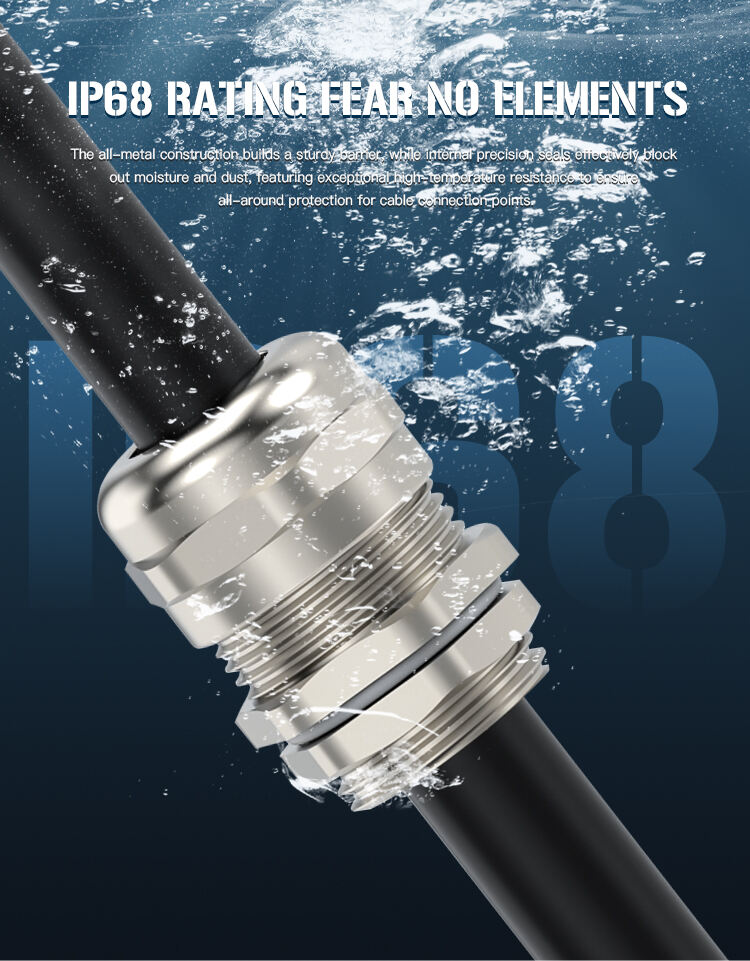

Its superior material composition offers thermal stability, corrosion resistance, and mechanical durability, ensuring the gland maintains sealing integrity even under continuous high-temperature operation. The IP68-rated protection prevents the ingress of dust, oil, or steam, maintaining electrical safety and reliability.

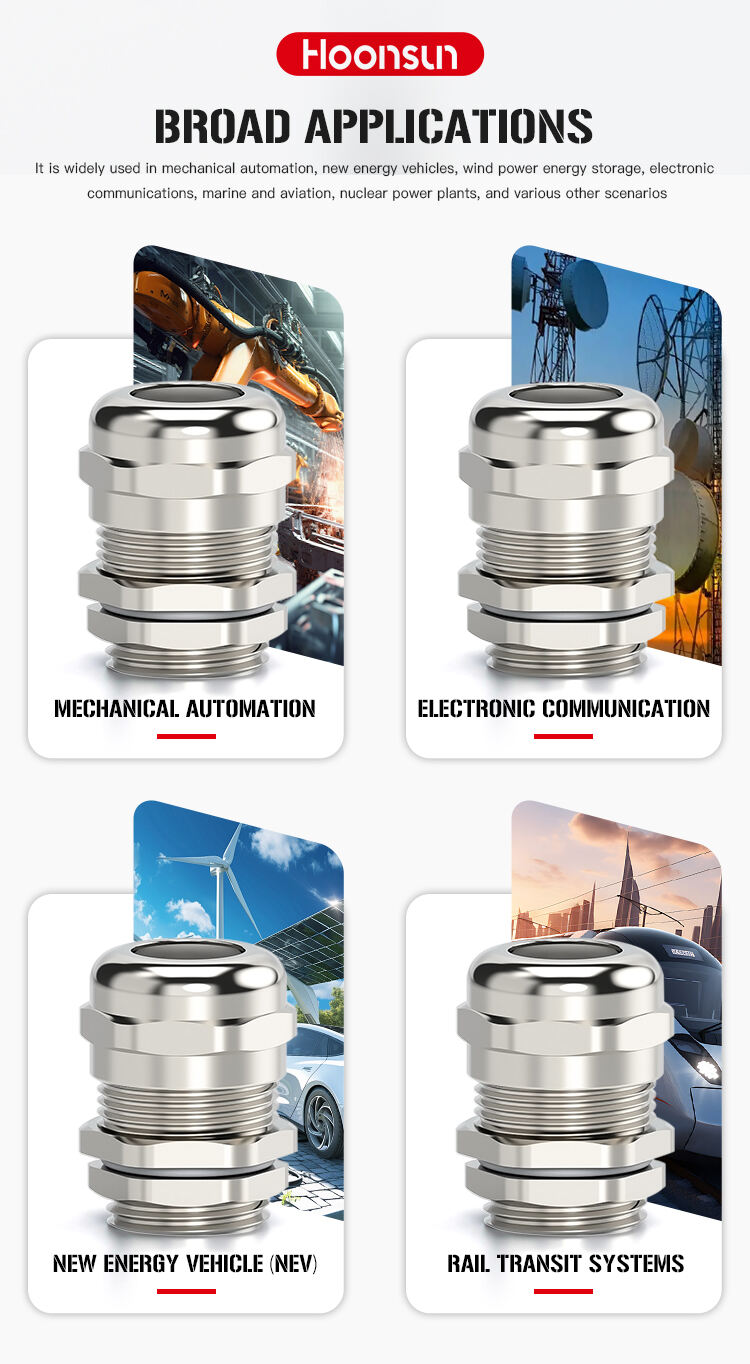

Engineered for industrial furnaces, metallurgical systems, energy plants, and high-heat automation equipment, the gland resists oxidation and thermal expansion, providing long service life with minimal maintenance.
The product supports PG, NPT, and Metric threads, ensuring easy installation across global applications. It fully complies with IEC and CE standards, providing engineers with a professional-grade high-temperature sealing solution that ensures system stability and safety under extreme thermal conditions.
Specifications

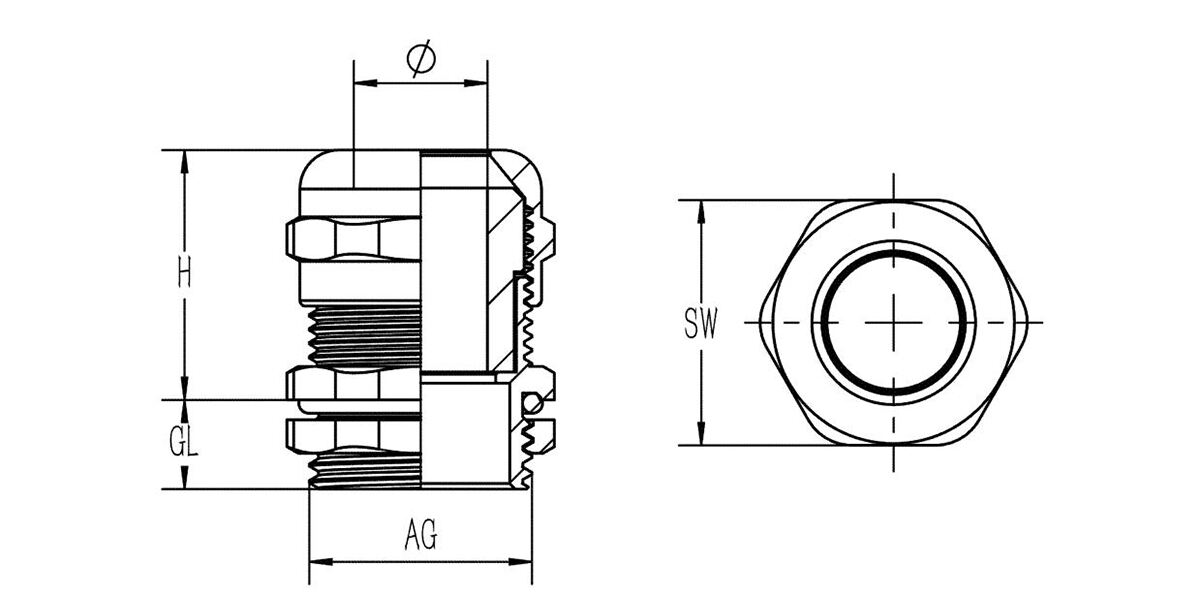

unit: mm
| Item | Range | GLThread Length | AGThread O.D. | HJoint Length | Spanner size | Code |
| M8×1 | 2-5 | 5 | 8.0 | 13.5 | 12 | HX-NGS.M8-5 |
| M10×1.0 | 3-6.5 | 6.5 | 10.0 | 17 | 14 | HX-NGS.M10-6.5 |
| M12×1.5 | 3-6.5 | 7 | 12.0 | 17.0 | 14 | HX-NGS.M12-6.5 |
| M14×1.5 | 4-8 | 8.0 | 14.0 | 18 | 17 | HX-NGS.M148 |
| M16×1.5 | 4-8 | 8 | 16.0 | 19 | 18 | HX-NGS.M16-8 |
| M18×1.5 | 5-10 | 8 | 18.0 | 20 | 20 | HX-NGS.M18-10 |
| M20×1.5 | 8-12 | 8 | 20.0 | 21 | 22 | HX-NGS.M20-12 |
| M22×1.5 | 10-14 | 8 | 22.0 | 22 | 24 | HX-NGS.M22-14 |
| M24×1.5 | 10-14 | 9 | 24.0 | 22 | 24/27 | HX-NGS.M24-14 |
| M25×1.5 | 10-14 | 9 | 25.0 | 22 | 24/27 | HX-NGS.M25-14 |
| M25×1.5 | 12-16 | 9 | 25.0 | 25 | 27 | HX-NGS.M25-16 |
| M25×1.5 | 13-18 | 9 | 25.0 | 27 | 30/27 | HX-NGS.M25-18 |
| M27×1.5 | 13-18 | 9 | 27.0 | 27 | 30 | HX-NGS.M27-18 |
| M32×1.5 | 15-22 | 10 | 32.0 | 29 | 35 | HX-NGS.M32-22 |
| M36×1.5 | 18-25 | 10 | 36.0 | 31 | 40 | HX-NGS.M36-25 |
| M40×1.5 | 18-25 | 11 | 40.0 | 31 | 40/45 | HX-NGS.M40-25 |
| M40×1.5 | 22-30 | 11 | 40.0 | 35 | 45 | HX-NGS.M40-30 |
| M48×1.5 | 25-33 | 11 | 48.0 | 37 | 50/52 | HX-NGS.M48-33 |
| M50×1.5 | 32-38 | 13 | 50.0 | 37 | 57/55 | HX-NGS.M50-38 |
| M63×1.5 | 37-44 | 14 | 63.0 | 38 | 64/68 | HX-NGS.M63-44 |
