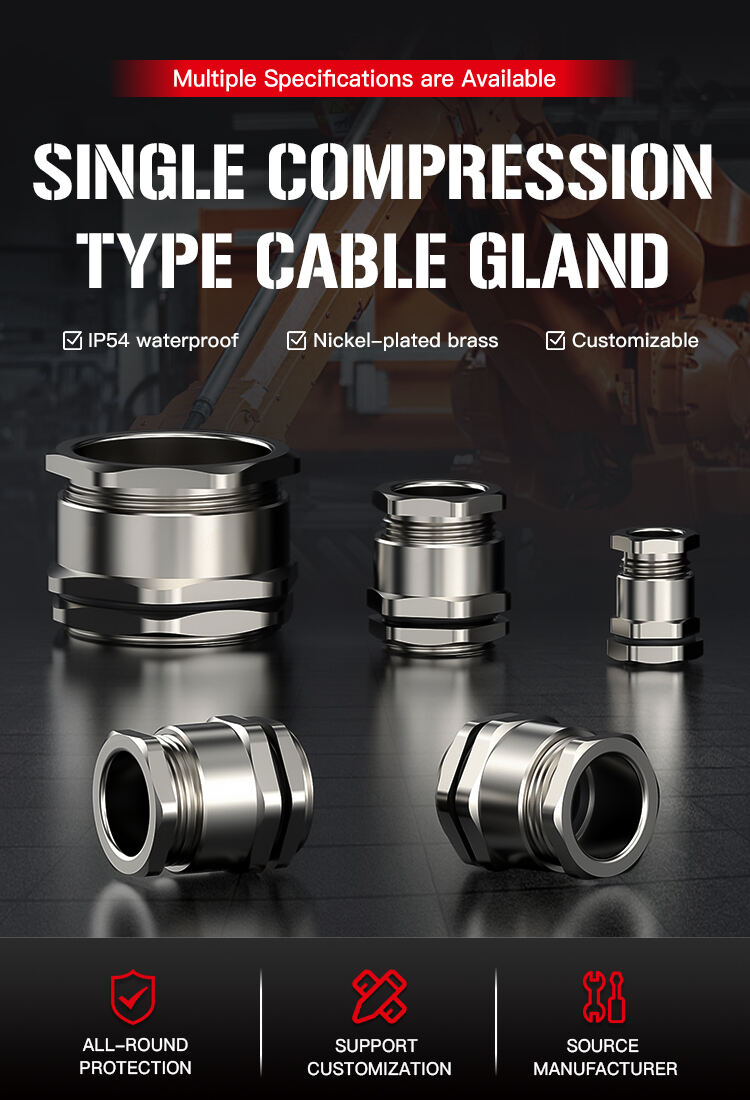

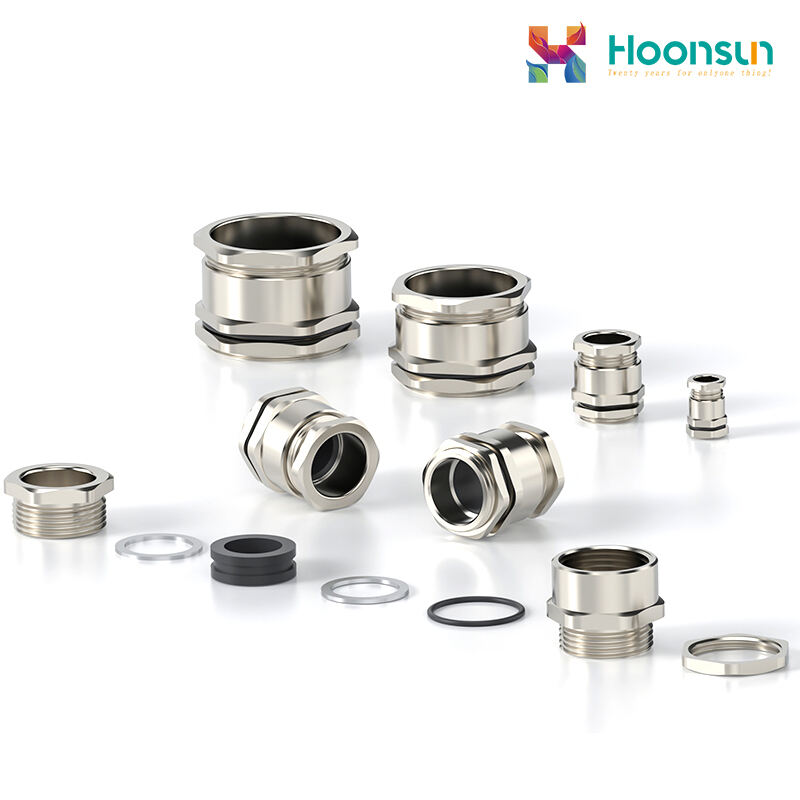

Single Compression Type Cable Gland
Single-Step Compression for Easy Operation: Adopts an integrated single-compression structure. Only one pressing or tightening action is needed to fix and seal the cable, no step-by-step operation required, greatly improving installation efficiency.
Secure Connection & Reliable Sealing: The compression component fits tightly with the cable to form uniform pressure, featuring excellent tensile resistance and sealing performance. IP68+ protection rating effectively provides dustproof and waterproof protection.
Precise Adaptation & Strong Versatility: Optimized design for specific wire diameters, compatible with various cable specifications and mainstream thread standards, meeting regular wiring needs of industrial equipment, distribution boxes, etc.
Streamlined Structure & Controllable Cost: Integrated and simplified design with fewer parts and low failure rate, balancing practicality and economy, suitable for standardized scenarios with batch installation.
- Overview
- Specifications
- Description
- Recommended Products
Overview
PRODUCT PARAMETER
Welcome to Our Website,We Are Happy to Serve You

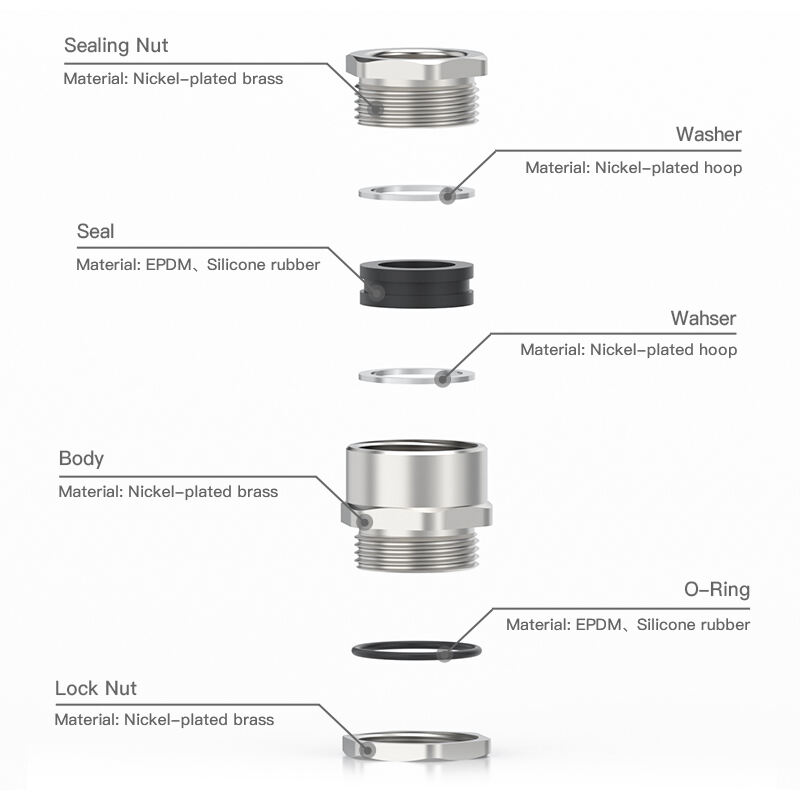

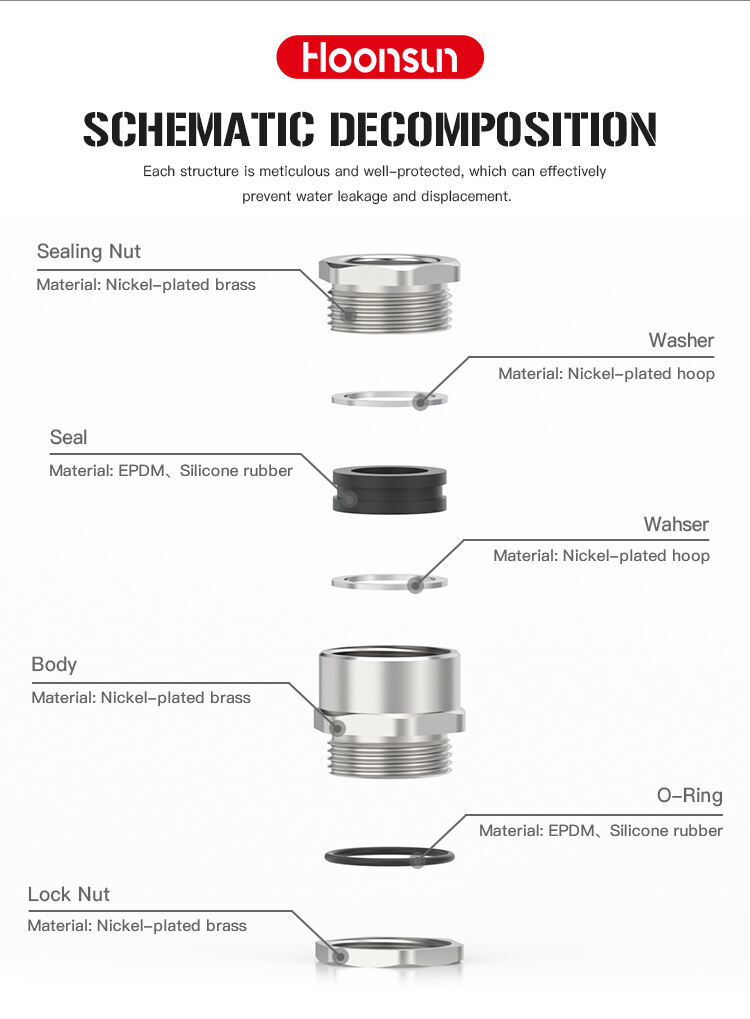

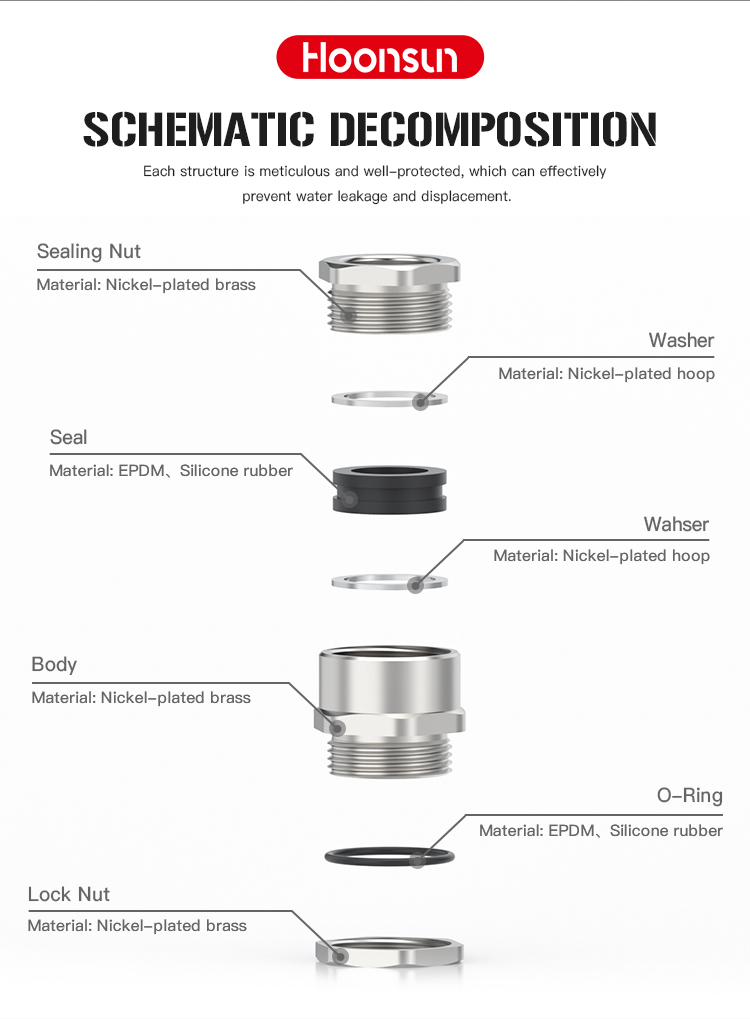

| Fitting Material: | Nickel-plated brass | |||||||
| Material For Sealing Components: | EPDM,Silicone rubber | |||||||
| O-ring Material: | EPDM,Silicone rubber | |||||||
| Metal Washer: | Nickel-plated hoop | |||||||

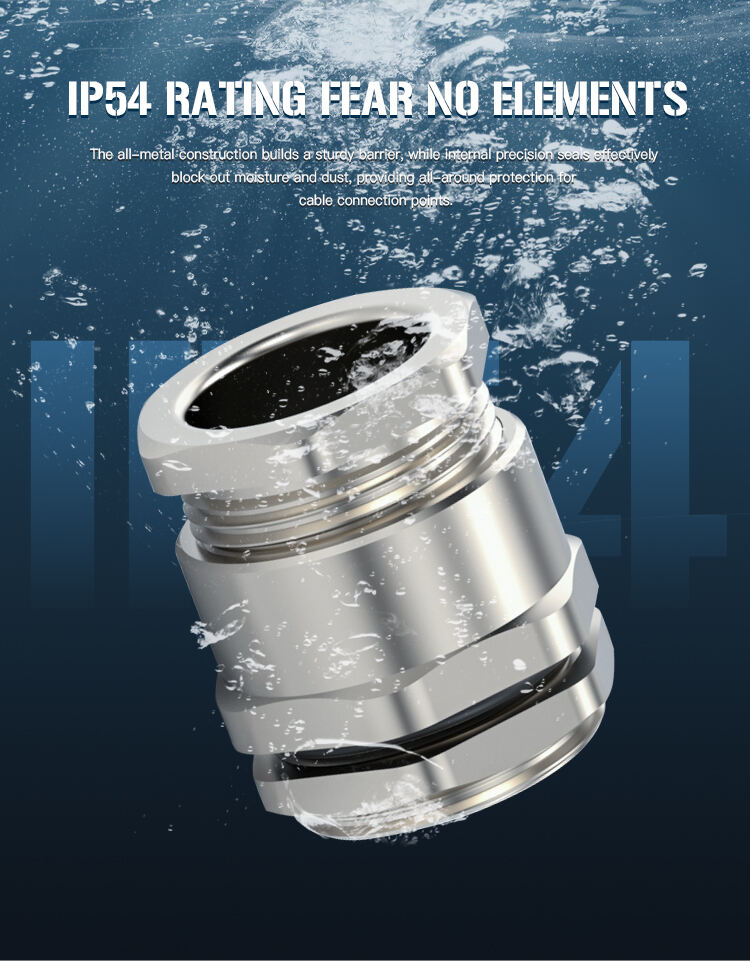

| Protection Degree: | IP54 | |||||||
| Temperature: |
Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃ |
|||||||
Meta Description
High-quality marine cable gland with excellent corrosion resistance, waterproof sealing, and long-term reliability for harsh offshore environments.
Product Advantages
• Superior Corrosion Resistance
Made from 316 stainless steel or nickel-plated brass, the marine cable gland provides outstanding protection against saltwater, humidity, and chemical corrosion. Ideal for ships, ports, and offshore platforms.
• Excellent Waterproof and Dustproof Performance
Rated up to IP68, ensuring perfect sealing under high humidity or water immersion. Prevents moisture, oil, and dust from entering cable junctions.
• Strong Mechanical Protection
Engineered for high vibration and impact resistance, maintaining cable stability even in rough sea conditions.
• Wide Temperature Range
Performs reliably from -40°C to +120°C, suitable for extreme marine and coastal environments.
• Flame-Retardant and Safe
Complies with marine safety standards, offering flame-retardant and anti-explosion properties to ensure operational safety on board.
• Easy Installation and Maintenance
Compatible with PG, NPT, and Metric threads for global use. Designed for quick assembly and replacement, reducing maintenance time.
• Long Service Life
High-strength materials and precision sealing components guarantee durability and long-term reliability in offshore conditions.
Applications
Ship electrical control systems
Offshore oil platforms
Marine lighting and navigation equipment
Ship communication systems
Port and dockside power systems
Key Benefits
316 stainless steel, anti-corrosion & rustproof
IP68 waterproof and dustproof
Vibration-resistant & flame-retardant
Works in harsh saltwater environments
Complies with CE, UL, and marine standards
Specifications
unit:mm
| Item | Thread | Range | GLThread Length | AGThread O.D. | HJoint Length | Spanner size | Code |
| DCG7 | PG7 | 5-6.5 | 5.0 | 12.5 | 16.5 | 14/15 | HX-DCG7 |
| DCG9 | PG9 | 6-8 | 6.2 | 15.2 | 17.5 | 16/18 | HX-DCG9 |
| DCG11 | PG11 | 8-11 | 6.5 | 18.6 | 17.5 | 20/21 | HX-DCG11 |
| DCG13.5 | PG13.5 | 9-11.5 | 7.5 | 20.4 | 20.5 | 22/23 | HX-DCG13.5 |
| DCG16 | PG16 | 11-14 | 8.0 | 22.5 | 22.2 | 24/26 | HX-DCG16 |
| DCG21 | PG21 | 15-17.5 | 8.0 | 28.3 | 23.5 | 30/32 | HX-DCG21 |
| DCG29 | PG29 | 20-23 | 8.0 | 37.0 | 25.5 | 40/41 | HX-DCG29 |
| DCG36 | PG36 | 29-31 | 10.0 | 47.0 | 29.0 | 50/52 | HX-DCG36 |
| DCG42 | PG42 | 32-38 | 11.0 | 54.0 | 33.0 | 57/57 | HX-DCG42 |
| DCG48 | PG48 | 3744 | 12.0 | 59.3 | 34.0 | 64/64 | HX-DCG48 |
