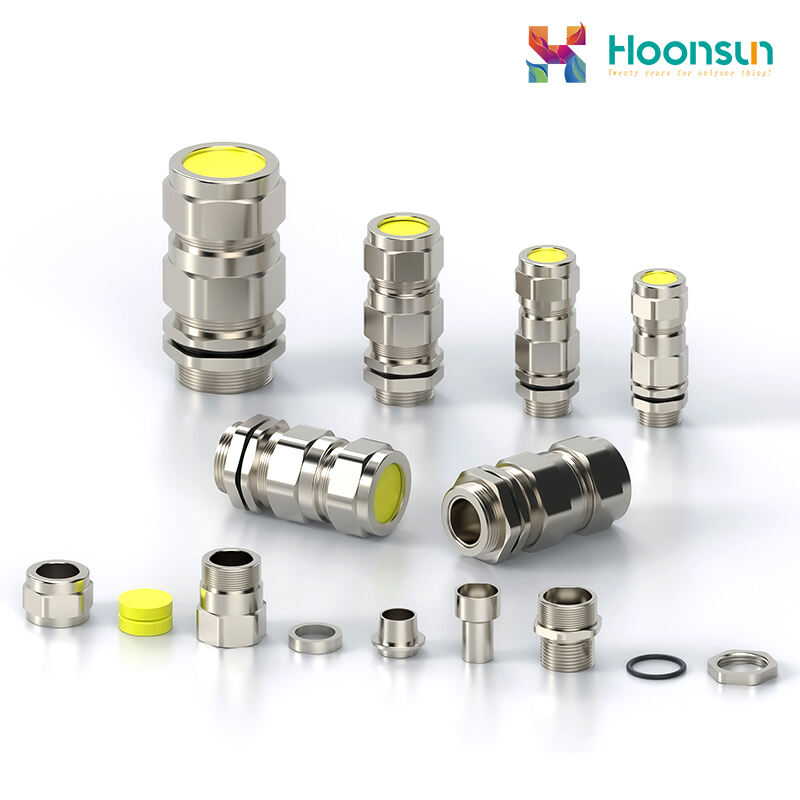

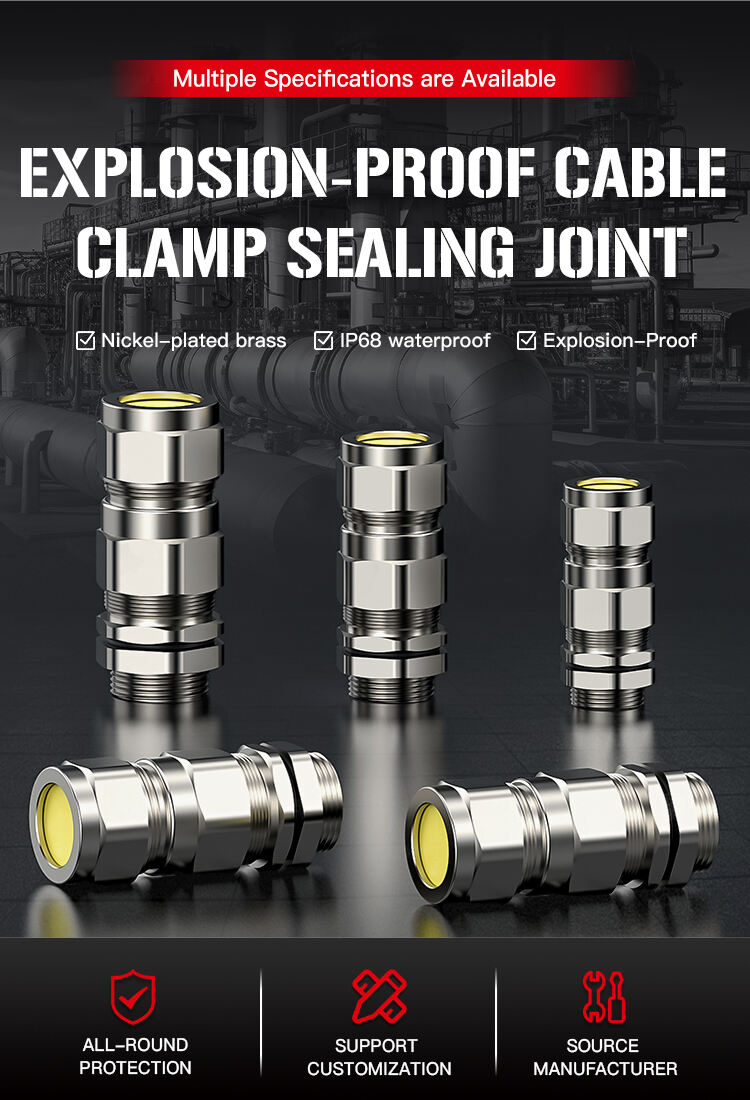

Explosion - proof Cable Clamp Sealing Joint

Explosion-proof sealing: Blocks flammables, stops ignition spread.

Secure clamping: Firmly fixes cables, resists pulling/vibration.

Harsh-environment ready: Dustproof, waterproof, corrosion-resistant.

Easy installation: Tool-free, quick assembly.

  • Overview
  • Specifications
  • Description
  • Recommended Products
Overview


PRODUCT PARAMETER

Welcome to Our Website,We Are Happy to Serve You

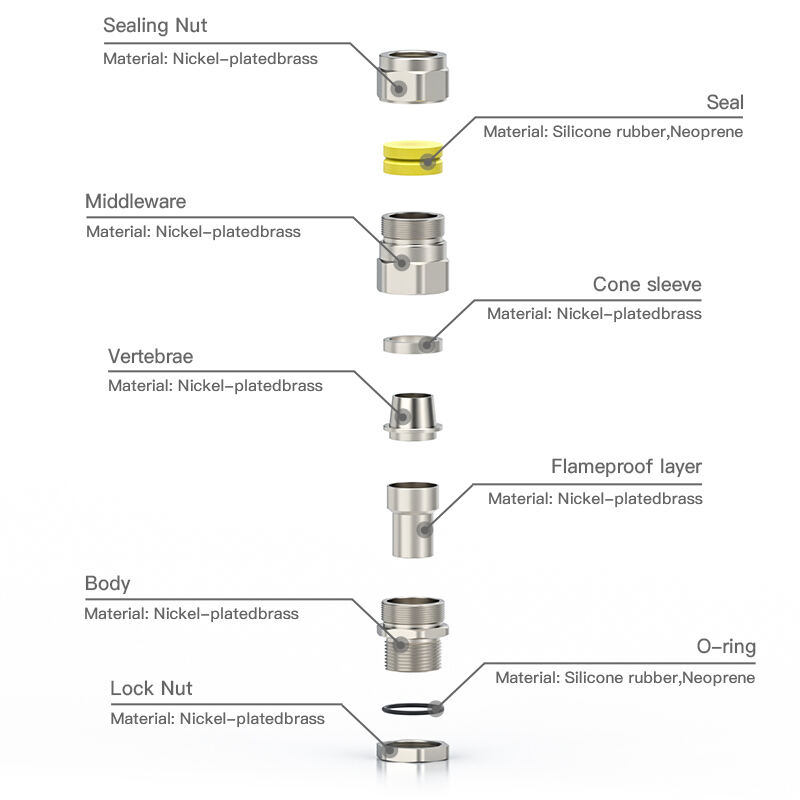

Fitting Material: Brass/SS304/SS316L
Surface Treatment: Nickel plated,Passivation
Material For Sealing Components: Silicone rubber,Neoprene
Explosion-proof: Exd IIC Gb
Flame Retardant Degree: UL94-VO

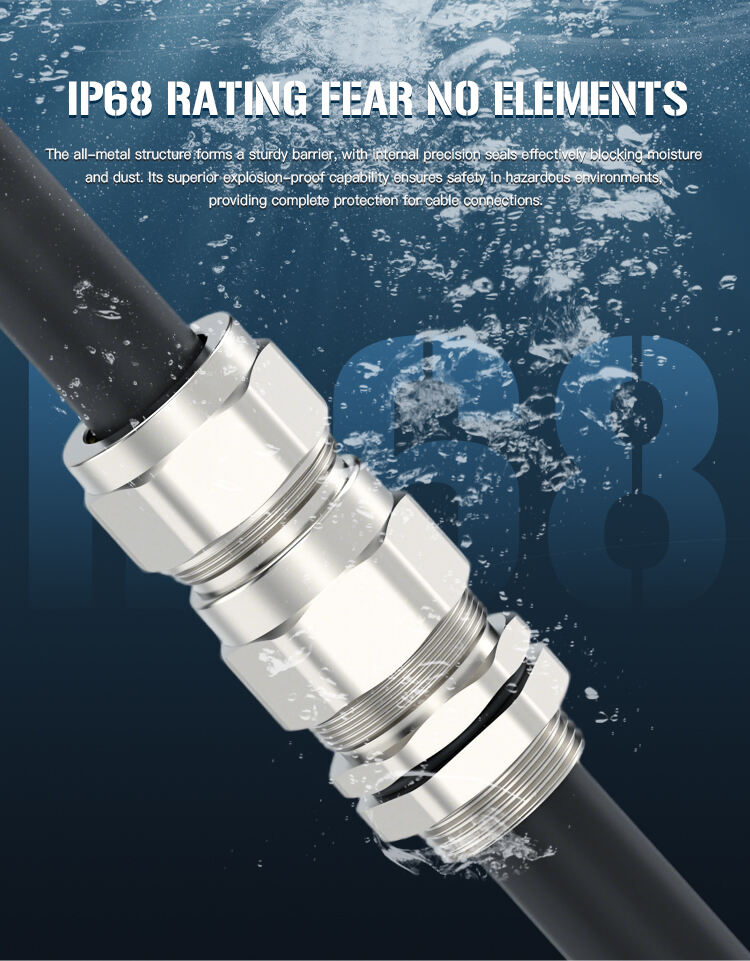

Protection Degree: IP68-10 bar

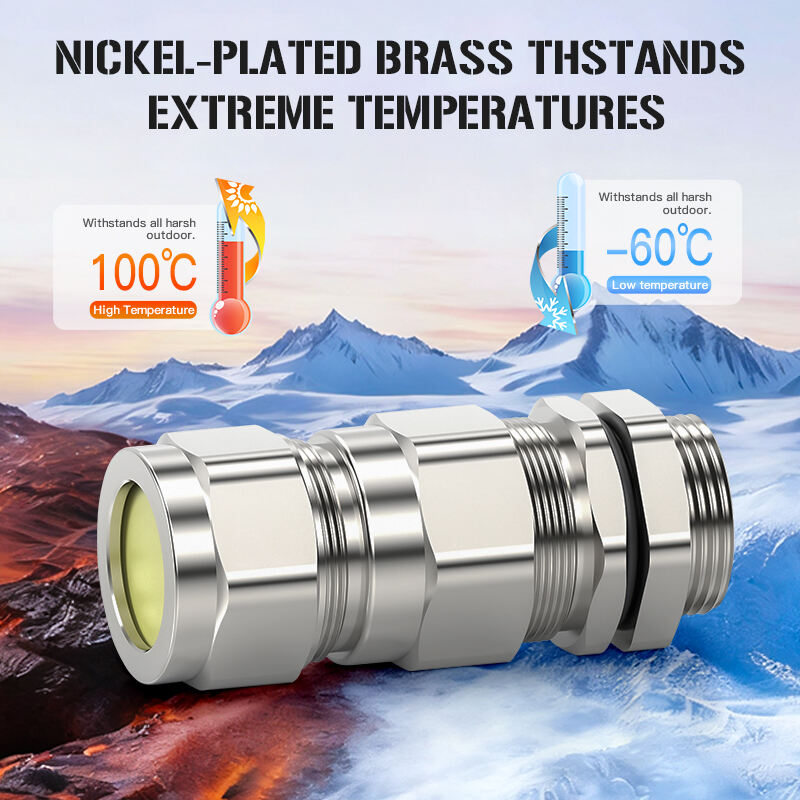

Temperature:

Static state:-60 to 100℃,Short time to 120℃

Dynamic state:-20℃ to 80℃,Short time to 100℃

Applicable cable type: Armored cable



Introduction

An explosion-proof cable gland is designed to secure and protect electrical cables in hazardous areas. It prevents sparks, flames, or hot gases from escaping equipment, ensuring safety in explosive environments such as oil, gas, and chemical industries.

High Safety Protection

The main benefit of explosion-proof cable glands is safety. They contain any internal explosion and stop it from spreading to the surrounding atmosphere, reducing the risk of fire or accidents.

Strong and Durable

Made from high-quality materials like brass or stainless steel, these glands resist corrosion, pressure, and impact. Their tough structure ensures reliable performance even in harsh industrial conditions.

Excellent Sealing Performance

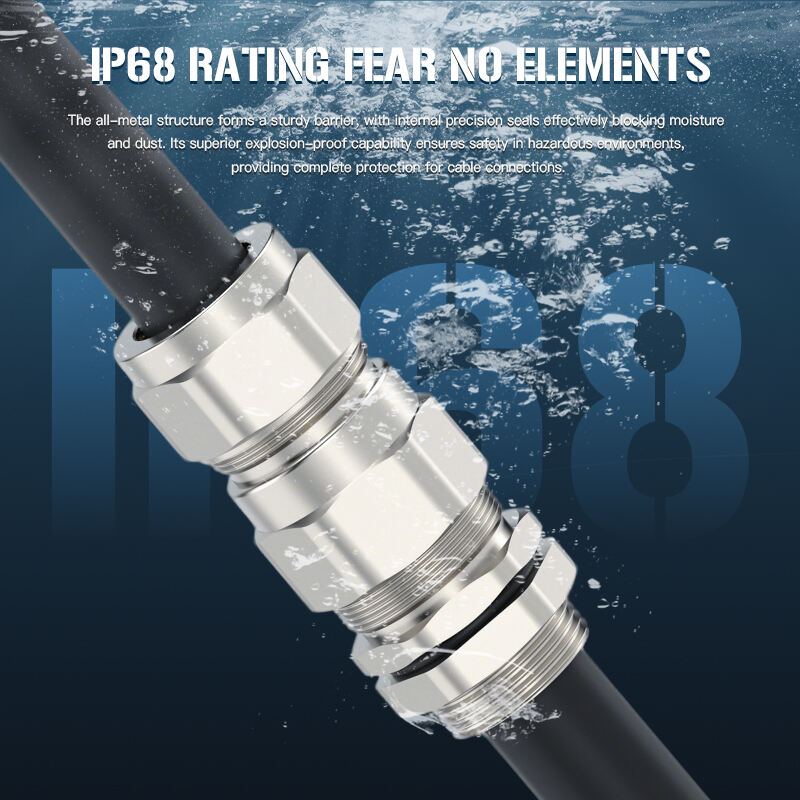

Explosion-proof cable glands offer great waterproof and dustproof sealing. Most models reach IP66 or IP68, keeping electrical systems safe from moisture, dust, and gas.

Easy to Install

They are easy to assemble and disassemble without special tools. The design allows quick installation while maintaining high safety standards.

Wide Applications

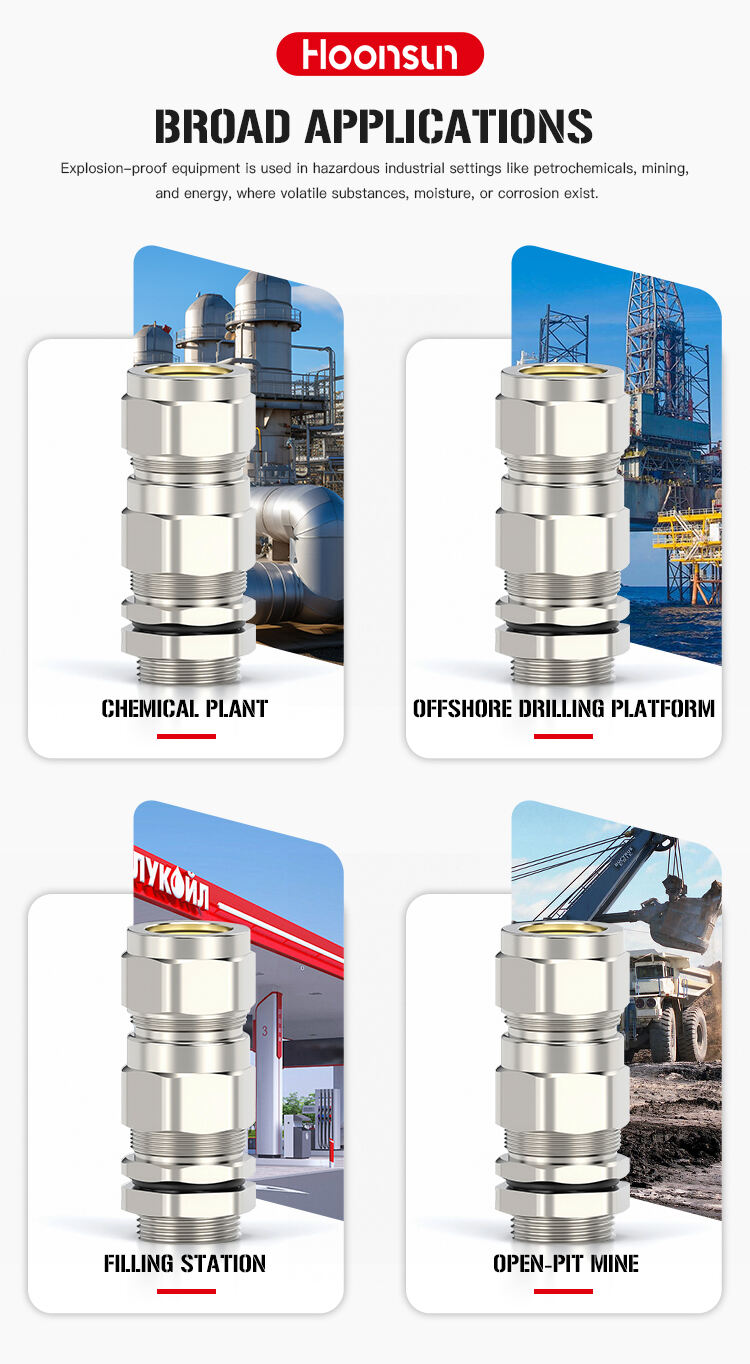

Commonly used in oil refineries, chemical plants, marine platforms, and mining, they fit both armored and unarmored cables, ensuring flexibility across industries.

Conclusion

Explosion-proof cable glands combine safety, durability, and convenience. With excellent sealing, corrosion resistance, and reliable performance in dangerous areas, they are the ideal choice for protecting electrical systems in explosive environments.

Specifications

unit: mm

MMetric GInch Outer diameter cable GLThread length HJoin length Code
AIncomingline BOutlet line
M16×1.5 G3/8 7-15 8 15 53 HX-EX3.M16-15
M20×1.5 G1/2 7-15 8 15 53 HX-EX3.M20-15
M25×1.5 G3/4 11-20 13 15 53 HX-EX3.M25-20
M32×1.5 G1 1425 16 17 60 HX-EX3.M32-25
M40×1.5 G11/4 19-33 21 17 70 HX-EX3.M40-33
M50×1.5 G11/2 9-6 25 17 78 HX-EX3.M50-41
M63×1.5 G2 30-50 33 17 82 HX-EX3.M63-50
M75×2 G21/2 38-64 44 17 82 HX-EX3.M75-64
M85×2 G3S 47-74 52 18 82 HX-EX3.M85-74
M90×2 G3 47-74 52 18 82 HX-EX3.M90-74
M100×2 G4S 57-90 64 18 90 HX-EX3.M100-90
M110×2 G4 62-103 72 18 100 HX-EX3.M110-103
PG/G/NPTthreadsare avallable
Description

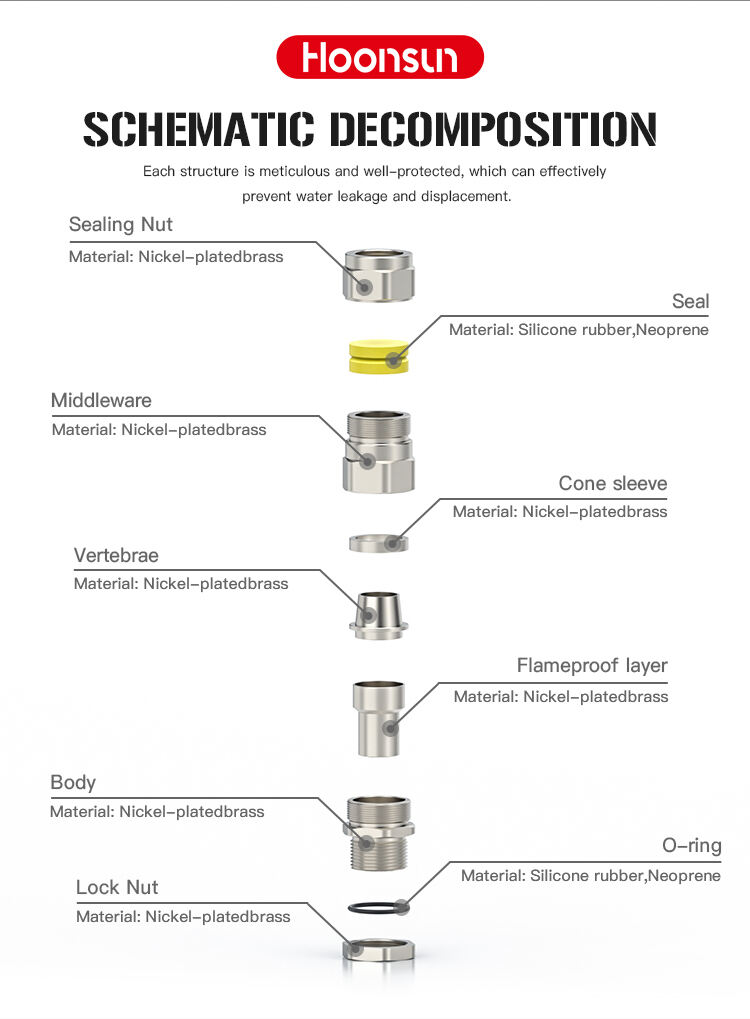

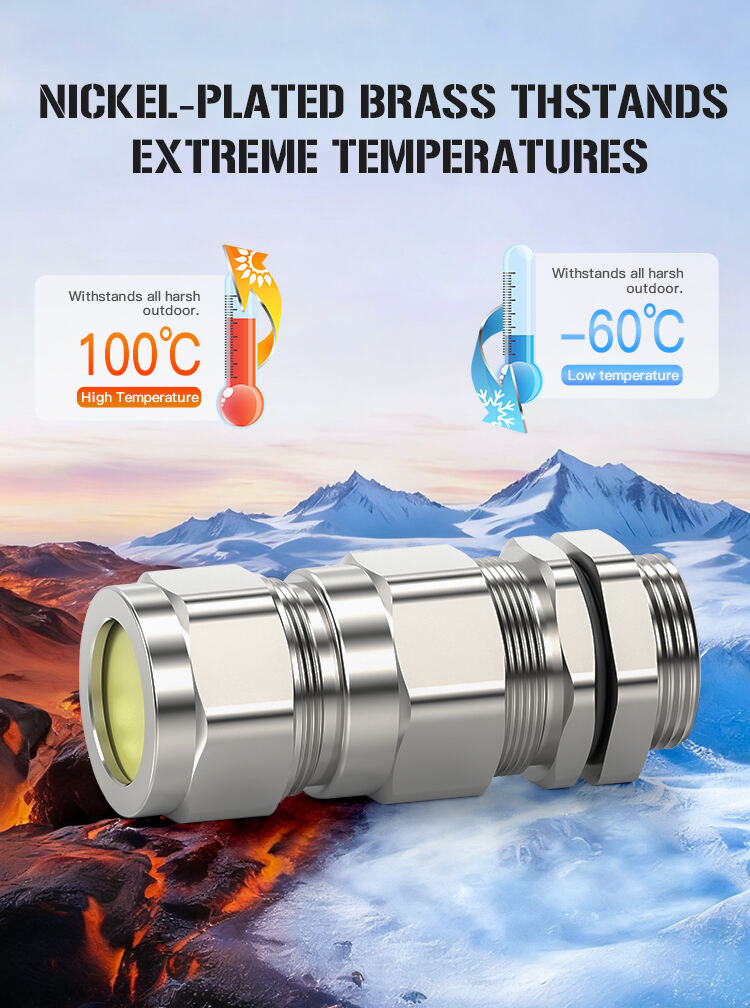

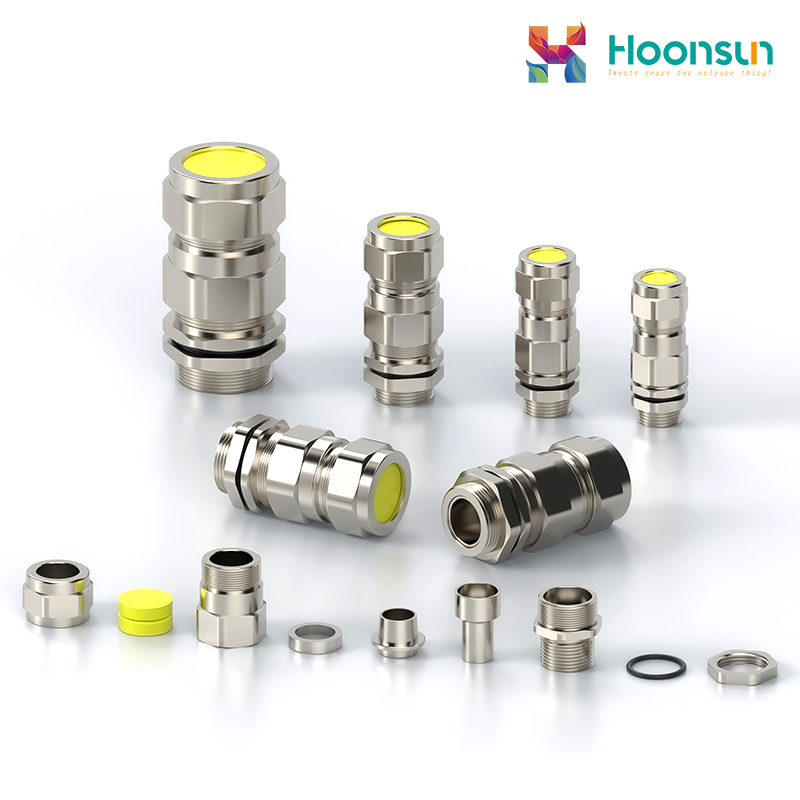

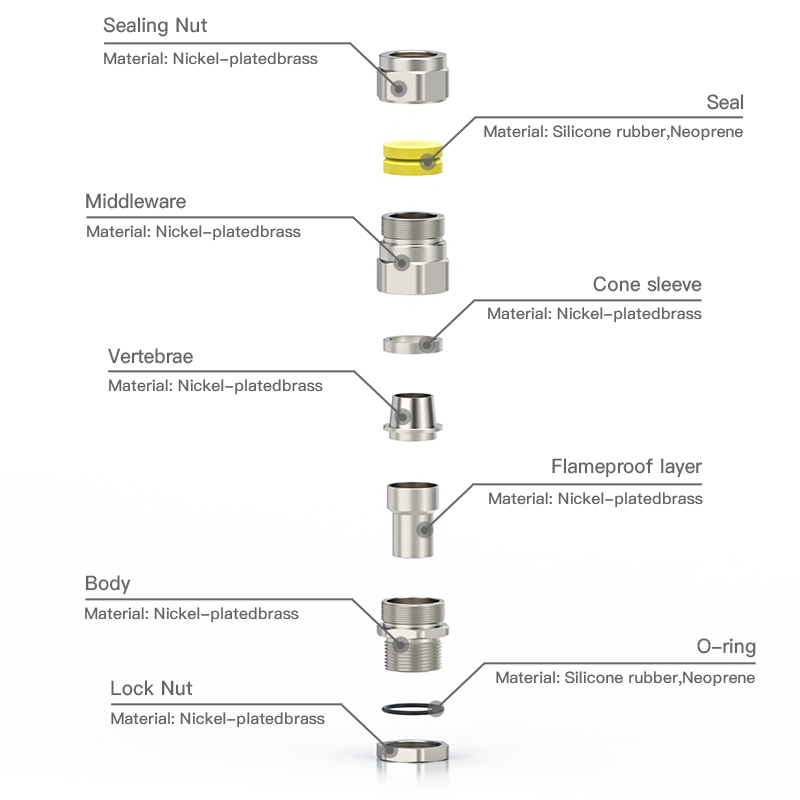

防爆电缆夹紧密封接头(Explosion-proof-Cable-Clamp-Sealing-Joint)_01.jpg防爆电缆夹紧密封接头(Explosion-proof-Cable-Clamp-Sealing-Joint)_03.jpg防爆电缆夹紧密封接头(Explosion-proof-Cable-Clamp-Sealing-Joint)_04.jpg防爆电缆夹紧密封接头(Explosion-proof-Cable-Clamp-Sealing-Joint)_05.jpg防爆电缆夹紧密封接头(Explosion-proof-Cable-Clamp-Sealing-Joint)_06.jpg防爆电缆夹紧密封接头(Explosion-proof-Cable-Clamp-Sealing-Joint)_07.jpg防爆电缆夹紧密封接头(Explosion-proof-Cable-Clamp-Sealing-Joint)_08.jpg防爆电缆夹紧密封接头(Explosion-proof-Cable-Clamp-Sealing-Joint)_09.jpg防爆电缆夹紧密封接头(Explosion-proof-Cable-Clamp-Sealing-Joint)_10.jpg防爆电缆夹紧密封接头(Explosion-proof-Cable-Clamp-Sealing-Joint)_11.jpg防爆电缆夹紧密封接头(Explosion-proof-Cable-Clamp-Sealing-Joint)_12.jpg
