Overview
PRODUCT PARAMETER
Welcome to Our Website,We Are Happy to Serve You

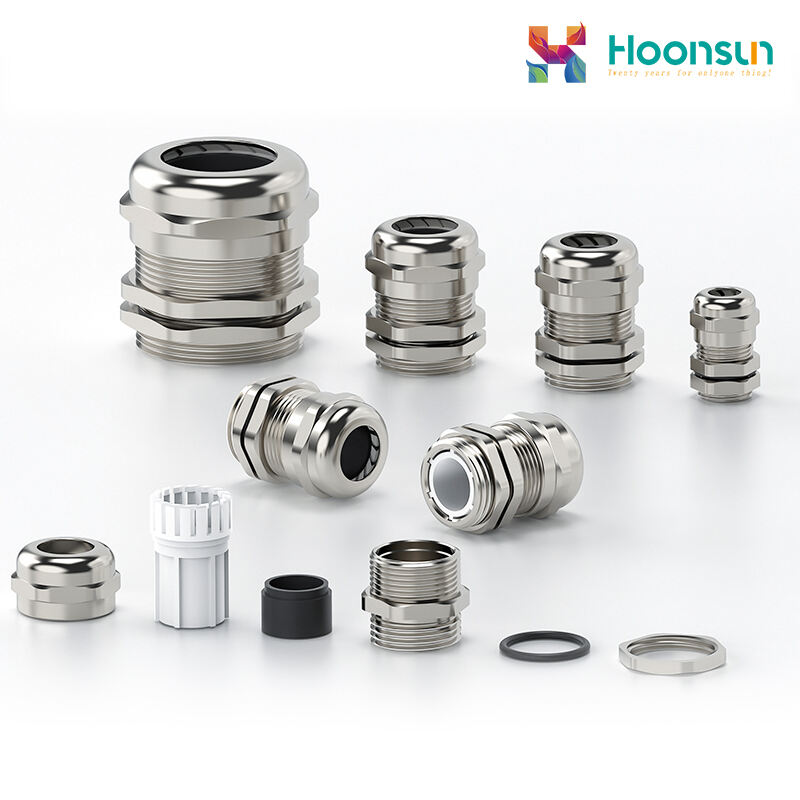

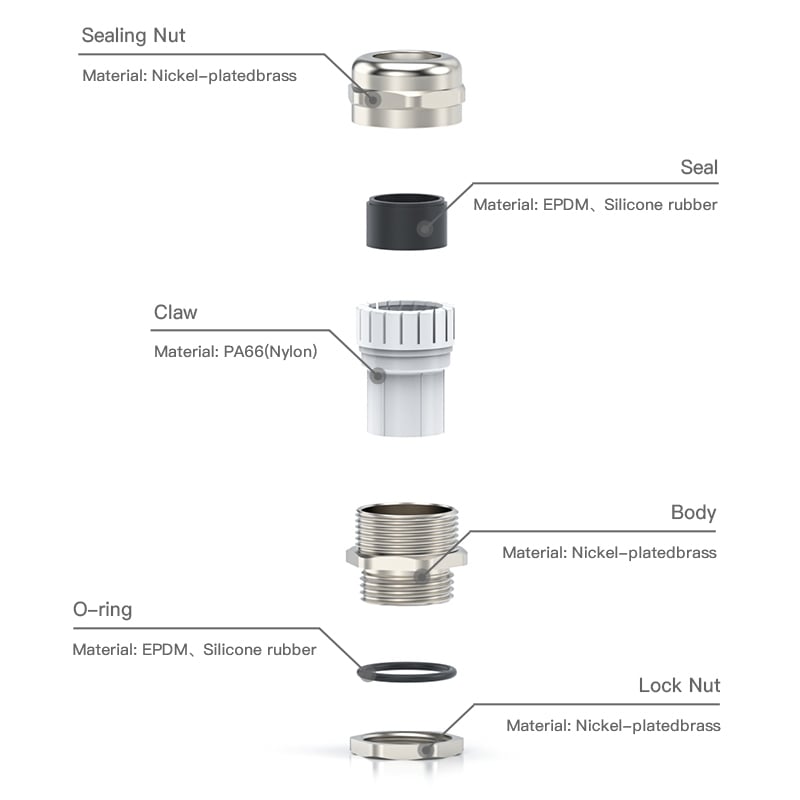

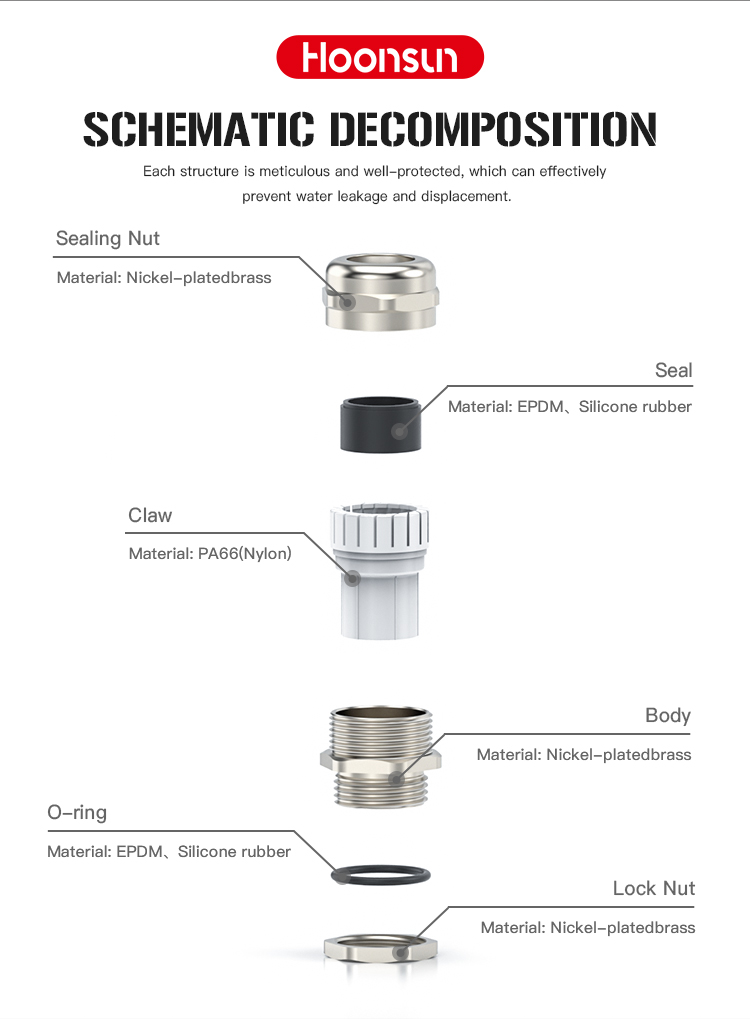

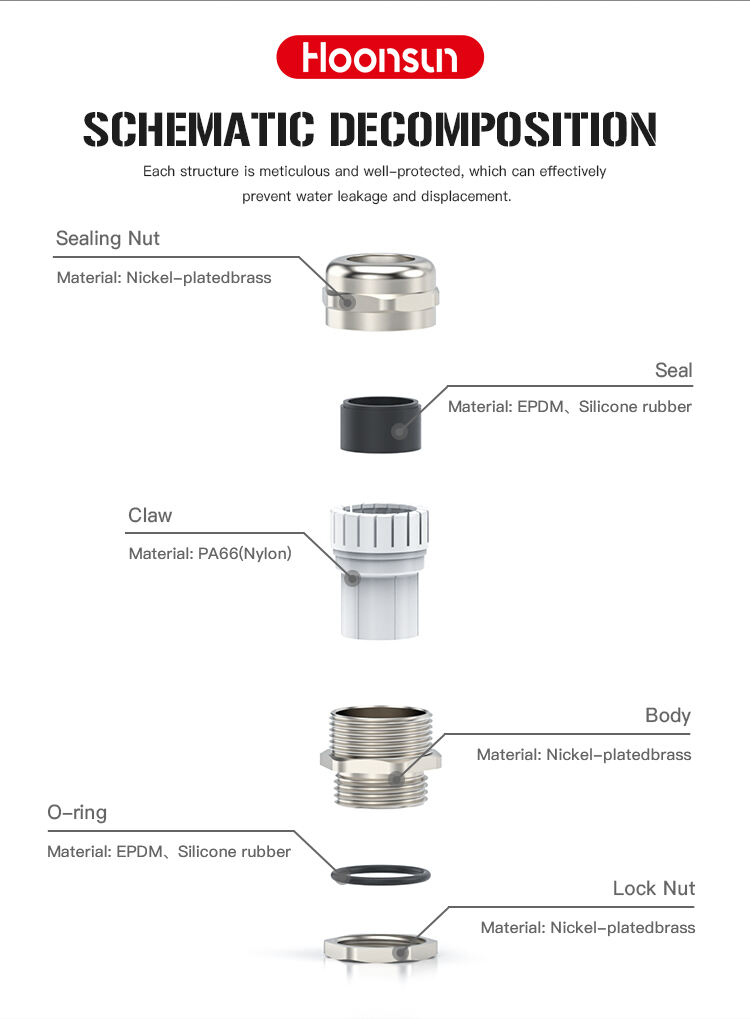

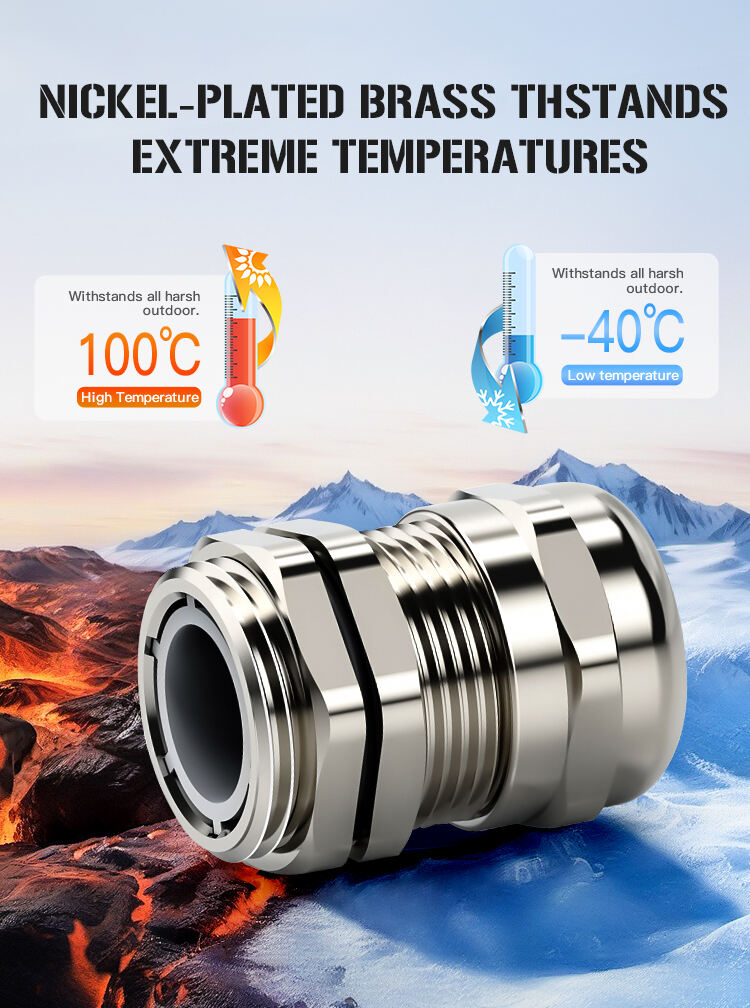

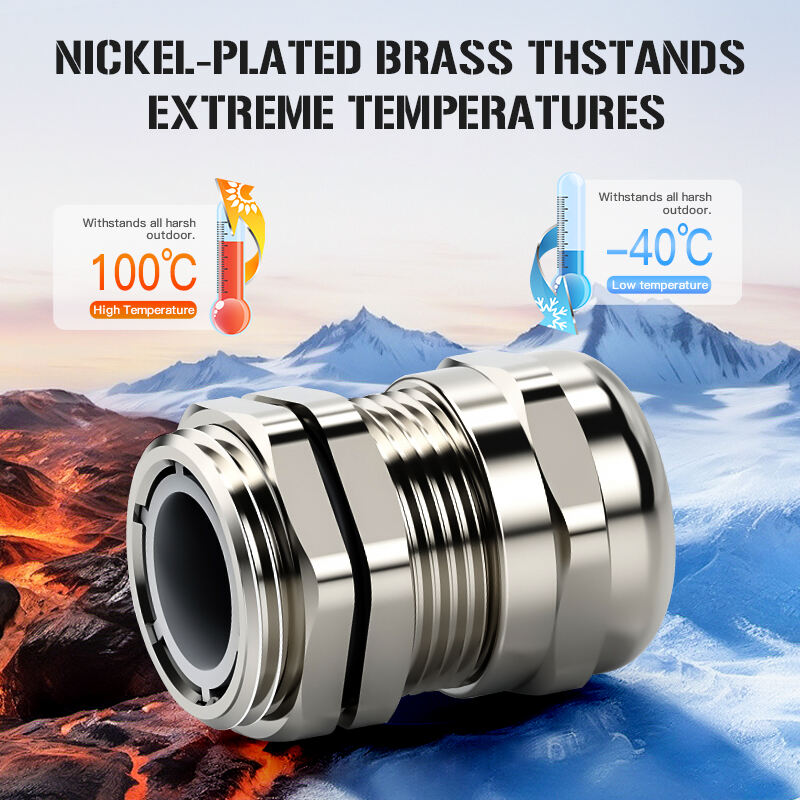

| Fitting Material: | Nickel-platedbrass | |||||
| Material For Clamping Jaws: | PA66(Nylon),UL94-V2 | |||||
| Material For Sealing Components: | EPDM, Silicone rubber | |||||
| O-ring Material: | EPDM, Silicone rubber | |||||
| Protection Degree: | IP66-10 bar | |||||
| Temperature: |
Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃ |
|||||
Specifications
unit: mm
| Item | Range | GL Thread Length | AG Thread O.D. | HJoint Length | Spanner size | Code |
| M12×1.5 | 3-6.5 | 6.5 | 12 | 17 | 14 | HX-NT.M12 |
| M16×1.5 | 4-8 | 8 | 16 | 19 | 18 | HX-NT.M16 |
| M18×1.5 | 5-10 | g | 18 | 21 | 20 | HX-NTM18 |
| M20×1.5 | 6-12 | 8 | 20 | 22 | 22 | HX-NT.M20 |
| M22×1.5 | 10-14 | 8 | 22 | 23 | 24 | HX-NTM22 |
| M25×1.5 | 10-14 | 9 | 25 | 25 | 24/27 | HX-NTM25-14 |
| M25×1.5 | 13-18 | 9 | 25 | 27 | 30/27 | HX-NTM25-18 |
| M27×1.5 | 13-18 | 9 | 27 | 27 | 30 | HX-NTM27 |
| M32×1.5 | 15-22 | 10 | 32 | 29 | 35 | HX-NTM32 |
| M36×1.5 | 18-25 | 10 | 36 | 31 | 40 | HX-NTM36 |
| M40×1.5 | 18-25 | 10 | 40 | 31 | 40/45 | HX-NTM40-25 |
| M40×1.5 | 22-30 | 10 | 40 | 35 | 45 | HX-NTM40-30 |
| M48×1.5 | 25-33 | 10 | 48 | 37 | 50/52 | HX-NTM48 |
| M50×1.5 | 32-38 | 10 | 50 | 37 | 5755 | HX-NT.M50 |
| M63×1.5 | 37-44 | 10 | 63 | 38 | 64/68 | HX-NT.M63 |
| PG7 | 3-6.5 | 6.5 | 12.5 | 17 | 14/15 | HX-NT.PG7 |
| PG9 | 4-8 | 8 | 15.2 | 19 | 17/18 | HX-NTPG9 |
| PG11 | 5-10 | 8 | 18.6 | 21 | 20/21 | HX-NT.PG11 |
| PG13.5 | 6-12 | 8 | 20.4 | 22 | 22/23 | HX-NTPG13.5 |
| PG16 | 10-14 | 8 | 22.5 | 23 | 24/25 | HX-NTPG16 |
| PG21 | 13-18 | 9 | 28.3 | 27 | 30 | HX-NTPG21 |
| PG29 | 18-25 | 10 | 370 | 31 | 40 | HX-NTPG29 |
| PG36 | 25-33 | 10 | 47.0 | 37 | 50 | HX-NTPG36 |
| PG42 | 32-38 | 10 | 54.0 | 37 | 57 | HX-NTPG42 |
| PG48 | 37-44 | 10 | 59.3 | 38 | 64 | HX-NTPG48 |
| customlzable G/NPT thread | ||||||
