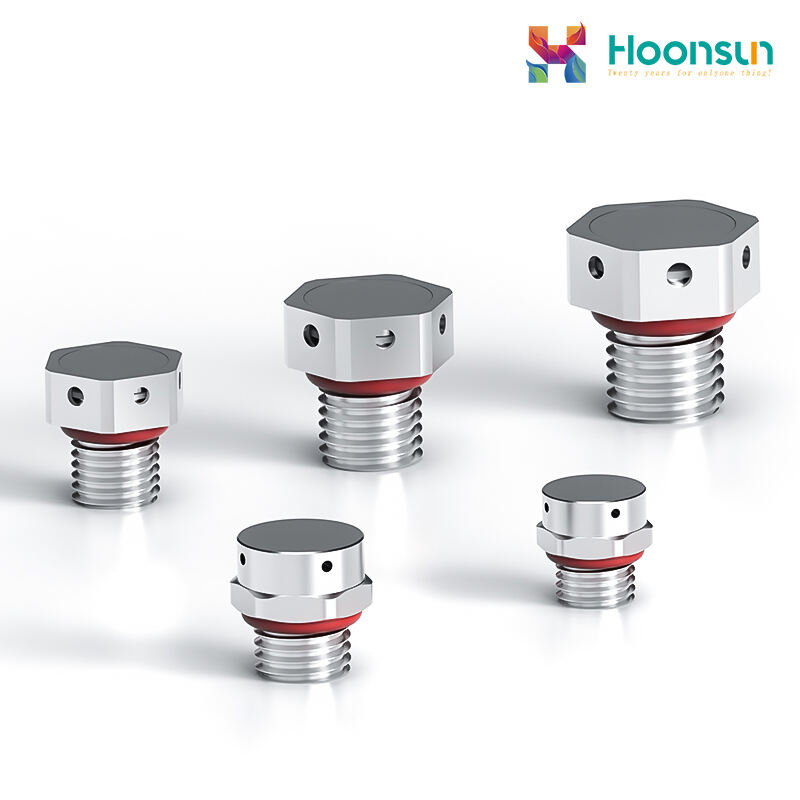

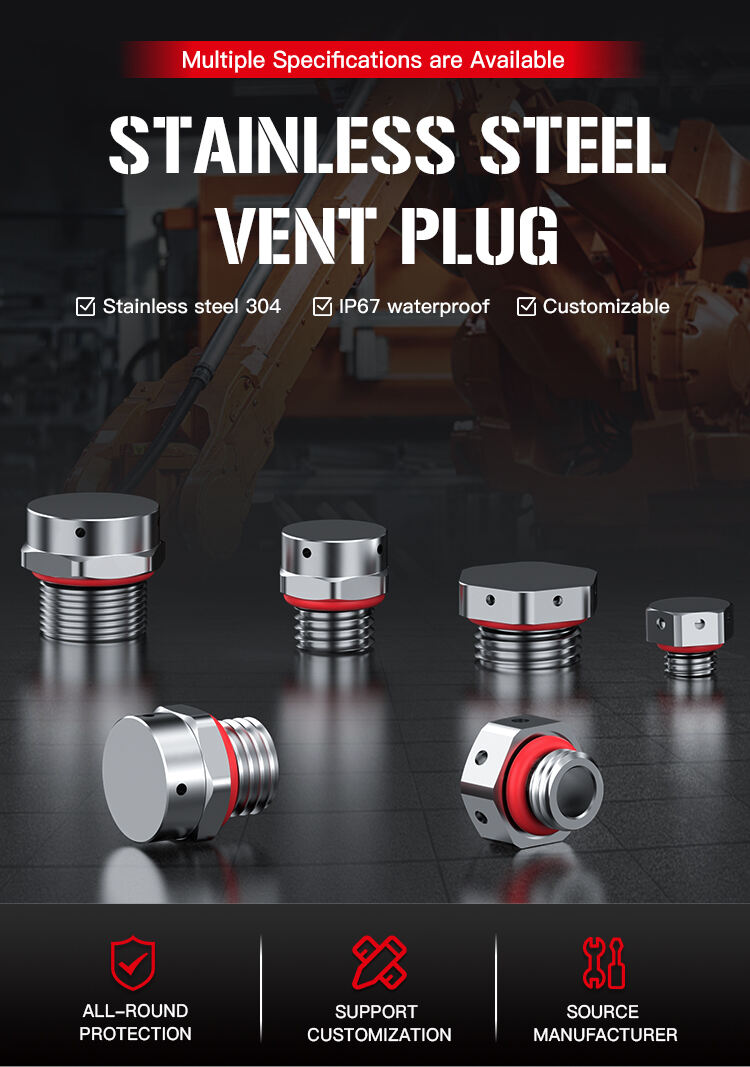

Stainless Steel Vent Plug
Material advantages: Made of metal, with high mechanical strength, impact resistance and high temperature resistance. Not easy to deform or damage, can withstand harsh working conditions such as corrosion and vibration, and has a much longer service life than non-metallic materials.

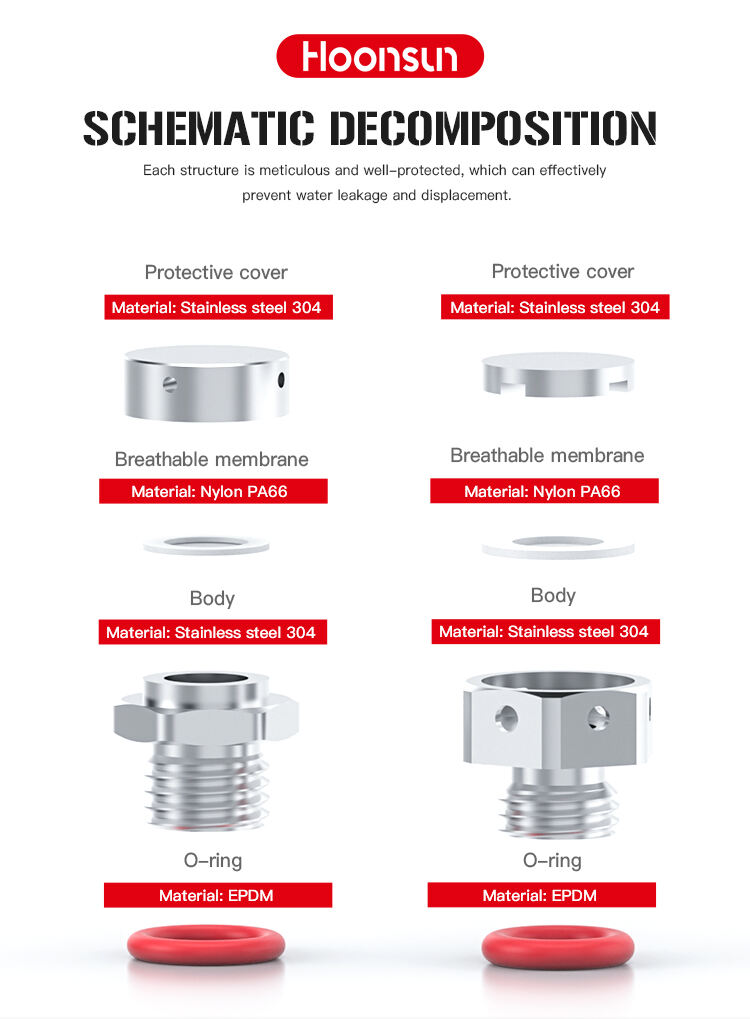

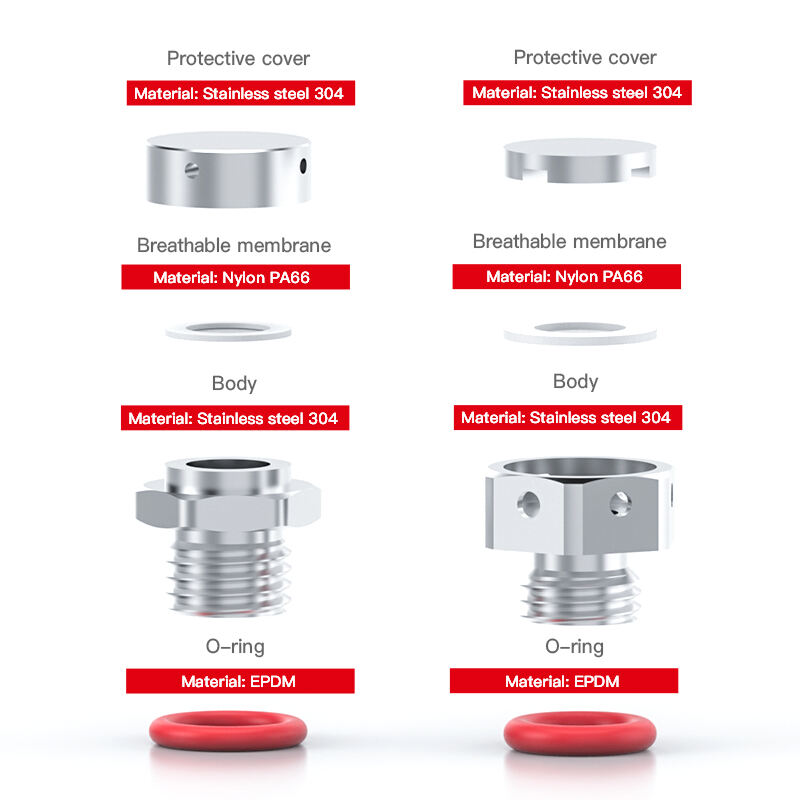

Core ventilation & protection: Built-in high-quality breathable membrane, efficiently discharges moisture, condensed water and accumulated gas inside the equipment. It also blocks external dust and liquid intrusion, avoiding damage to equipment components caused by excessive internal pressure.
Stable and easy installation: Mostly threaded locking design with high sealing fit. Can be installed with hands or simple tools, with firm connection that is not easy to loosen, compatible with interfaces of various industrial equipment.
High adaptability: Suitable for heavy industry, outdoor high-pressure equipment, high-temperature environments and other scenarios. Especially ideal for precision equipment or high-risk working conditions that require high protection level and structural strength.
- Overview
- Specifications
- Description
- Recommended Products
Overview
PRODUCT PARAMETER
Welcome to Our Website,We Are Happy to Serve You
| Fitting Material: | Stainless steel 304 | ||||||
| Color: | Metallic color | ||||||

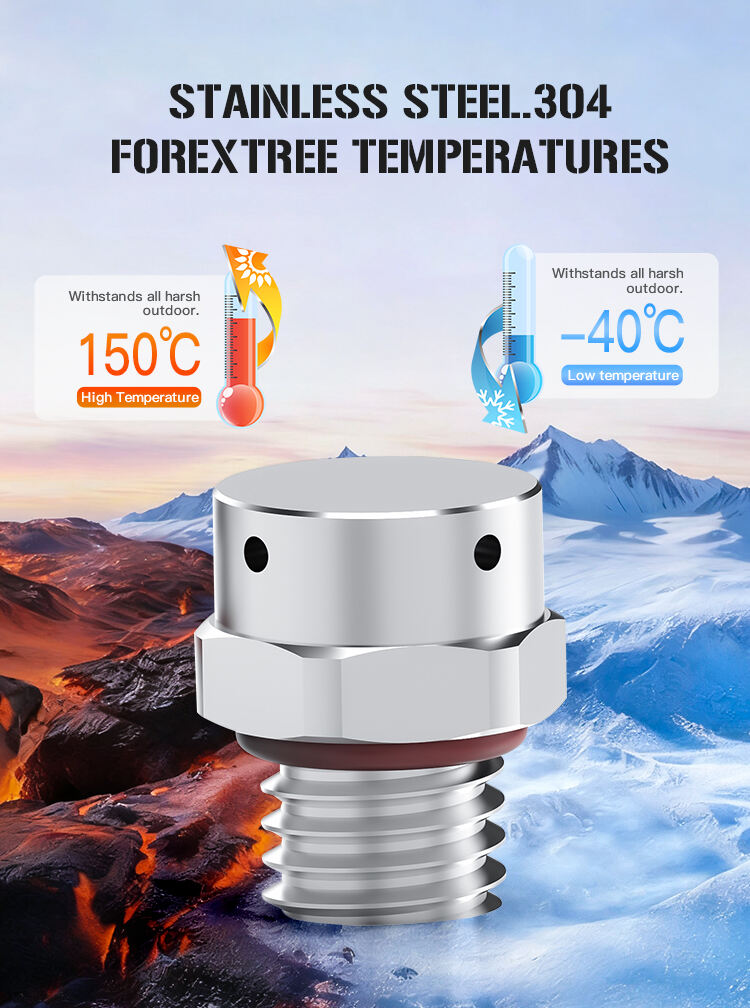

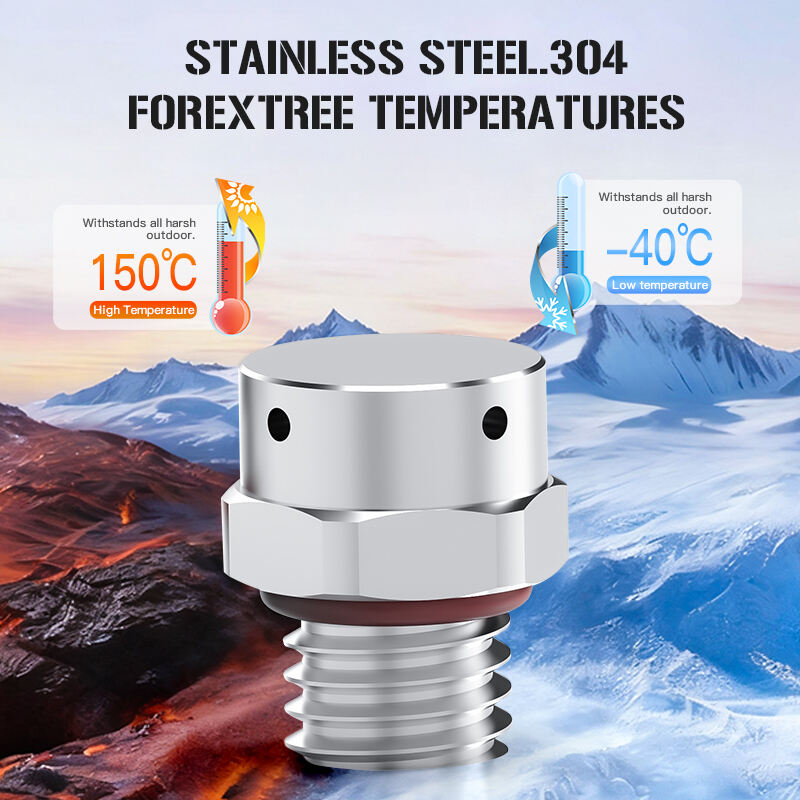

| Temperature resistance: | -40℃~+150℃ | ||||||
| Moisture permeability: | >5000g/24H.M2 | ||||||
| Resistant to fine water pressure: | ≥100mbar for 30min | ||||||
| Product characteristics: | Dustproof, hydrophobic, breathable, heat dissipation, oil proof | ||||||
| Air permeability: | ≥1.2L/mim/c m@70mbar(customizable) | ||||||
Product Advantages
High Corrosion Resistance: Stainless steel construction resists rust, acids, and chemicals, ensuring long service life even in outdoor or marine conditions.

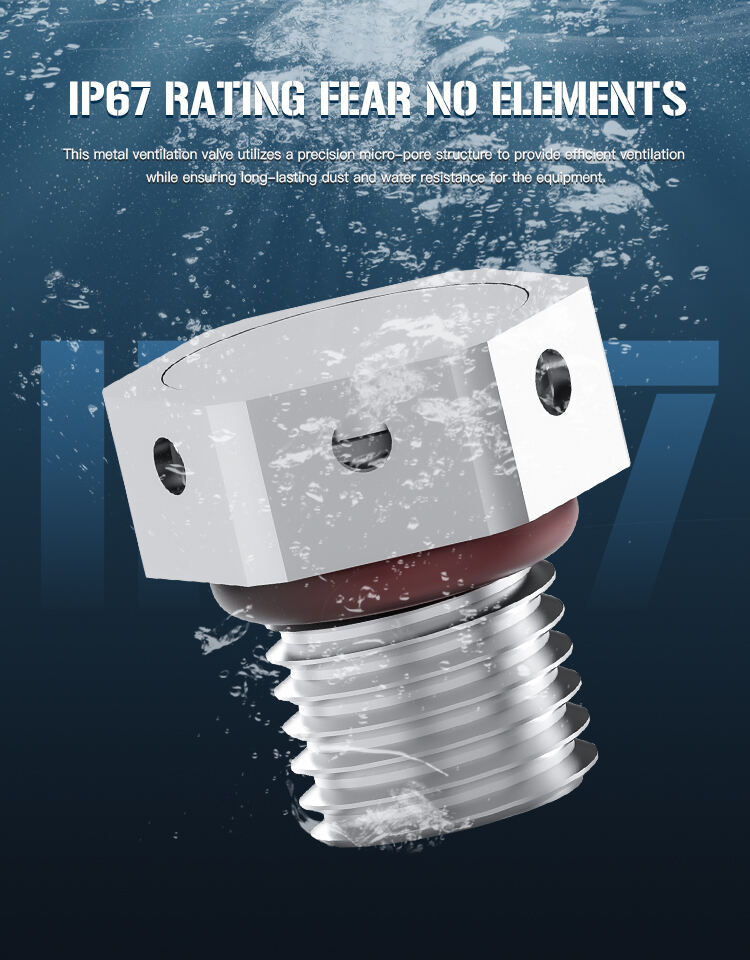

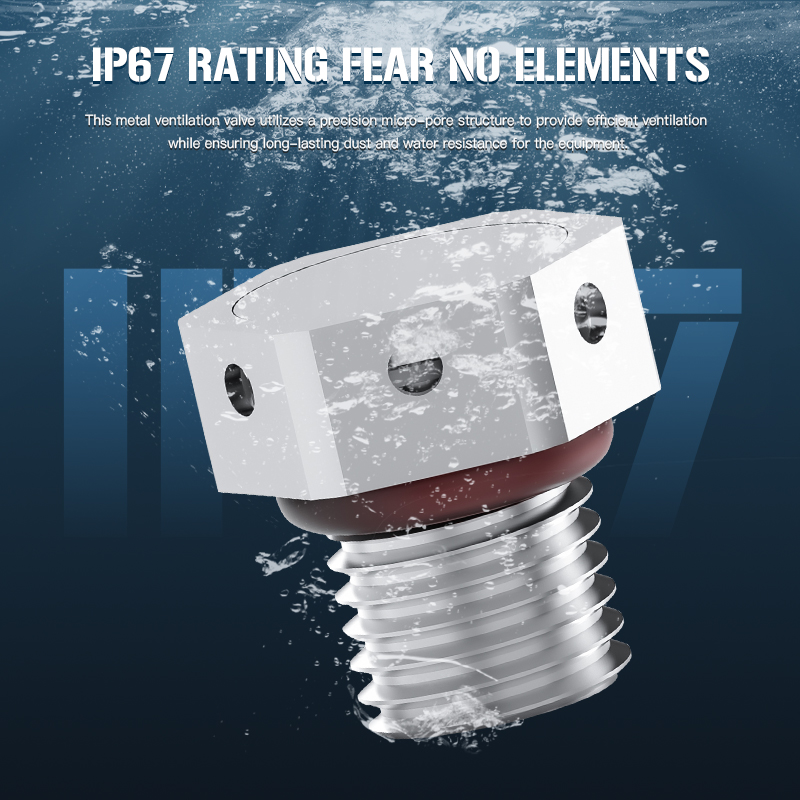

Excellent Waterproof and Dustproof Performance: Special breathable membranes allow air to pass while blocking water and dust (up to IP68 protection).
Durable and Strong: Withstands impact, vibration, and extreme temperatures without deformation.
Stable Air Pressure Balance: Prevents internal pressure buildup, condensation, and component damage.
Easy to Install: Compact, threaded design fits a wide range of equipment and enclosures.
Low Maintenance: Long-lasting material reduces the need for frequent replacement or cleaning.
Conclusion
Stainless steel breather valves combine strength, corrosion resistance, and airtight protection. They effectively release internal pressure, prevent water ingress, and keep equipment operating safely and efficiently in challenging environments. Ideal for industrial, marine, and outdoor applications, they are a smart choice for long-term reliability.
A stainless steel breather valve is designed to balance air pressure in sealed systems while preventing water, dust, and contaminants from entering. It is commonly used in electrical boxes, outdoor lighting, communication equipment, and industrial machinery. Made from corrosion-resistant stainless steel, it ensures reliable performance in harsh environments.
Specifications
unit: mm

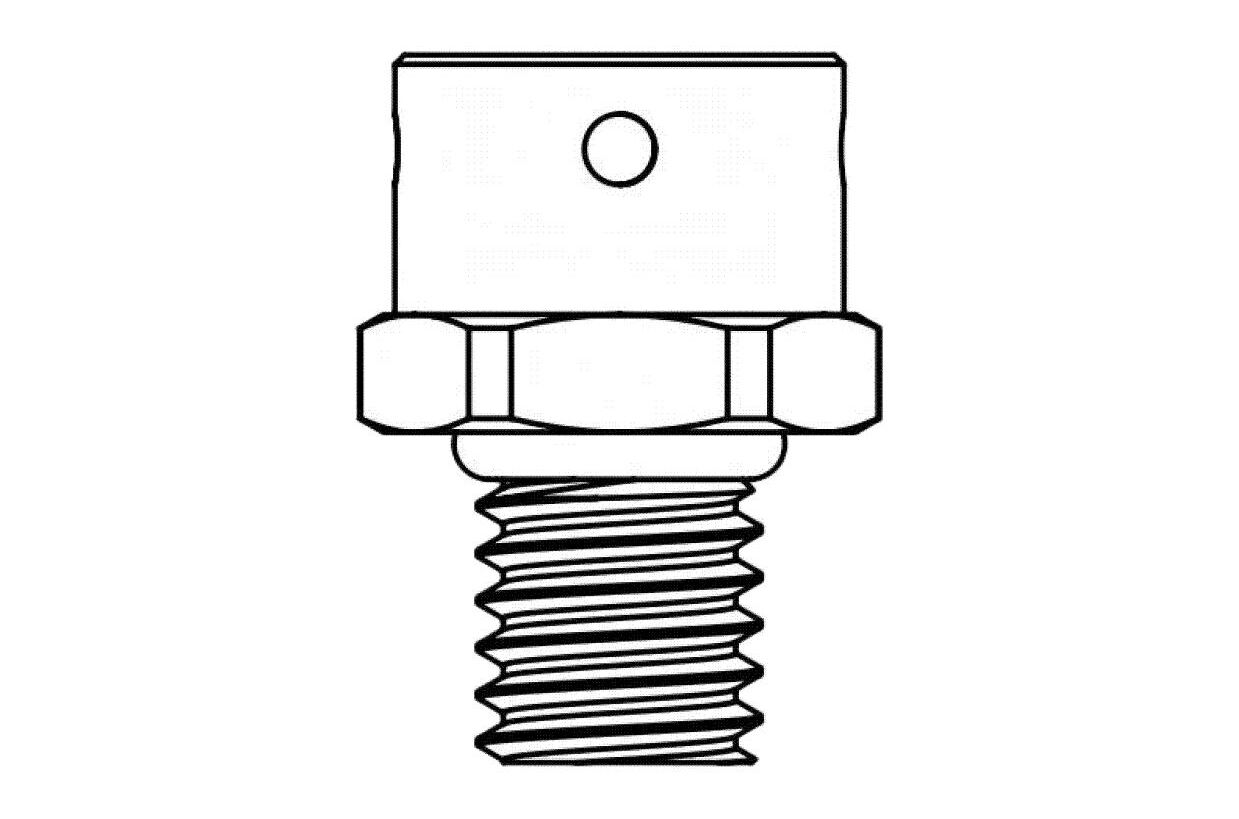

| Item | Breathability | GLThread Length | HOverallength | AGThreado.D. | Spannersize | Code |
| M4×0.8 | ≥200ml/mln/@70mbar | 6.0 | 13 | 4 | 8 | HXBE.M45S |
| M5×0.8 | ≥300ml/mln/@70mbar | 7.0 | 15 | 5 | 10 | HX-BF.M5SS |
| M6×1.0 | ≥300m/mln/@70mbar | 7.0 | 15 | 6 | 10 | HX-BF.M6SS |
| M8×1.0 | ≥900ml/min/@70mbar | 7.0 | 16 | 8 | 14 | HXBEMBSS |
| M8×1.25 | ≥900m/mln/@70mbar | 7.0 | 16 | 8 | 14 | HX-BEMEx1.255s |
| M10×1.0 | ≥1500ml/mlny@70mbar | B | 16 | 10 | 17 | HX-BFM10SS |
| M10×15 | ≥1500m/mln@70mbar | B | 16 | 10 | 17 | HX-BEM10x1.55S |
| M12×15 | ≥1500m/mln@70mbar | 6.0 | 14 | 12 | 17 | HXBEM12 L6SS |
| M12×1.5 | 1500mlmlny@Tombar | 7.0 | 15 | 12 | 17 | HXBEM12L75S |
| M12×15 | ≥1500ml/mlny/@7ombar | 10.0 | 18 | 12 | 17 | HX-BEM12 L105S |
| M12×1.75 | 1500mlmlny@Tombar | 7.0 | 15 | 12 | 17 | HX-BFM12x1.75SS |
| M12×1.75 | ≥1500mlmln/@Tombar | 10.0 | 18 | 12 | 17 | HX-BFM12x1.75SS |
| M16×15 | 2300ml/miln/@Tombar | 10.0 | 19.5 | 16 | 22 | HX-BEM1655 |
| M20×1.5 | 2300ml/mlny@7ombar | 10.0 | 19.5 | 20 | 22 | HX-BEM205S |
| M22×15 | ≥2300mlmlny@Tombar | 10.0 | 23 | 22 | 28 | HX-BF.M22SS |
| M24×15 | ≥2500mlmln/@Tombar | 10.0 | 21 | 24 | 30 | HX-BF.M24SS |
| M25×15 | 2500ml/miln/@Tombar | 10.0 | 21 | 25 | 30 | HXBEM2555 |
| M40×1.5 | ≥2500mlmiln/@Tombar | 15.0 | 30 | 40 | 45 | HXBE.M405S |
| G1/8 | ≥1500mlmiln/@Tombar | B | 16 | 18.5 | 17 | HK-BFG1/8 SS |
| G1/4 | ≥1500mlmln/@Tombar | 7.0 | 15 | 18.5 | 17 | HX-BFG1/4SS |
| G3/8 | ≥2300m/mln@70mbar | 10.0 | 19.5 | 24 | 22 | HX-BFG3/85S |
| G1/2 | ≥2300mlmiln/@Tombar | 10.0 | 19.5 | 24 | 22 | HX-BFG1/25S |
| G3/4 | ≥3000ml/miln/@Tombar | 10.0 | 23 | 35.5 | 32 | HX-BFG3/4 SS |
| NPTL/8 | ≥1500mlmiln/@Tombar | B | 16 | 18.5 | 17 | HX-BENPTL/阳55 |
| NPTI/4 | ≥1500ml/mlny@7ombar | 7.0 | 15 | 18.5 | 17 | HX-BE.NPTL/45S |
| NPT3/8 | ≥2300ml/miln/@Tombar | 10 | 19.5 | 24 | 22 | HX-BENPT3/a 55 |
| NPTI/2 | 2300ml/miln/@Tombar | 10.0 | 19.5 | 24 | 22 | HX-BENPTI/255 |
| Other styles support call consultatlon | ||||||
| Item | Breathability | HThread Length | HOveallength | AGThread O.D. | Spanner size | Code |
| M5×0.8 | ≥200ml/min@7ombar | 5 | 9 | 5 | B | HX-BFM5-T 5S |
| M6×1.0 | ≥200ml/mln/@7ombar | 5 | 9 | 6 | B | HX-BF.M6-T SS |
| MB×1.25 | ≥500ml/min7ombar | 7 | 12 | 8 | 12 | HX-BF.M&X1.25-TSS |
| M10×1.5 | ≥500ml/min7ombar | 8 | 13 | 10 | 14 | HX-BFM101.5-T SS |
| M12×15 | ≥1500m/mln/@70mbar | 8 | 13 | 12 | 16 | HX-BF.M12-TSS |
| M16×1.5 | ≥1700mymlny@7ombar | 10 | 15 | 16 | 20 | HX-BFM16-T SS |
| M20×15 | ≥2300mymlny@7ombar | 10 | 15 | 20 | 24 | HX-BF.M20-T SS |
| Other styles support call consultation | ||||||
