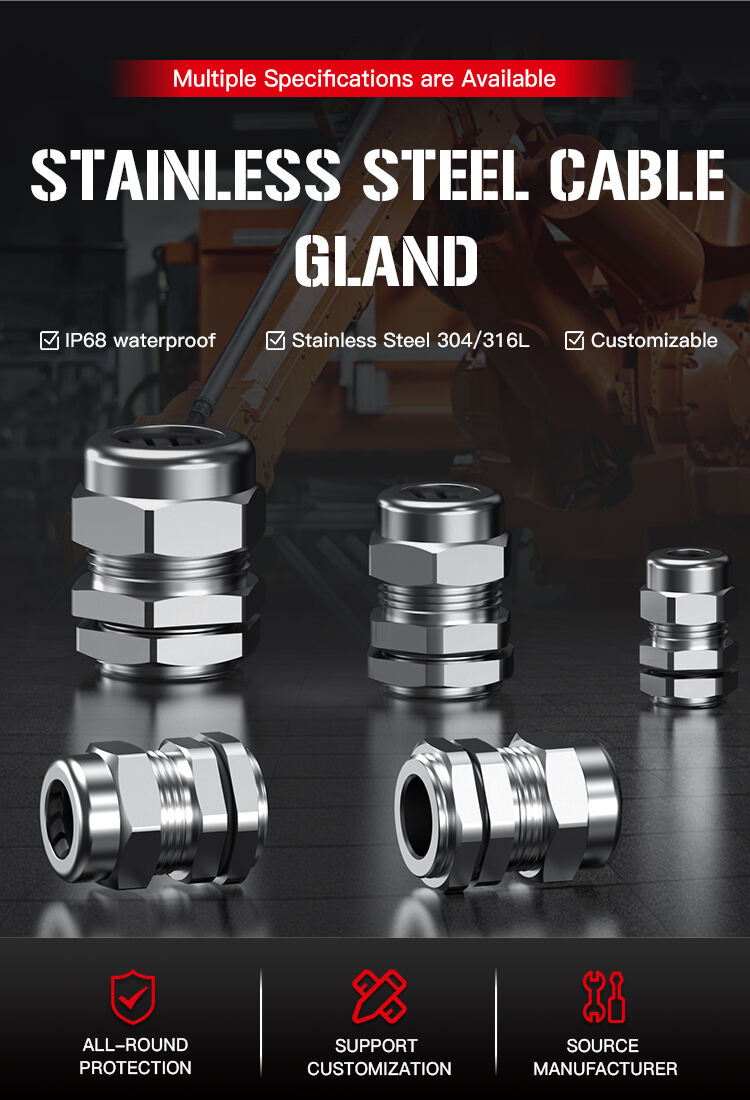

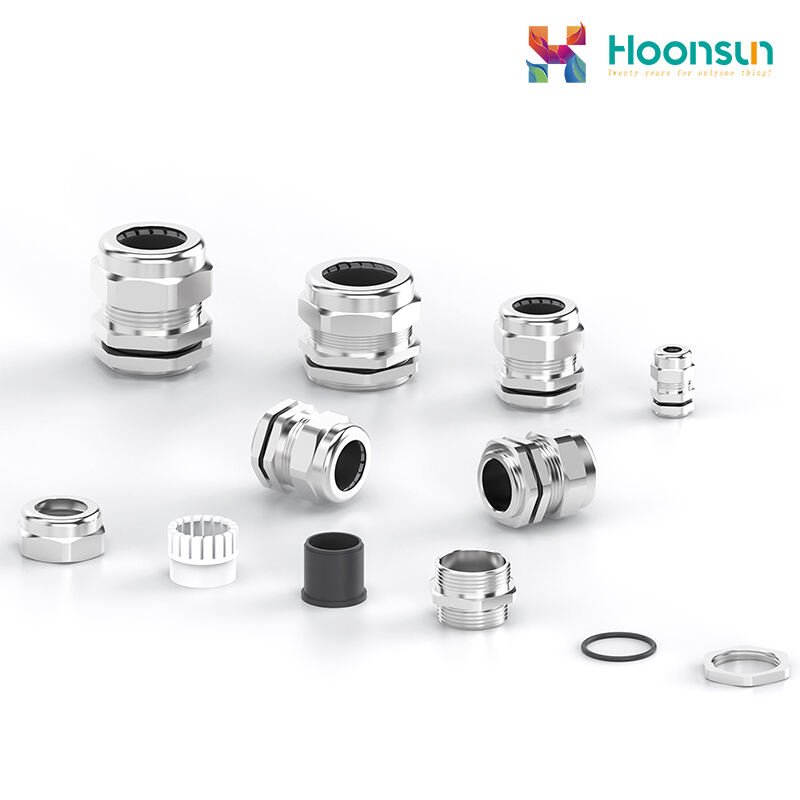

Stainless Steel Cable Gland
Super Strong Corrosion Resistance: The main body is made of 304 or 316 stainless steel, with excellent resistance to acid, alkali, salt spray and moisture corrosion. Suitable for high-corrosion scenarios such as chemical industry, marine and outdoor environments.
Durable and Sturdy Material: Stainless steel has high mechanical strength, wear resistance and high temperature resistance. It can withstand external impact and harsh environment erosion, with a service life far longer than ordinary metal glands.
High-Level Protection: Optimized sealing structure, generally achieving IP65+ protection rating (some models reach IP68). It effectively provides dustproof, waterproof and oilproof protection to ensure the safety of cable connections.
Wide Application Compatibility: Compatible with various cable specifications and thread standards (metric, imperial, etc.), easy to install. Widely used in chemical industry, shipping, food processing, outdoor engineering and other scenarios.
- Overview
- Specifications
- Description
- Recommended Products
Overview
PRODUCT PARAMETER
Welcome to Our Website,We Are Happy to Serve You

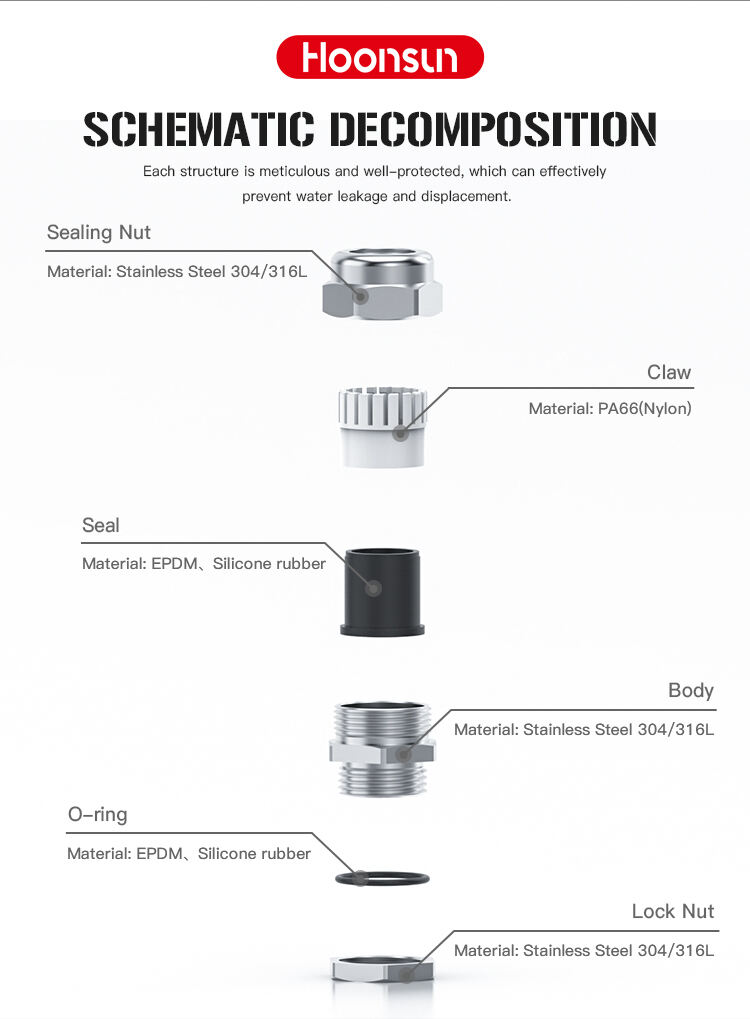

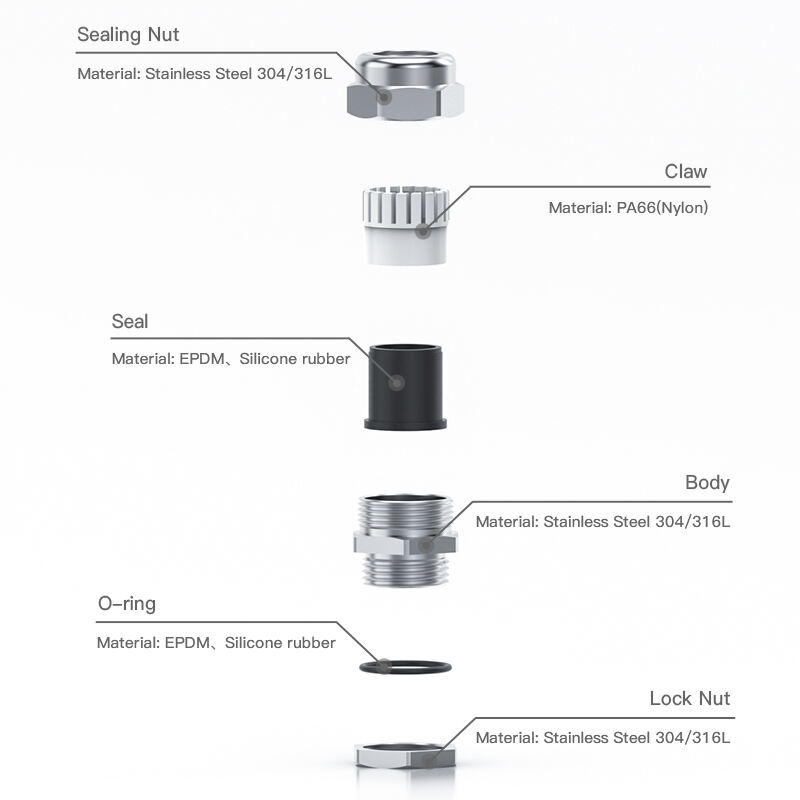

| Fitting Material: | Stainless Steel 304/316L | ||||||
| Material For Clamping Jaws: | PA66(Nylon),UL94-V2 | ||||||
| Material For Sealing Components: | EPDM,Silicone rubber | ||||||
| O-ring Material: | EPDM,Silicone rubber | ||||||
| Protection Degree: | IP66-10 bar | ||||||
| Temperature: | Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃ |
Product Highlights
• Superior Corrosion Resistance
Made of 304 or 316 stainless steel, ensuring excellent resistance to moisture, salt, and chemicals — perfect for marine, chemical, and outdoor environments.
• Strong and Reliable
High mechanical strength prevents cable loosening under vibration or pressure, providing long-lasting stability.

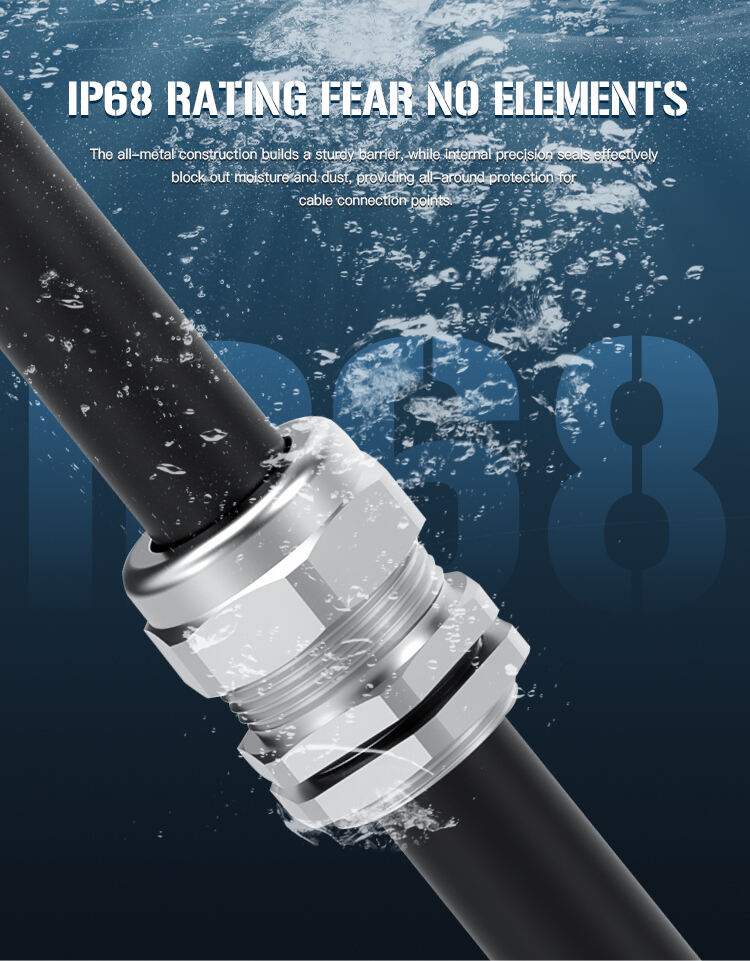

• IP68 Waterproof Protection
Fully sealed against water, dust, and oil, ideal for electrical panels, junction boxes, and outdoor installations.
• Wide Temperature Range
Performs reliably between -40°C and +120°C, suitable for extreme environments.
• Easy Installation
Available in PG, NPT, and Metric threads, with rubber or silicone seals for secure, simple installation.
• Explosion-Proof Options
ATEX-certified versions available for hazardous or explosive areas.
• Long Lifespan
Corrosion-resistant material ensures minimal maintenance and long service life.
Applications
• Power systems
• Marine & Offshore
• Petrochemical
• Automation Equipment
• Communication Cabinets · Outdoor Lighting
Key Benefits
High strength & corrosion resistance
IP68 waterproof & dustproof
Heat & cold resistant
Easy to install, maintenance-free
Global certification: CE, UL, RoHS, ATEX
Specifications

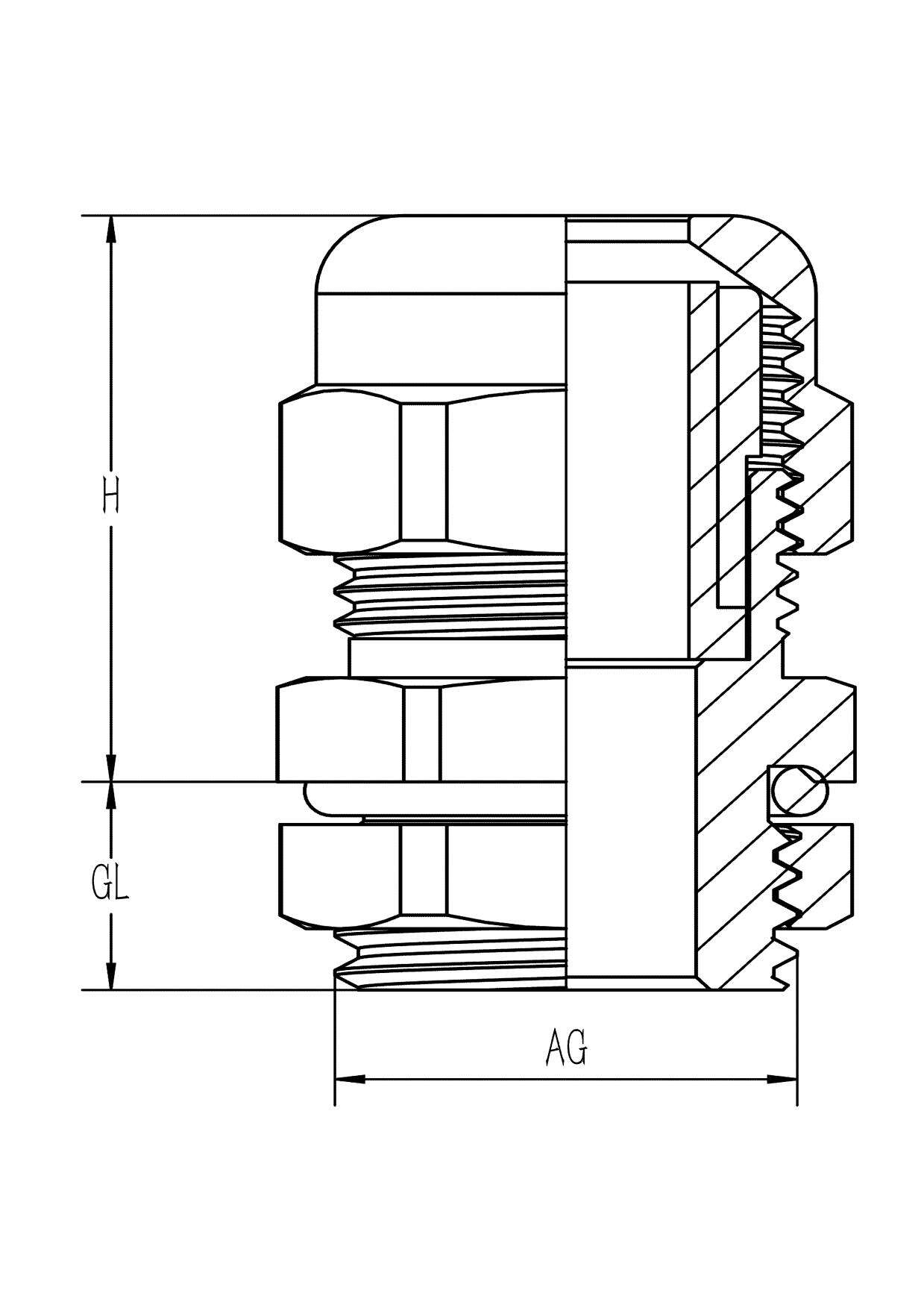

| Item | Range | GLThreadLength | AGThreadO.D. | HJointLength | Spannersize | Code |
| M8x1 | 2-5 | 6 | 8 | 14 | 12 | HX-SS.M8 |
| M10x1 | 2-5 | 7 | 10 | 17 | 14 | HX-SS.M10-5 |
| 3-6.5 | 7 | 10 | 17 | 14 | HX-SS.M10 | |
| M12x1.5 | 3-6.5 | 7 | 12 | 17 | 14/15 | HX-SS.M12 |
| 4-8 | 8 | 12 | 17 | 18/15 | HX-SS.M12-8 | |
| M14x1.5 | 4-8 | 8 | 14 | 19 | 18 | HX-SS.M14 |
| M16x1.5 | 4-8 | 8 | 16 | 19 | 18 | HX-SS.M16 |
| 5-10 | 8 | 16 | 19 | 20/18 | HX-SS.M16-10 | |
| M18x1.5 | 5-10 | 8 | 18 | 19 | 20 | HX-SS.M18 |
| M20x1.5 | 6-12 | 8 | 20 | 20 | 22 | HX-SS.M20 |
| 10-14 | 8 | 20 | 20 | 24/22 | HX-SS.M20-14 | |
| M22x1.5 | 10-14 | 8 | 22 | 20 | 24 | HX-SS.M22 |
| M25x1.5 | 10-14 | 9 | 25 | 22 | 24/27 | HX-SS.M25-14 |
| 12-16 | 9 | 25 | 22 | 27 | HX-SS.M25-16 | |
| 13-18 | 9 | 25 | 22 | 30 | HX-SS.M25-18 | |
| M27x1.5 | 13-18 | 9 | 27 | 22 | 30 | HX-SS.M27 |
| M32x1.5 | 15-22 | 10 | 32 | 25 | 35 | HX-SS.M32 |
| 18-25 | 10 | 32 | 28 | 40/35 | HX-SS.M32-25 | |
| M33x1.5 | 15-22 | 10 | 33 | 29 | 35/36 | HX-SS.M33 |
| M36x1.5 | 18-25 | 10 | 36 | 28 | 40 | HX-SS.M36 |
| M40x1.5 | 18-25 | 10 | 40 | 28 | 40/45 | HX-SS.M40-25 |
| 22-30 | 10 | 40 | 30 | 45 | HX-SS.M40-30 | |
| 25-33 | 10 | 40 | 30 | 50/45 | HX-SS.M40-33 | |
| M42x1.5 | 22-30 | 10 | 42 | 30 | 45 | HX-SS.M42 |
| M47x1.5 | 25-33 | 11 | 47 | 30 | 50 | HX-SS.M47 |
| M48x1.5 | 25-33 | 11 | 48 | 30 | 50 | HX-SS.M48 |
| M50x1.5 | 32-38 | 12 | 50 | 31 | 55/56 | HX-SS.M50 |
| M54x1.5 | 32-38 | 12 | 54 | 31 | 55/57 | HX-SS.M54 |
| M60x1.5 | 37-44 | 13 | 60 | 33 | 66/65 | HX-SS.M60 |
| M63x1.5 | 37-44 | 13 | 63 | 33 | 65/68 | HX-SS.M63 |
| M64x2 | 37-44 | 13 | 64 | 33 | 65/68 | HX-SS.M64 |
| M72x2 | 42-52 | 15 | 72 | 35 | 75 | HX-SS.M72 |
| M75x2 | 42-52 | 15 | 75 | 35 | 75/80 | HX-SS.M75 |
| M80x2 | 55-62 | 15 | 80 | 37 | 85 | HX-SS.M80 |
| M88x2 | 65-70 | 18 | 88 | 38 | 94 | HX-SS.M88 |
| M90x2 | 65-70 | 18 | 90 | 38 | 94/96 | HX-SS.M90 |
| M100x2 | 75-85 | 20 | 100 | 53 | 110 | HX-SS.M100 |
| PG7 | 3-6.5 | 7 | 12.5 | 19.0 | 15 | HX-SS.PG7 |
| PG9 | 4-8 | 0 | 15.2 | 20.0 | 18 | HX-SS.PG9 |
| PG11 | 5-10 | 8 | 18.6 | 21.0 | 20 | HX-SS.PG11 |
| PG13.5 | 6-12 | 0 | 20.4 | 22.0 | 22 | HX-SS.PG13.5 |
| PG16 | 10-14 | 8 | 22.5 | 23.0 | 24 | HX-SS.PG16 |
| PG19 | 10-14 | 9 | 25.0 | 23.0 | 27 | HX-SS.PG19 |
| PG21 | 13-18 | 9 | 28.3 | 27.0 | 30 | HM-SS.PG21 |
| PG25 | 15-22 | 10 | 32.0 | 29.0 | 35 | HX-SS.PG25 |
| PG29 | 18-25 | 37.0 | 31.0 | 40 | HX-SS.PG29 | |
| PG36 | 25-33 | 11 | 47.0 | 37.0 | 50 | HX-SS.PG36 |
| PG42 | 32-38 | 12 | 54.0 | 38.0 | 55/57 | HX-SS.PG42 |
| PG48 | 37-44 | 13 | 59.3 | 38.0 | 65.66 | HX-SS.PG48 |
| PG63 | 42-52 | 15 | 72.0 | 42.0 | 75 | HX-S5.PG63 |
| G1/4 | 3-6.5 | 19 | 13.1 | 14/16 | HX-SS.G1/4 | |
| G3/B | 4-8 | 8 | 21 | 16.6 | 18/20 | HX-SS.G3/8 |
| G1/2 | 6-12 | 8 | 22 | 20.9 | 22/24 | HX-S5.G1/2 |
| G3/4 | 13-18 | 9 | 25 | 26.4 | 30 | HX-55.G3/4 |
| 61 | 18-25 | 10 | 29 | 32.2 | 40 | HX-55.61 |
| 01-1/4 | 25-33 | 11 | 35 | 41.9 | 50 | HX-55.01-1/4 |
| G1-1/2 | 32-38 | 12 | 37 | 47.8 | 55/56 | HX-55.G1-1/2 |
| G2 | 37-44 | 14 | 38 | 59.6 | 65 | HX-55.G2 |
| G2-1/2 | 42-52 | 16 | 42 | 75.1 | 75/80 | HX-SS.G2-1/2 |
| G3 | 65-70 | 18 | 45 | 88 | 94 | HX-55.63 |
| NPT1/4 | 3-6.5 | 7 | 19 | 13.6 | 14/16 | HX-SS.NPT1/4 |
| NPT3/8 | 4-8 | 8 | 21 | 17.0 | 18 | HX-5S.NPT3/8 |
| NPT1/2 | 6-12 | 8 | 23.5 | 21.2 | 22 | HX-SS.NPT1/2 |
| NPT3/4 | 13-18 | 9 | 26 | 26.5 | 30 | HX-SS.NPT3/4 |
| NPT1 | 18-25 | 10 | 33 | 33.2 | 40 | A-SS.NPT1HX-55 |
| NPT1-1/4 | 22-32 | 37.5 | 41.9 | 50 | HX.SS.N PT1 1/4 | |
| NPT1-1/2 | 30-38 | 12 | 38.5 | 48.0 | 55 | HX-SS.NPT1 1/2 |
| NPT2 | 37-44 | 14 | 40 | 60.0 | 65 | HX-SS.NPT2 |
| NPT2-1/2 | 42-52 | 16 | 40 | 72.6 | 75/80 | HX-SS.NPT2-1/2 |
| NPT3 | 65-70 | 18 | 41 | 88.6 | 94 | HX-SS.NPT3 |
| Note: NPT models come standard witho ut nuts and are optional | ||||||
