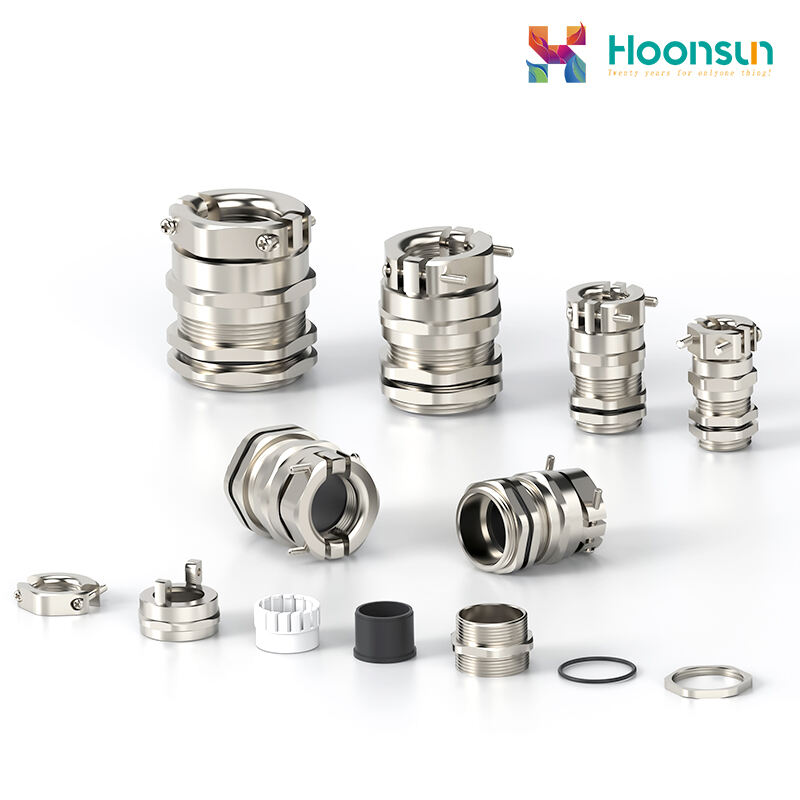

Metal Cable Gland - Double Lock Type
Double-locking design: Adopts a double-locking structure, usually thread + ferrule or double-thread combination. Anti-loosening effect is far superior to single-locking joints, effectively resisting loosening caused by high-frequency vibration and pulling to ensure connection stability.

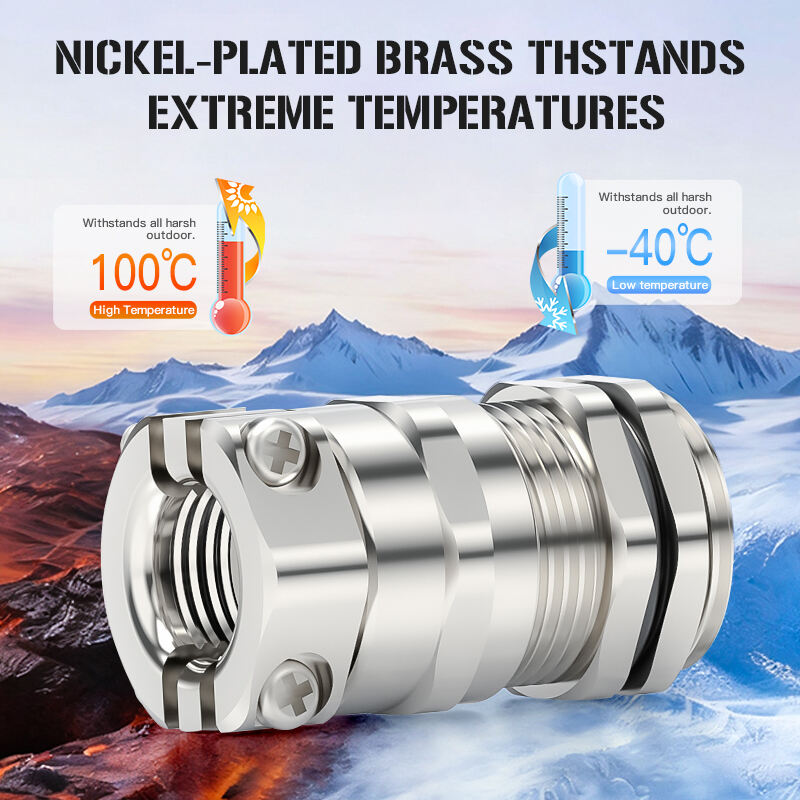

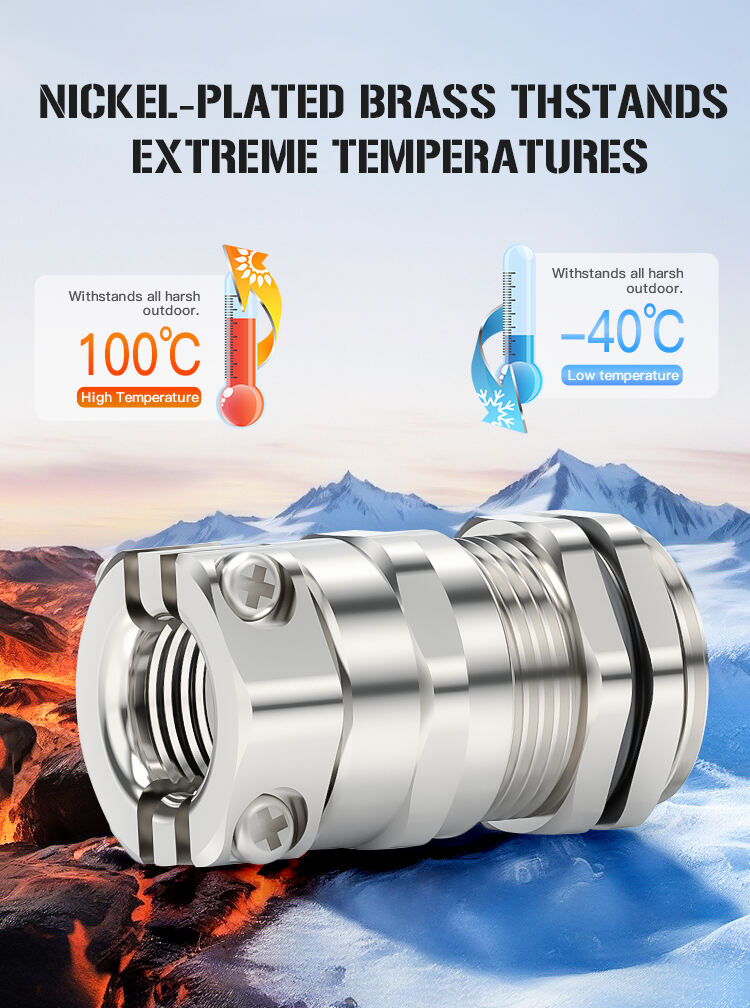

Metal material advantages: The shell is made of high-quality metal, with high mechanical strength, impact resistance, corrosion resistance and high temperature resistance. It can withstand wear in harsh working conditions, has a long service life, and is suitable for harsh environments such as outdoor and heavy industry.

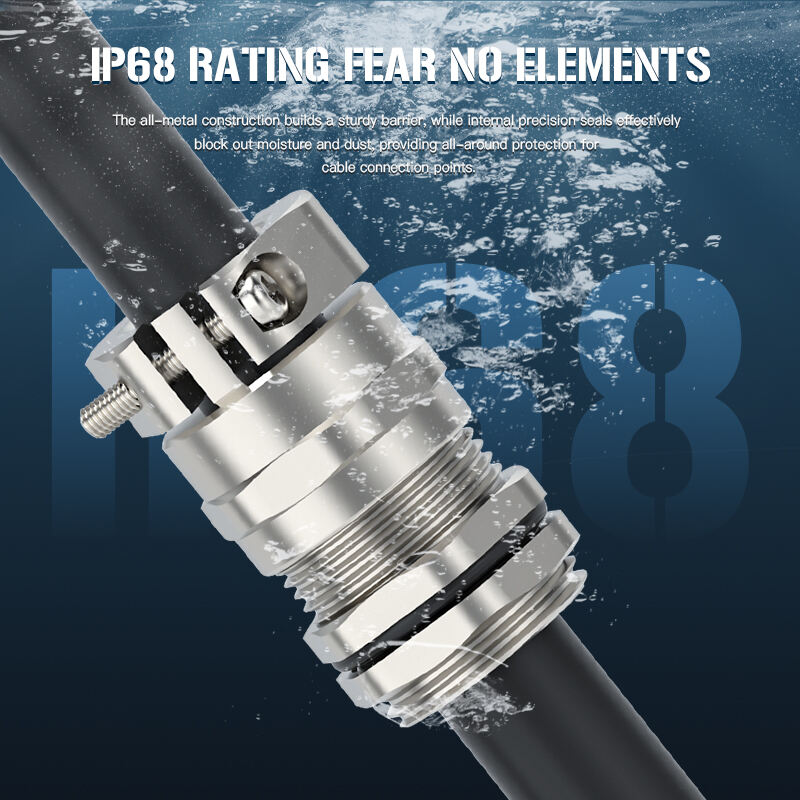

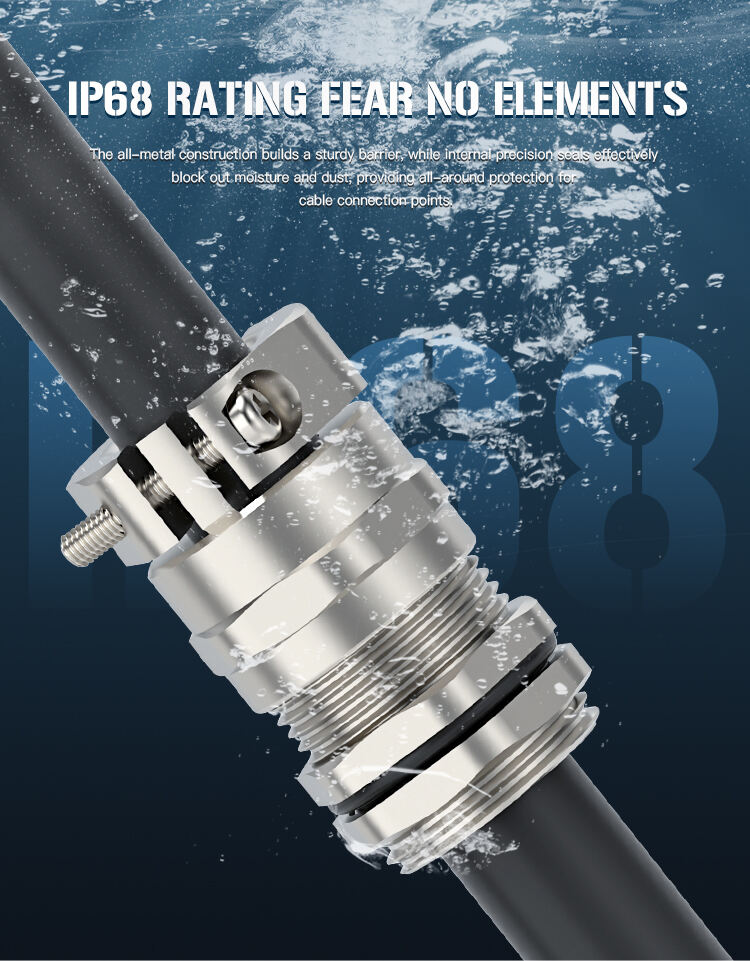

Reliable sealing protection: Features high-level sealing performance of IP65 and above, dustproof, waterproof and oilproof. Effectively isolates external impurities from entering, prevents internal medium leakage, and protects the safety of cable joints and equipment.
Easy installation and adaptability: Compact structure, compatible with various cable specifications, no complex tools required. Assembly can be completed manually or with simple tools, balancing installation efficiency and connection firmness, suitable for wiring of various industrial equipment.
- Overview
- Specifications
- Description
- Recommended Products
Overview
PRODUCT PARAMETER
Welcome to Our Website,We Are Happy to Serve You

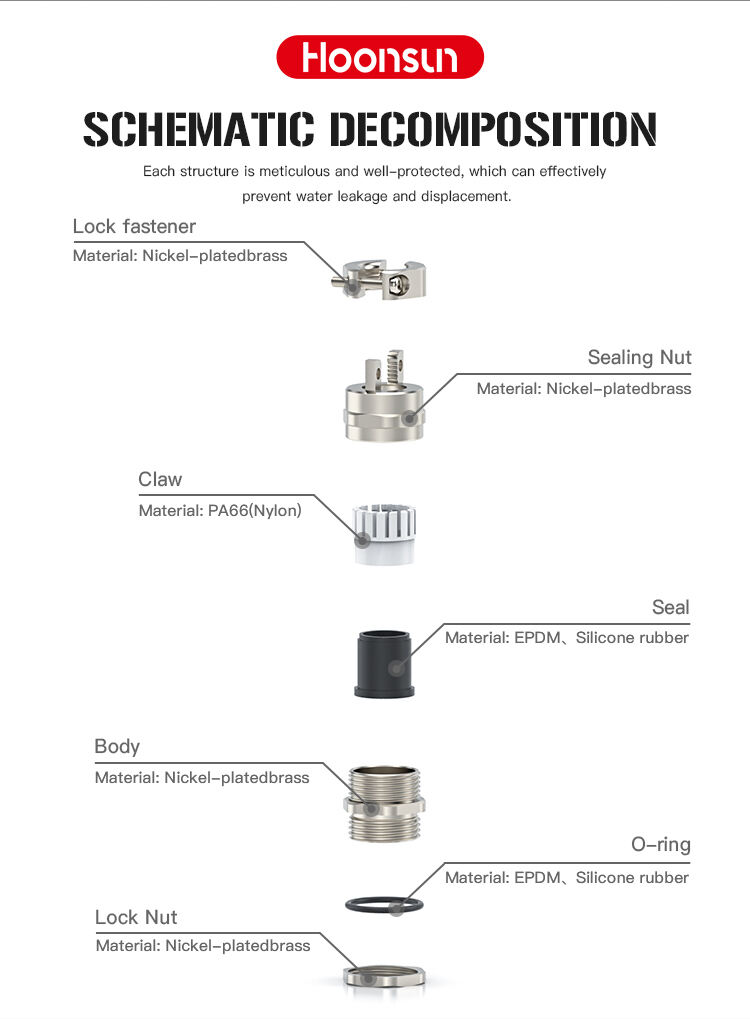

| Fitting Material: | Nickel-platedbrass | |||||

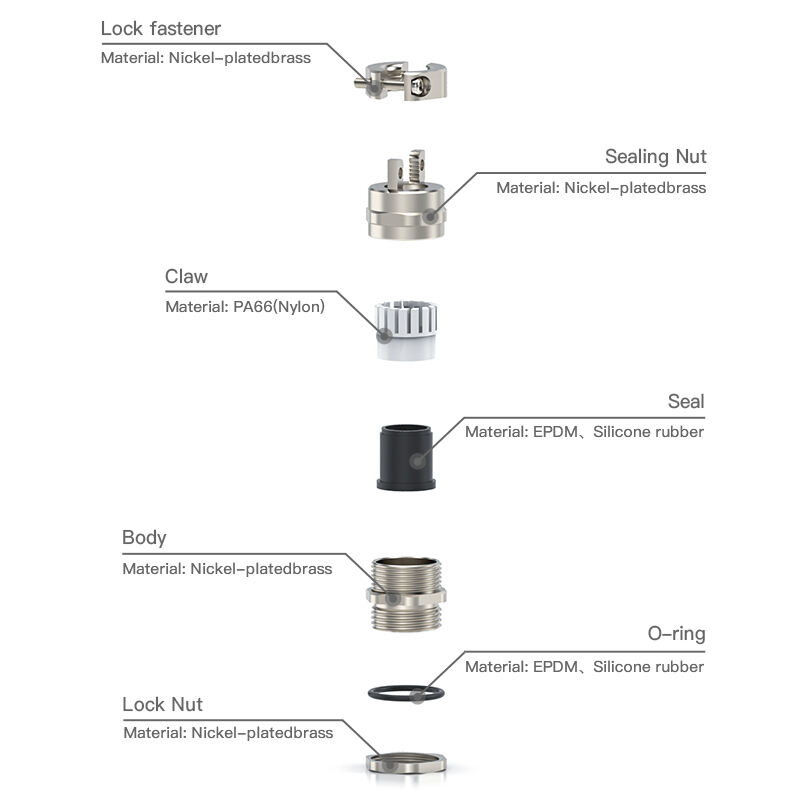

| Material For Clamping Jaws: | PA66(Nylon),UL94-V2 | |||||
| Material For Sealing Components: | EPDM,Silicone rubber | |||||
| O-ring Material: | EPDM,Silicone rubber | |||||
| Protection Degree: | IP66-10 bar | |||||
| Temperature: |
Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃ |
|||||
| Application features: | It is suitable for occasions where there are special requirements for cable sealing and tensile resistance | |||||
Specifications
unit: mm
| Item | Range | GLThread Length | Thread O.D. | HJoint Length | Spanner size | Code |
| M12×1.5 | 3-6.5 | 6.5 | 12 | 25 | 14 | HX-NS.M12 |
| M12×1.5 | 4-8 | 8 | 12 | 27 | 17/14 | HX-NS.M12-8 |
| M16×1.5 | 4-8 | 8 | 16 | 27 | 18 | HX-NS.M16 |
| M16×1.5 | 5-10 | 8 | 16 | 29 | 20/18 | HX-NS.M16-10 |
| M18×1.5 | 5-10 | 8 | 18 | 29 | 22 | HX-NS.M18 |
| M20×1.5 | 6-12 | 8 | 20 | 31 | 22 | HX-NS.M20 |
| M20×1.5 | 10-14 | 8 | 20 | 31 | 24/22 | HX-NS.M20-14 |
| M25×1.5 | 10-14 | 9 | 25 | 37 | 24/27 | HX-NS.M25-14 |
| M25×1.5 | 12-16 | 9 | 25 | 37 | 27 | HX-NS.M25-16 |
| M25×1.5 | 13-18 | 9 | 25 | 37 | 30/27 | HX-NS.M25-18 |
| M32×1.5 | 15-22 | 10 | 32 | 42 | 35 | HX-NS.M32 |
| M32×1.5 | 18-25 | 10 | 32 | 42 | 40/35 | HX-NS.M32-25 |
| M40×1.5 | 18-25 | 11 | 40 | 48 | 40/45 | HX-NS.M40-25 |
| M40×1.5 | 22-30 | 11 | 40 | 48 | 45 | HX-NS.M40-30 |
| M40×1.5 | 25-33 | 11 | 40 | 48 | 50/45 | HX-NS.M40-33 |
| M50×1.5 | 32-38 | 13 | 50 | 50 | 57/55 | HX-NS.M50 |
| M63×1.5 | 32-38 | 14 | 63 | 51 | 64/68 | HX-NS.M63 |
| M63×1.5 | 42-52 | 14 | 63 | 51 | 78/68 | HX-NS.M63-52 |
|
Customlzable PG/G/NPT thread customlzation For other specflcationsand szes,please refer to pages14 |
||||||
