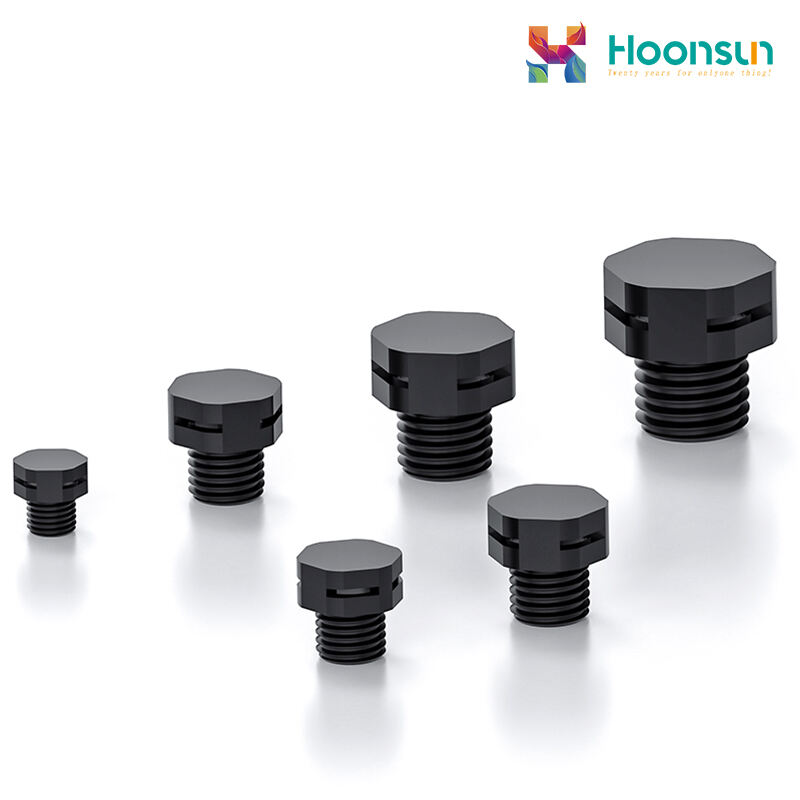

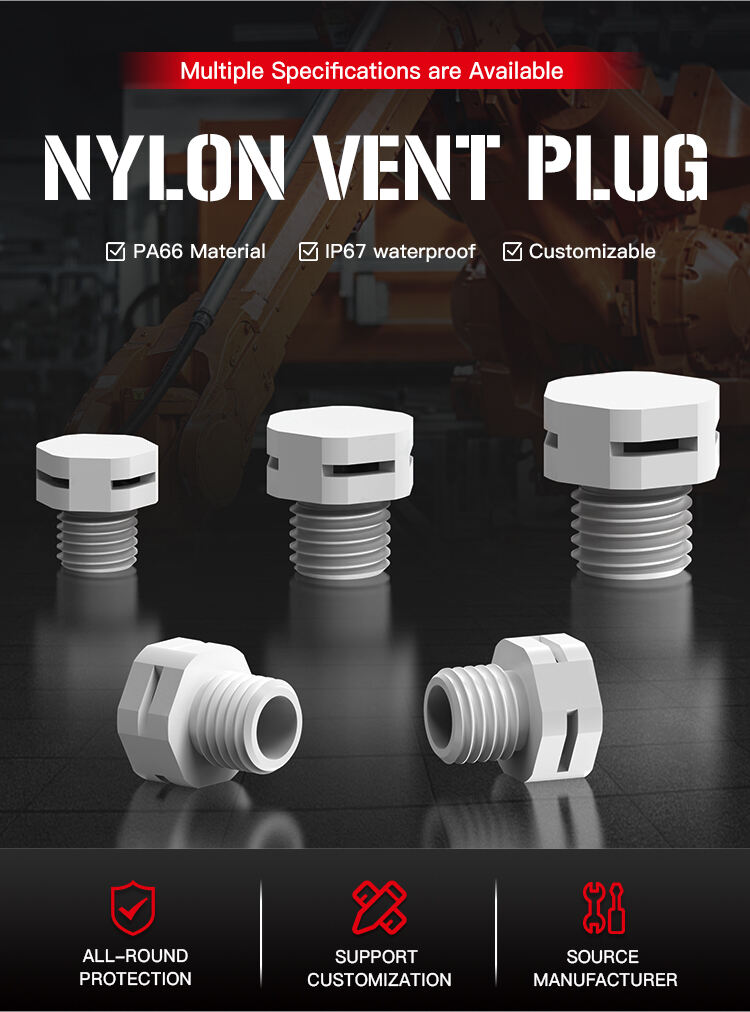

Nylon Vent Plug
Material advantages: Made of nylon, lightweight, high-strength and corrosion-resistant. Not easy to age or deform, suitable for various indoor and outdoor general environments with long service life.

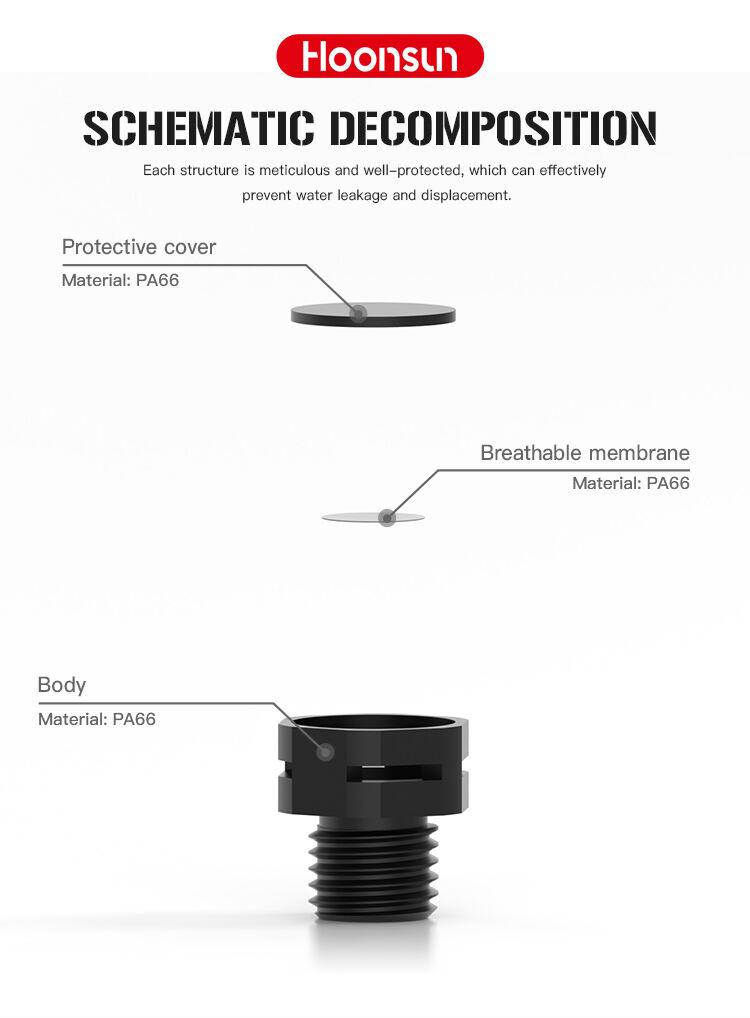

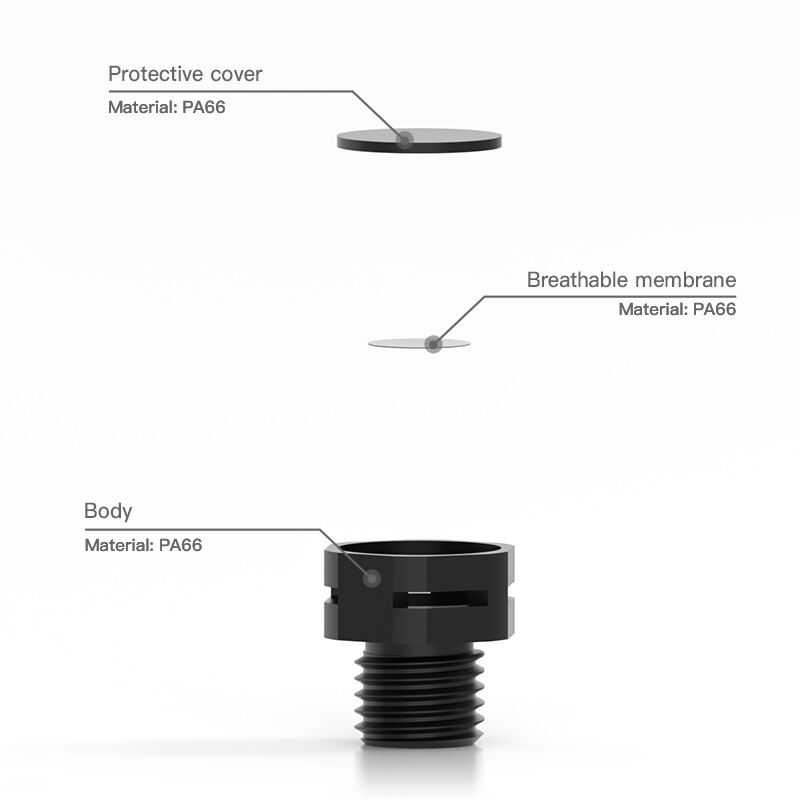

Core ventilation & moisture-proof function: Built-in breathable membrane, which can discharge moisture, condensed water and accumulated gas inside the equipment. It also blocks external dust and liquid intrusion, avoiding damage to components caused by excessive internal pressure of the equipment.
Easy and efficient installation: Streamlined structure, mostly snap-on or threaded design. No special tools required, can be quickly installed and fixed by hand, compatible with various equipment interface specifications.
Economical and practical: Nylon material has low cost, balancing practicality and cost-effectiveness. Meets the basic ventilation and protection needs of equipment, suitable for mass-use scenarios.
- Overview
- Specifications
- Description
- Recommended Products
Overview
PRODUCT PARAMETER
Welcome to Our Website,We Are Happy to Serve You
| Fitting Material: | PA66 | ||||||
| Color: | White, Gray, Black | ||||||

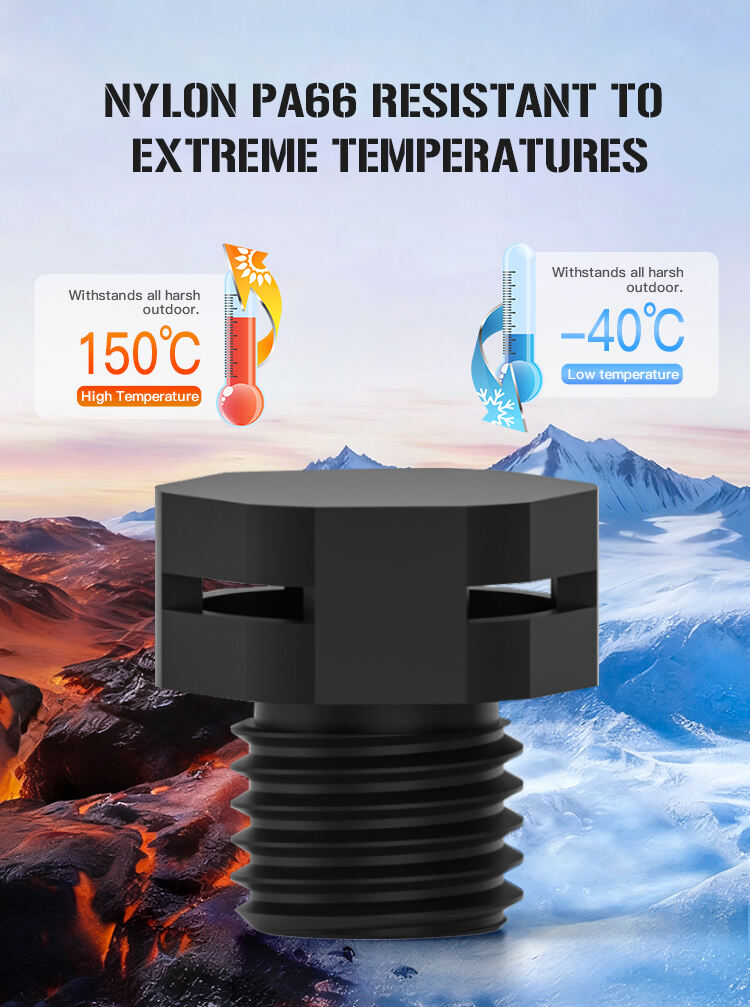

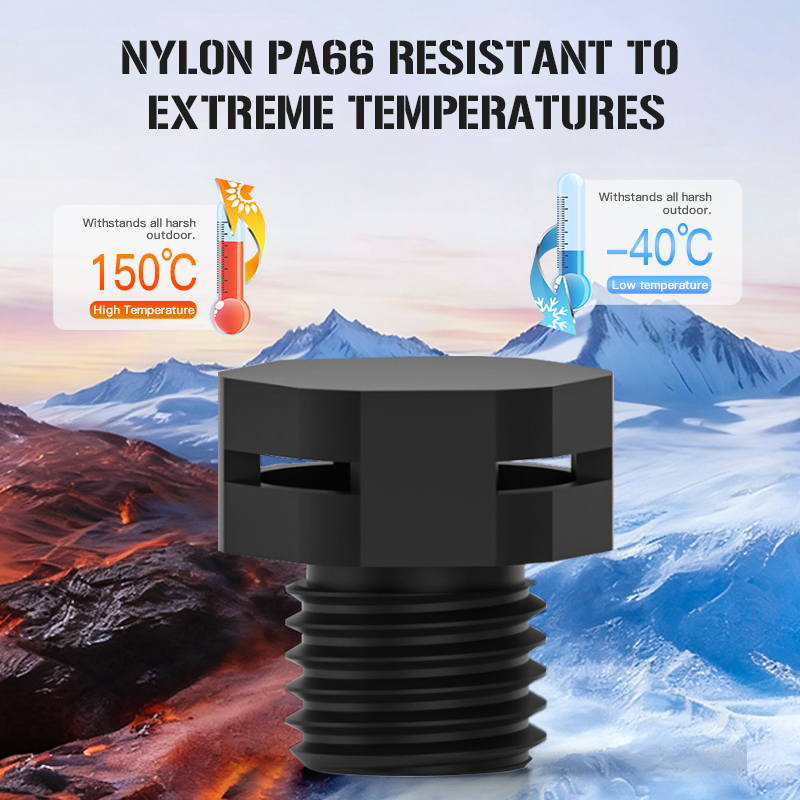

| Temperature resistance: | -40℃~+150℃ | ||||||
| Moisture permeability: | >5000g/24H.M2 | ||||||
| Resistant to fine water pressure: | ≥100mbar for 30min | ||||||
| Product characteristics: | Dustproof, hydrophobic, breathable, heat dissipation, oil proof | ||||||
| Air permeability: | ≥1.2L/mim/c m@70mbar(customizable) | ||||||
The Nylon Breather Vent Valve provides reliable ventilation and moisture control for sealed enclosures while maintaining high ingress protection. Made from flame-retardant PA66 nylon, it combines lightweight construction with excellent mechanical and environmental performance.

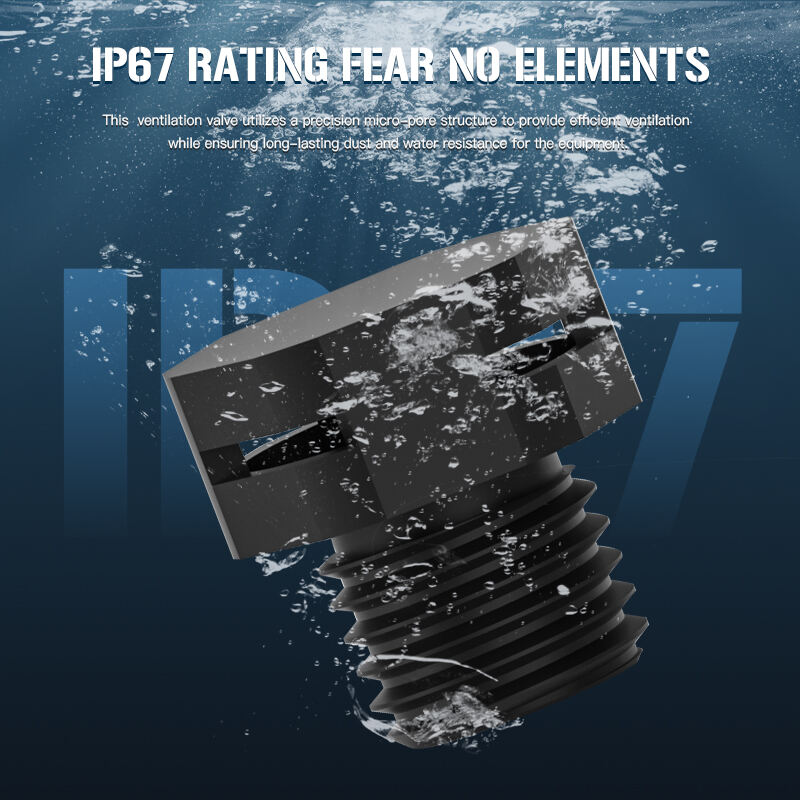

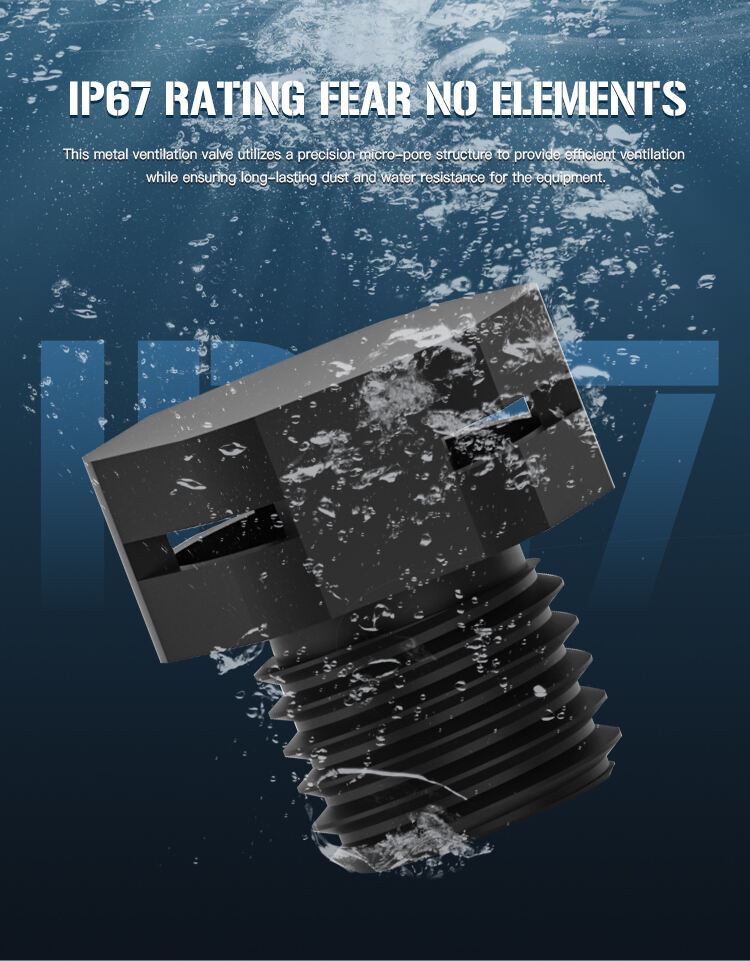

Its breathable waterproof membrane enables pressure equalization while preventing liquid or dust intrusion, achieving IP67 protection. This helps eliminate condensation and prolongs the lifespan of sensitive electronic components in outdoor control boxes, LED lighting systems, sensors, and communication devices.
Compact and easy to install, the valve offers stable airflow, UV resistance, and anti-aging properties, making it suitable for long-term outdoor or industrial use. Available in Metric and PG thread types, the Nylon Breather Vent Valve complies with CE and RoHS certifications, delivering a cost-effective and professional ventilation solution for modern electronic and electrical systems.
Specifications
unit: mm
| Item | Breathability | GL | HOverallength | Thread diameter | Spanner size | Code |
| M5×0.8 | 600ml/min/@70mbar | 7.0 | 13 | 5 | 12 | HX-PF.M5 |
| M6×1.0 | ≥600ml/mln/@70mbar | 7.0 | 13 | 6 | 12 | HX-PF.M6 |
| M8×1.0 | 600ml/mln/@70mbar | 7.0 | 13 | 8 | 12 | HX-PF.M8 |
| M8×1.25 | ≥1500ml/mln/@70mbar | 10.0 | 18 | 8 | 17 | HX-PF.M8 |
| M10×1.5 | ≥1500ml/mln/@70mbar | 10.0 | 18 | 10 | 17 | HX-PF.M10 |
| M12×1.0 | ≥1500ml/mln/@70mbar | 10.0 | 16 | 12 | 16 | HX-PF.M12 |
| M12×1.5 | ≥1500ml/mln/@70mbar | 10.0 | 16 | 12 | 16 | HX-PF.M12 |
| M12×1.5 | ≥1500ml/mln/@70mbar | 10.0 | 18 | 12 | 17 | HX-PF.M12 |
| M16×1.5 | ≥4000ml/mln/@70mbar | 10.0 | 18 | 16 | 22 | HX-PF.M16 |
| M20×1.5 | ≥4500ml/mln/@70mbar | 10.0 | 18 | 20 | 27 | HX-PF.M20 |
| M24×1.5 | ≥700ml/mln/@7ombar | 15.0 | 24 | 24 | 36 | HX-PF.M24 |
| M32×1.5 | ≥8000ml/mln/@70mbar | 15.0 | 25 | 32 | 45 | HX-PF.M32 |
| M40×1.5 | ≥8500ml/mln/@70mbar | 15mm | 24mm | 40mm | 56mm | HX-PF.M40 |
