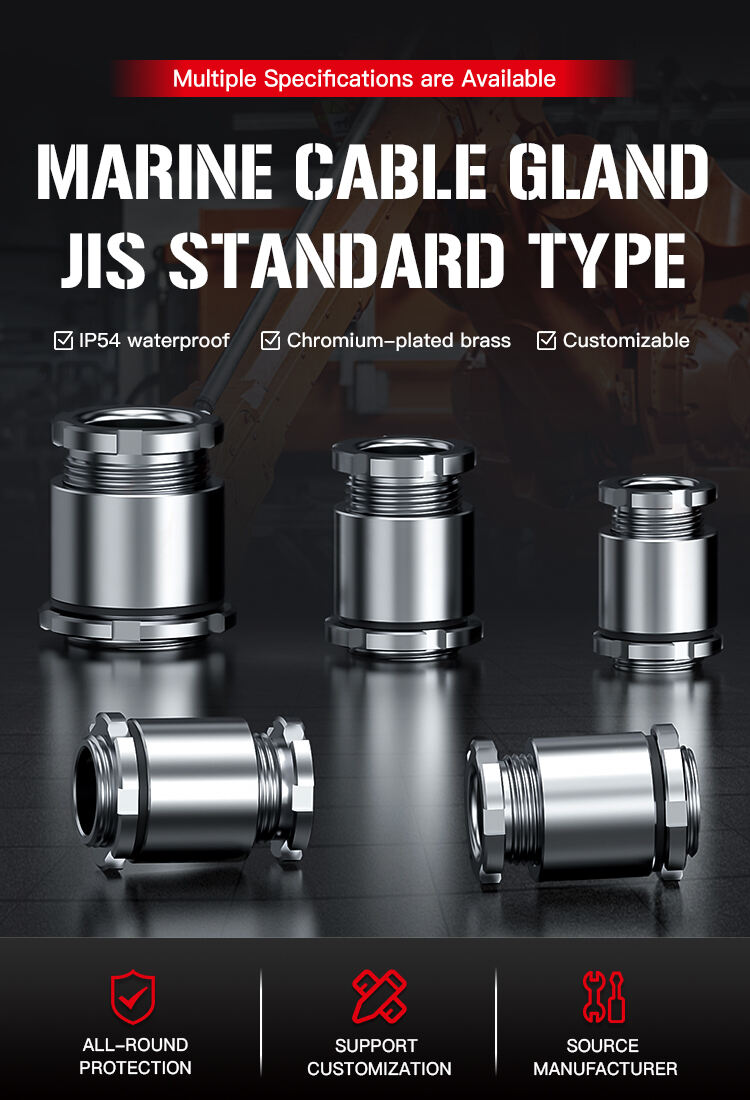

Marine Cable Gland - JIS standard Type
Compliance with JIS Standards, Quality Conformance: Strictly manufactured in accordance with Japanese Industrial Standards (JIS), with dimensional accuracy and performance parameters meeting the compliance requirements of the marine industry. Compatible with Japanese-style ships and supporting equipment.
Strong Corrosion Resistance for Marine Environments: The main body is mostly made of nickel-plated brass or 316 stainless steel, featuring outstanding resistance to salt spray and moisture corrosion. It can withstand the harsh high-salt, high-humidity marine conditions for a long time.

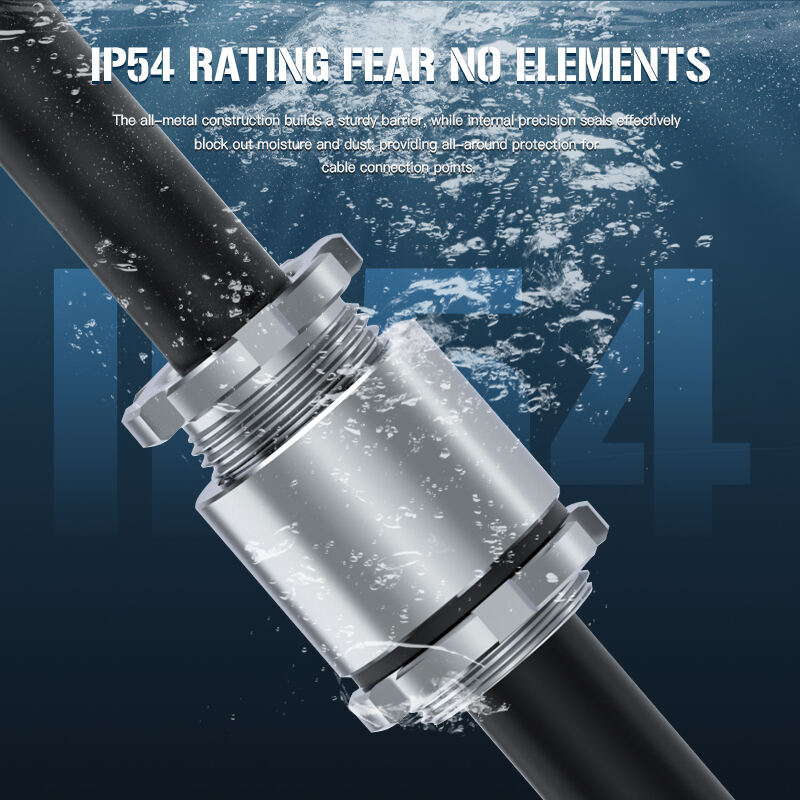

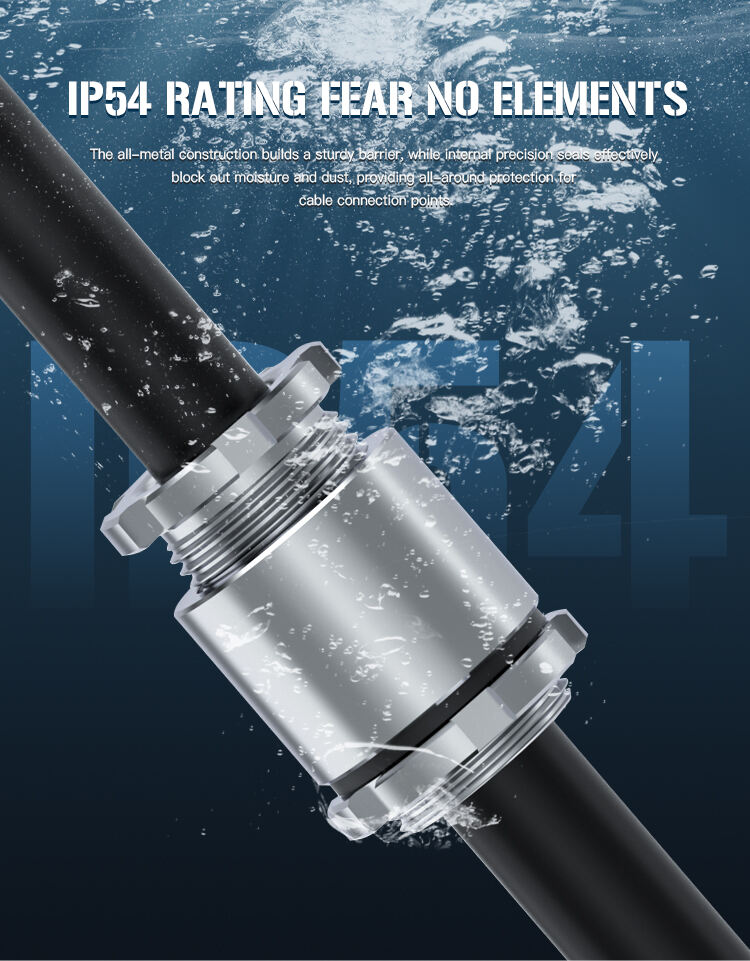

High-Level Protection, Safe and Stable: The sealing structure is specially optimized, achieving an IP54+ protection rating (some models reach IP68). It effectively provides dustproof, waterproof, and oilproof protection, ensuring long-term stable cable connections.
Flexible Adaptability and Strong Versatility: Supports JIS standard thread specifications, compatible with cable outer diameters ranging from 5mm to 55mm. It works with various marine-specific marine-specific cables, is easy to install, and adapts to wiring needs of different marine equipment.
- Overview
- Specifications
- Description
- Recommended Products
Overview
PRODUCT PARAMETER
Welcome to Our Website,We Are Happy to Serve You

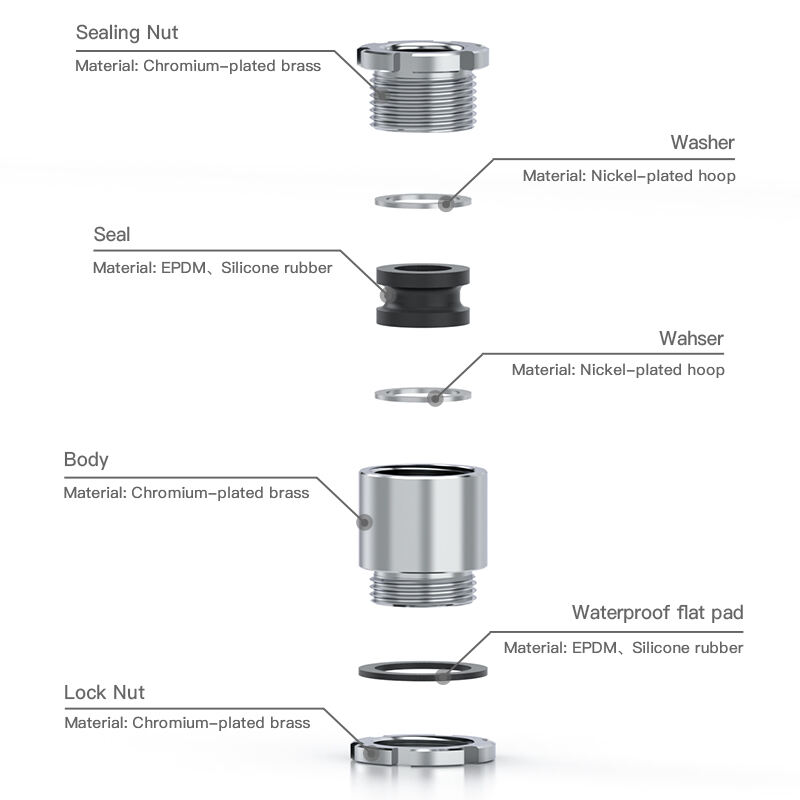

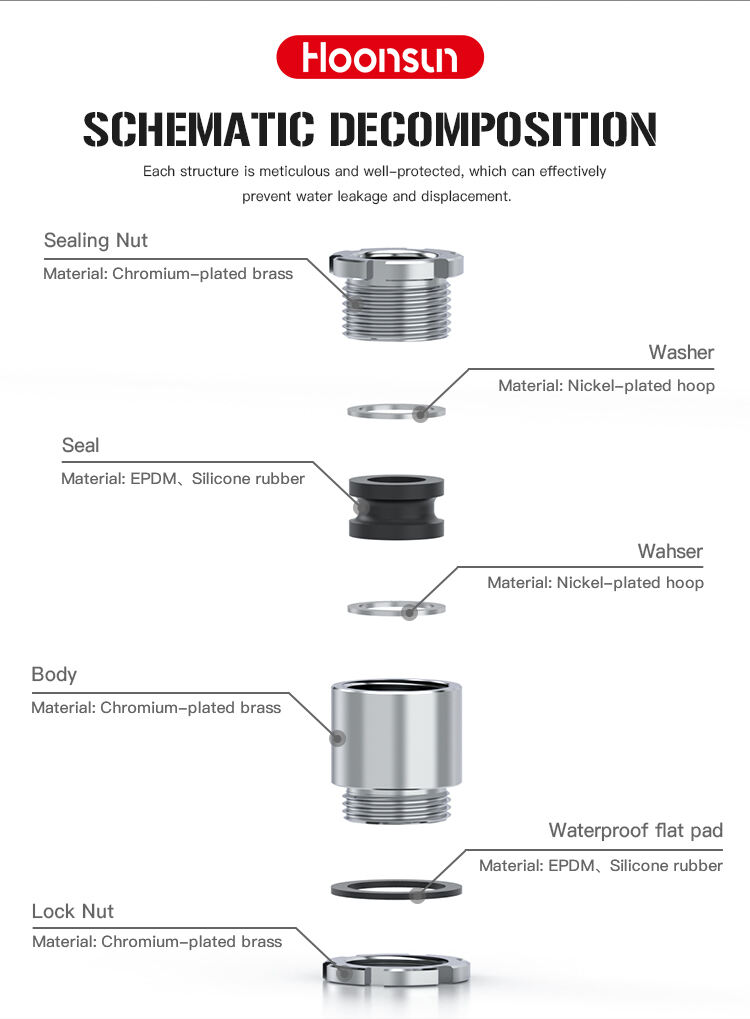

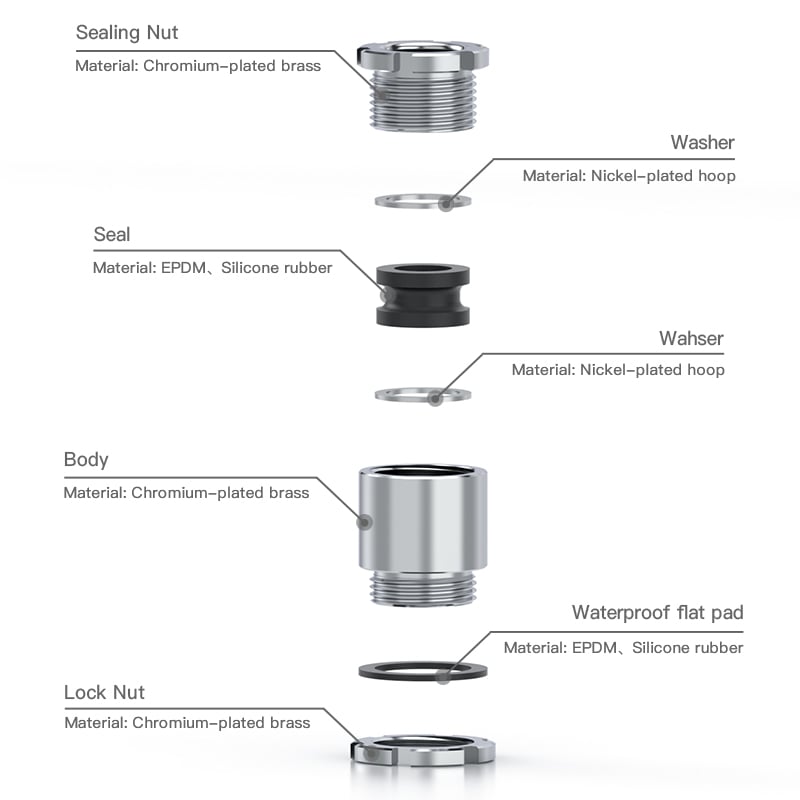

| Fitting Material: | Chromium-plated brass | ||||||
| Material For Sealing Components: | EPDM,Silicone rubber | ||||||
| O-ring Material: | EPDM,Silicone rubber | ||||||
| Metal Washer: | Nickel-plated hoop | ||||||
| Protection Degree: | IP54 | ||||||

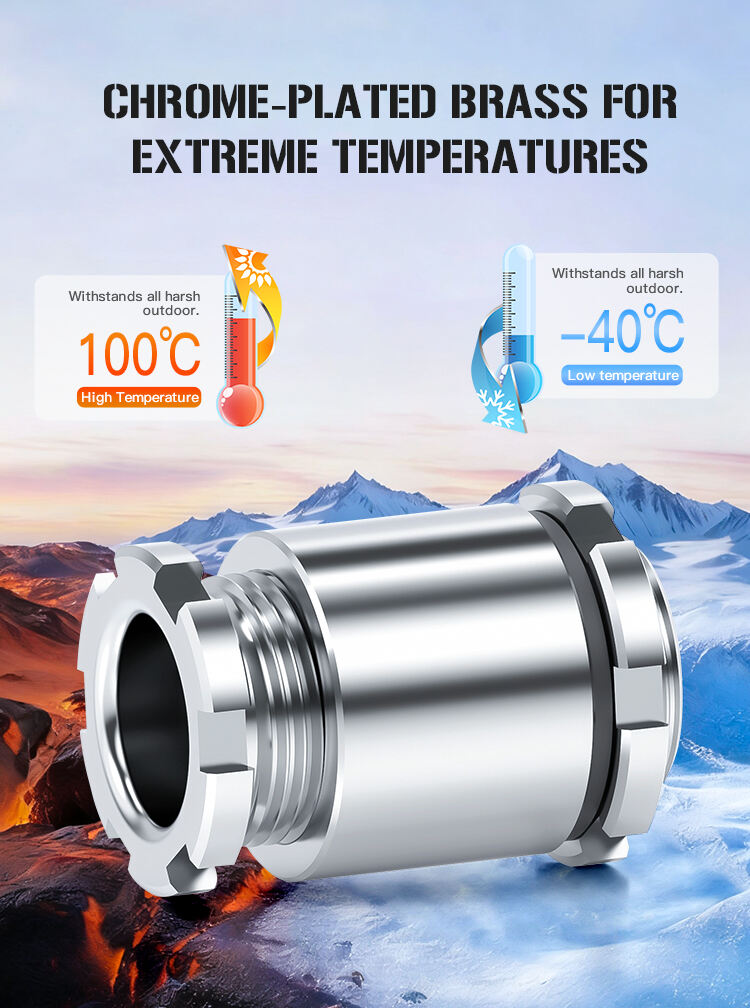

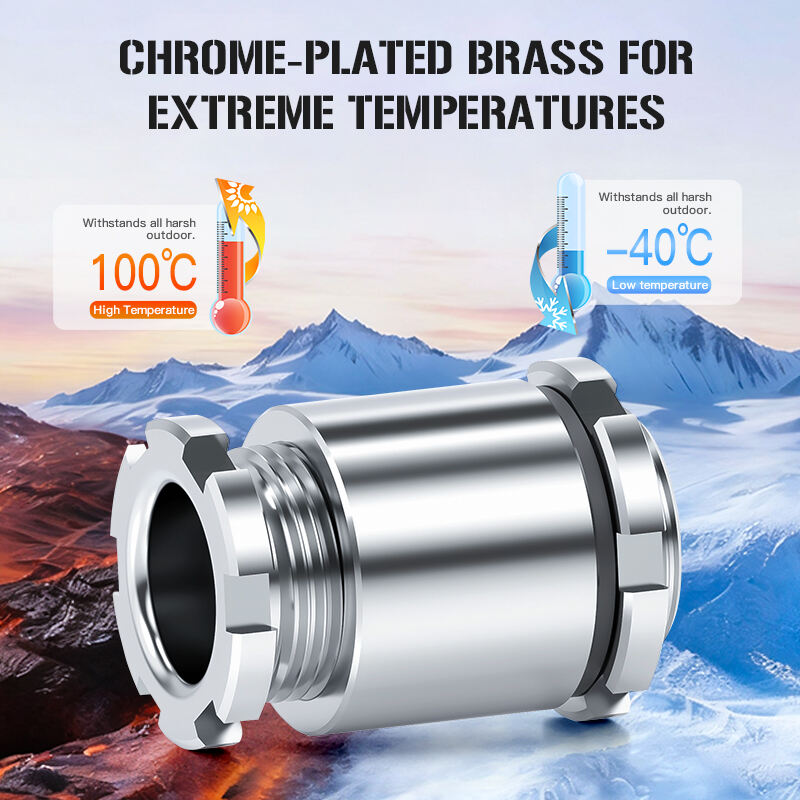

| Temperature: | Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃ |
Meta Description
High-quality marine cable gland with excellent corrosion resistance, waterproof sealing, and long-term reliability for harsh offshore environments.
Product Advantages
• Superior Corrosion Resistance
Made from 316 stainless steel or nickel-plated brass, the marine cable gland provides outstanding protection against saltwater, humidity, and chemical corrosion. Ideal for ships, ports, and offshore platforms.
• Excellent Waterproof and Dustproof Performance
Rated up to IP68, ensuring perfect sealing under high humidity or water immersion. Prevents moisture, oil, and dust from entering cable junctions.
• Strong Mechanical Protection
Engineered for high vibration and impact resistance, maintaining cable stability even in rough sea conditions.
• Wide Temperature Range
Performs reliably from -40°C to +120°C, suitable for extreme marine and coastal environments.
• Flame-Retardant and Safe
Complies with marine safety standards, offering flame-retardant and anti-explosion properties to ensure operational safety on board.
• Easy Installation and Maintenance
Compatible with PG, NPT, and Metric threads for global use. Designed for quick assembly and replacement, reducing maintenance time.
• Long Service Life
High-strength materials and precision sealing components guarantee durability and long-term reliability in offshore conditions.

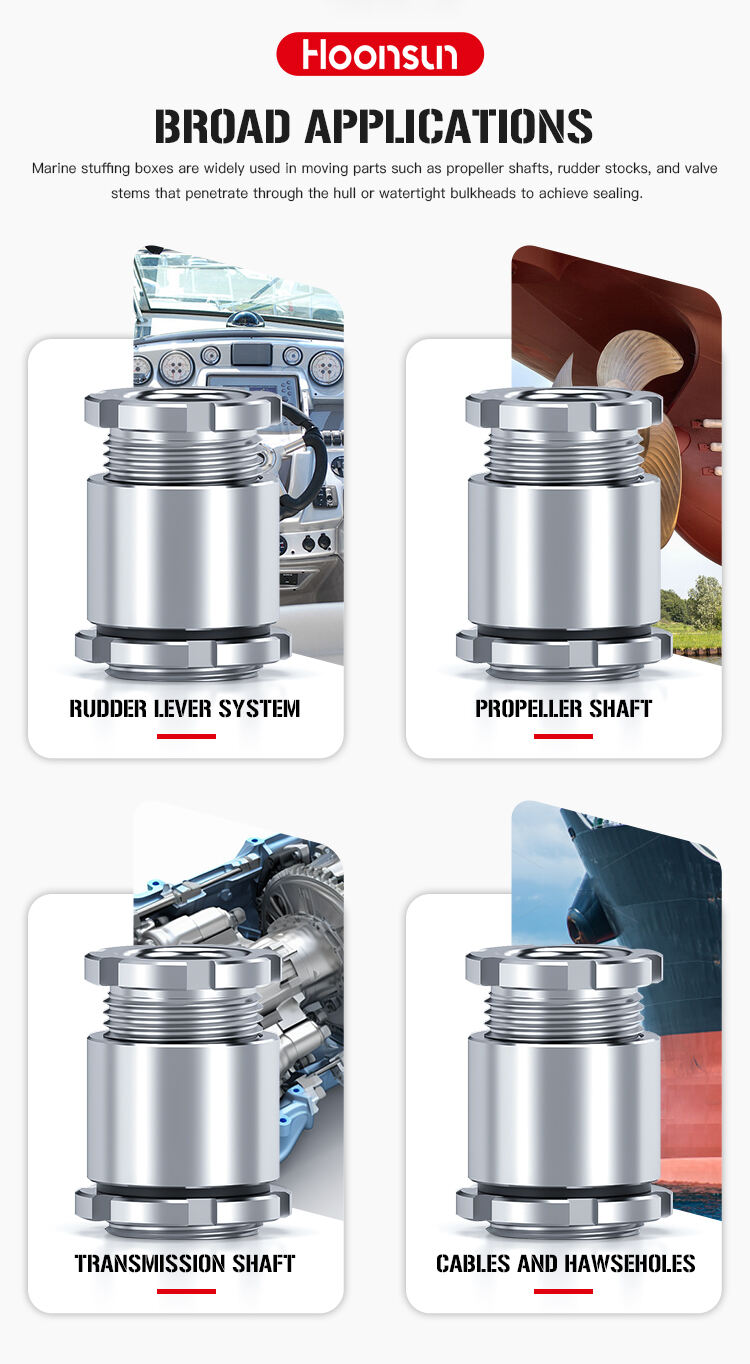

Applications
Ship electrical control systems
Offshore oil platforms
Marine lighting and navigation equipment
Ship communication systems
Port and dockside power systems
Key Benefits
316 stainless steel, anti-corrosion & rustproof
IP68 waterproof and dustproof
Vibration-resistant & flame-retardant
Works in harsh saltwater environments
Complies with CE, UL, and marine standards
Specifications
unit:mm
| Item | Thread | Range | GL | AG | Spanner size | Code | |
| JIS10 | 3/8 | 6-7 | 11 | 16.6 | φ22/28 | HX-JIS10A | |
| 7-8 | HX-JIS10B | ||||||
| JIS15 | 1/2 | 8-9 | 11 | 20.9 | φ28/31 | HX-JIS15A | |
| 9-10 | HX-JIS15B | ||||||
| 9-11 | HX-JIS15C | ||||||
| JIS20 | 3/4 | 11-12 | 11 | 26.4 | φ34/37 | HX-JIS20A | |
| 12-13 | HX-JIS20B | ||||||
| 12-15 | HX-JIS20C | ||||||
| JIS25 | 1 | 15-16 | 11 | 33.2 | φ41/45 | HX-JIS25A | |
| 16-18 | HX-JIS25B | ||||||
| 16-20 | HX-JIS25C | ||||||
| JIS30 | 1-1/4 | 20-22 | 12 | 41.9 | φ49/56 | HX-JIS30A | |
| 22-24 | HX-JIS30B | ||||||
| 22-26 | HX-JIS30C | ||||||
| JIS35 | 1-1/2 | 26-28 | 12 | 47.8 | φ56/62 | HX-JIS35A | |
| 28-30 | HX-JIS35B | ||||||
| 26-30 | HX-JIS35C | ||||||
| JIS40 | 30-32 | 12 | 47.8 | φ56/62 | HX-JIS40A | ||
| 32-34 | HX-JIS40B | ||||||
| 30-34 | HX-JIS40C | ||||||
| Item | Thread | Range | GL | AG | Spanner size | Code |
| JIS45 | 2 | 34-36 | 12 | 59.6 | 68//76 | HX-JIS45A |
| 36-38 | HX-JIS45B | |||||
| 36-40 | HX-JIS45C | |||||
| JIS50 | 40-42 | 59.6 | HX-JIS50A | |||
| 42-44 | HX-JIS50B | |||||
| 40-44 | HX-JIS50C | |||||
| JIS55 | 2-1/2 | 44-46 | 12 | 75.1 | HX-JIS55A | |
| 46-48 | HX-JIS55B | |||||
| 46-50 | HX-JIS55C | |||||
| JIS60 | 50-52 | 75.1 | HX-JIS60A | |||
| 52-54 | HX-JIS60B | |||||
| 52-56 | HX-JIS60C | |||||
| JIS65 | 3 | 56-58 | 14 | 88.0 | 98/112 | HX-JIS65A |
| 58-60 | HX-JIS65B | |||||
| JIS70 | 60-62 | 88.0 | HX-JIS70A | |||
| 62-64 | HX-JIS70B | |||||
| JIS75 | 64-66 | 88.0 | HX-JIS75A | |||
| 66-70 | HX-JIS75B |
