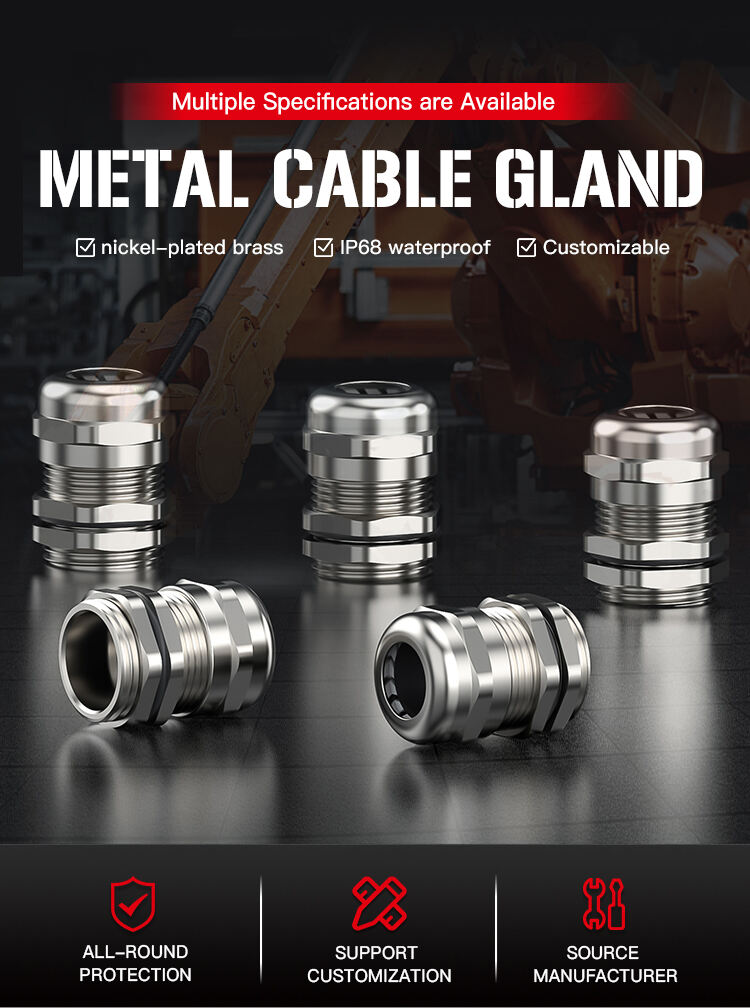

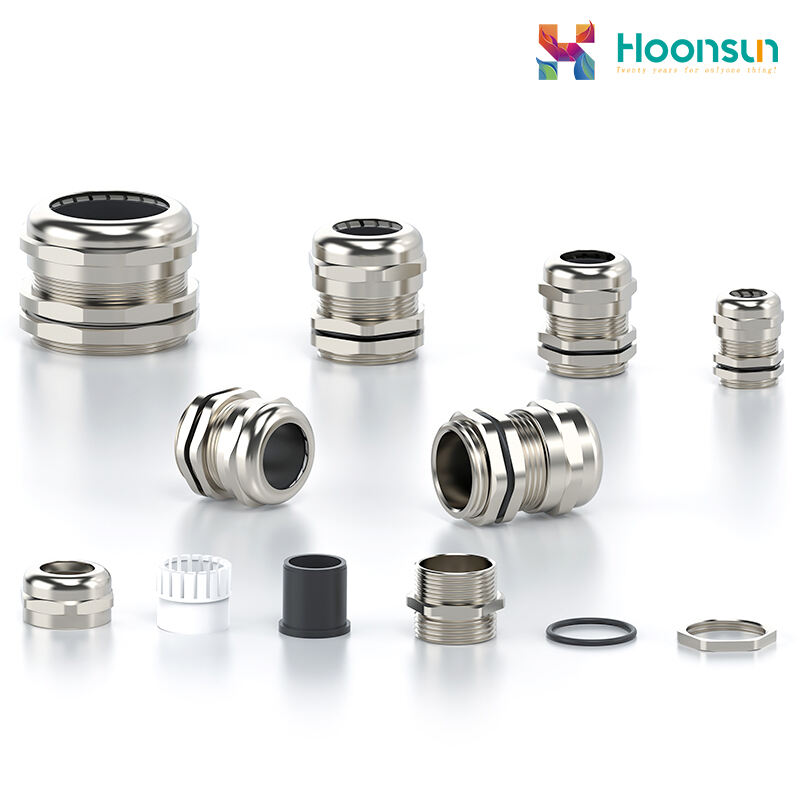

Metal Cable Gland
Durable Material: Constructed from high-quality metals such as brass and stainless steel, featuring high mechanical strength, impact resistance, wear resistance, and corrosion resistance. It adapts to harsh industrial environments like high temperatures, humidity, and dust, ensuring a long service life.

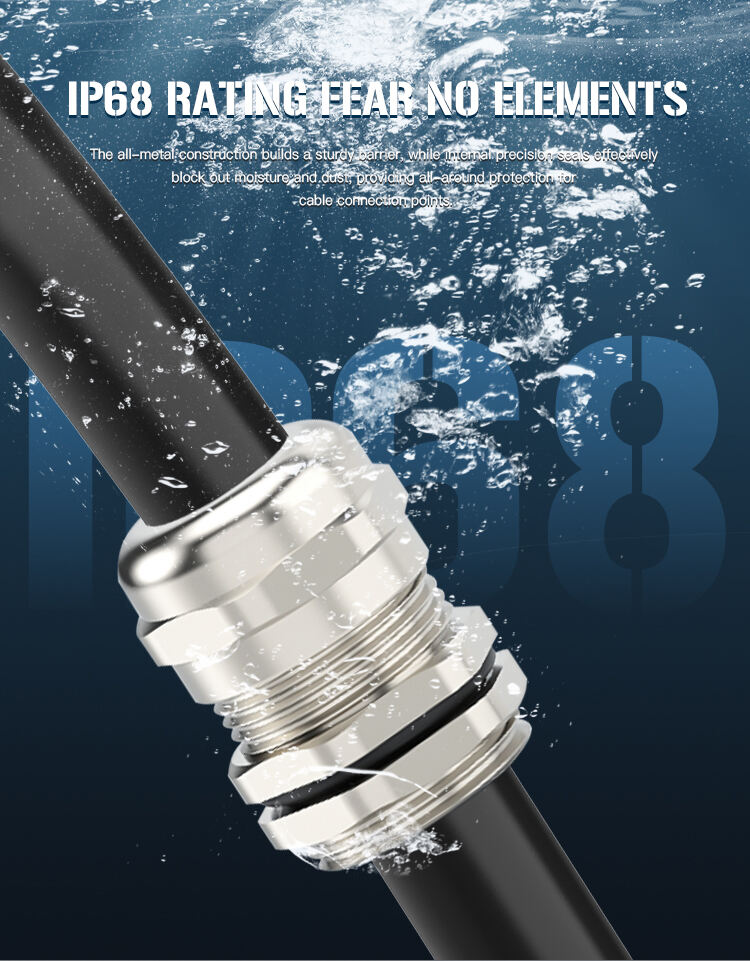

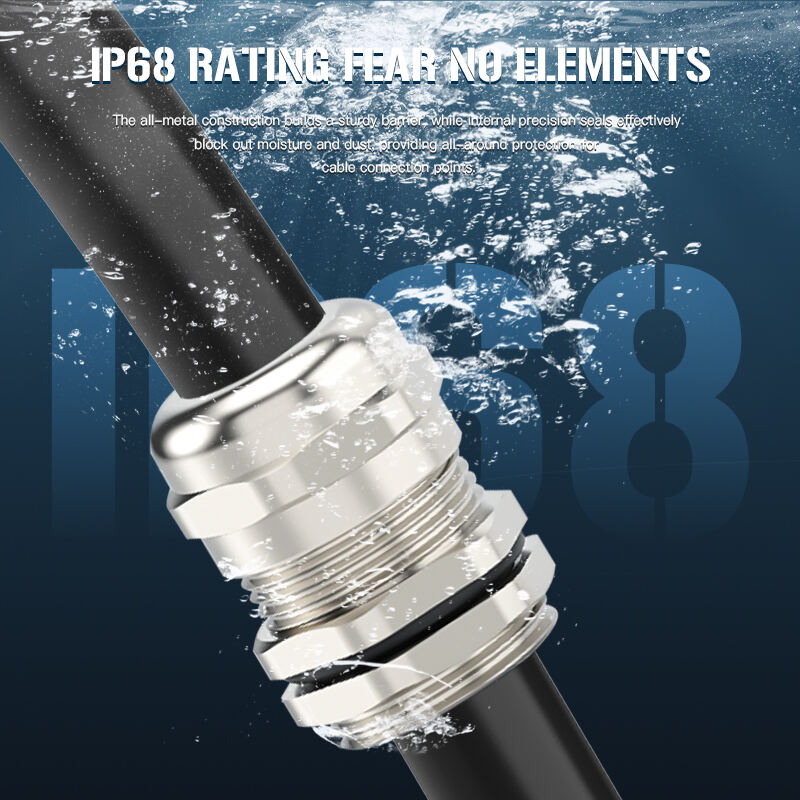

Excellent Protection Performance: Equipped with a complete sealing structure, generally achieving IP65+ protection rating (some high-end models reach IP67/IP68). Effectively provides dustproof, waterproof, oilproof, and corrosion-resistant protection, fully safeguarding cable glands and internal core wires.
Secure and Rugged Connection: Equipped with high-strength clamping components; some adopt dual locking or anti-slip designs, offering outstanding tensile, anti-vibration, and anti-torque performance. Firmly secures cables to prevent loosening or falling off due to long-term use or external forces.

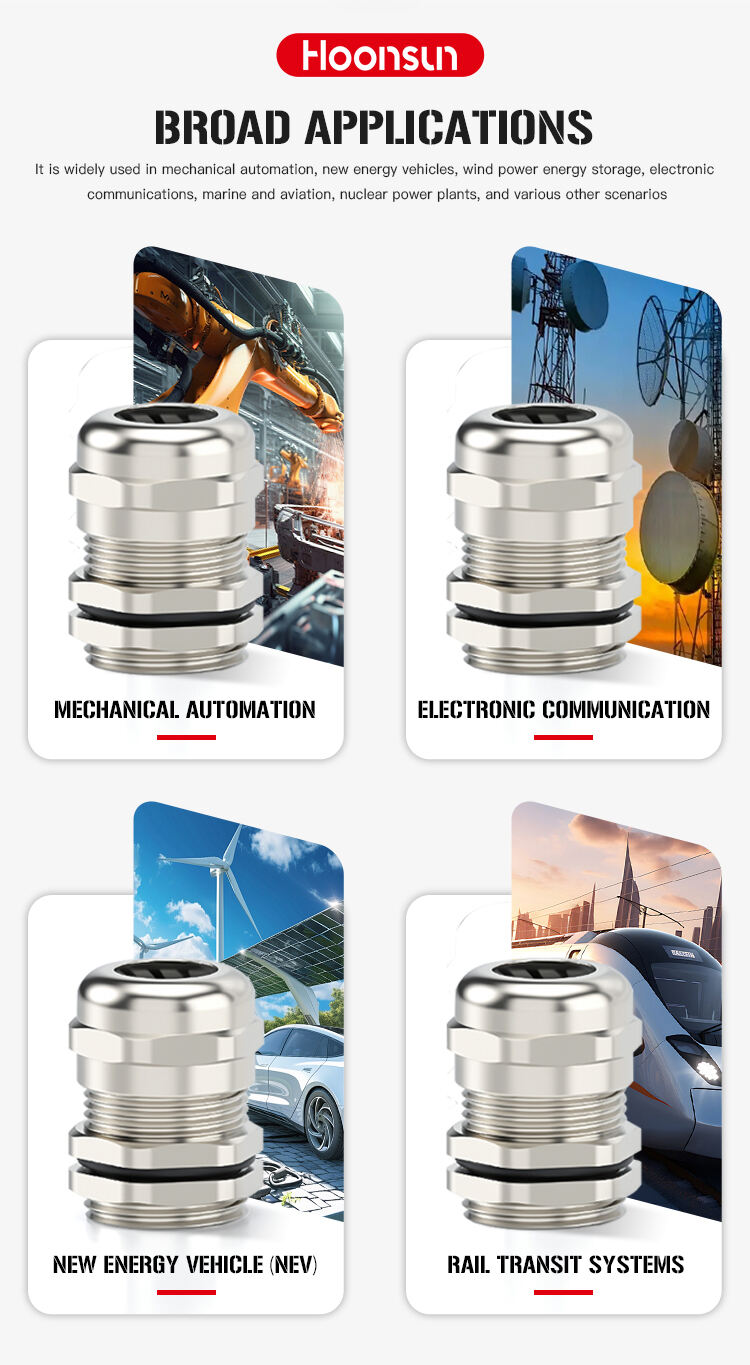

Wide Application Compatibility: Compatible with various cable specifications and thread standards (metric, imperial, American, etc.). Easy to install (mostly manually assemblable), widely used in industrial automation, electric power, chemical industry, shipping, outdoor engineering, and other scenarios.
- Overview
- Specifications
- Description
- Recommended Products
Overview
PRODUCT PARAMETER
Welcome to Our Website,We Are Happy to Serve You

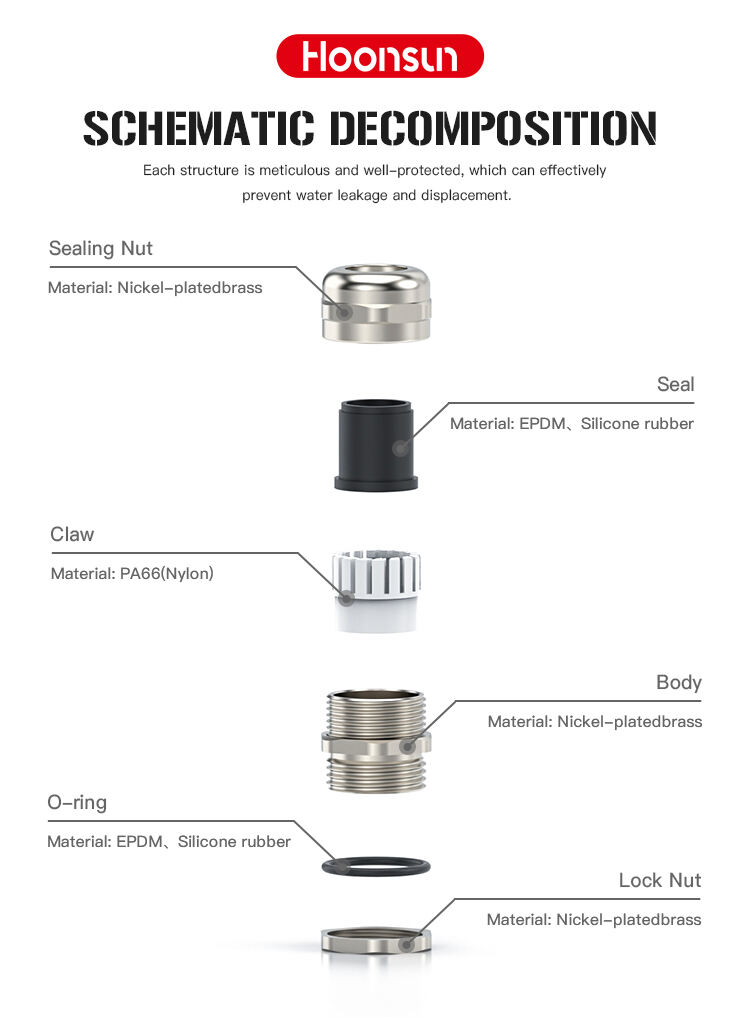

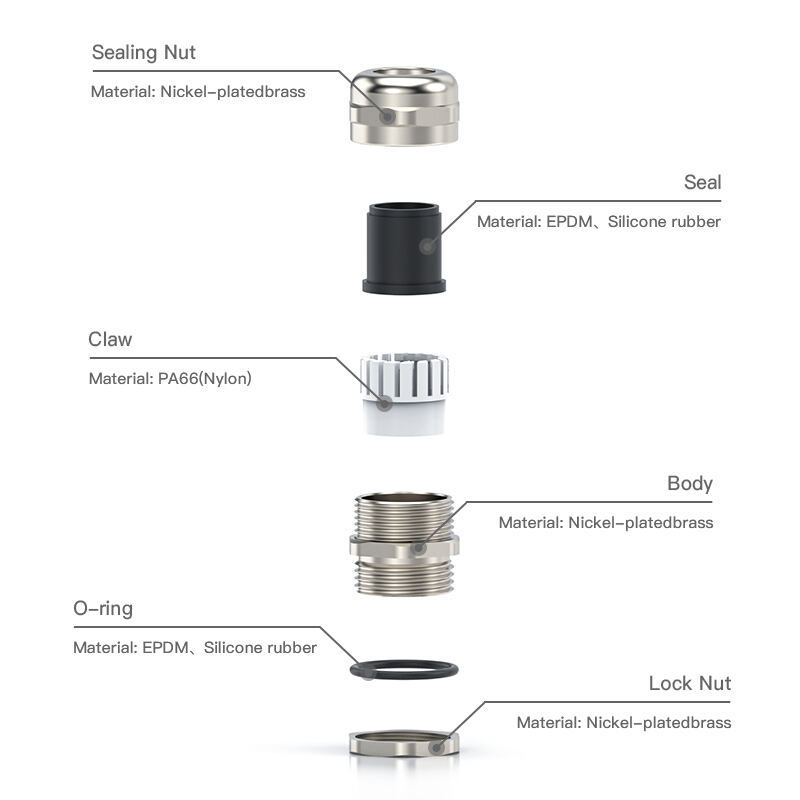

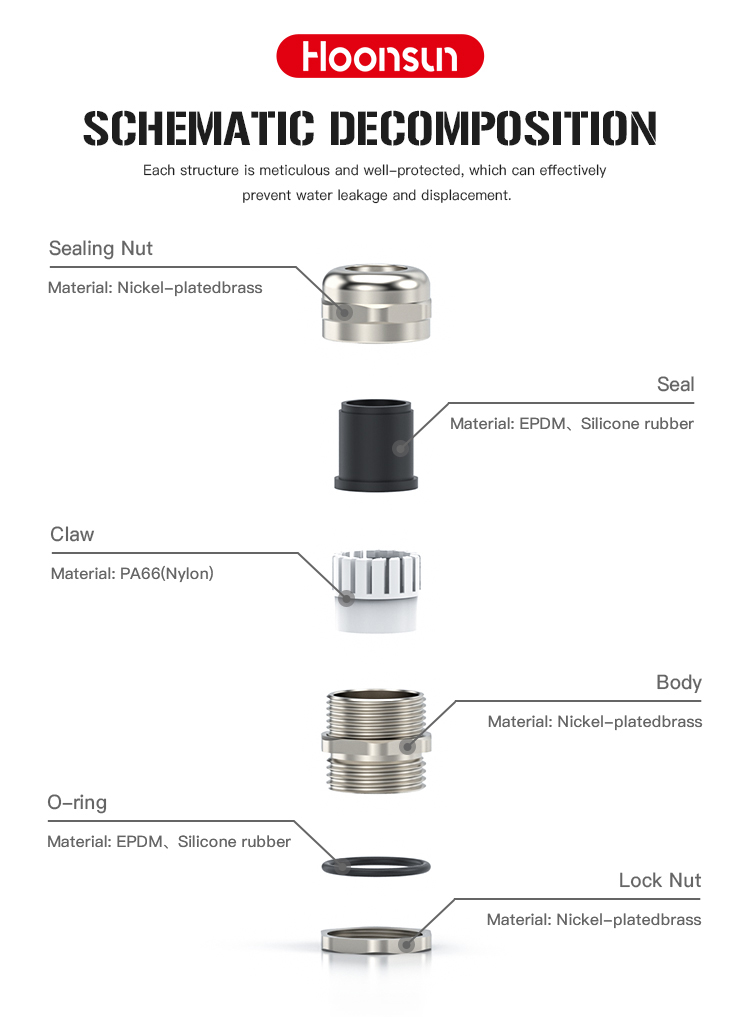

| Fitting Material: | Nickel-platedbrass | |||||
| Material For Clamping Jaws: | PA66(Nylon),UL94-V2 | |||||
| Material For Sealing Components: | EPDM,Silicone rubber | |||||
| O-ring Material: | EPDM,Silicone rubber | |||||
| Protection Degree: | IP66-10 bar | |||||

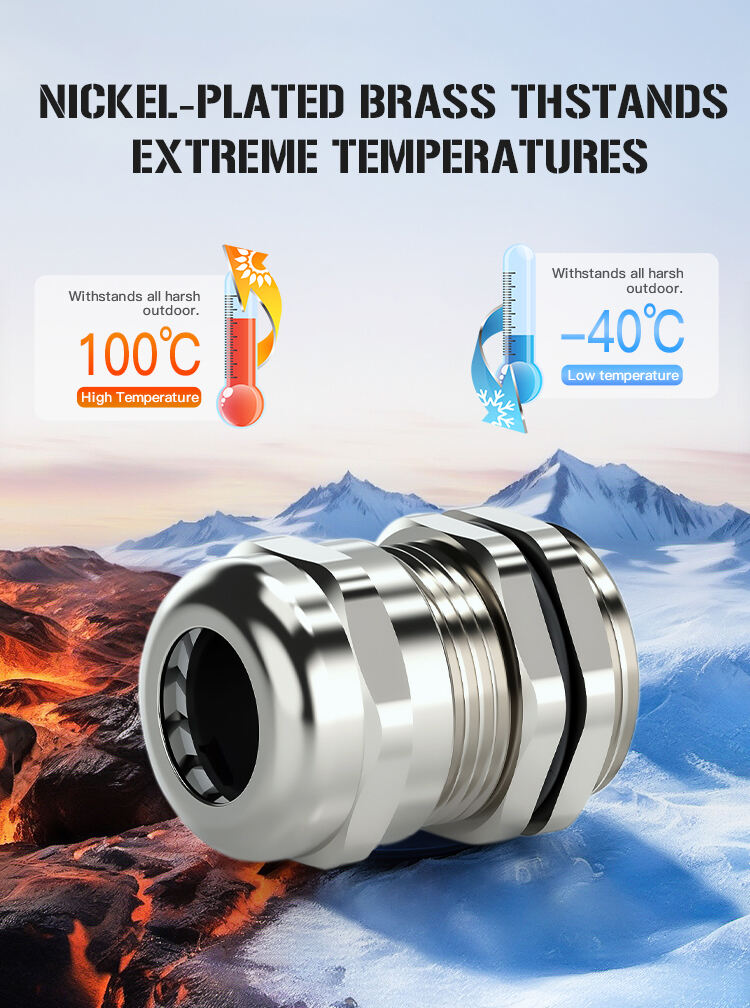

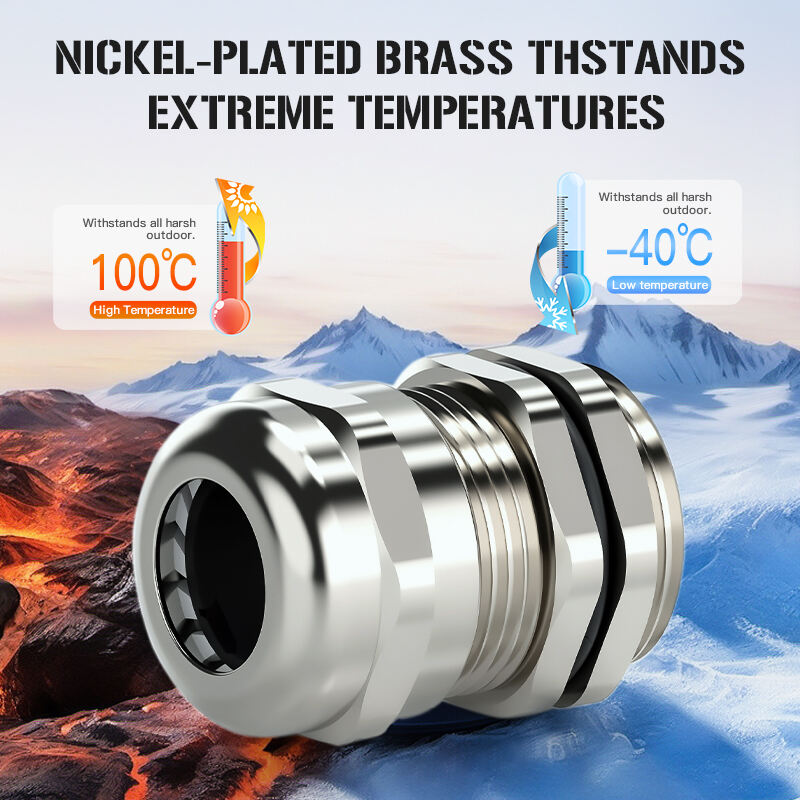

| Temperature: |
Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃ |
|||||
Specifications
unit:mm
| Item | Range | G LThread Length | AGThread O.D. | HJoint Length | Spanner size | Code |
| M10×1.0 | 3-6.5 | 6.5 | 10.0 | 17 | 14 | HX-NP.M10 |
| M12×1.5 | 2-5 | 6.5 | 12.0 | 17 | 14 | HXNP.M12-15) |
| M12×1.5 | 3-6.5 | 6.5 | 12.0 | 17 | 14 | HX-NP.M12 |
| M12×1.5 | 4-8 | 8 | 12.0 | 18 | 17/14 | HX-NP.M12-8 |
| M14×1.5 | 3-6 | 8 | 14.0 | 18 | 17 | HX-NP.M14-(6) |
| M14×1.5 | 4-8 | 8 | 14.0 | 18 | 17 | HX-NP.M14 |
| M14×1.5 | 5-10 | 8 | 14.0 | 19 | 20/17 | HX-NP.M1410 |
| M16×1.5 | 3-6 | 8 | 16.0 | 19 | 18 | HXNP.M16-(6) |
| M16×1.5 | 4.8 | 8 | 16.0 | 19 | 18 | HX-NP.M16 |
| M16×1.5 | 5-10 | 8 | 16.0 | 19 | 20/18 | HXNP.M16-10 |
| M18×1.5 | 4-8 | 8 | 18.9 | 20 | 20 | HX-NP.M18-(8) |
| M18×1.5 | 5-10 | 8 | 18.0 | 20 | 20 | HX-NP.M18 |
| M18×1.5 | 6-12 | 8 | 18.0 | 21 | 20 | HX-NP.M18-12 |
| M20×1.5 | 5-10 | 8 | 20.0 | 21 | 22 | HX-NP.M20-(10) |
| M20×1.5 | 6-12 | 8 | 20.0 | 21 | 22 | HX-NP.M20 |
| M20×1.5 | 10-14 | 8 | 20.0 | 22 | 24/22 | HX-NP.M20-14 |
| M20×1.5 | 12-16 | 8 | 20.0 | 25 | 2722 | HX-NP.M20-16 |
| M22×1.5 | 4-8 | 8 | 22.0 | 22 | 24 | HX-NP.M22-8) |
| M22×1.5 | 8-12 | 8 | 22.0 | 22 | 24 | HX-NP.M22-(12) |
| M22×1.5 | 10-14 | 8 | 22.0 | 22 | 24 | HX-NP.M22 |
| M22×1.5 | 12-16 | 8 | 22.0 | 25 | 27/24 | HX-NP.M22-16 |
| M24×1.5 | 8-12 | 9 | 24.0 | 22 | 24/27 | HX-NP.M24-(12) |
| M24×1.5 | 10-14 | 9 | 24.0 | 22 | 24/27 | HX-NP.M24 |
| M24×1.5 | 12-16 | 9 | 24.0 | 22 | 27 | HX-NP.M24-16 |
| M25×1.5 | 10-14 | 9 | 25.0 | 22 | 24/27 | HX-NP.M25-14 |
| M25×1.5 | 12-16 | 9 | 25.0 | 25 | 27 | HX-NP.M25-16 |
| M25×1.5 | 13-18 | 9 | 25.0 | 27 | 30/27 | HX-NP.M25-18 |
| M25×1.5 | 15-22 | 9 | 25.0 | 29 | 35/27 | HX-NP.M25-22 |
| M27×1.5 | 12-16 | 9 | 27.0 | 27 | 30 | HX-NP.M27-(16) |
| M27×1.5 | 13-18 | 9 | 27.0 | 27 | 30 | HX-NP.M27 |
| M28×1.5 | 13-18 | 9 | 28.0 | 27 | 30 | HX-NP.M28 |
| M30×1.5 | 13-18 | 9 | 30.0 | 27 | 30/32 | HX-NP.M30 |
| M30×1.5 | 15-22 | 9 | 30.0 | 29 | 35/32 | HX-NP.M30-22 |
| M32×1.5 | 13-18 | 10 | 32.0 | 29 | 35 | HX-NP.M32-(18) |
| M32×1.5 | 14-20 | 10 | 32.0 | 29 | 35 | HX-NPM32-(20) |
| M32×1.5 | 15-22 | 10 | 32.0 | 29 | 35 | HX-NP.M32 |
| M32×1.5 | 18-25 | 10 | 32.0 | 31 | 40/35 | HX-NP.M32-25 |
| M33×1.5 | 15-22 | 10 | 33.0 | 29 | 35/36 | HX-NP.M33 |
| M36×1.5 | 18-25 | 10 | 36.0 | 31 | 40 | HX-NP.M36 |
| M37×1.5 | 18-25 | 10 | 37.0 | 31 | 40 | HX-NP.M37 |
| M40×1.5 | 18-25 | 11 | 40.0 | 31 | 40/45 | HX-NP.M40-25 |
| M40×1.5 | 22-30 | 11 | 40.0 | 35 | 45 | HX-NP.M40-30 |
| M40×1.5 | 25-33 | 11 | 40.0 | 37 | 50/45 | HX-NP.M40-33 |
| M42×1.5 | 22-30 | 11 | 42.0 | 35 | 45 | HX-NP.M42 |
| M47×1.5 | 18-25 | 11 | 47.0 | 37 | 50 | HX-NP.M47-(25) |
| M47×1.5 | 22-30 | 11 | 47.0 | 37 | 50 | HX-NP.M47-(30) |
| M47×1.5 | 25-33 | 11 | 47.0 | 37 | 50 | HX-NPM47 |
| M48×1.5 | 25-33 | 11 | 48.0 | 37 | 50/52 | HX-NP.M48 |
| M50×1.5 | 30-35 | 13 | 50.0 | 37 | 57/55 | HX-NP.M50-35) |
| M50×1.5 | 32-38 | 13 | 50.0 | 37 | 57/55 | HX-NP.M50 |
| M50×1.5 | 3744 | 13 | 50.0 | 38 | 64/55 | HX-NP.M50-44 |
| M54×1.5 | 32-38 | 13 | 54.0 | 37 | 57 | HXNP.M54 |
| M60×1.5 | 3744 | 14 | 60.0 | 38 | 64 | HX-NP.M60 |
| M63×1.5 | 30-35 | 14 | 63.0 | 38 | 64/68 | HXNP.M63-{35) |
| M63×1.5 | 3744 | 14 | 63.0 | 38 | 64/68 | HX-NP.M63 |
| M63×1.5 | 42-52 | 14 | 63.0 | 44 | 78/68 | HX-NP.M63-52 |
| M64×2.0 | 37-44 | 14 | 64.0 | 38 | 64/68 | HX-NP.M64 |
| M70×20 | 42-52 | 16 | 70.0 | 44 | 78 | HX-NP.M70 |
| M72×2.0 | 42-52 | 16 | 72.0 | 44 | 78 | HX-NPM72 |
| M72×2.0 | 48-58 | 16 | 72.0 | 44 | 78 | HX-NP.M72-58 |
| M72×2.0 | 55-62 | 16 | 72.0 | 45 | 88/78 | HX-NP.M72-62 |
| M75×2.0 | 42-52 | 16 | 75.0 | 44 | 78/80 | HX-NP.M75 |
| M75×2.0 | 48-58 | 16 | 75.0 | 44 | 78/80 | HX-NP.M75-58 |
| M80×2.0 | 55-62 | 18 | 80.0 | 45 | 88 | HXNP.M80 |
| M88×2.0 | 65-70 | 18 | 88.0 | 45 | 94 | HX-NP.M88 |
| M90×2.0 | 65-70 | 18 | 90.0 | 45 | 94 | HX-NPM90 |
| M100×2.0 | 78-84 | 20 | 100.0 | 53 | 110 | HXNPM100 |
| M110×2.0 | 82-88 | 20 | 110.0 | 53 | 120 | HX-NP.M110 |
| M120×2.0 | 88-95 | 20 | 120.0 | 53 | 130 | HX-NP.M120 |
| Thread specifications can be customized | ||||||
| Item | Range | GL Thread Length | AG Thread O.D. | HJoin Length | Spanner size | Code | |||||
| PG7 | 2-5 | 6.5 | 12.5 | 17 | 14/15 | HXNP.PG7-(5) | |||||
| 3-6.5 | 6.5 | 12.5 | 17 | 14/15 | HXNP.PG7 | ||||||
| 48 | 8 | 12.5 | 19 | 17/15 | HXNP.PG7-8 | ||||||
| PG9 | 3-6 | 8 | 15.2 | 19 | 17/18 | HX-NP.PG9-(6) | |||||
| 48 | 8 | 15.2 | 19 | 17/18 | HX-NP.PG9 | ||||||
| 5-10 | 8 | 15.2 | 21 | 20/18 | HX-NP.PG9-10 | ||||||
| PG11 | 48 | 8 | 18.6 | 21 | 20/21 | HX-NP.PG11-(8) | |||||
| 5-10 | 8 | 18.6 | 21 | 20/21 | HX-NP.PG11 | ||||||
| 6-12 | 8 | 18.6 | 22 | 22/21 | HX-NPPG11-12 | ||||||
| PG13.5 | 5-10 | 8 | 20.4 | 22 | 22/23 | HX-NP.PG13.5-(10) | |||||
| 6-1210-14 | 88 | 20.420.4 | 2223 | 22/2324/23 | HX-NP.PG13.5HX-NP.PG13.5-14 | ||||||
| PG16 | 6-1210-14 | 88 | 22.522.5 | 2323 | 24/2524/25 | HX-NP.PG16-(12)HX-NR.PG16 | |||||
| 12-16 | 8 | 22.5 | 27 | 27/25 | HX-NP.PG16-16 | ||||||
| PG19 | 10-14 | 9 | 25.0 | 25 | 24/27 | HX-NR.PG19 | |||||
| 12-16 | 9 | 25.0 | 25 | 27 | HX-NPPG19-16 | ||||||
| PG21 | 48 | 9 | 28.3 | 27 | 30 | HX-NP.PG21-(8) | |||||
| 12-16 | 9 | 28.3 | 27 | 30 | HX-NP.PG21-(16) | ||||||
| 13-18 | 9 | 28.3 | 27 | 30 | HX-NP.PG21 | ||||||
| 15-22 | 9 | 28.3 | 29 | 35/30 | HX-NP.PG21-22 | ||||||
| PG25 | 15-22 | 10 | 32.0 | 29 | 35 | HX-NP.PG25 | |||||
| PG29 | 15-22 | 10 | 37.0 | 31 | 40 | HX-NP.PG29-(22) | |||||
| 18-25 | 10 | 37.0 | 31 | 40 | HX-NP.PG29 | ||||||
| 22-30 | 10 | 37.0 | 35 | 50/45 | HX-NP.PG29-30 | ||||||
| PG36 | 18-25 | 11 | 47.0 | 37 | 50 | HX-NP.PG36-(25) | |||||
| 25-33 | 11 | 47.0 | 37 | 50 | HX-NP.PG36 | ||||||
| 32-38 | 11 | 47.0 | 37 | 57/50 | HX-NP.PG36-38 | ||||||
| PG42 | 30-35 | 13 | 54.0 | 37 | 57 | HX-NP.PG42-(35) | |||||
| 32-38 | 13 | 54.0 | 37 | 57 | HX-NP.PG42 | ||||||
| PG48 | 3744 | 14 | 59.3 | 38 | 64 | HX-NP.PG48 | |||||
| 42-52 | 14 | 59.3 | 38 | 78/64 | HX-NP.PG48-52 | ||||||
| Item | Range | GLThread Length | AGThread O.D. | HJoint Length | Spanner size | Code | |||||
| G1/4 | 3-6.5 | 6.5 | 13.1 | 13.5 | 14/15 | HX-NPG1/4 | |||||
| G3/8 | 48 | 8 | 16.6 | 17 | 18/19 | HX-NP.G3/8 | |||||
| G1/2 | 6-12 | 8 | 20.9 | 22 | 22/23 | HX-NPG1/2 | |||||
| G3/4 | 13-18 | 9 | 26.4 | 25 | 30 | HX-NP.G3/4 | |||||
| G1 | 18-25 | 10 | 33.2 | 29 | 40 | HX-NP.G1 | |||||
| G1-1/4 | 25-33 | 11 | 41.9 | 35 | 50 | HX-NPG1-1/4 | |||||
| G1-1/2 | 32-38 | 12 | 47.8 | 37 | 57/55 | HX-NPG1-1/2 | |||||
| G2 | 37-44 | 14 | 59.6 | 38 | 64 | HX-NP.G2 | |||||
| G2-1/2 | 42-52 | 16 | 75.1 | 42 | 78/80 | HX-NPG2-1/2 | |||||
| G3 | 65-70 | 18 | 87.8 | 45 | 94 | HX-NP.G3 | |||||
| G4 | 88-95 | 20 | 113.0 | 53 | 130 | HX-NP.G4 | |||||
| NPT1/4 | 3-6.5 | 6.5 | 13.6 | 13.5 | 14/15 | HX-NP.NPTI/4 | |||||
| NPT3/8 | 48 | 8 | 17.0 | 17 | 18/19 | HX-NP.NPT3/8 | |||||
| NPT1/2 | 6-12 | 8 | 21.2 | 22 | 22 | HX-NP.NPT1/2 | |||||
| NPT3/4 | 13-18 | 9 | 26.5 | 25 | 30 | HX-NP.NPT3/4 | |||||
| NPT1 | 18-25 | 10 | 33.2 | 29 | 40 | HX-NP.NPT1 | |||||
| NPT1-1/4 | 25-33 | 11 | 41.9 | 35 | 50 | HX-NP.NPT1-1/4 | |||||
| NPT1-1/2 | 32-38 | 12 | 48.0 | 37 | 57 | HX-NPNPT1-1/2 | |||||
| NPT2 | 37-44 | 14 | 60.0 | 38 | 64 | HX-NP.NPT2 | |||||
| NPT2-1/2 | 42-52 | 16 | 72.6 | 42 | 78 | HX-NPNPT2-1/2 | |||||
NPTmodels come Range slze can be customzed，standard without nuts and are optional.
