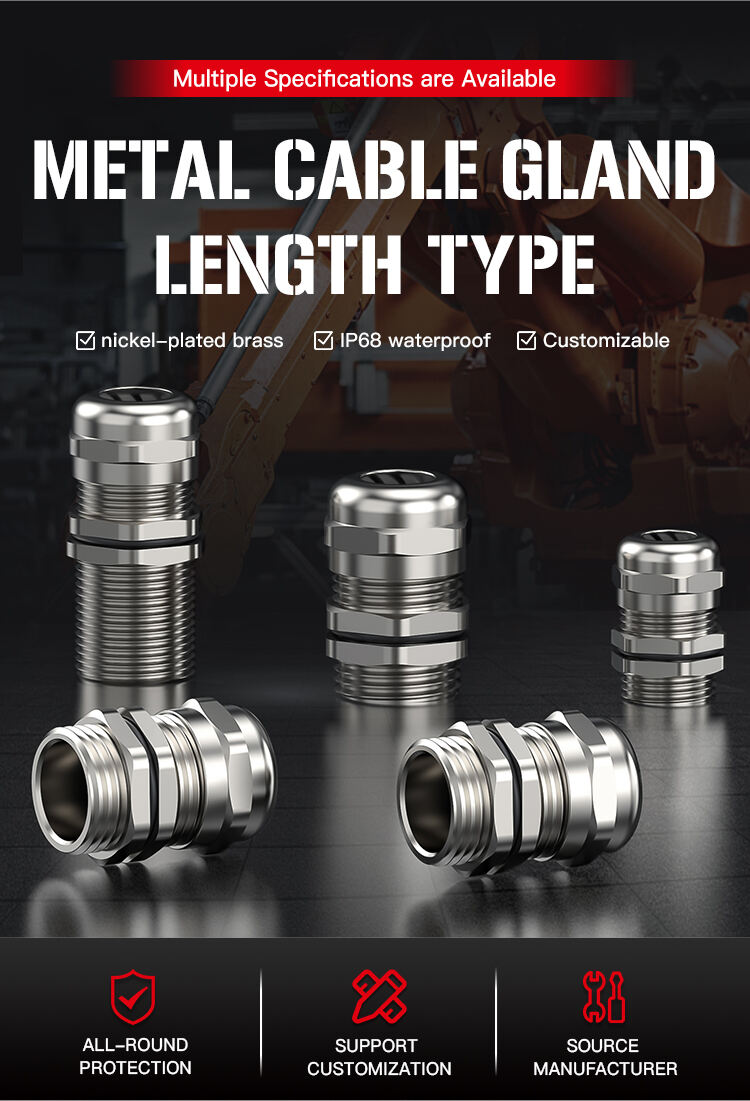

Metal Cable Gland - Length Type

PRODUCT PARAMETER

ALL PRODUCTS

Overview

Specifications

Extended Body for Special Scenarios: Longer main body than conventional models, enabling penetration into deep-cavity equipment or thick-walled cabinets. Suitable for long-distance cable penetration installation, avoiding excessive cable bending.

Full-Length Enhanced Protection: The extended section maintains a complete sealing structure with IP65+ protection rating, providing full-length dustproof, waterproof and oilproof performance, adaptable to harsh environments like damp and dusty areas.

Secure Connection with Strong Anti-Disturbance: Equipped with high-strength clamping components, the extended body is combined with anti-slip structure, featuring excellent tensile and anti-vibration performance to prevent loosening caused by long-term use or external forces.

Wide Compatibility & Easy Installation: Compatible with various cable specifications and thread standards, allowing quick manual assembly. Suitable for special wiring scenarios such as deep-cavity equipment, outdoor cabinets and thick-walled distribution boxes.

Overview
Specifications
Description
Recommended Products

Welcome to Our Website,We Are Happy to Serve You

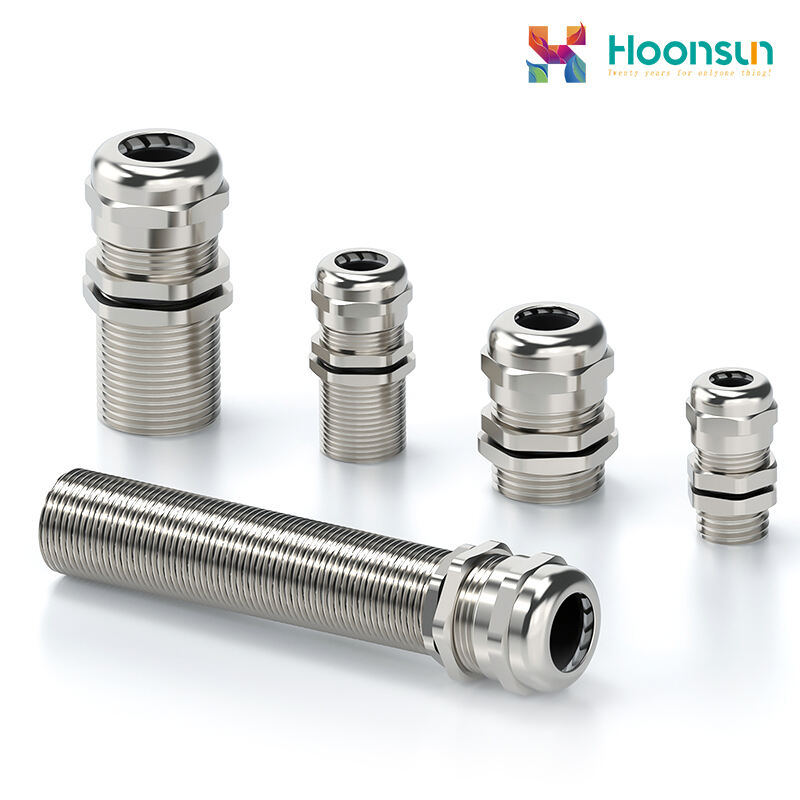

The Metal Extended Cable Gland is designed for installations requiring longer thread engagement, providing a secure and watertight seal through thick or double-layered enclosure walls. Manufactured from high-quality nickel-plated brass or stainless steel, it offers excellent corrosion resistance and long-term mechanical stability in harsh industrial environments.

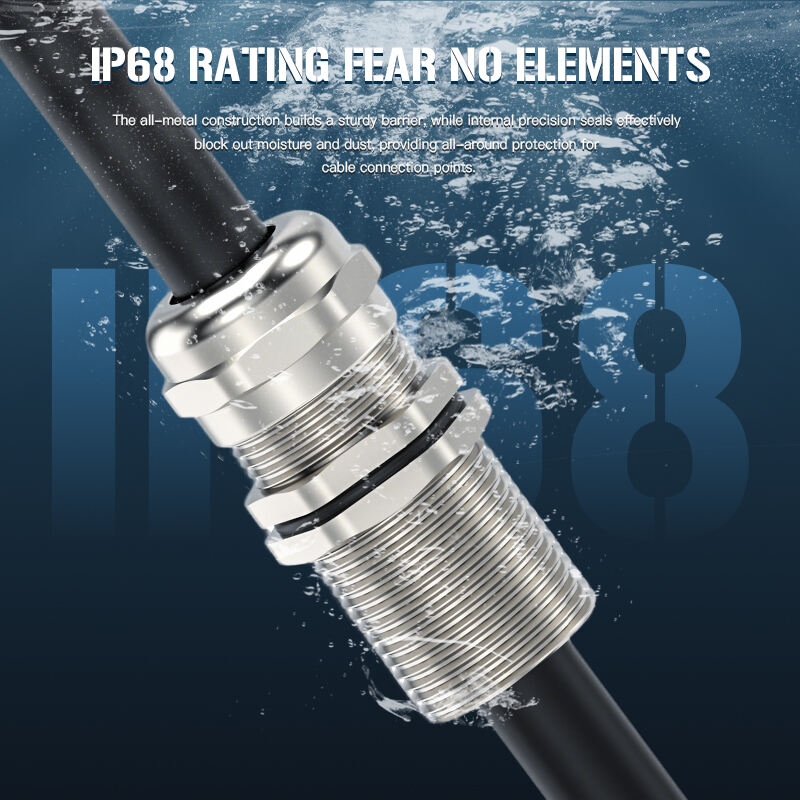

Its extended threaded design allows for greater installation flexibility, especially in deep junction boxes, armored cable fittings, or control panels with insulated barriers. The precision-machined threads and advanced sealing rings ensure IP68 waterproof and dustproof protection, safeguarding cables against moisture, oil, and environmental exposure.

This gland maintains excellent strain relief and electrical continuity, making it ideal for power systems, marine installations, automation equipment, and heavy machinery. It simplifies installation while ensuring professional-grade cable protection and grounding.

Available in PG, NPT, and Metric threads, the Metal Extended Cable Gland complies with international standards such as CE, UL, and RoHS, offering engineers a durable and reliable solution for complex cable routing and thick-panel enclosures.

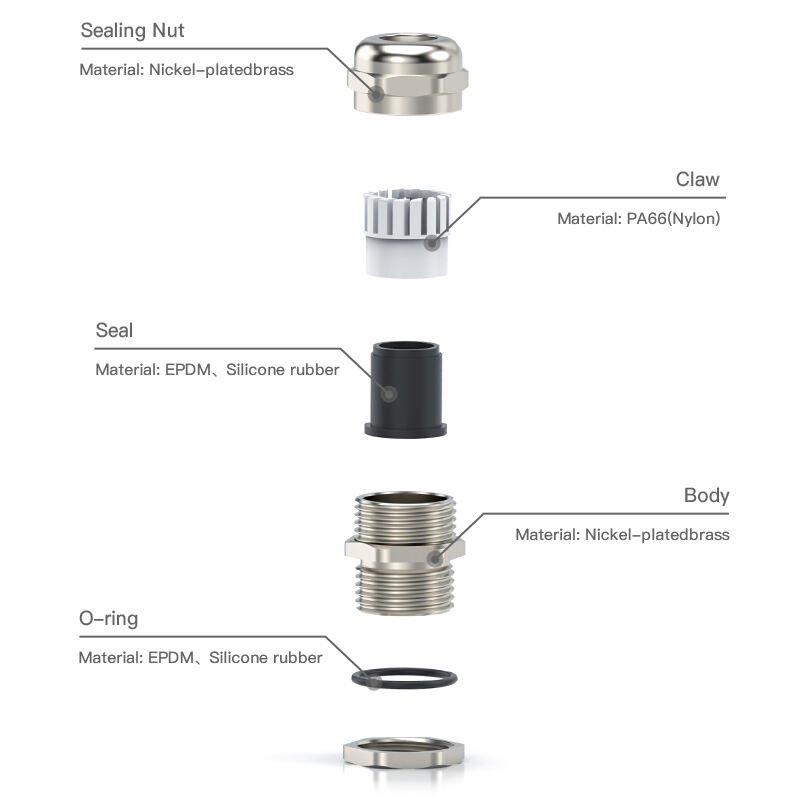

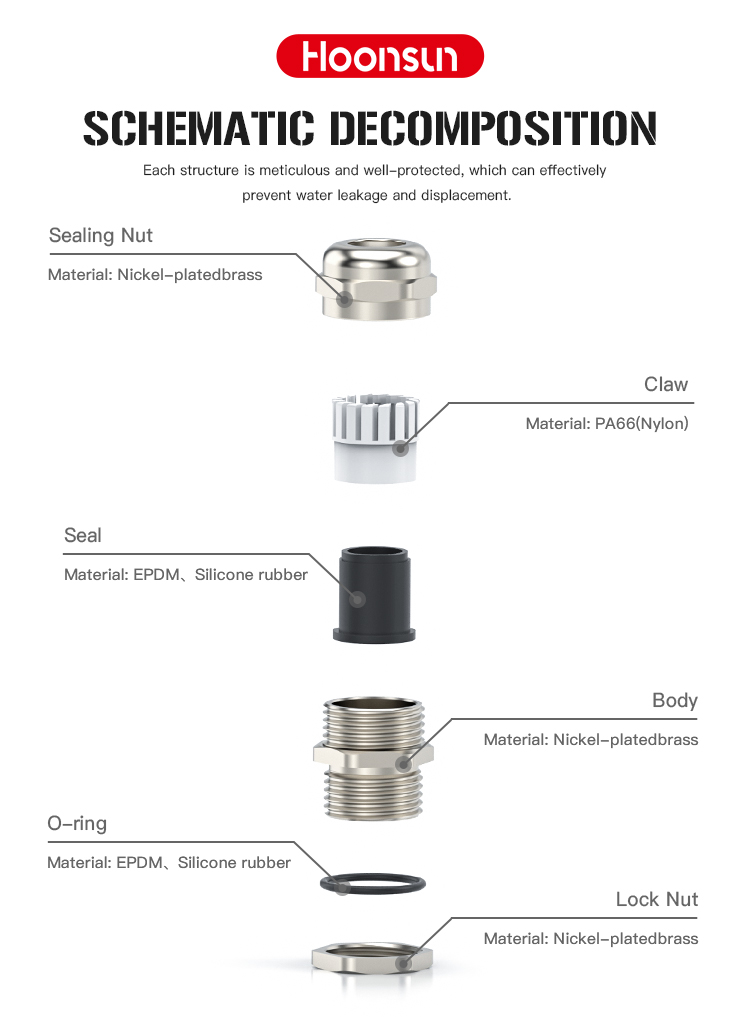

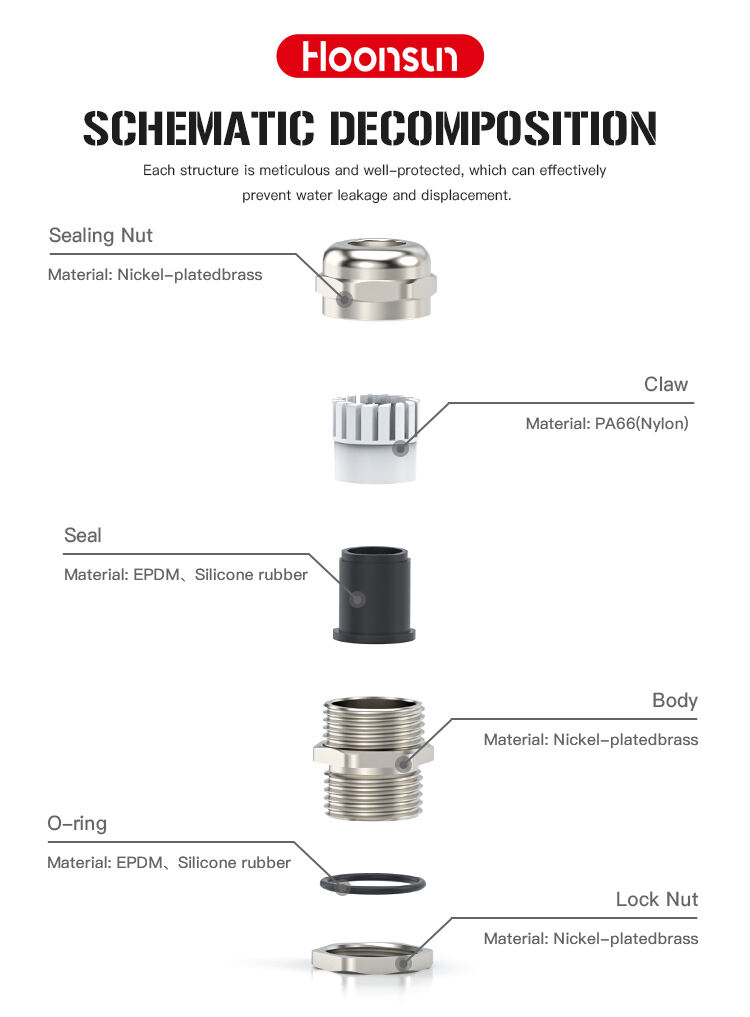

Fitting Material:

Nickel-platedbrass

Material For Clamping Jaws:

PA66(Nylon),UL94-V2

Material For Sealing Components:

EPDM, Silicone rubber

O-ring Material:

EPDM, Silicone rubber

Protection Degree:

IP66-10 bar

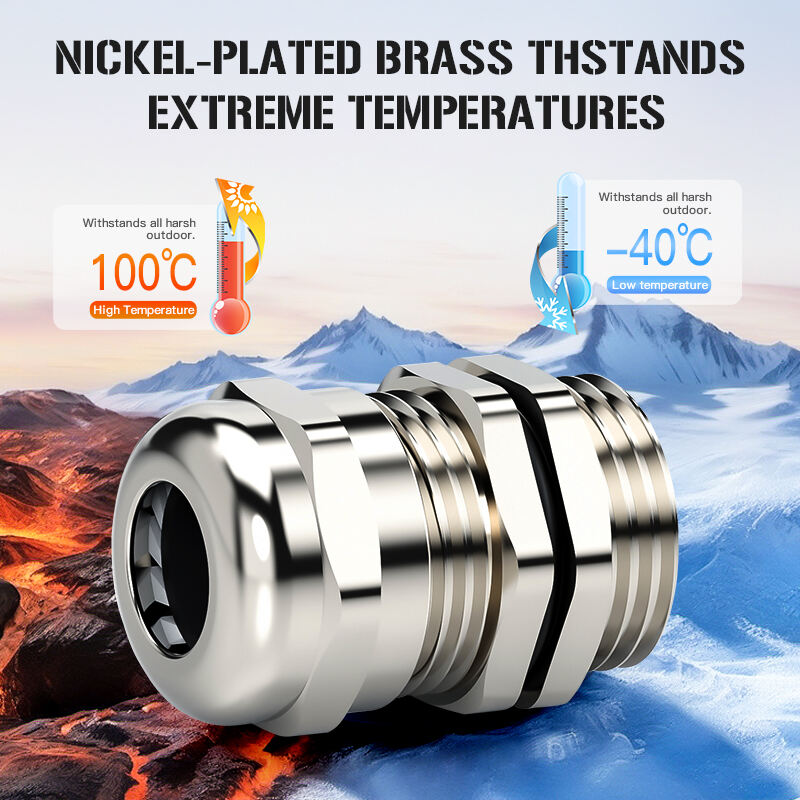

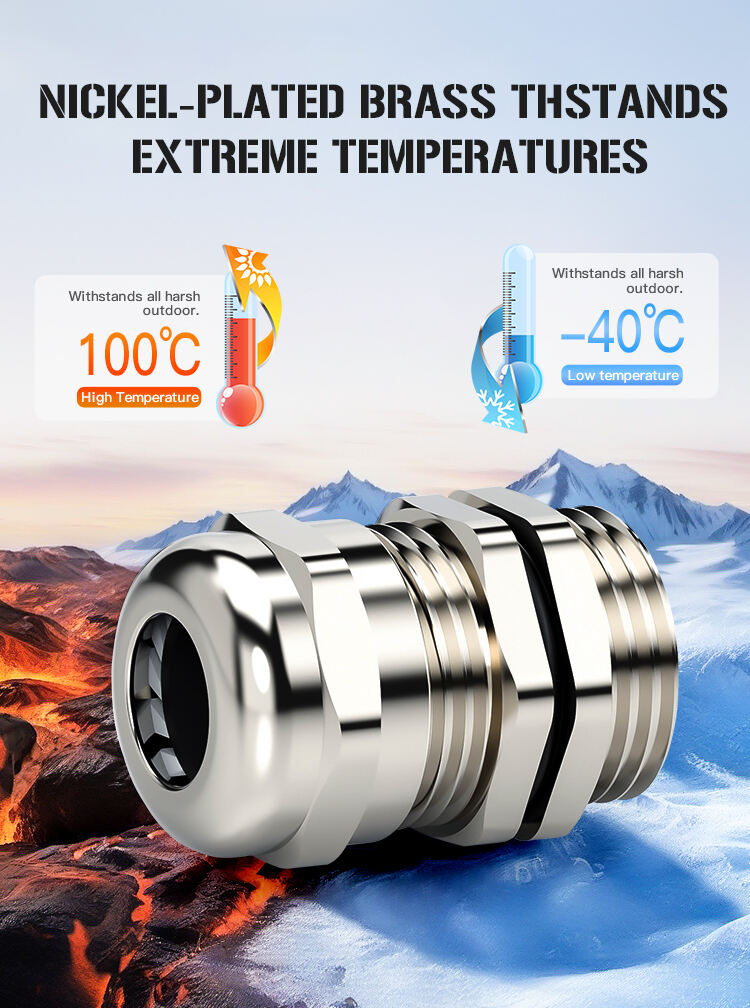

Temperature:

Static state:-40 to 100℃,Short time to 120℃

Dynamic state:-20℃ to 80℃,Short time to 100℃

unit: mm

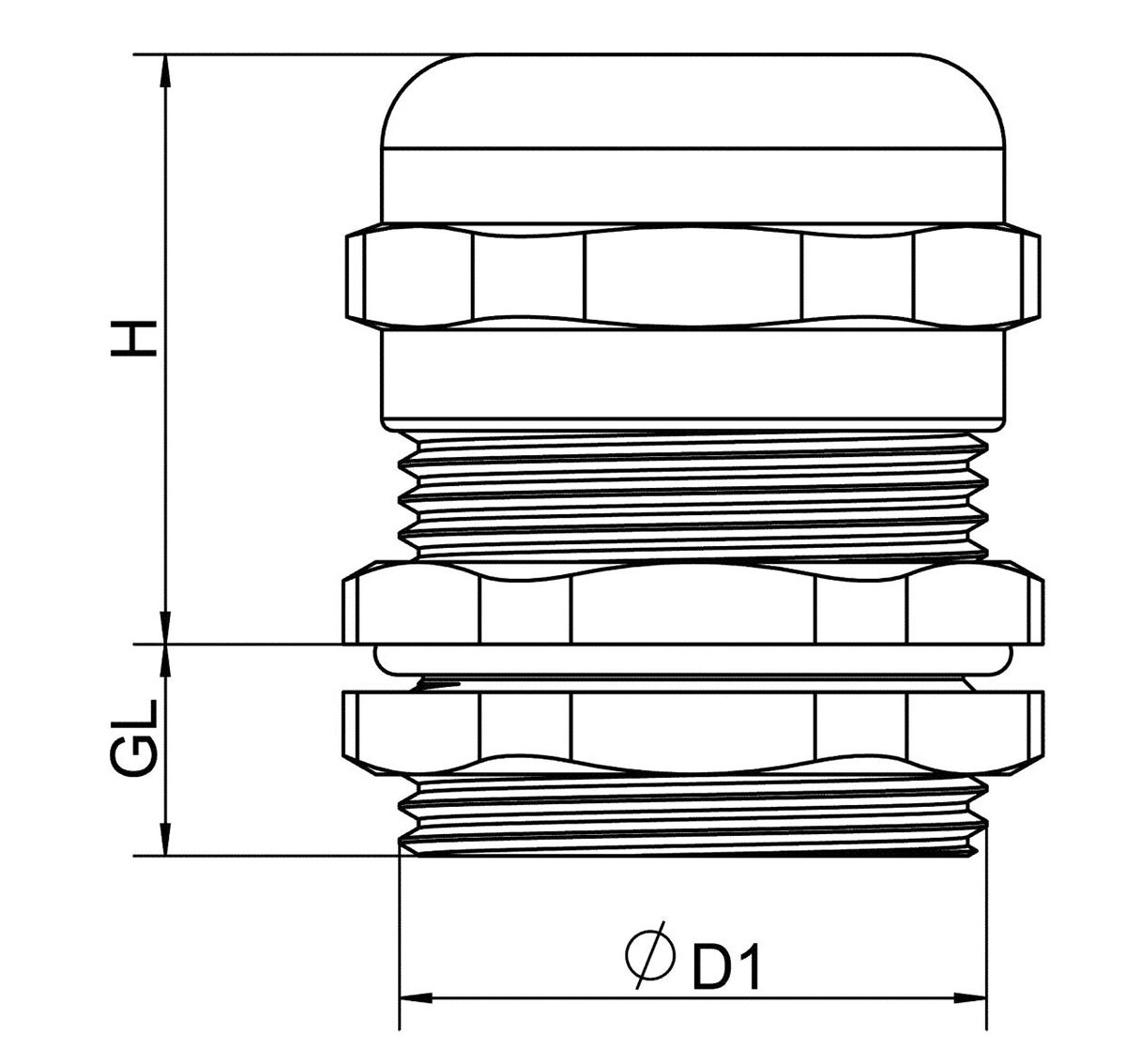

Item	Range	GLThread Length	AGThread O.D.	HJoint Length	Spanner size	Code
M12×1.5	3-6.5	10	12	17	14	HX-NPM12 L10
M16×1.5	4-8	12	16	19	18	HX-NPM16L12
M18×1.5	5-10	12	18	21	20	HX-NPM18L12
M20×1.5	6-12	12	20	22	22	HX-NP.M20 L12
M22×1.5	10-14	12	22	23	24	HX-NPM22 L12
M25×1.5	10-14	12	25	25	24/27	HX-NP.M25-14 L12
M25×1.5	13-18	12	25	27	30/27	HX-NPM25-18L12
M32×1.5	15-22	15	32	29	35	HX-NP.M32 L15
M40×1.5	18-25	15	40	31	40/45	HX-NPM40-25L15
M40×1.5	22-30	15	40	35	45	HX-NPM40-30 L15
M50×1.5	32-38	15	50	37	57/55	HX-NPM50 L15
M63×1.5	37-44	18	63	38	64/68	HX-NP.M63 L18
PG7	3-6.5	10	12.5	17	14/15	HX-NP.PG7L10
PG9	4-8	12	15.2	19	17/18	HX-NP.PG9L12
PG11	5-10	12	18.6	21	20/21	HX-NP.PG11L12
PG13.5	6-12	12	20.4	22	22/23	HX-NP.PG13.5 L12
PG16	10-14	12	22.5	23	24/25	HX-NP.PG16 L12
PG21	13-18	12	28.3	27	30	HX-NP.PG21L12
PG29	18-25	15	37.0	31	40	HX-NP.PG29 L15
PG36	25-33	15	47.0	37	50	HX-NP.PG36 L15
PG42	32-38	15	54.0	37	57	HX-NP.PG42 L15
PG48	37-44	18	59.3	38	64	HX-NP.PG48 L18
