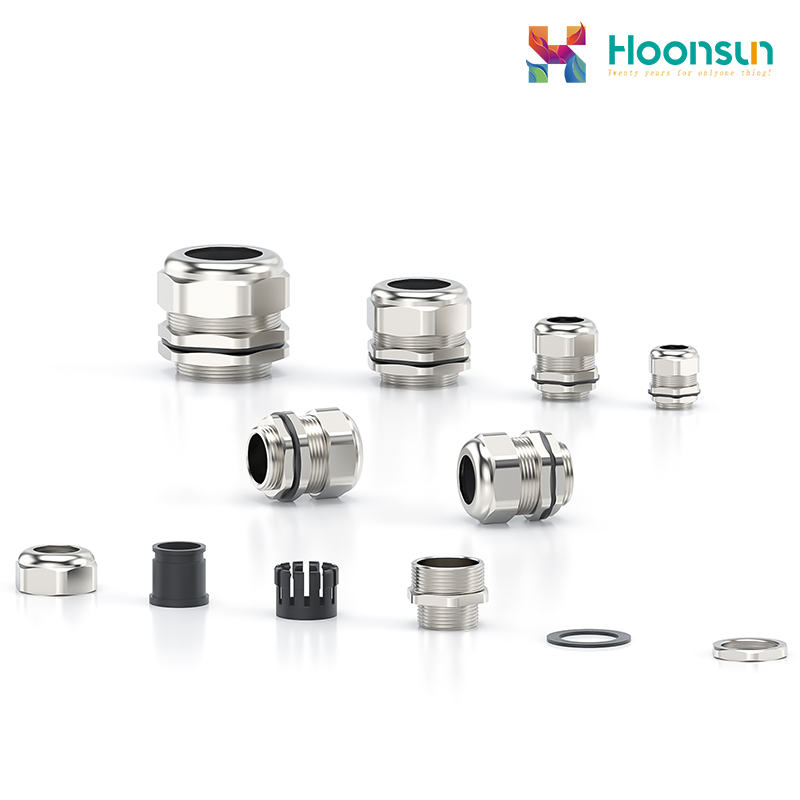

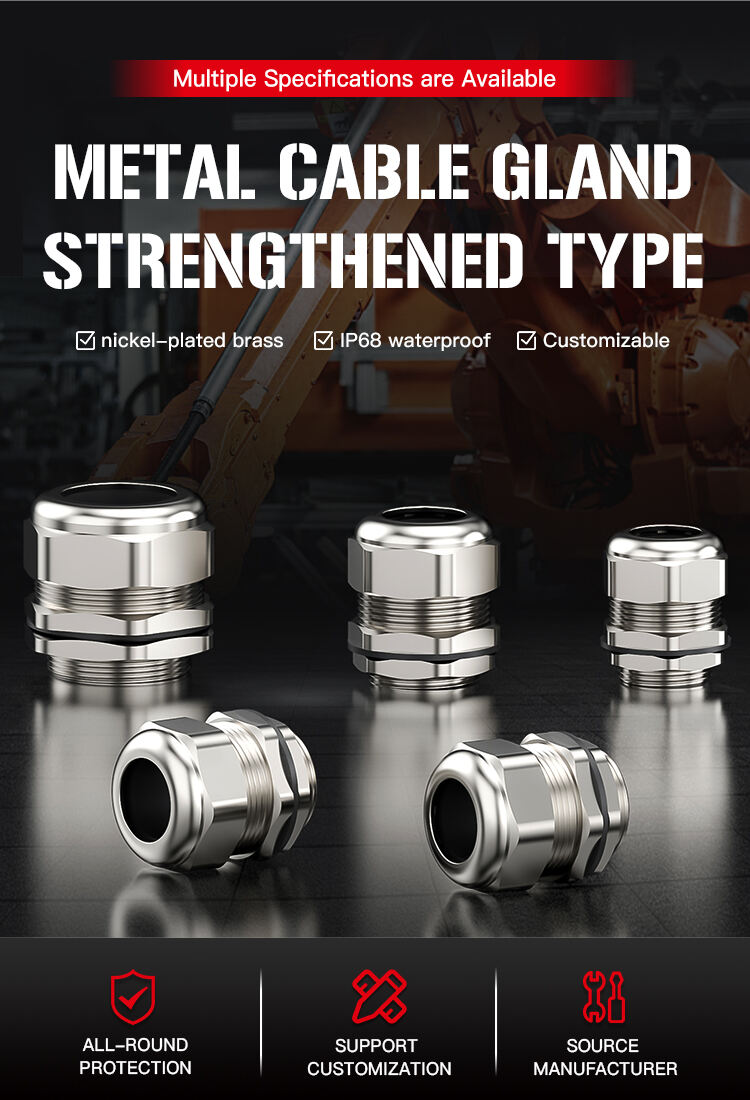

Metal Cable Gland - Strengthened Type
Comprehensive Structural Reinforcement: Both the main body and clamping components adopt thickened, high-strength materials, significantly improving overall mechanical performance and enabling resistance to greater external impact.
Upgraded Protection Level: Optimized sealing structure with an IP68+ protection rating, enhancing dustproof, waterproof, oilproof and corrosion-resistant capabilities for harsh working conditions.
Extremely Secure Connection: Upgraded dual clamping design, featuring excellent tensile, anti-vibration and anti-torque performance to effectively prevent cable loosening and ensure long-term stable use.
Wide Application Compatibility: Compatible with various cable specifications and thread standards, easy to install, and widely used in high-intensity scenarios such as heavy machinery, mining, shipping and outdoor engineering.
- Overview
- Specifications
- Description
- Recommended Products
Overview
PRODUCT PARAMETER
Welcome to Our Website,We Are Happy to Serve You

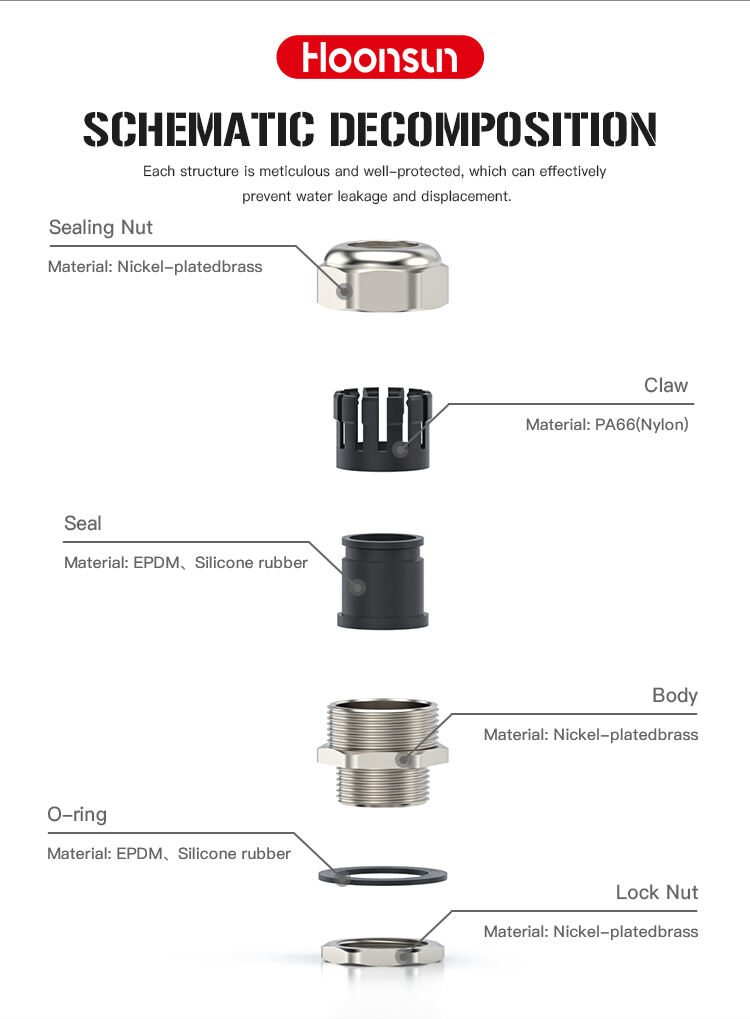

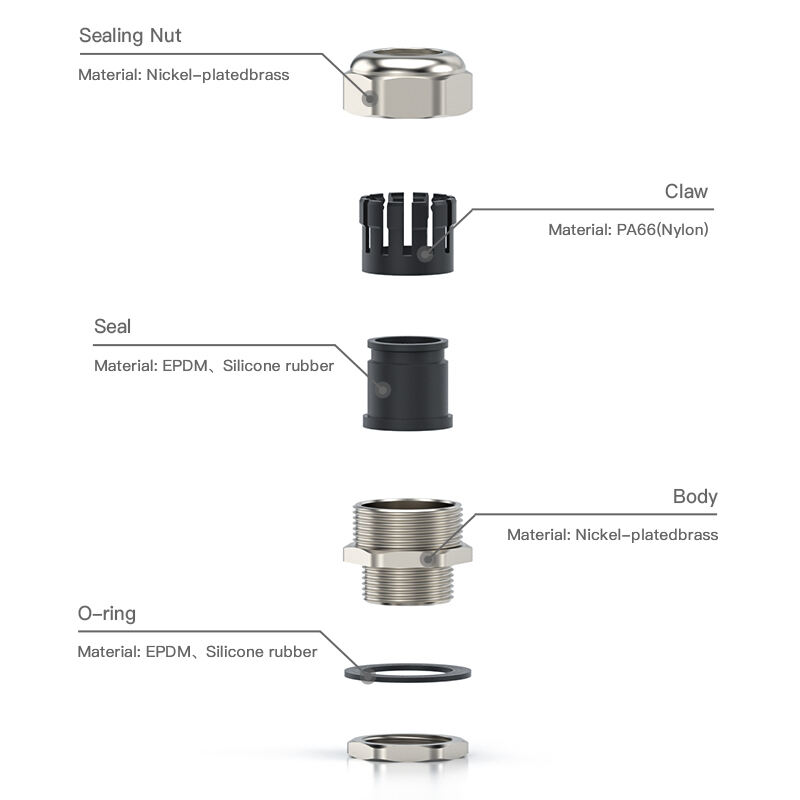

| Fitting Material: | Nickel-platedbrass | |||||
| Material For Clamping Jaws: | PA66(Nylon),UL94-V2 | |||||
| Material For Sealing Components: | EPDM, Silicone rubber | |||||
| O-ring Material: | EPDM, Silicone rubber | |||||
| Protection Degree: | IP66-10 bar | |||||
| Temperature: |

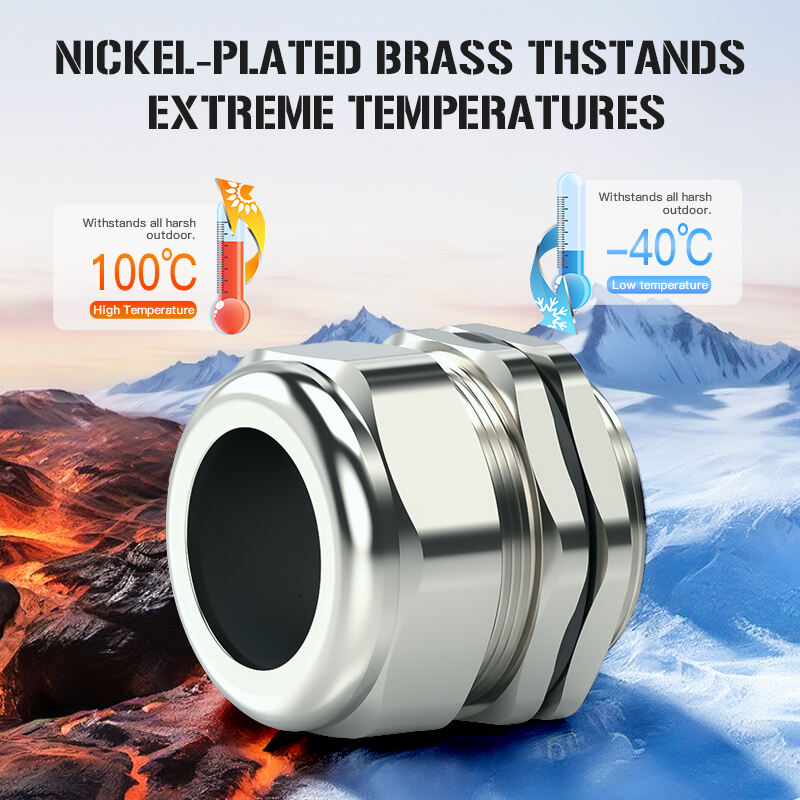

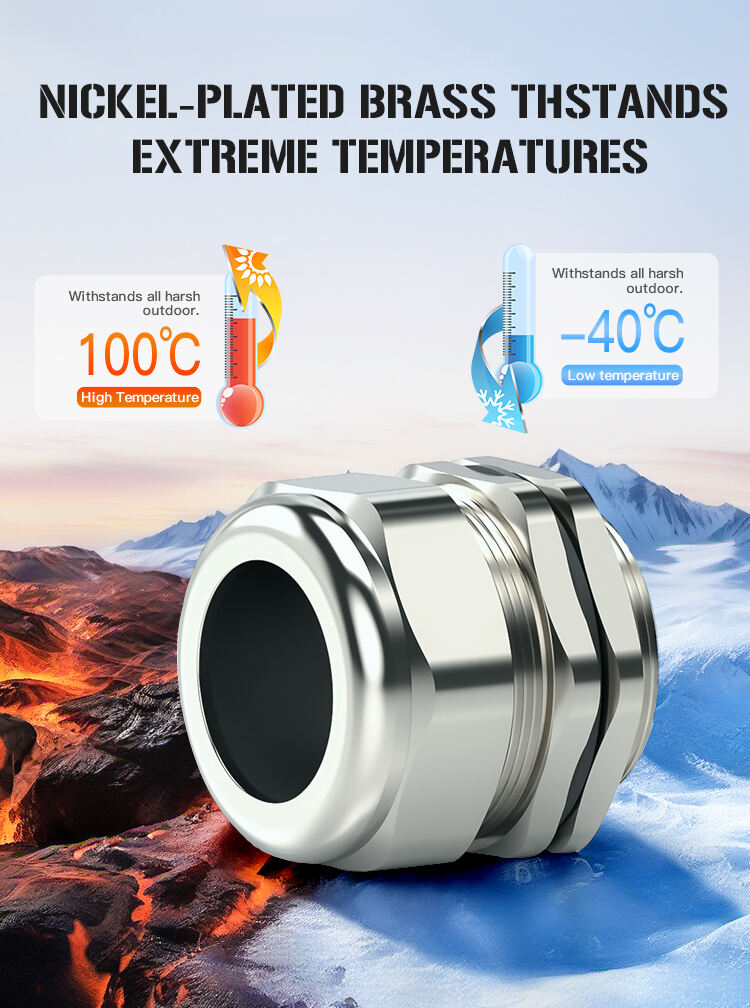

Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃ |
|||||
The Metal Reinforced Cable Gland is specifically designed for demanding industrial and outdoor applications that require exceptional durability and stability.
Constructed from nickel-plated brass or stainless steel, this gland offers outstanding mechanical strength, impact resistance, and corrosion protection, ensuring reliable cable retention even under continuous vibration and mechanical stress.
Its reinforced body structure and upgraded sealing components guarantee a tight IP68 seal, preventing water, oil, or dust from entering the cable entry point. This makes it ideal for heavy machinery, power distribution systems, automation equipment, and outdoor installations exposed to extreme conditions.
The gland’s robust design minimizes deformation under high torque, providing excellent strain relief and long-term sealing integrity. Available in PG, NPT, and Metric threads, it is compatible with a wide range of industrial standards and cable types.
Whether used in rail systems, marine environments, or industrial control panels, the Metal Reinforced Cable Gland provides a high-performance, professional-grade connection solution that ensures system safety and reliability for years of operation.
Smooth Straight-Through Design: Linear through structure without changing wiring direction, reducing cable bending damage, suitable for long-distance straight wiring scenarios.
Durable Metal Construction: Made of brass, stainless steel and other metal materials, featuring high mechanical strength, impact resistance and corrosion resistance, suitable for harsh industrial environments.

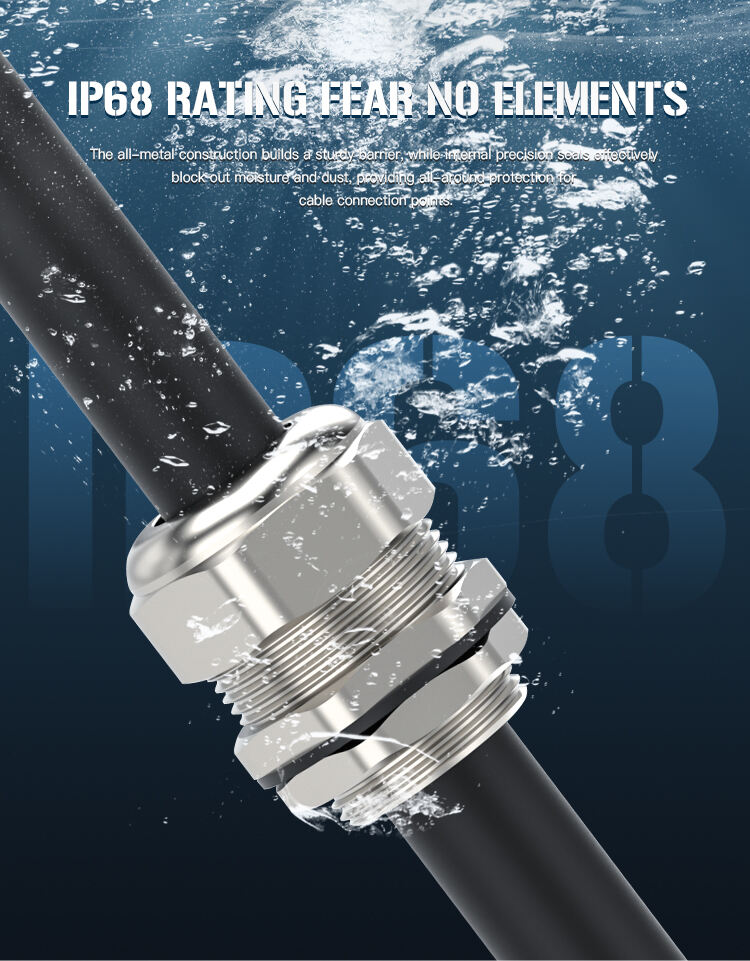

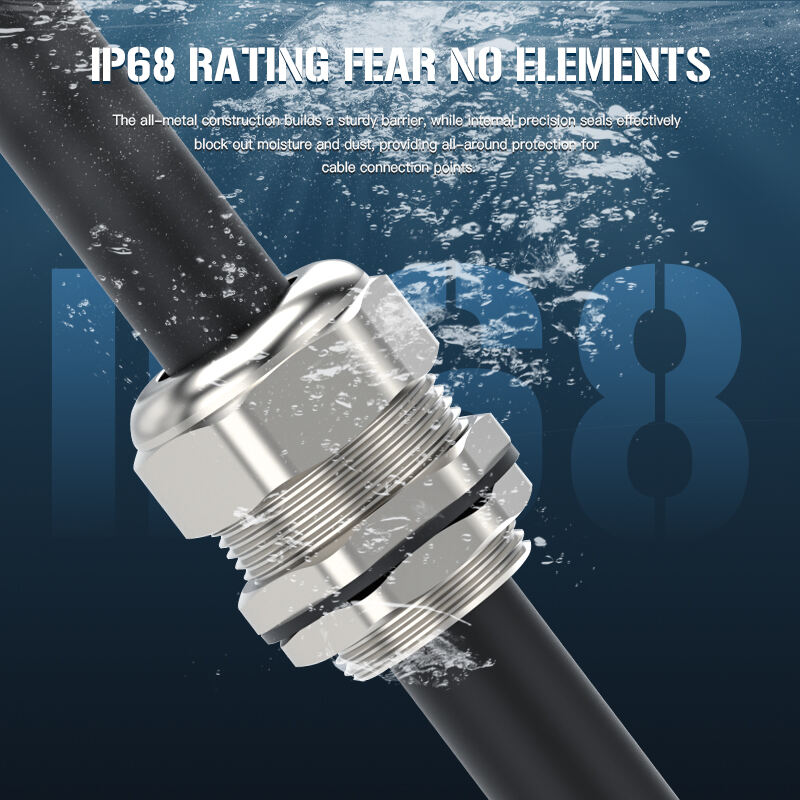

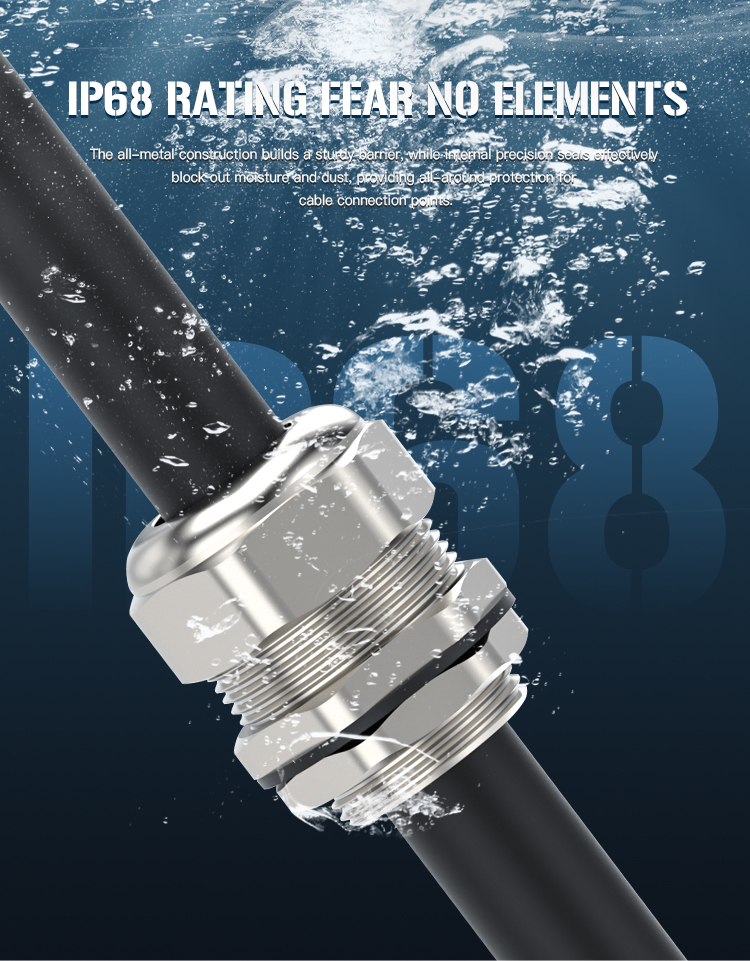

Excellent Protection: IP68+ protection rating, effectively dustproof, waterproof and oilproof, fully protecting cable glands and ensuring transmission safety.
Wide Compatibility: Compatible with various cable specifications and thread standards, easy to install, suitable for industrial automation equipment, distribution boxes and other industrial scenarios.
Specifications
unit: mm

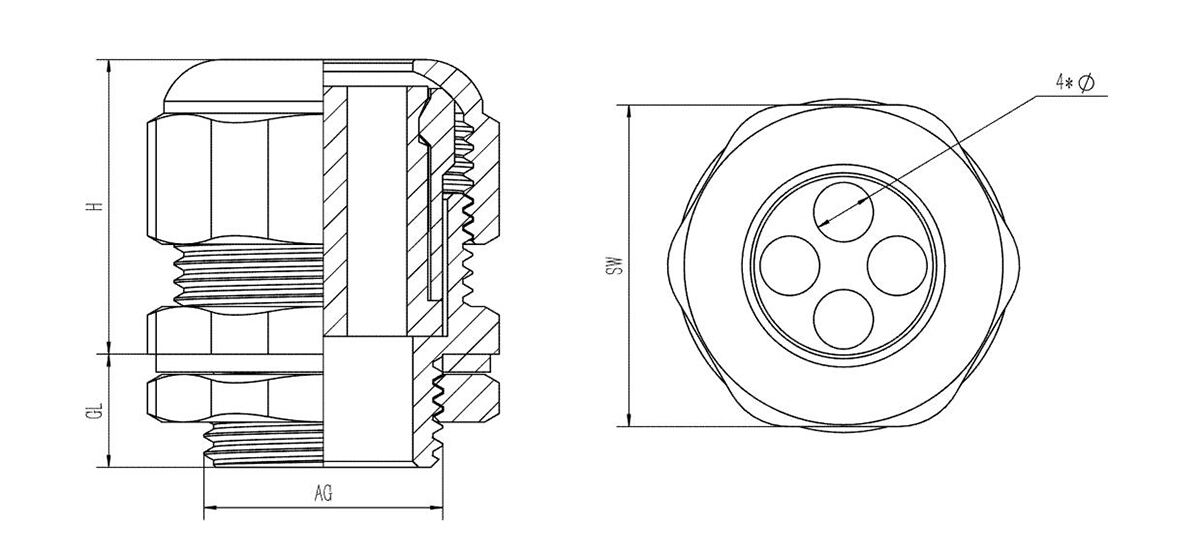

| Item | Range | GLThread Length | AGThread O.D. | HJointLength | Spanner size | Code |
| M12×1.5 | 4-8 | 8 | 12 | 18.5 | 18 | HX-MG.MG12 |
| M16×1.5 | 5-10 | 9 | 16 | 21.5 | 22 | HX-MG.MG16 |
| M20×1.5 | 10-14 | 9.5 | 20 | 25.5 | 27 | HX-MG.MG20 |
| M25×1.5 | 13-18 | 11 | 25 | 28 | 30 | HX-MG.MG25 |
| M32×1.5 | 18-25 | 12.5 | 32 | 33 | 40 | HX-MG.MG32 |
| M40×1.5 | 25-32 | 15 | 40 | 35 | 50 | HX-MG.MG40 |
| M50×1.5 | 32-42 | 15 | 50 | 40 | 59 | HX-MG.MG50 |
| M63×1.5 | 35-45 | 17 | 63 | 45 | 67 | HX-MG.MG63 |
| PG7 | 48 | 8 | 12.5 | 18.5 | 18 | HX-MG.MPG7 |
| PG9 | 5-10 | 9 | 15.2 | 21.5 | 22 | HX-MG.MPG9 |
| PG11 | 6-12 | 9 | 18.6 | 24.0 | 24 | HX-MG.MPG11 |
| PG13.5 | 10-14 | 9.5 | 20.4 | 25.5 | 27 | HX-MG.MPG13.5 |
| PG16 | 12-16 | 9.5 | 22.5 | 27.0 | 27 | HX-MG.MPG16 |
| PG21 | 13-18 | 11 | 28.3 | 28.0 | 30 | HX-MG.MPG21 |
| PG29 | 18-25 | 12.5 | 37.0 | 33.0 | 40 | HX-MG.MPG29 |
| PG36 | 25-32 | 15 | 47.0 | 35.0 | 50 | HX-MG.MPG36 |
| PG42 | 32-42 | 15 | 54.0 | 40.0 | 59 | HX-MG.MPG42 |
| PG48 | 35-45 | 17 | 59.3 | 45.0 | 67 | HX-MG.MPG48 |
