Nylon Cable Gland
Lightweight and Cost-Effective: Made of high-quality nylon, it is lightweight, low-cost, anti-aging and not easy to deform, with outstanding cost performance.

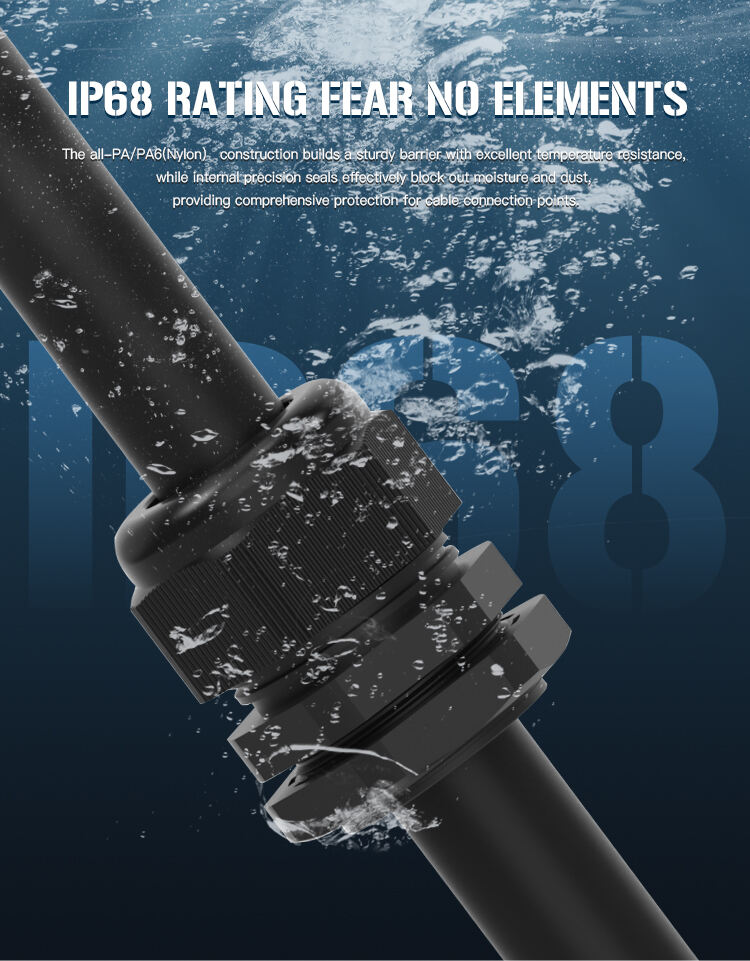

Reliable Protection: Up to IP68 sealing grade with built-in sealing ring, effectively dustproof, waterproof and resistant to mild oil stains.
Efficient Installation: Streamlined structure, no complex tools required, enabling quick manual assembly and suitable for batch wiring.
Wide Compatibility: Compatible with various cable specifications, meeting the wiring needs of industrial equipment, civil electrical appliances and other scenarios.
- Overview
- Specifications
- Description
- Recommended Products
Overview
PRODUCT PARAMETER
Welcome to Our Website,We Are Happy to Serve You

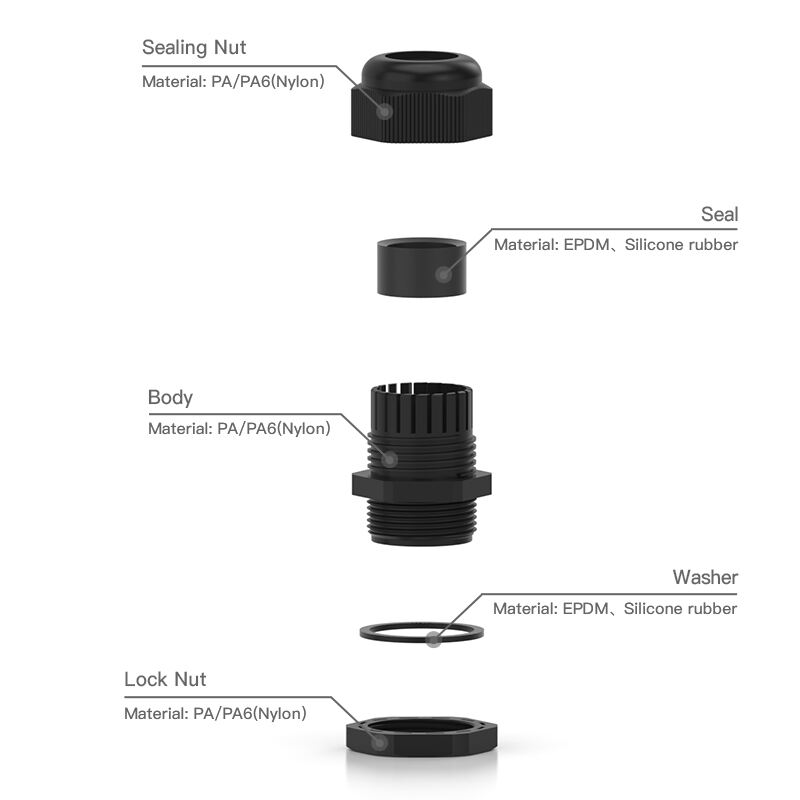

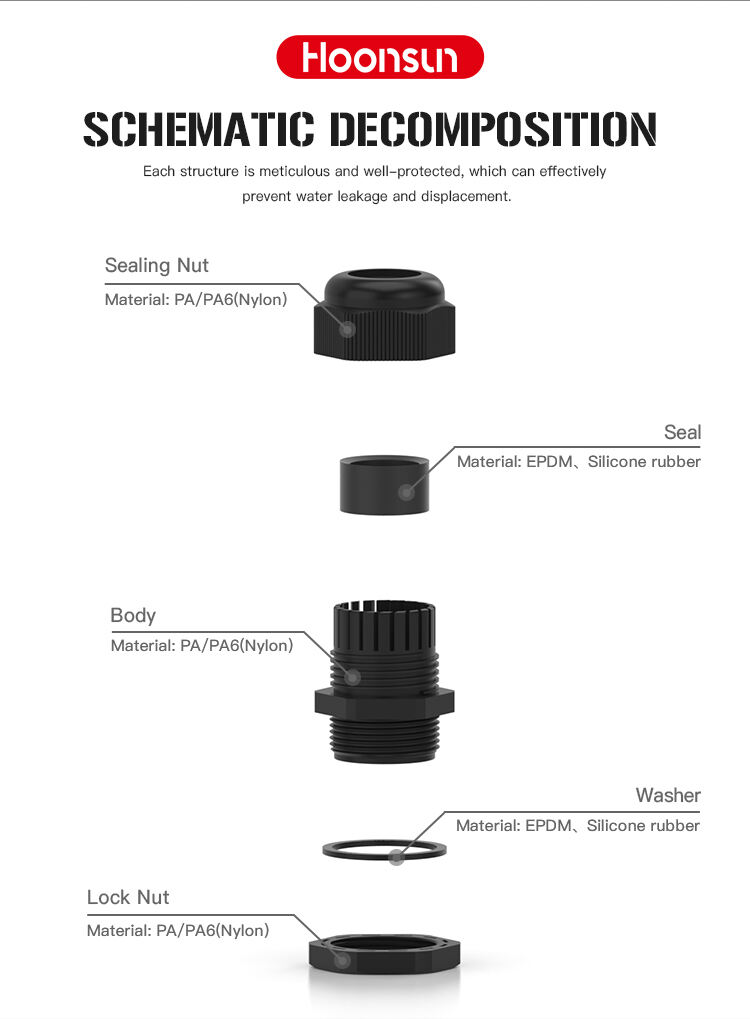

| Fitting Material: | PA/PA6(Nylon) | |||||
| Material For Sealing Components: | EPDM,Silicone rubber | |||||
| O-ring Material: | EPDM,Silicone rubber | |||||
| Protection Degree: | IP68 | |||||

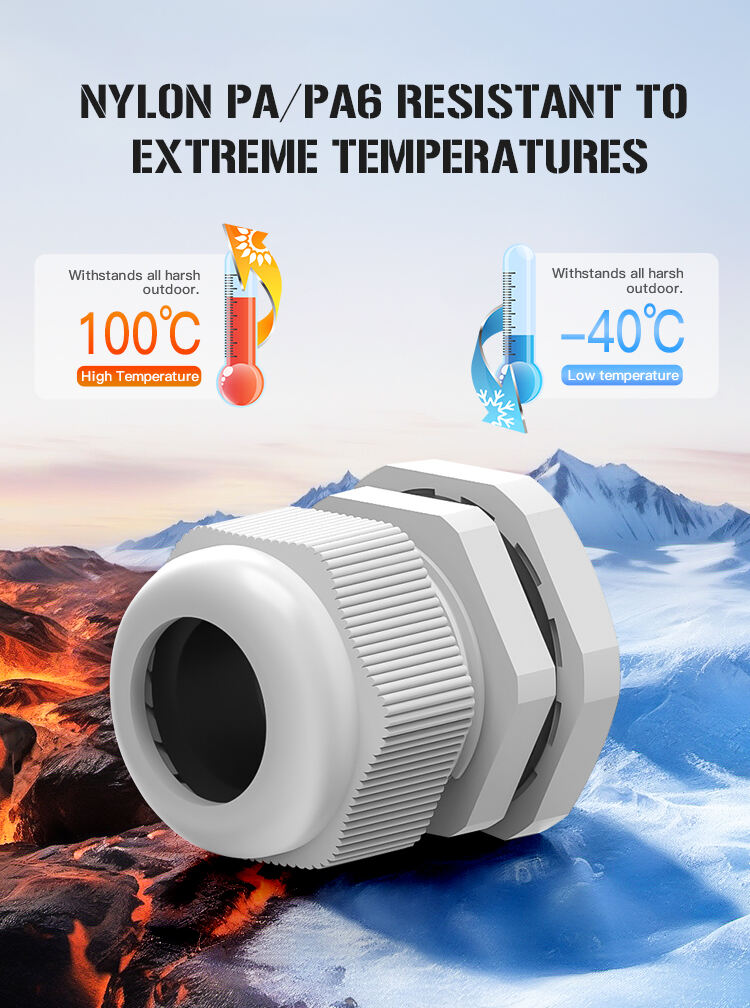

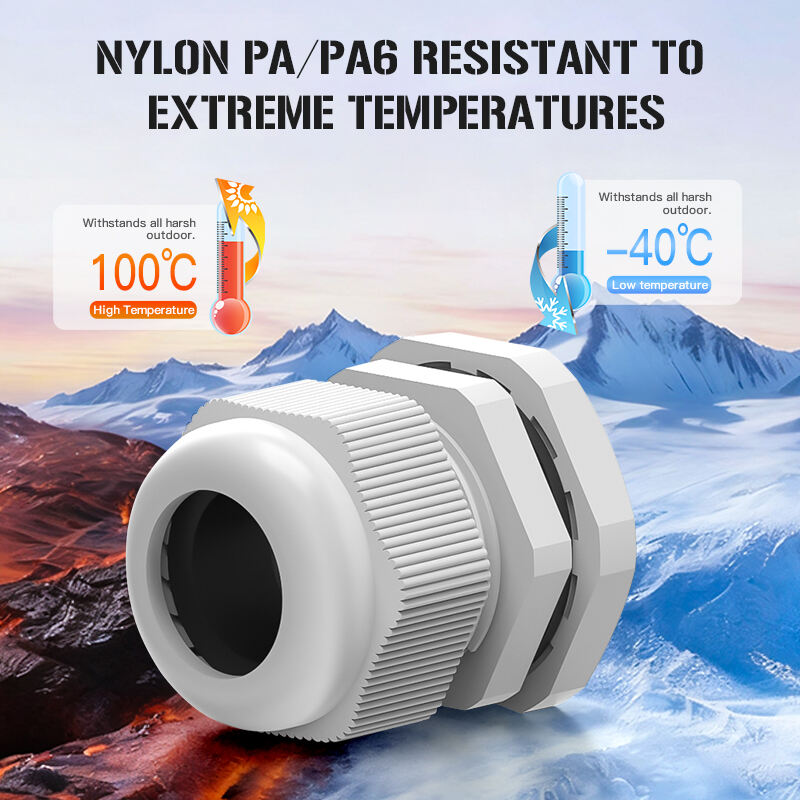

| Temperature: | Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃ | |||||
| Color customization: | Grey,Black,other color customized | |||||
Introduction

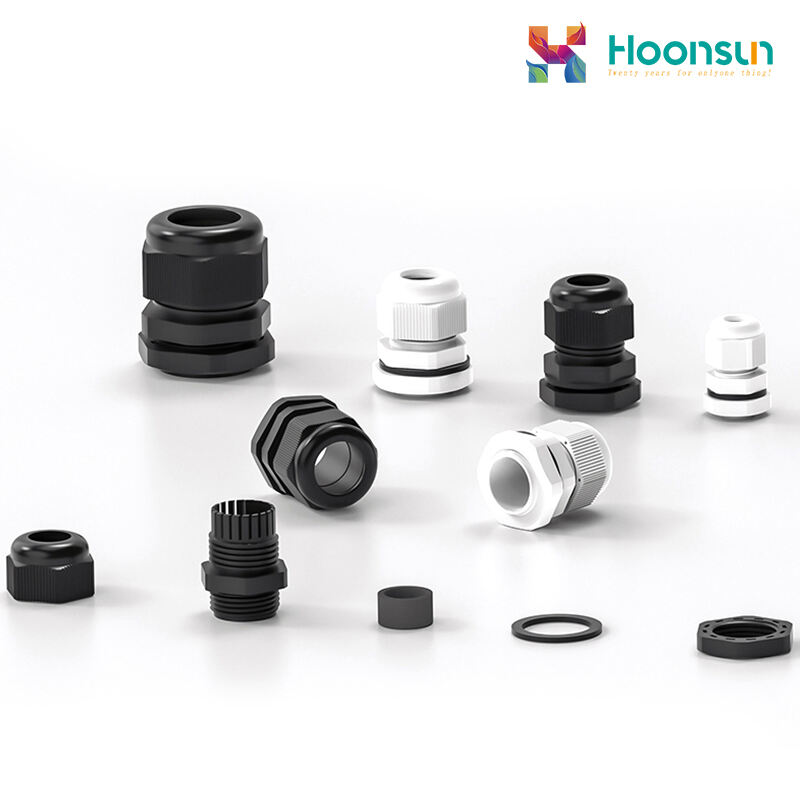

A nylon cable gland is a small but essential device used to fix and protect cables where they enter electrical panels or equipment. Made from durable nylon material, it provides excellent sealing, strain relief, and insulation—making it widely used in electrical, machinery, and communication systems.
Lightweight and Strong
Nylon cable glands are light but very strong. They resist pulling, twisting, and vibration, keeping cables stable and secure even in harsh conditions.
Excellent Insulation
Unlike metal glands, nylon ones are non-conductive. This makes them safer for electrical systems, preventing electric shocks and short circuits.

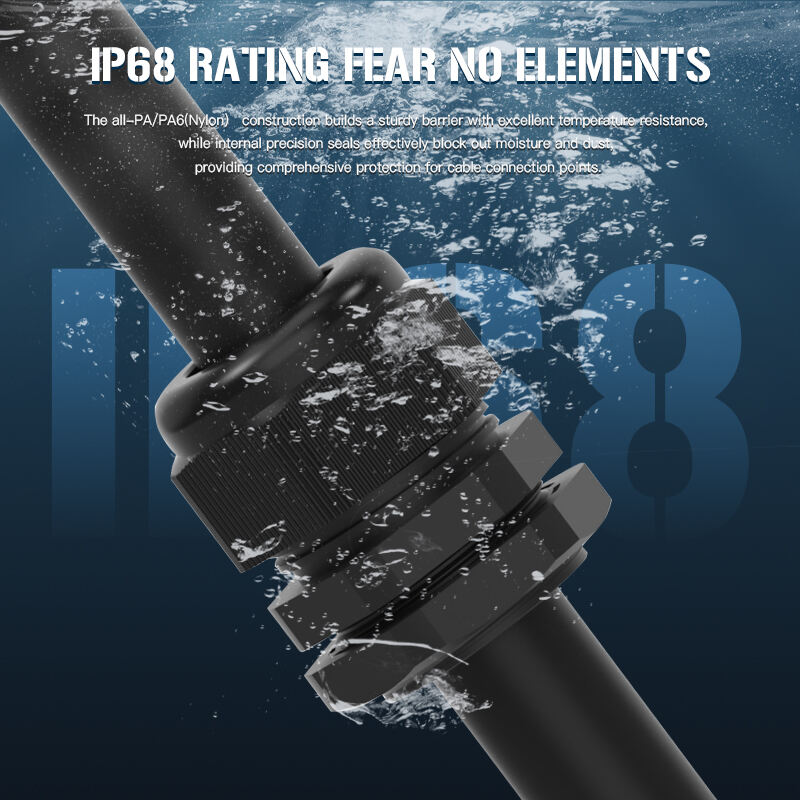

Waterproof and Dustproof
Most nylon cable glands reach IP68 protection levels, offering great resistance to water, dust, and oil. They are ideal for outdoor or humid environments.
Corrosion and Chemical Resistance
Nylon resists rust, acids, and most chemicals. This ensures long-lasting performance in factories, marine areas, and other tough environments.
Easy to Install
Nylon cable glands are simple to install and remove without special tools. Their flexible design fits a wide range of cable sizes securely.
Cost-Effective and Durable
They are more affordable than metal types, require little maintenance, and last for years—making them a smart, budget-friendly choice.
Conclusion
Nylon cable glands offer strong, lightweight, and safe cable protection. With waterproof, corrosion-resistant, and insulating features, they ensure reliable performance in both indoor and outdoor applications. Simple, durable, and economical—they’re the perfect choice for modern electrical systems.
Advantages of Nylon Cable Glands
Focus Keywords: nylon cable gland advantages
Slug: nylon-cable-gland
Meta Description: Discover the main advantages of nylon cable glands for safe and reliable cable protection.
Alt text image: nylon cable gland for electrical wiring
Specifications
unit: mm
| Item | Wire ange | GL | Thread O.D. | Spannersize | Code |
| M12×1.5 | 3-6.5 | 9 | 12 | 18/16 | HX-NLM12 |
| M12×1.5 | 4-8 | 9 | 12 | 18/16 | HX-NLM12-8 |
| M16×1.5 | 4-8 | 9 | 16 | 22/19 | HX-NLM16 |
| M16×1.5 | 5-10 | 9 | 16 | 22/19 | HX-NLM16-10 |
| M18×1.5 | 5-10 | 9 | 18 | 24/22 | HX-NLM18 |
| M20×1.5 | 6-11 | 9 | 20 | 27/24 | HX-NLM20 |
| M20×1.5 | 10-14 | 9 | 20 | 27/24 | HX-NLM20-14 |
| M22×1.5 | 10-14 | 10 | 22 | 30/27 | HX-NLM22 |
| M25×1.5 | 12-15 | 10 | 25 | 31/28 | HX-NLM25 |
| M25×1.5 | 13-18 | 12 | 25 | 31/28 | HX-NLM25-18 |
| M27×1.5 | 13-18 | 12 | 27 | 35/33 | HX-NLM27 |
| M30×1.5 | 16-21 | 12 | 30 | 37/35 | HX-NLM30 |
| M32×1.5 | 16-21 | 12 | 32 | 38/35 | HX-NLM32 |
| M36×1.5 | 18-25 | 12 | 36 | 45/42 | HX-NLM36 |
| M40×1.5 | 22-32 | 17 | 40 | 52/52 | HX-NLM40 |
| M50×1.5 | 32-38 | 19 | 50 | 62/58 | HX-NLM50 |
| M63×1.5 | 37-44 | 19 | 63 | 72/64 | HX-NLM63 |
