Cable Gland - Air Permeable Type
Key Features
Built-in breathable waterproof membrane
IP67–IP68 waterproof and dustproof rating
Balances internal and external air pressure
Prevents condensation and moisture damage
Nickel-plated brass or stainless-steel body
CE / UL / RoHS certified
- Overview
- Specifications
- Description
- Recommended Products
Overview
PRODUCT PARAMETER
Welcome to Our Website,We Are Happy to Serve You

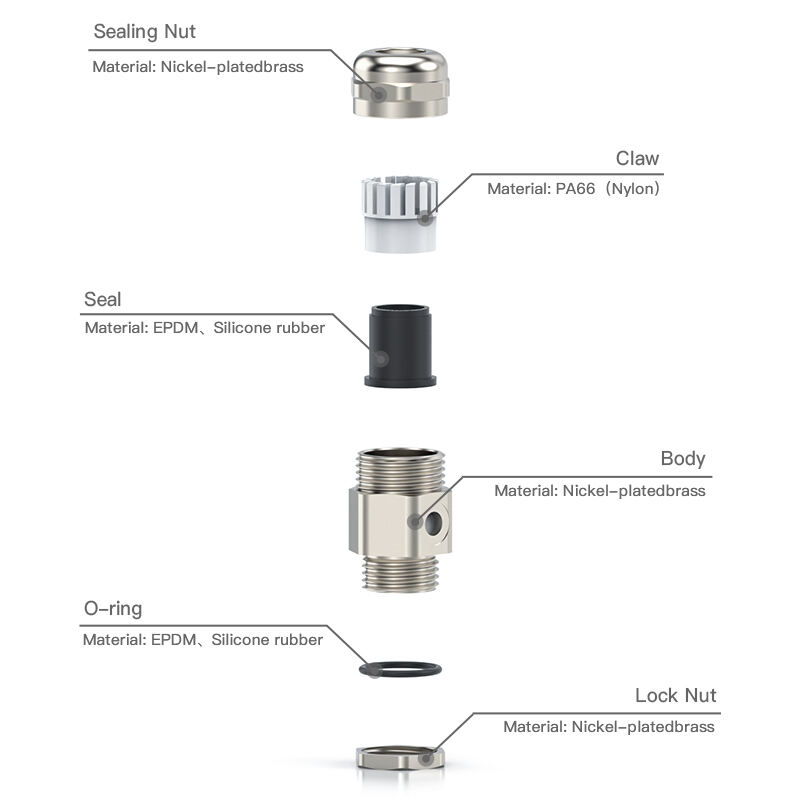

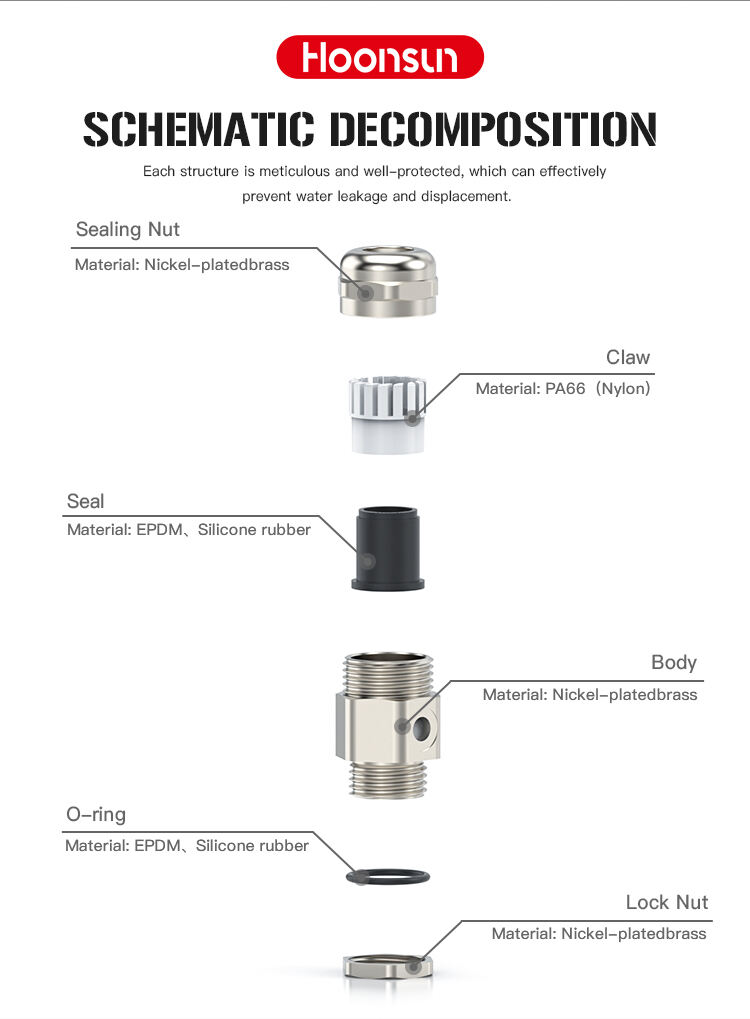

| Fitting Material: | Nickel-platedbrass | |||||
| Material For Clamping Jaws: | PA66(Nylon),UL94-V2 | |||||
| Material For Sealing Components: | EPDM,Silicone rubber | |||||
| Protection degree: | In the specified cable outer diameter and the appropriate o-ring Protection degree can reach IP68,the waterproof depth reaches 3m-5m | |||||
| Temperatur: | 40℃~100℃,can reach 120℃ in a short time | |||||
| Heat dissipation permeability: | 2400ml/s/[email protected] | |||||
| Water inlet pressure: | >5bar | |||||

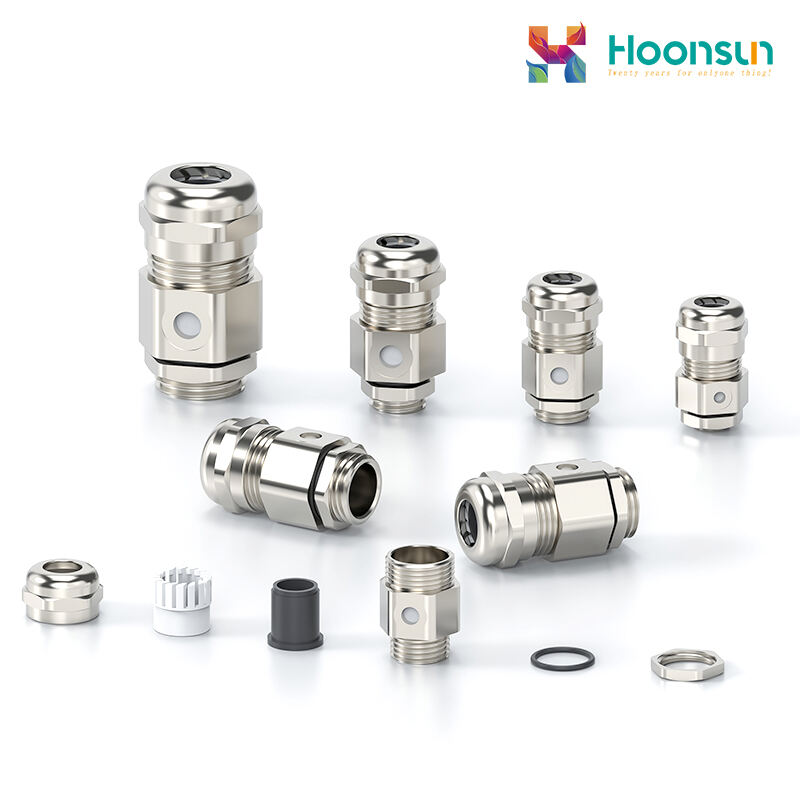

The Breathable Cable Gland is a high-performance sealing solution designed to ensure reliable cable entry protection while maintaining air circulation and pressure balance inside sealed electrical enclosures. Constructed from nickel-plated brass or stainless steel, this gland combines excellent mechanical strength, corrosion resistance, and waterproof performance, making it ideal for demanding industrial and outdoor environments.
At its core lies an integrated breathable membrane, engineered with microporous technology that allows air and vapor to pass while blocking liquids, oil, and dust. This unique feature provides continuous pressure equalization, effectively preventing condensation buildup and protecting sensitive internal electronics from moisture-related damage.

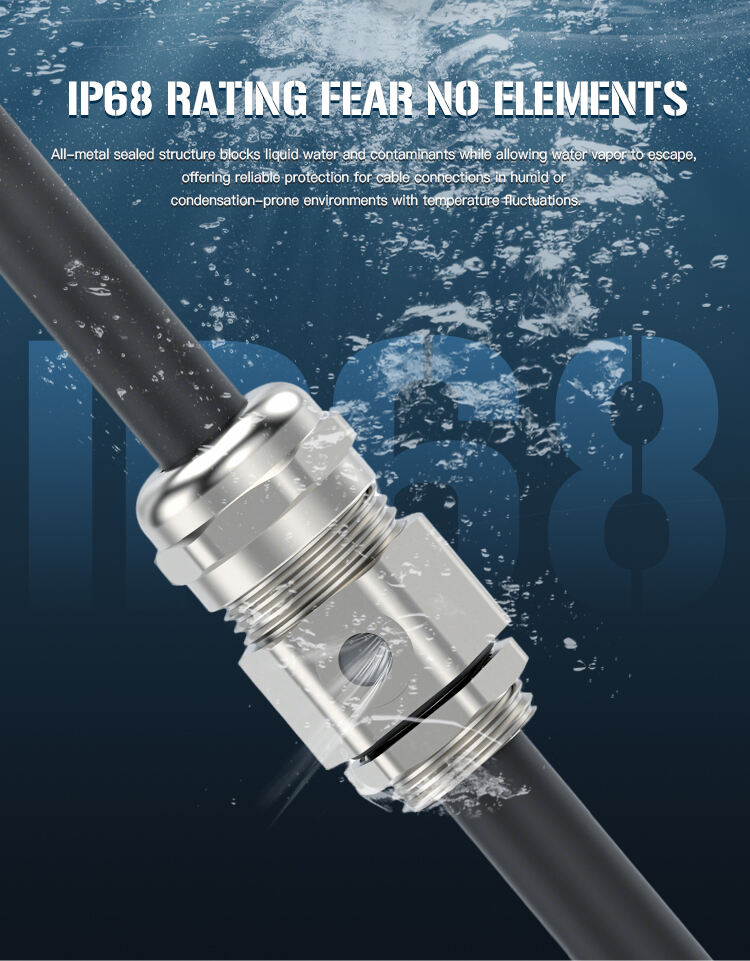

The gland offers IP67–IP68 waterproof and dustproof protection, ensuring long-term reliability even in environments exposed to rapid temperature or pressure fluctuations. Its precise clamping structure provides excellent strain relief and cable stability, maintaining secure connections under vibration and mechanical stress.

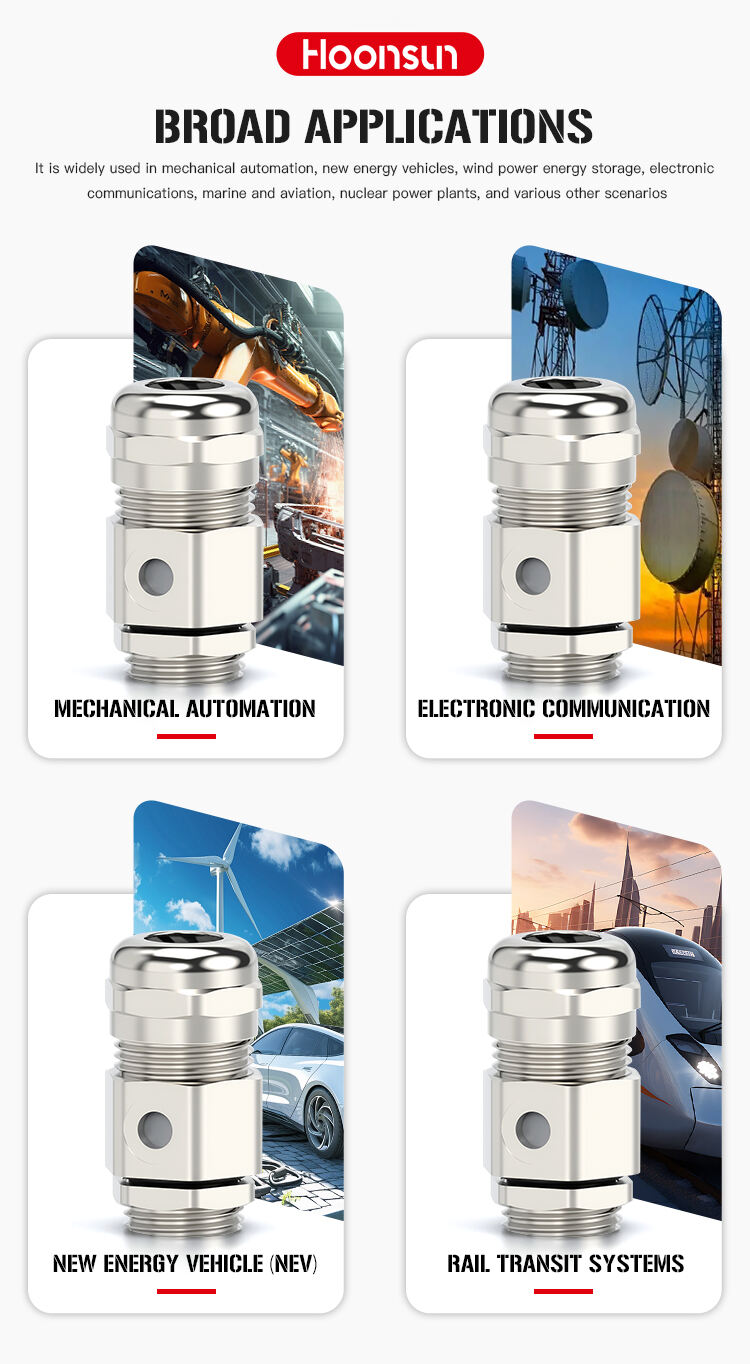

Widely applied in LED lighting, outdoor control systems, communication devices, renewable energy installations, and sensor housings, the Breathable Cable Gland helps extend equipment lifespan and maintain consistent performance.
Available in Metric, PG, and NPT threads, it complies with CE, UL, and RoHS certifications. Combining ventilation, sealing, and durability, the Breathable Cable Gland is the professional choice for modern electrical and automation systems that require both protection and breathability.

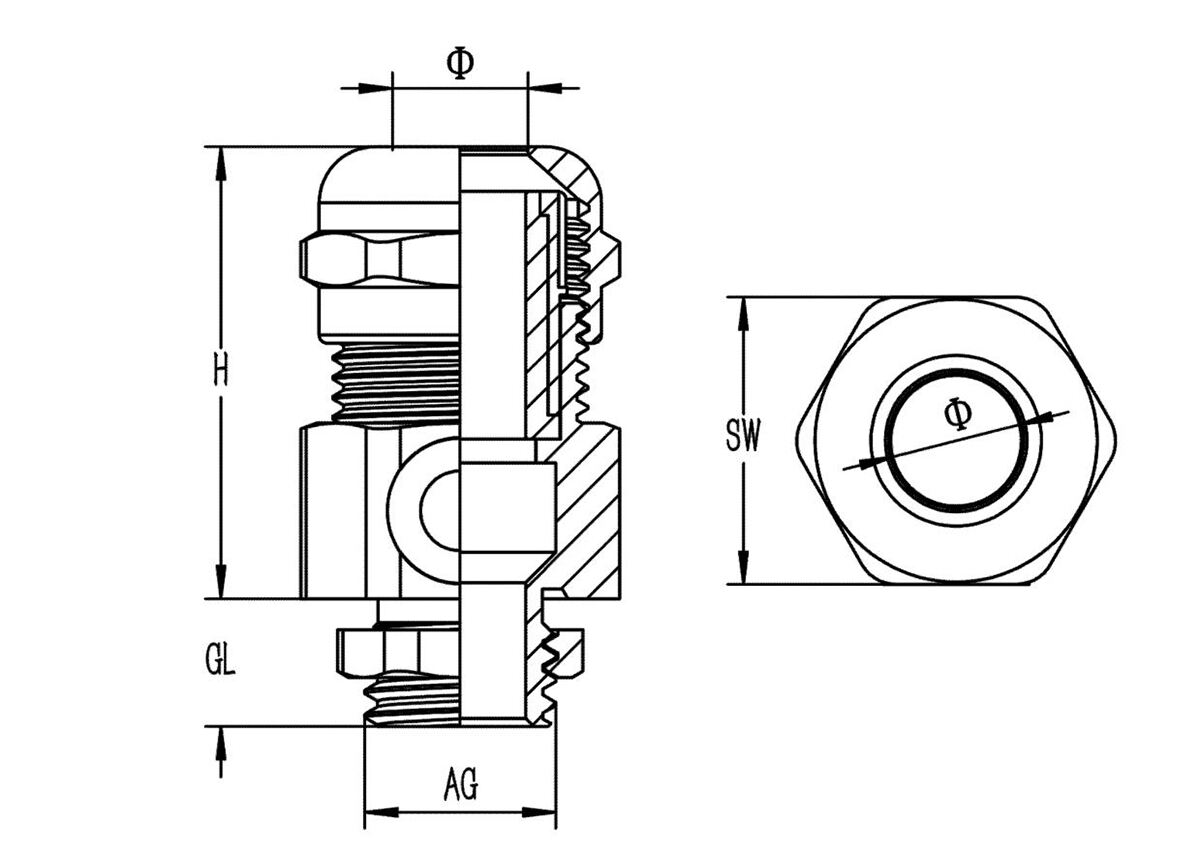

Specifications
unit: mm
| Item | Range | GL | Thread O.D. | HJoint Length | Spanner size | Code |
| M12×1.5 | 3-6.5 | 8 | 12.0 | 27 | 18/14 | HX-NF.M12 |
| 4-8 | 8 | 12.0 | 27 | 18/14 | HX-NF.M12-8 | |
| M16×1.5 | 3-6.5 | 8 | 16.0 | 27 | 18 | HX-NF.M16-(6) |
| 4-8 | 8 | 16.0 | 27 | 18 | HX-NF.M16 | |
| 5-10 | 8 | 16.0 | 27 | 20/18 | HX-NF.M16-10 | |
| M18×1.5 | 5-10 | 8 | 18.0 | 29 | 20 | HX-NF.M18 |
| M20×1.5 | 5-10 | 8 | 20.0 | 32 | 22 | HX-NF.M20-(10) |
| 6-12 | 8 | 20.0 | 32 | 22 | HX-NF.M20 | |
| 10-14 | 8 | 20.0 | 32 | 24/22 | HX-NF.M20-12 | |
| M25×1.5 | 8-12 | 9 | 25.0 | 35 | 24/27 | HX-NF.M25-(12) |
| 10-14 | 9 | 25.0 | 35 | 24/27 | HX-NF.M25-14 | |
| 12-16 | 9 | 25.0 | 35 | 27 | HX-NF.M25-16 | |
| 13-18 | 9 | 25.0 | 35 | 30/27 | HX-NF.M25-18 | |
| M32×1.5 | 13-18 | 10 | 32.0 | 54 | 35 | HX-NF.M32-(18) |
| 15-22 | 10 | 32.0 | 54 | 35 | HX-NF.M32 | |
| 18-25 | 10 | 32.0 | 54 | 40/35 | HX-NF.M32-25 | |
| M40×1.5 | 18-25 | 11 | 40.0 | 46 | 40/45 | HX-NF.M40-25 |
| 22-30 | 11 | 40.0 | 50 | 45 | HX-NF.M40-30 | |
| 25-33 | 11 | 40.0 | 52 | 50/45 | HX-NF.M40-33 | |
| M50×1.5 | 32-38 | 13 | 50.0 | 55 | 57/55 | HX-NF.M50 |
| M63×1.5 | 37-44 | 14 | 63.0 | 55 | 64/68 | HX-NF.M63 |
| 42-52 | 14 | 63.0 | 55 | 78/68 | HX-NF.M63-52 | |
| Customizable PG/G/NPT thread | ||||||
