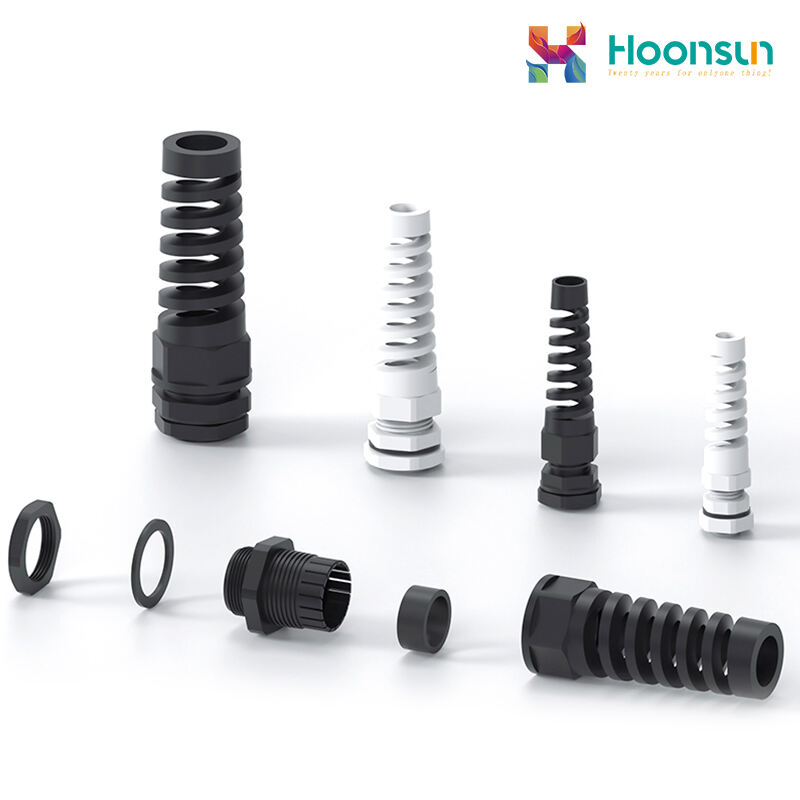

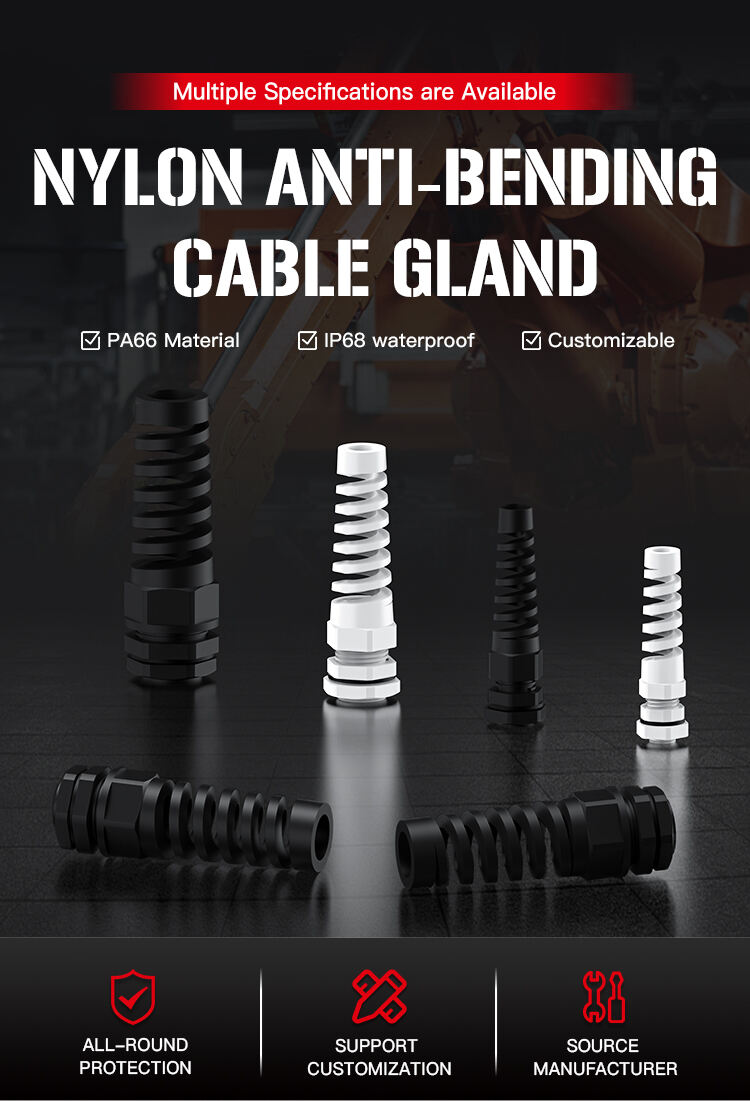

Nylon Anti - Bending Cable Gland
Core anti-bending function: Integrated anti-bending structure limits cable bending angle. Prevents core wire breakage and insulation damage caused by excessive bending at the joint, extending cable service life.
Nylon material advantages: Made of high-quality nylon, lightweight, cost-effective and corrosion-resistant. Not easy to age or deform, suitable for indoor and outdoor general environments, balancing practicality and cost performance.
Basic sealing protection: IP65 sealing performance, dustproof, waterproof and resistant to mild oil stains. Effectively isolates external impurities, ensures stable connection of cable joints, and meets the needs of general working conditions.
Convenient installation and adaptation: Compact structure, compatible with various cable specifications, no complex tools required. Can be quickly assembled and fixed by hand, with high installation efficiency, suitable for batch wiring scenarios.
- Overview
- Specifcations
- Description
- Recommended Products
Overview
PRODUCT PARAMETER
Welcome to Our Website,We Are Happy to Serve You

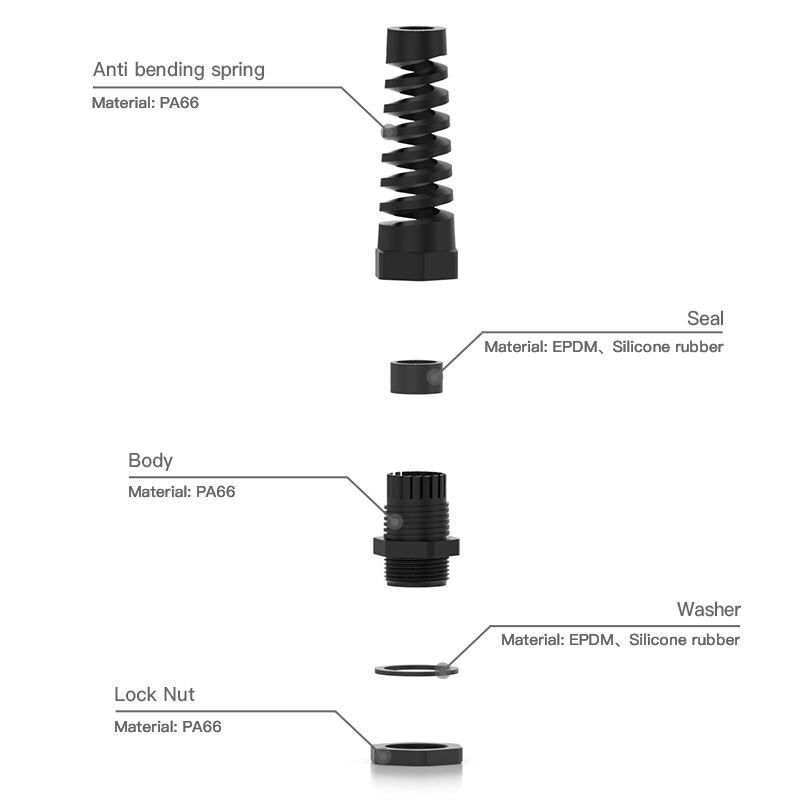

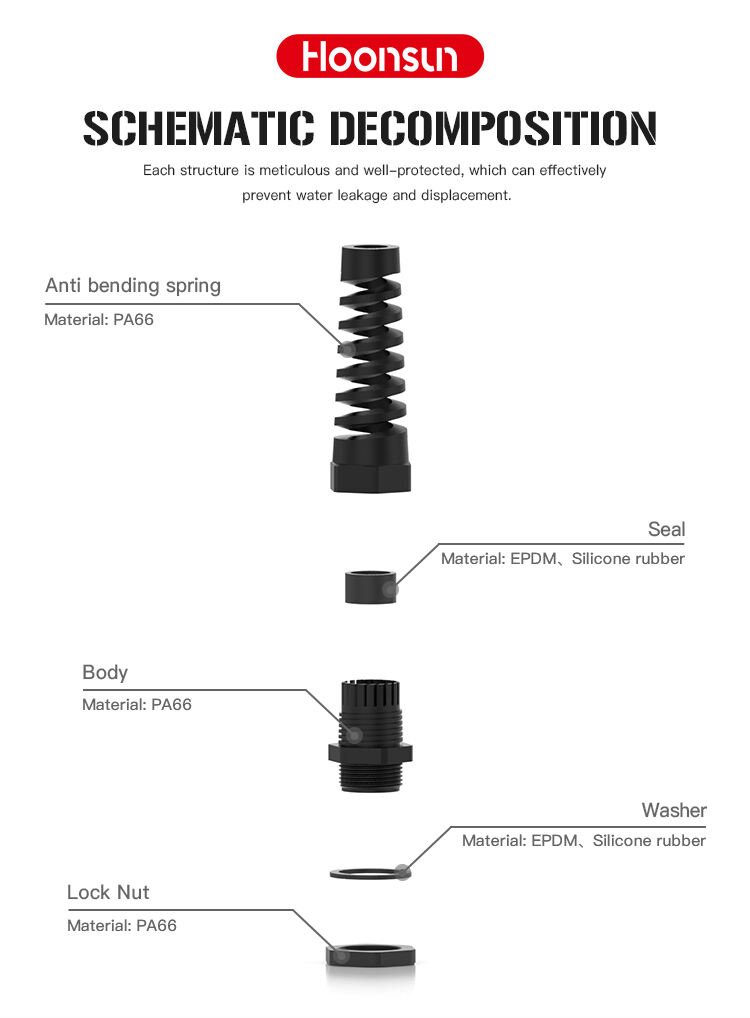

| Fitting Material: | PA66 |
| Material For Sealing Components: | EPDM,Silicone rubber |
| O-ring Material: | EPDM,Silicone rubber |
| Protection Degree: | IP68 |

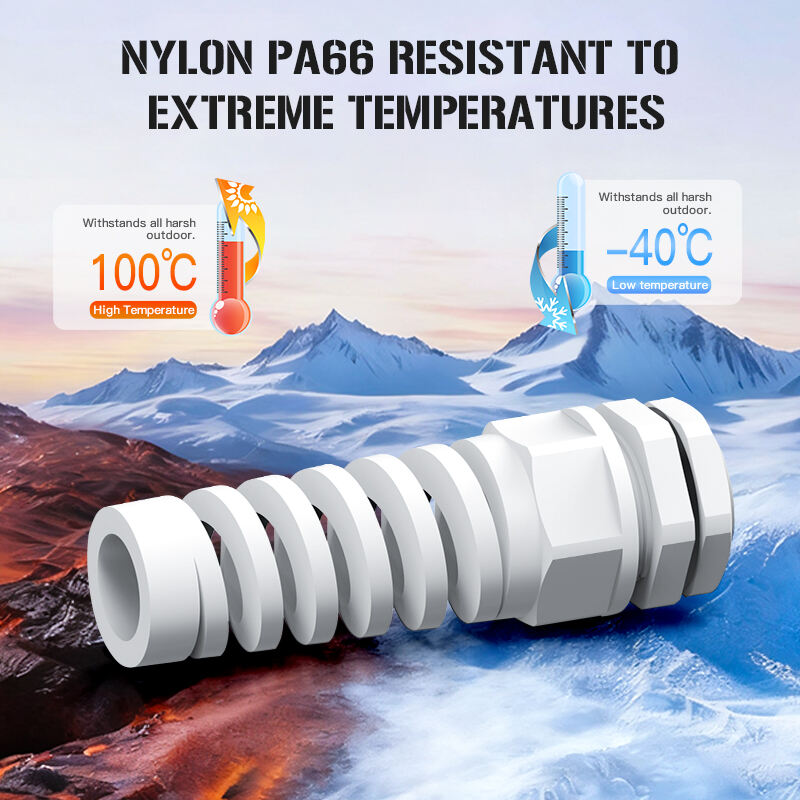

| Temperature: | Min-40℃,Max100℃,Short-time120℃ |
| Color customization: | Grey, Black, other color customized |
The Nylon Anti-Bending Quick Connector for Flexible Conduit is designed for applications requiring enhanced cable protection and smooth conduit routing. Constructed from high-strength, flame-retardant PA66 nylon, it combines excellent flexibility, toughness, and environmental resistance, making it ideal for use in dynamic or high-movement cable systems.
Featuring a 90° anti-bending design, this connector effectively prevents cable kinking and excessive bending stress, extending the lifespan of cables in automation machinery, robotics, and electrical control systems. The built-in quick-lock mechanism allows for fast, tool-free installation, ensuring a secure and vibration-resistant fit between conduit and equipment housing.

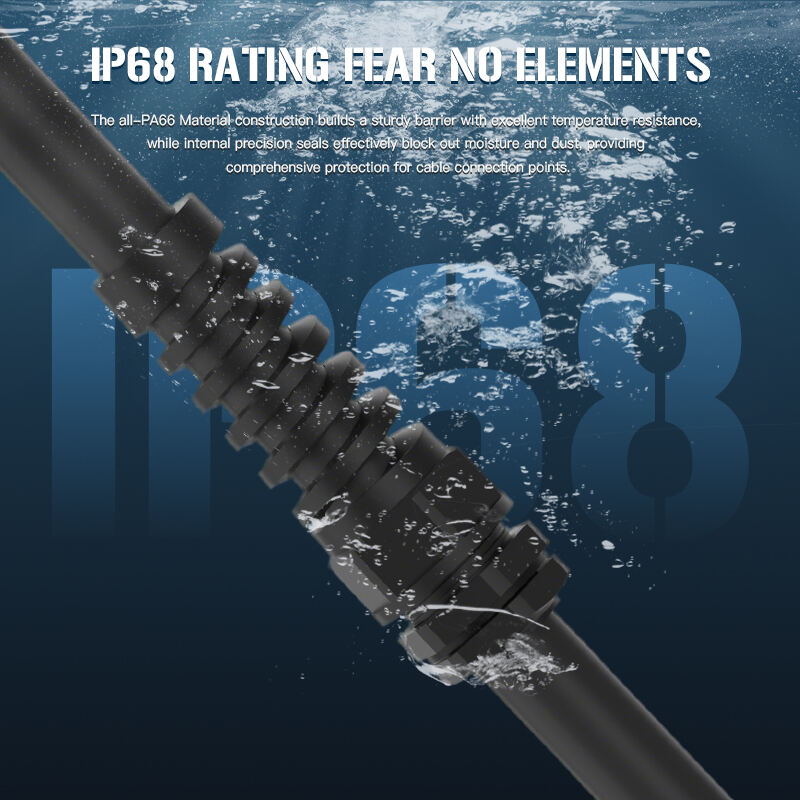

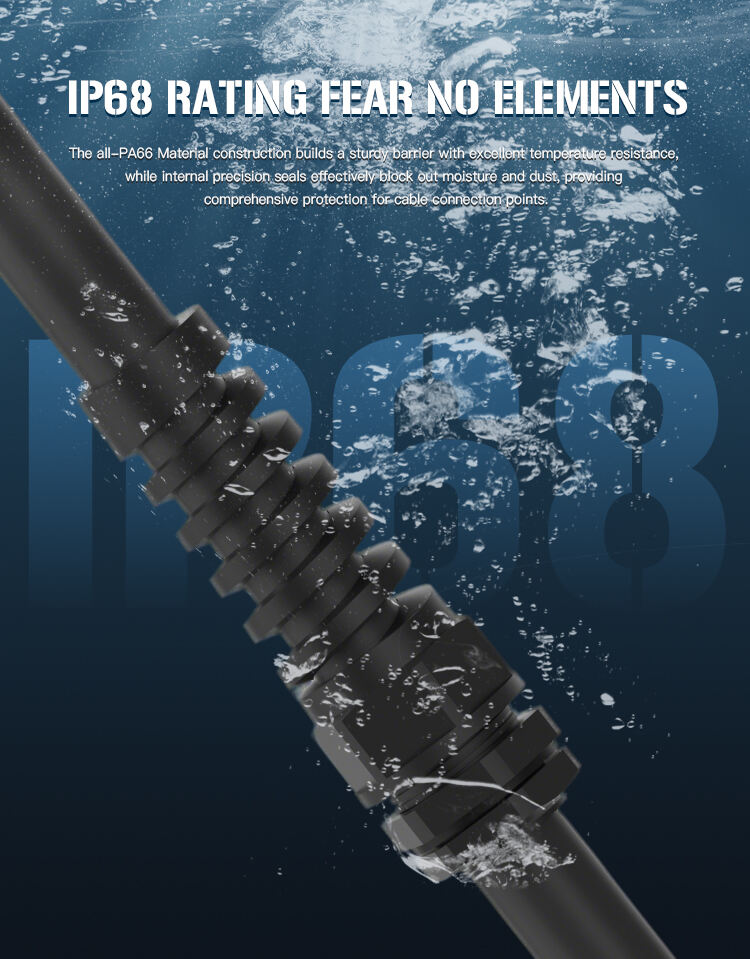

The connector provides IP68 waterproof and dustproof protection, safeguarding cables from moisture, oil, and dust ingress. It also offers superior strain relief, ensuring cable stability in continuous-motion or high-vibration environments.
Available in Metric, PG, and NPT threads, it meets CE, UL, and RoHS standards, ensuring compatibility with global equipment requirements. The Nylon Anti-Bending Quick Connector represents a professional, reliable, and efficient solution for modern conduit management in industrial automation and smart manufacturing systems.
Key Features
Anti-bending 90° structure for flexible routing
Quick installation with secure locking mechanism
IP68 waterproof and vibration-resistant design
Reinforced PA66 nylon, flame-retardant and durable
Suitable for dynamic and robotic applications
CE / UL / RoHS certified
Specifcations
| Item | Range | GLThread Lengh | Mountinghole | HJoint Length | Spanner size | Code |
| M12x1.5 | 3-6.5 | 8 | 12 | 58 | 16 | HX-NLZ.M12-6.5B |
| M16x1.5 | 4-8 | 8 | 16 | 73 | 19 | HX-NLZ.M16-8B |
| M18x1.5 | 5-10 | 8 | 18 | 73 | 22 | HX-NLZ.M18-10B |
| M20x1.5 | 6-12 | 9 | 20 | 80 | 24 | HX-NLZ.M20-12B |
| M22x1.5 | 10-14 | 10 | 22 | 90 | 27 | HX-NLZ.M22-14B |
| M25x1.5 | 13-18 | 10 | 25 | 105 | 33 | HX-NLZ.M25-18B |
| M27x1.5 | 13-18 | 10 | 27 | 105 | 33 | HX-NLZ.M27-18B |
| PG7 | 3-6.5 | 8 | 12.5 | 58 | 16 | HX-NLZ.PG7-6.5B |
| PG9 | 4-8 | 8 | 15.2 | 73 | 19 | HX-NLZ.PG9-8B |
| PG11 | 5-10 | 8 | 18.6 | 73 | 22 | HX-NLZ.PG11-10B |
| PG13.5 | 6-12 | 9 | 20.4 | 80 | 24 | HX-NLZ.PG13.5-12B |
| PG16 | 10-14 | 10 | 22.5 | 90 | 27 | HX-NLZ.PG16-14B |
| PG21 | 13-18 | 10 | 28.3 | 105 | 33 | HX-NLZ.PG21-18B |
