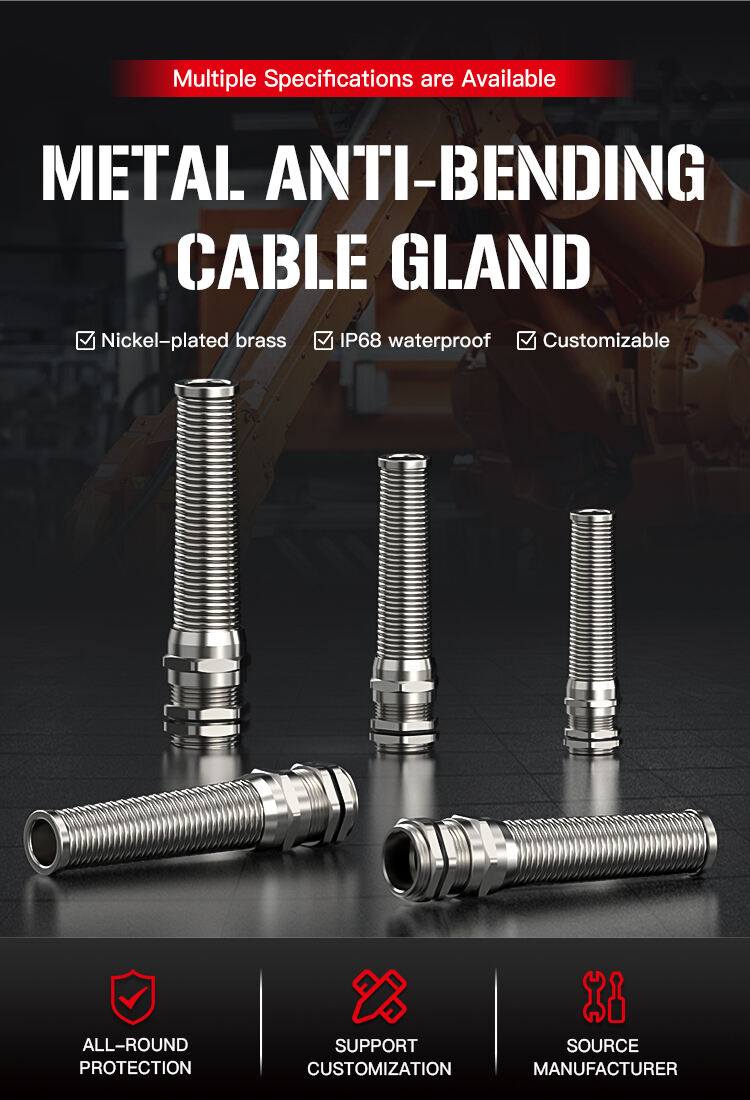

Metal Anti - Bending Cable Gland
Core anti-bending design: Integrated anti-bending structure limits cable bending angle. Avoids core wire breakage and insulation damage caused by excessive bending at the cable joint, extending cable service life.
Metal material advantages: High-quality metal shell with high mechanical strength, impact resistance and corrosion resistance. Withstands harsh conditions like vibration and wear, suitable for outdoor, heavy industry and other environments with high protection requirements.
Reliable sealing protection: IP65 and above sealing grade, dustproof, waterproof and oilproof. Effectively isolates external impurities, protects joint connections, and ensures stable power or signal transmission.
Flexible installation and adaptation: Compact structure, compatible with various cable specifications, no complex tools needed. Can be fixed manually or with simple tools, balancing installation efficiency and connection firmness.
- Overview
- Specifications
- Description
- Recommended Products
Overview
PRODUCT PARAMETER
Welcome to Our Website,We Are Happy to Serve You

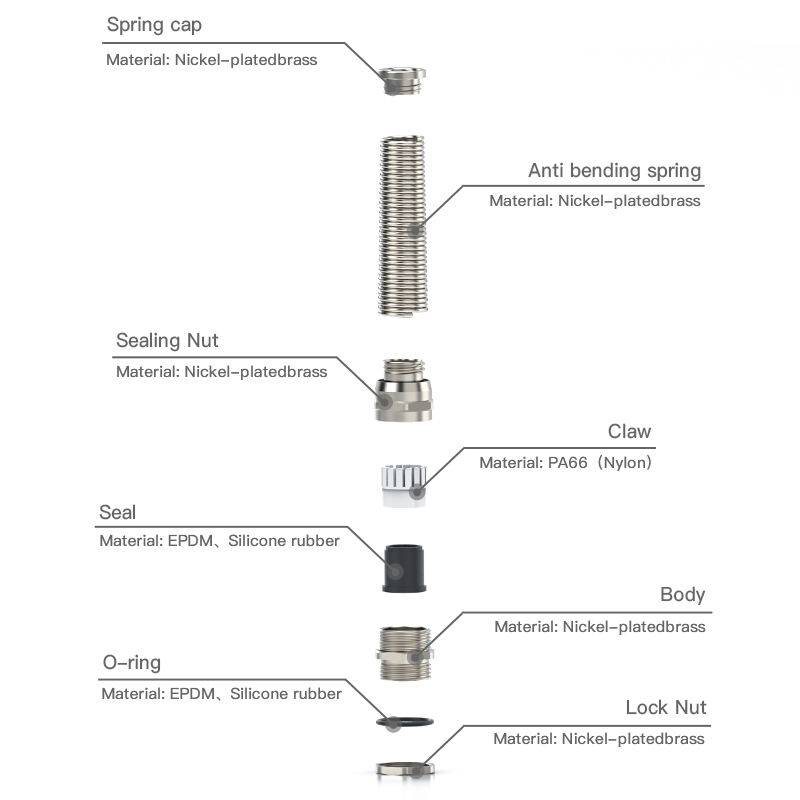

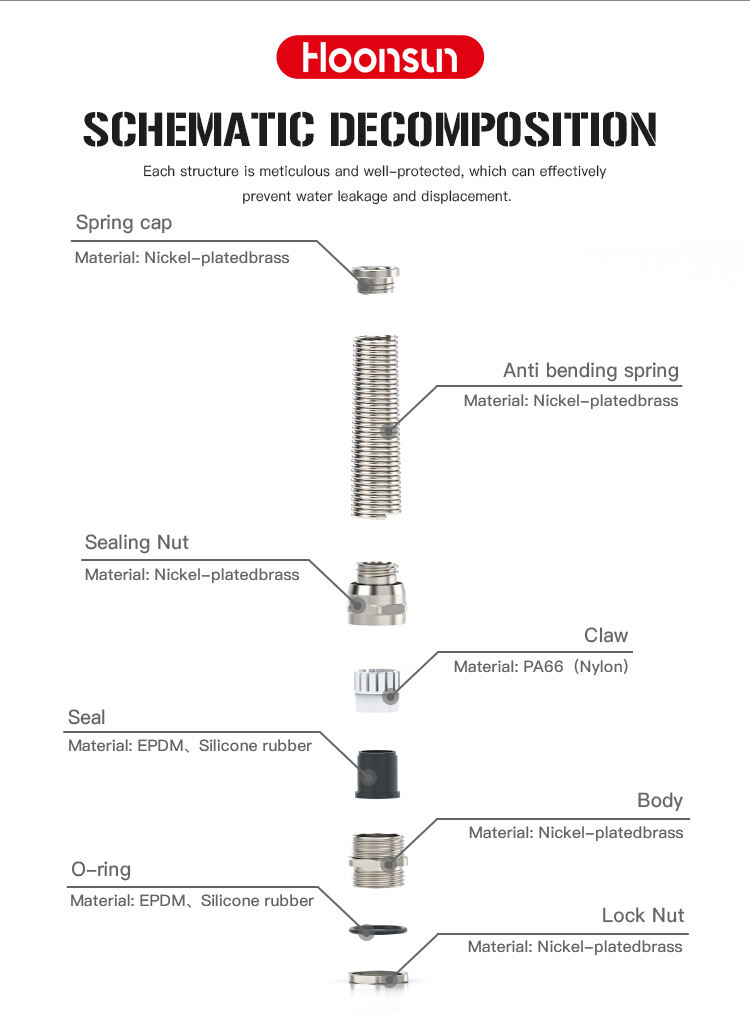

| Fitting Material: | Nickel-platedbrass | |||||
| Material For Clamping Jaws: | PA66(Nylon),UL94-V2 | |||||
| Material For Sealing Components: | EPDM,Silicone rubber | |||||
| O-ring Material: | EPDM,Silicone rubber | |||||
| Protection Degree: | IP66-10 bar | |||||

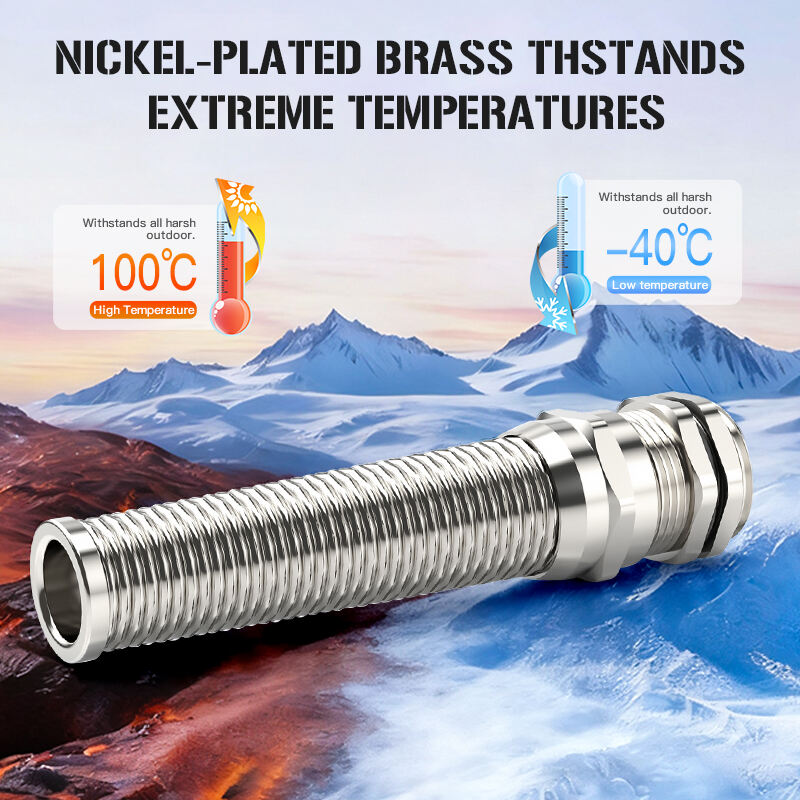

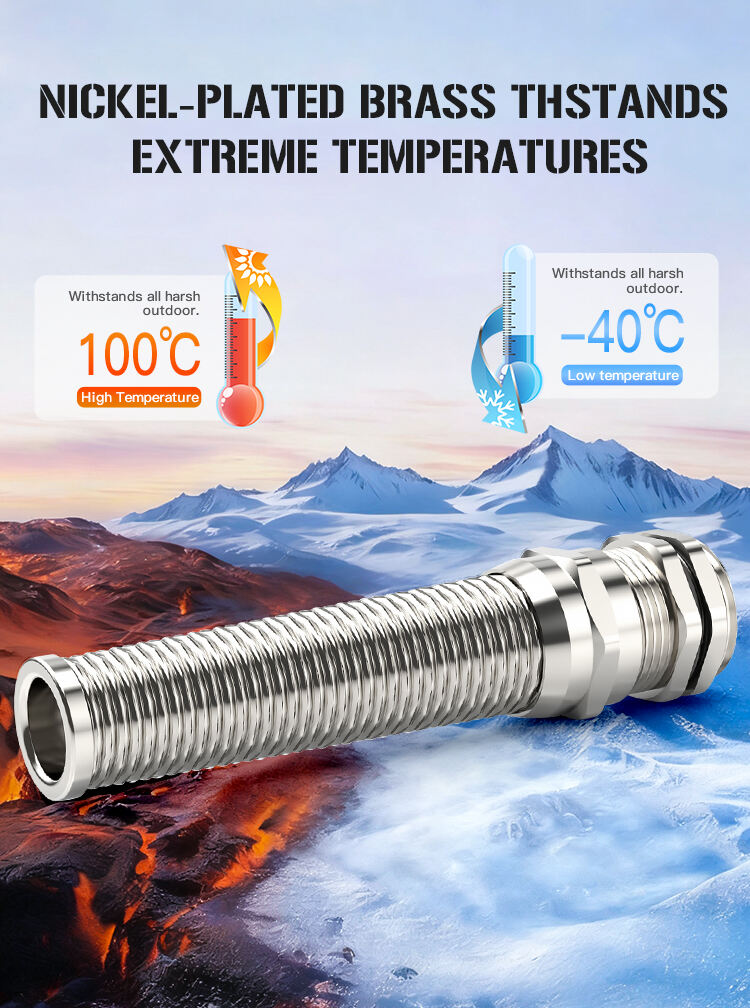

| Temperature: | Static state:-40 to 100℃,Short time to 120℃ | |||||
An anti-bending metal cable gland is designed to protect cables from excessive bending, pulling, and twisting. It combines the durability of metal construction with a flexible bend protection design, ensuring cable stability and extending service life. These glands are widely used in machinery, automation, lighting, and outdoor equipment where cables often move or bend.
Product Advantages

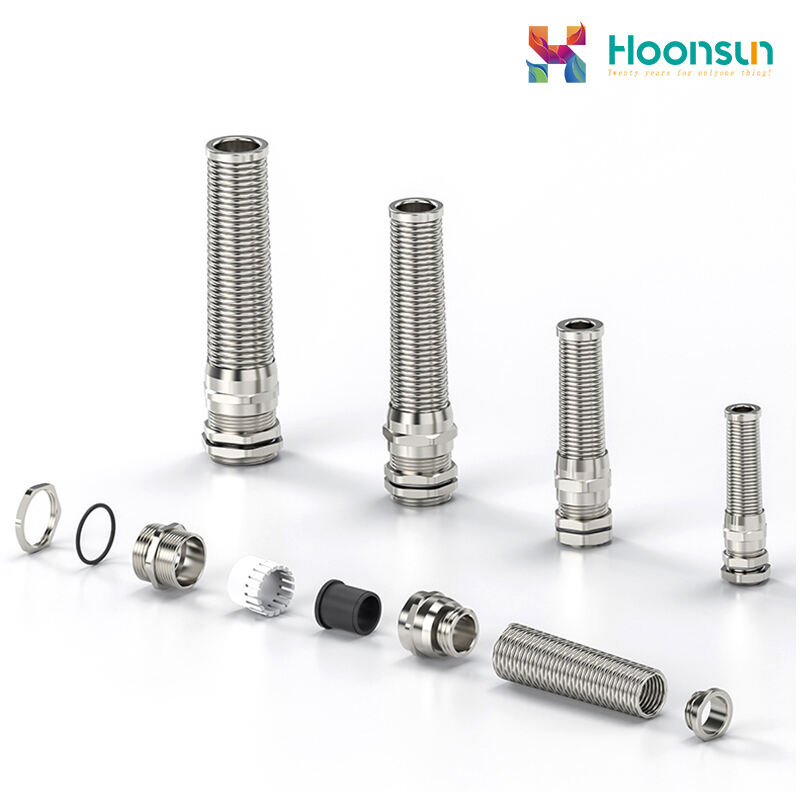

Strong Bending Protection: Built-in spring or flexible sleeve prevents sharp bends, reducing cable breakage and extending cable lifespan.
Durable Metal Structure: Made from high-quality brass or stainless steel for excellent strength and resistance to corrosion, heat, and impact.
Excellent Sealing Performance: Equipped with waterproof and dustproof sealing rings, usually rated up to IP68, ensuring reliable protection in harsh environments.
Secure Cable Grip: Provides strong strain relief, preventing the cable from loosening or slipping during vibration or movement.
Corrosion and Weather Resistant: Performs well in outdoor, marine, and industrial applications exposed to moisture or chemicals.
Easy Installation: Threaded and compact design allows quick connection with panels or junction boxes.
Conclusion
Anti-bending metal cable glands combine flexibility with durability, protecting cables from bending damage while maintaining strong mechanical and environmental performance. With corrosion resistance, waterproof sealing, and easy installation, they are the ideal choice for ensuring reliable and long-lasting cable connections in demanding industrial applications.
Specifications

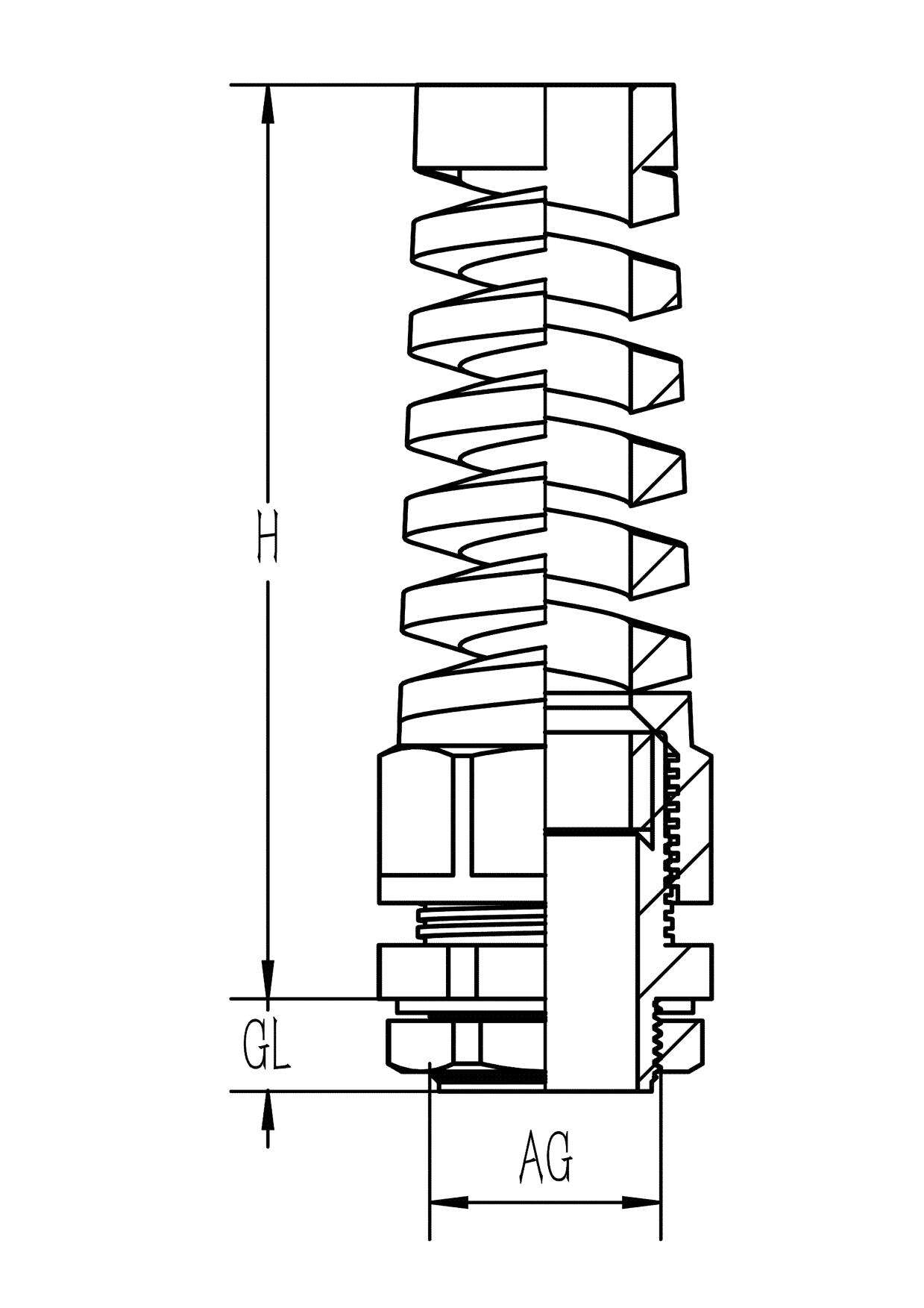

| Item | Range | GLThread Length | Mountinghole | HJoint Length | Spanner size | Code |
| M12×1.5 | 3-6.5 | 6.5 | 12 | 52 | 14 | HX-NZM12 |
| M16×1.5 | 4-8 | 8 | 16 | 65 | 18 | HX-NZ.M16 |
| M18×1.5 | 5-10 | 8 | 18 | 75 | 20 | HX-NZM18 |
| M20×1.5 | 6-12 | 8 | 20 | 88 | 22 | HX-NZ.M20 |
| M22×1.5 | 10-14 | 8 | 22 | 96 | 24 | HX-NZ.M22 |
| M25×1.5 | 13-18 | 9 | 25 | 110 | 30/27 | HX-NZ.M25 |
| M30×1.5 | 13-18 | 9 | 25 | 110 | 30/32 | HX-NZM30 |
| PG7 | 3-6.5 | 6.5 | 12.5 | 52 | 14/15 | HX-NZ.PG7 |
| PG9 | 4-8 | 8 | 15.2 | 65 | 17/18 | HX-NZ.PG9 |
| PG11 | 5-10 | 8 | 18.6 | 75 | 20/21 | HX-NZ.PG11 |
| PG13.5 | 6-12 | 8 | 20.4 | 88 | 22/23 | HX-NZ.PG13.5 |
| PG16 | 10-14 | 8 | 22.5 | 96 | 24/25 | HX-NZ.PG16 |
| PG21 | 13-18 | 9 | 28.3 | 110 | 30 | HX-NZ.PG21 |
| For other specificatlons and sizes,please refer to pages 1-4 | ||||||
