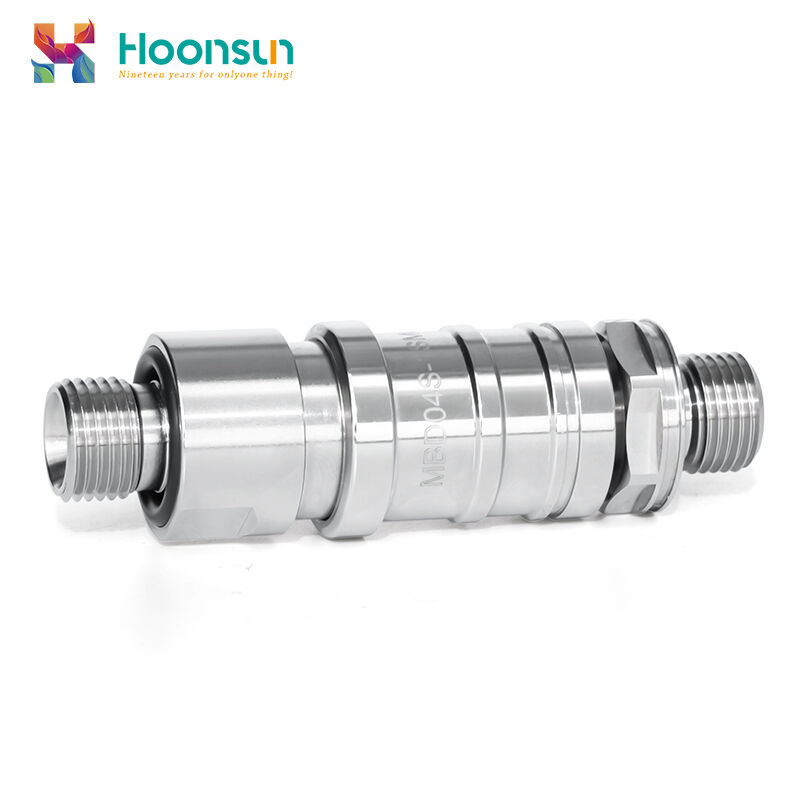

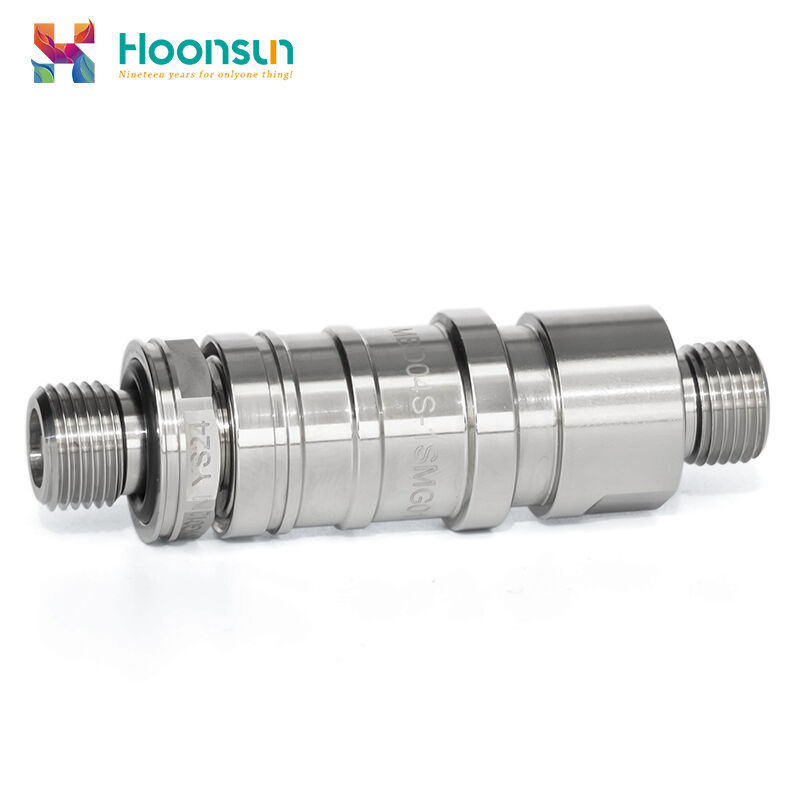

MBD04S-1SMG012N-MBD04P-1SMG012N
Key Features
✅ Compact Design: Small footprint for space-constrained installations
✅ 316L Stainless Steel Construction: Excellent corrosion and chemical resistance
✅ Superior Sealing: EPDM/NBR/FVMO sealing options for zero-leak performance
✅ Wide Temperature Range: -55°C to 125°C, suitable for extreme environments
✅ High Pressure Rating: 20bar working pressure, 80bar burst pressure
✅ Multi-Fluid Compatibility: Works with deionized water, glycol solutions, oils, and fluorinated fluids
✅ Rugged & Durable: Dust-proof, salt-proof, acid-alkali resistant, ideal for harsh conditions
✅ Plug-and-Play: Fast, tool-free connection and disconnection
- Overview
- Applications
- Installation Process
- Specifications
- FAQ
- About Us
- Recommended Products

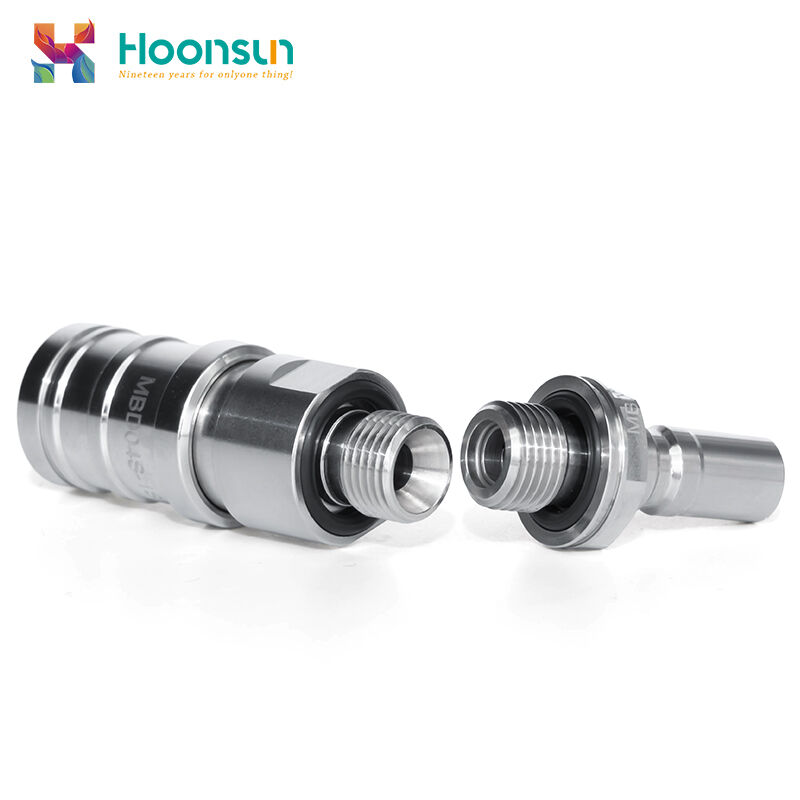

Overview
PRODUCT PARAMETER
Welcome to Our Website,We Are Happy to Serve You

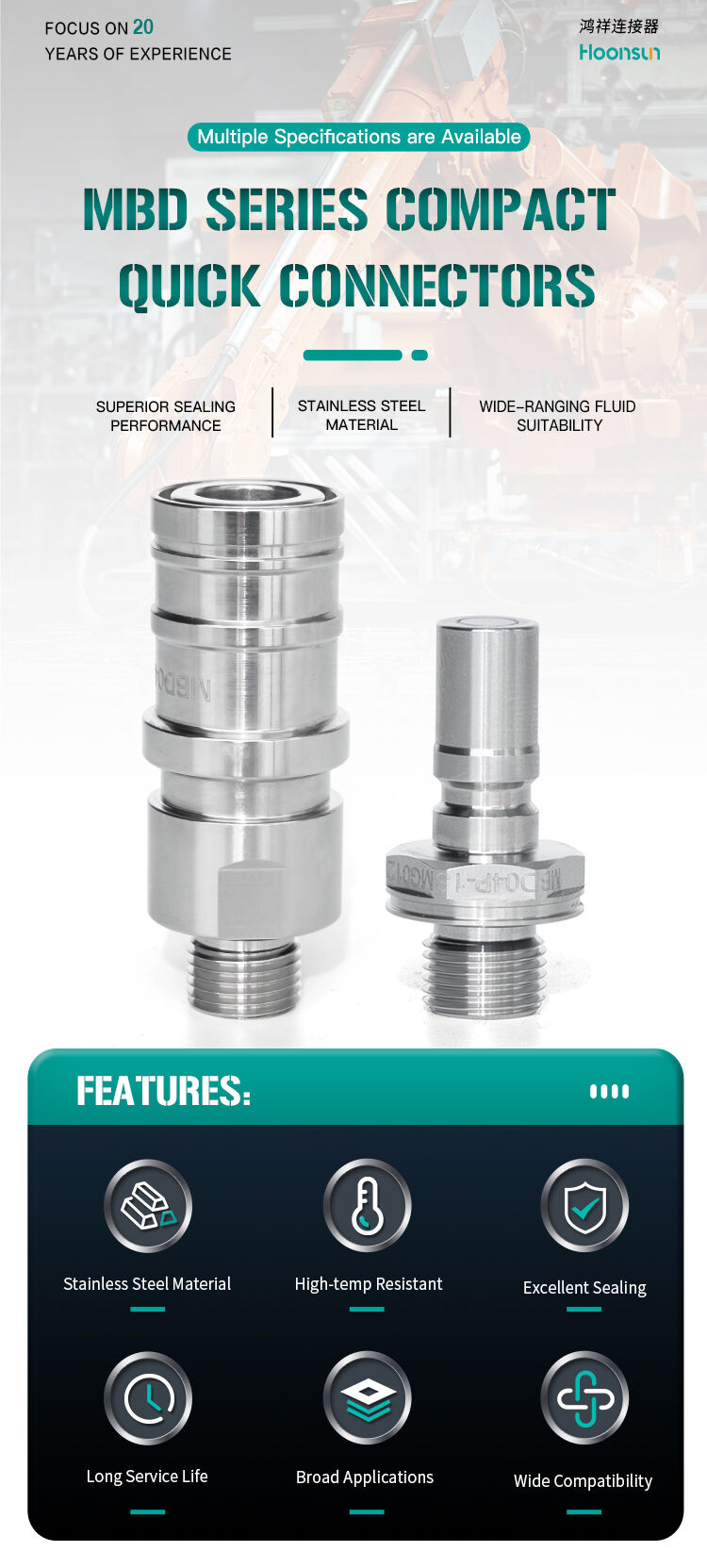

Hongxiang MBD series compact quick connectors are high-performance, space-saving fluid coupling solutions designed for liquid cooling systems. Featuring a compact design, superior sealing, and reliable performance, they are ideal for applications where space is at a premium, including data centers, AI servers, medical equipment, and new energy systems.
Manufactured from high-grade 316L stainless steel, these connectors deliver exceptional corrosion resistance, high-temperature stability, and long service life. With EPDM seals (NBR/FVMO options available), they ensure zero leakage across a wide range of temperatures (-55°C to 125°C) and pressures (up to 20bar working pressure). Plug-and-play operation enables fast, tool-free connection and disconnection, making maintenance quick and efficient.
Applications
• Data Center Servers: Liquid cooling for high-density server racks
• AI Servers & HPC: Thermal management for high-performance computing
• Medical Equipment: Precision liquid cooling for MRI, lasers, and diagnostic devices
• Power Electronics & EV Systems: Cooling for EV chargers, inverters, and power supplies
• Industrial Lasers & Automation: Reliable fluid connections for industrial equipment
• PV Inverters & Renewable Energy: Solar and wind energy equipment cooling

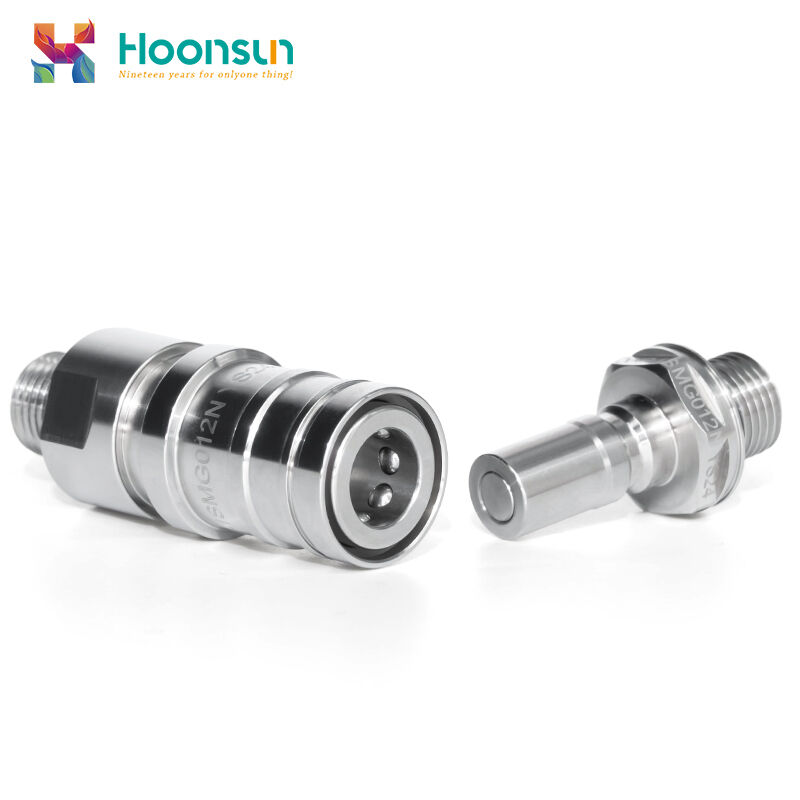

Installation Process
1. Preparation: Ensure the connector and mating surface are clean and free of debris. Verify the system is depressurized before installation.
2. Connection: Align the plug and socket, then push them together until you hear/feel a positive click, confirming full engagement.
3. Verification: After connection, perform a pressure test to confirm zero leakage.
4. Disconnection: Depressurize the system, then simply pull the plug out of the socket (no tools required) for maintenance or replacement.
Note: Never disconnect the connector while the system is under pressure to prevent fluid spray and injury.
Specifications
| Series | DN Size | Material | Sealing |
Thread Options |
Working Pressure |
Temp Range |
| MBD04 | DN04 | 316L Stainless Steel | EPDM (NBR/FVMO optional) | G1/8" Male / G1/8" Female / 1/4" Hose Barb | 20bar | -55°C~125°C |
• Compatible Media: Deionized water, purified water, ethylene glycol solutions, propylene glycol solutions, fluorinated fluids, and oils

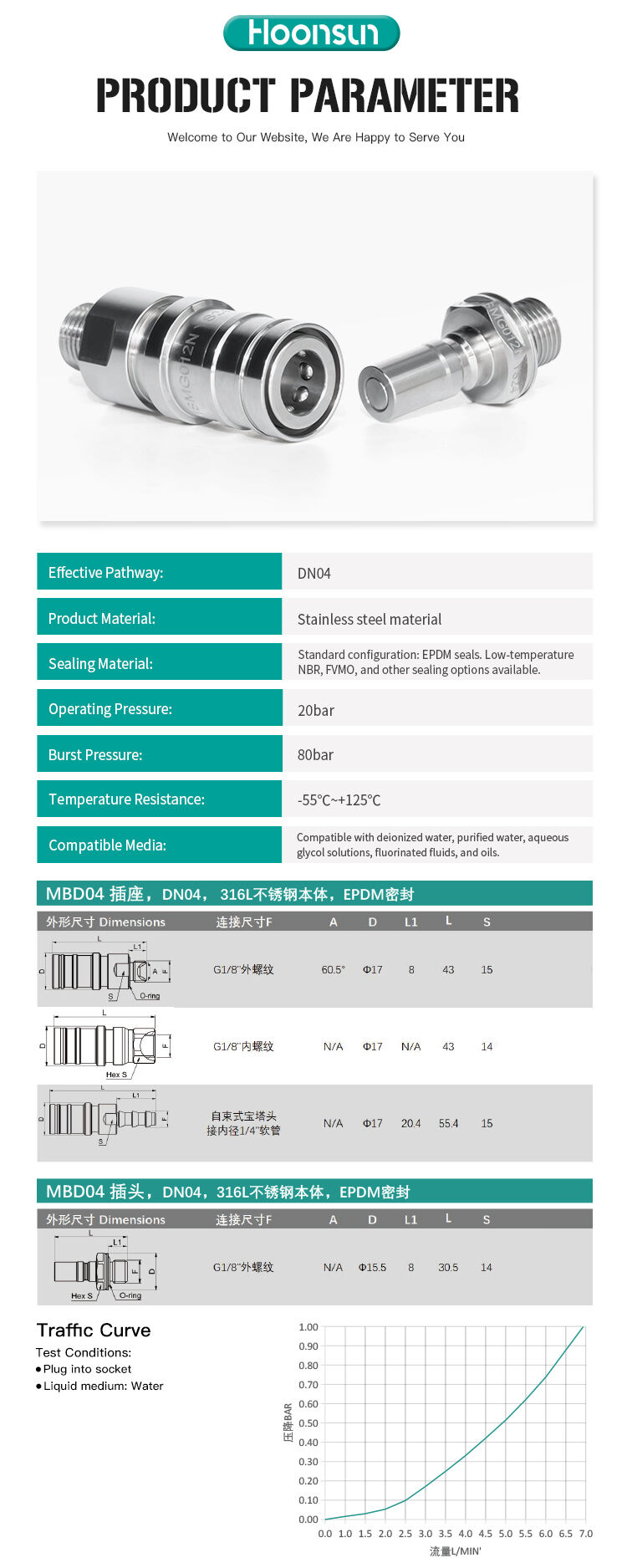

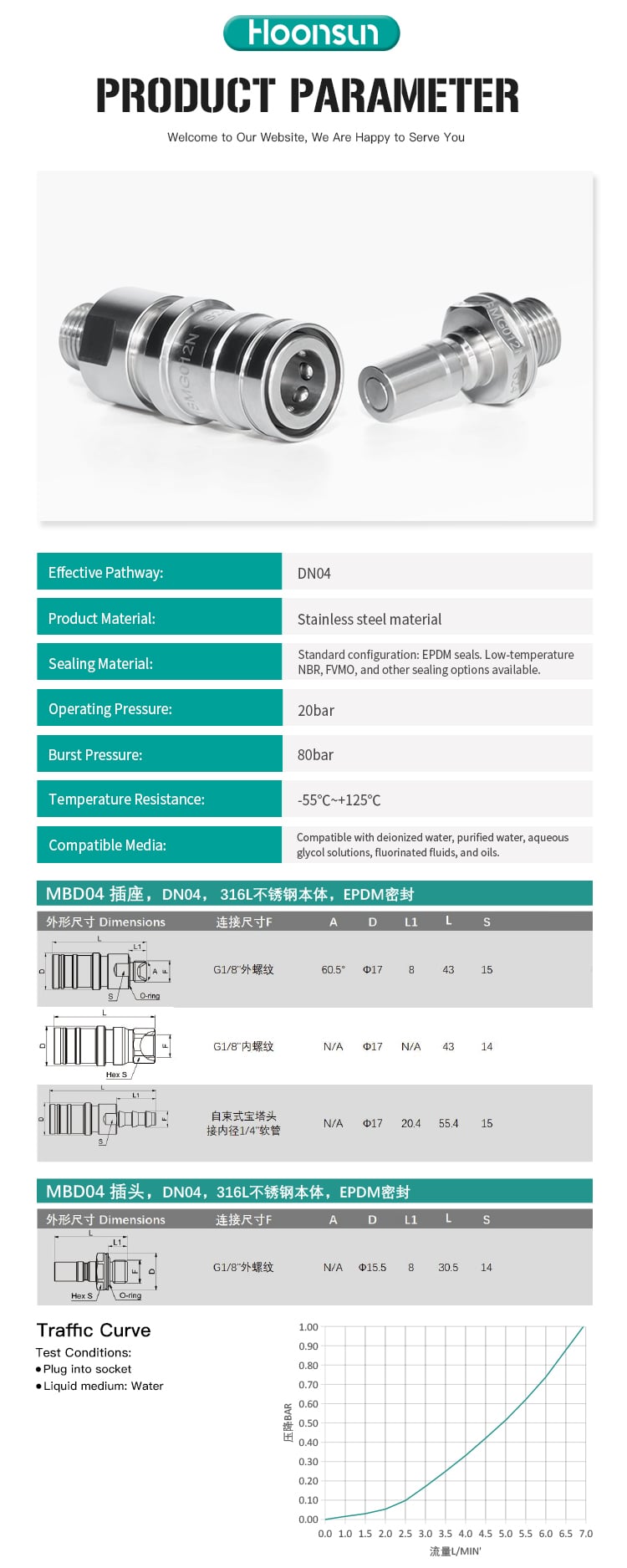

• Performance Curve: Optimized flow with minimal pressure drop (refer to the flow chart for detailed data)
• Dimensions:

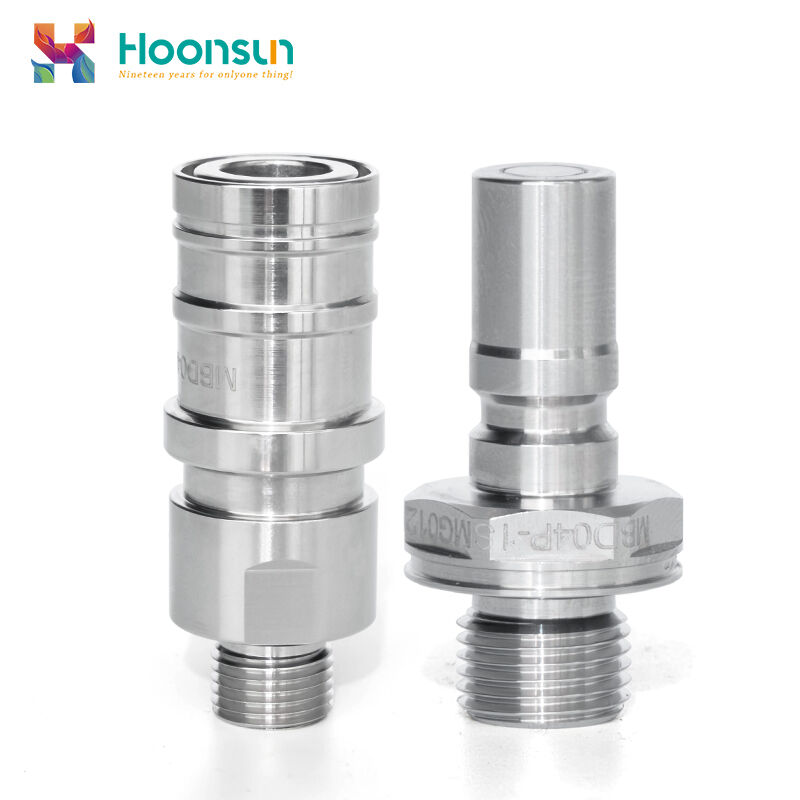

￮ Socket (MBD04): Length 43mm, Hex size 15mm (G1/8" male) / 14mm (G1/8" female)
￮ Plug (MBD04): Length 30.5mm, Hex size 14mm, Thread G1/8" male
FAQ
1. What is the main advantage of the MBD series over standard connectors?
The MBD series features a compact design, making it ideal for space-constrained installations like high-density servers and medical equipment, without sacrificing performance or reliability.
2. What materials are used in these connectors?
The connectors are made of 316L stainless steel for excellent corrosion resistance, with EPDM seals (NBR and FVMO options available for low-temperature or special fluid compatibility).
3. What fluids can these connectors handle?
They are compatible with deionized water, purified water, ethylene glycol/water mixtures, propylene glycol/water mixtures, fluorinated fluids, and various oils.
4. What is the operating pressure and temperature range?
The working pressure is 20bar (80bar burst pressure), with a temperature range of -55°C to 125°C.
5. Do these connectors leak during connection/disconnection?
The advanced sealing design minimizes spillage during disconnection, and provides zero leakage under rated pressure when fully connected.
6. Are tools required for installation or removal?
No. The plug-and-play design allows tool-free connection and disconnection, simplifying maintenance.
7. Can these connectors be used outdoors?
Yes. They are dust-proof, salt-proof, and resistant to acid-alkaline and general solvents, making them suitable for harsh outdoor environments.
8. Do you offer customization options?
Yes. We support OEM/ODM customization for special thread sizes, sealing materials, or connection types.
