MBT15S-1AWH252N-MBT15P-1AMG082N

Overview

PRODUCT PARAMETER

Welcome to Our Website,We Are Happy to Serve You

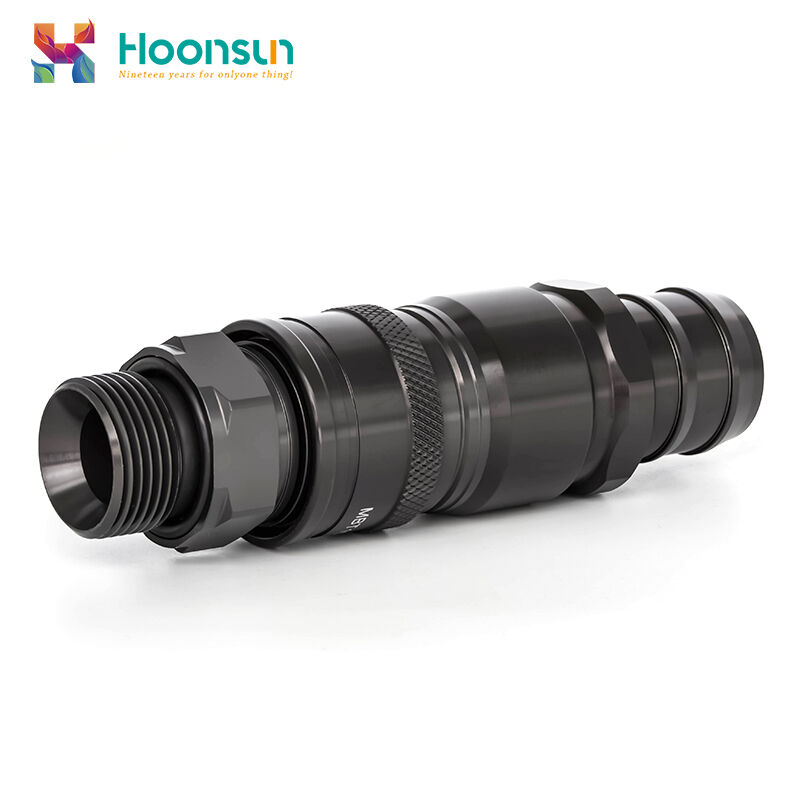

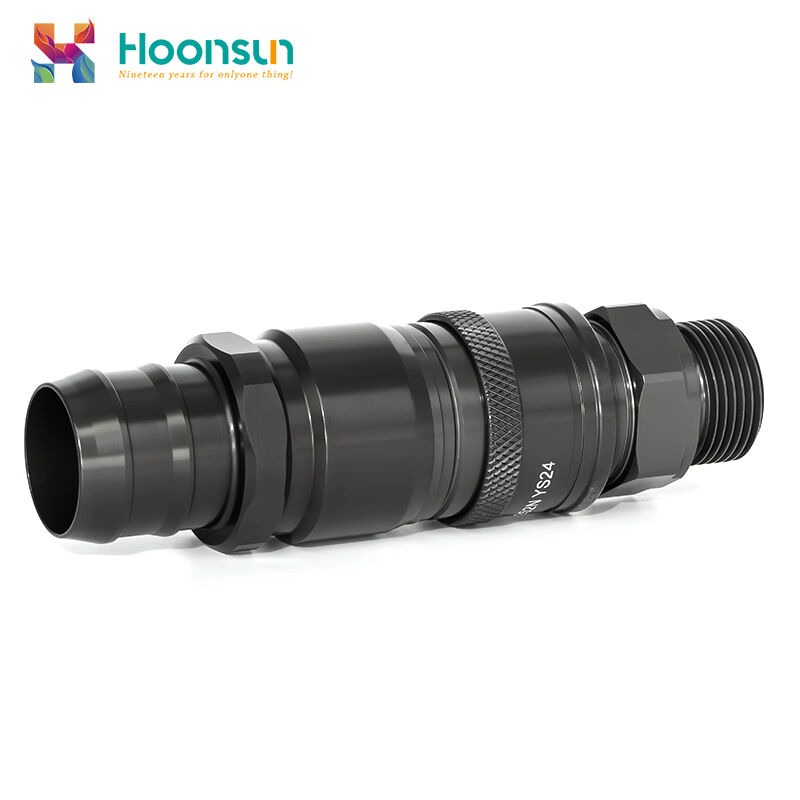

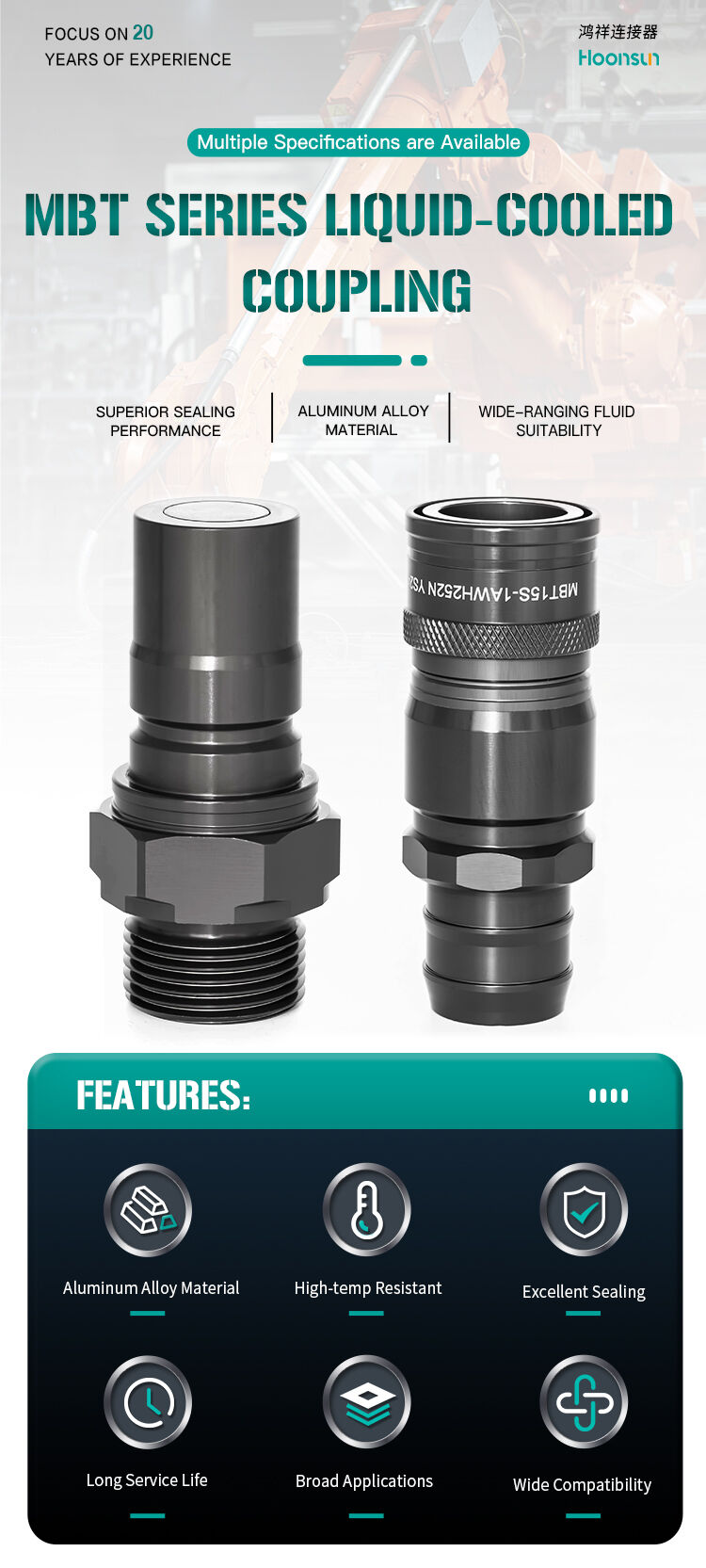

Hongxiang MBT series liquid-cooled couplings are high-performance, lightweight fluid connectors designed for liquid cooling systems. Based on the ten product images, the connectors feature a sleek, compact aluminum alloy body with smooth surface treatment, precise thread design, and integrated sealing structure—combining durability, superior sealing, and wide fluid compatibility. These quick couplings are ideal for high-flow applications in data centers, AI servers, medical equipment, and new energy systems, perfectly matching the practical scenarios shown in the product images.

As displayed in the images, the connectors adopt an EPDM sealing system (HNBR/FKM options available), which delivers reliable, zero-leak performance across -40°C to 120°C. Rated for 20bar working pressure (80bar burst pressure), the plug-and-play design enables fast, tool-free connection and disconnection, simplifying installation and maintenance, and fully reflecting the product’s user-friendly design.

Applications

• Data Center Servers: High-flow liquid cooling for server racks and HPC systems; the product’s compact design (shown in images) fits the limited space of server racks.

• AI Servers & Computing: Thermal management for high-performance AI hardware; suitable for high-heat, high-density AI equipment, consistent with the product’s high-flow, high-stability features.

• Medical Equipment: Precision cooling for MRI machines, lasers, and diagnostic devices; the zero-leak design (reflected in sealing structure images) ensures safety and precision for medical equipment.

• Power Electronics & EV Systems: Cooling for EV chargers, inverters, and power supplies; the corrosion-resistant and high-pressure-resistant performance (shown in material and structure images) adapts to automotive and power electronic environments.

• Industrial Lasers & Automation: Reliable fluid connections for industrial equipment; the rugged construction (visible in product detail images) withstands industrial harsh conditions.

• PV Inverters & Renewable Energy: Solar and wind energy equipment cooling; adaptable to outdoor environments, matching the product’s dust-proof, salt-proof features.

• Test Benches & Research Equipment: Lab-grade liquid cooling solutions; the precise structure and stable performance (shown in product images) meet lab precision requirements.

Installation Process

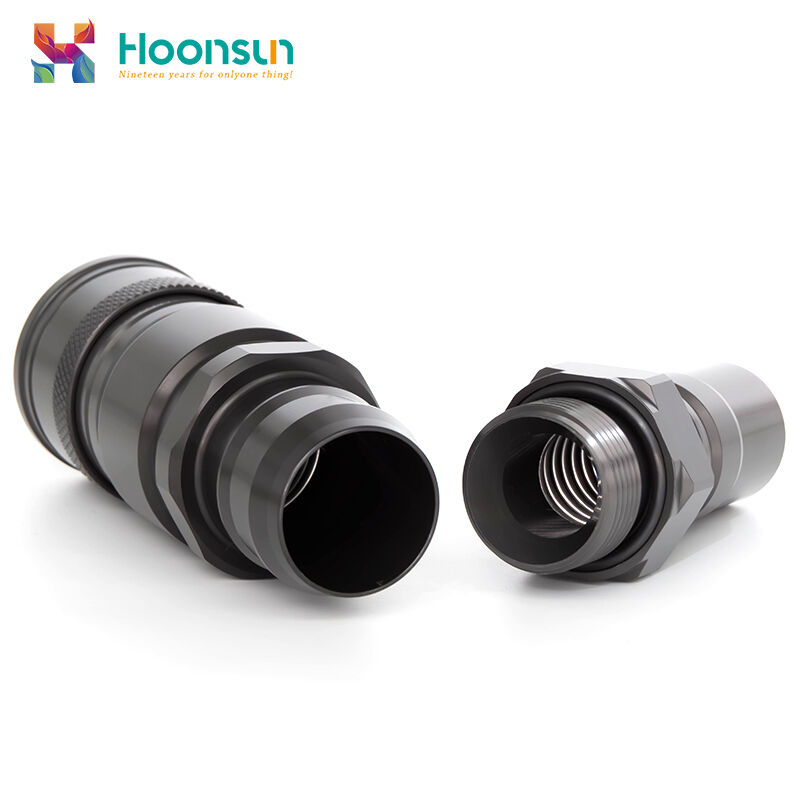

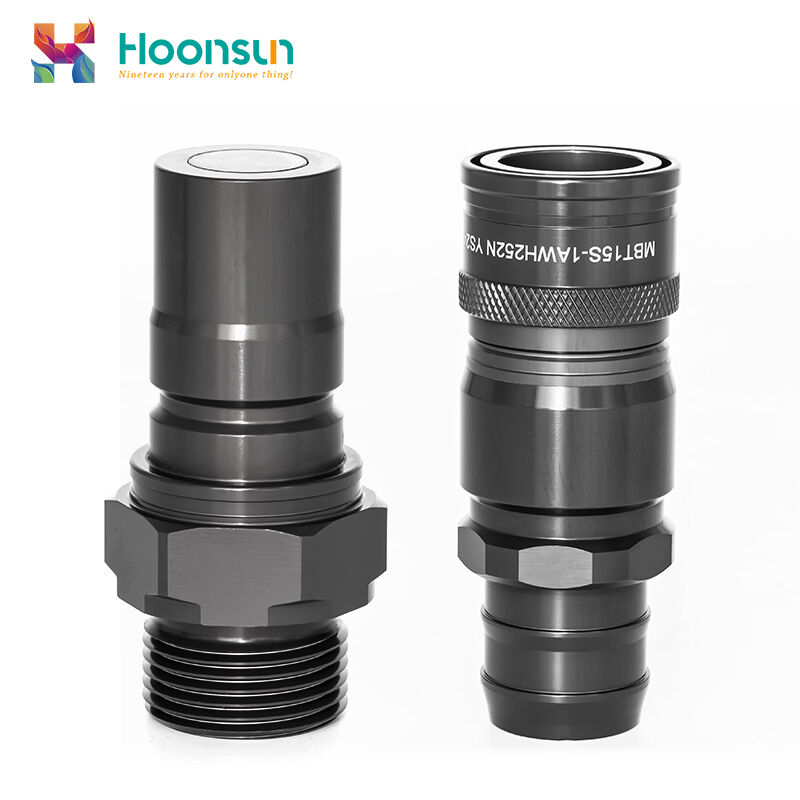

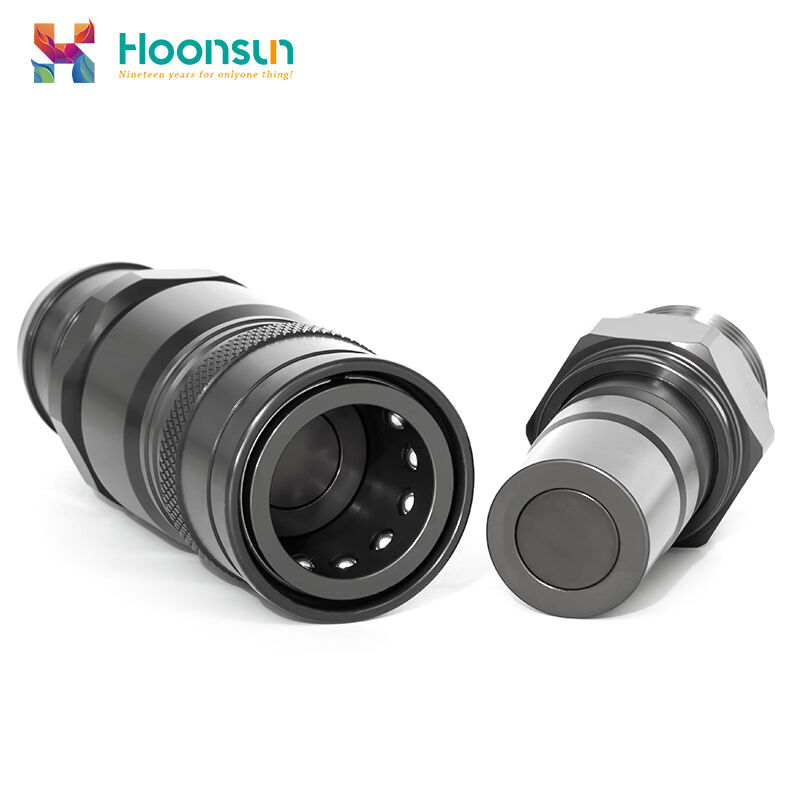

1. Preparation: Refer to the product images to check the plug and socket structure; ensure the connector and mating part are clean and free of debris. Depressurize the system before installation to prevent fluid leakage during operation.

2. Connection: Align the plug and socket according to the alignment mark, then push them together until you hear/feel a positive click, confirming full engagement.

3. Verification: After connection, perform a pressure test to confirm zero leakage before full system operation; check the sealing part to ensure no fluid seepage.

4. Disconnection: Depressurize the system first, then simply pull the plug out of the socket for maintenance or replacement.

Note: Never disconnect the connector while the system is under pressure to prevent fluid spray and injury; avoid collision or damage to the sealing surface during installation and disconnection.

Specifications

• Compatible Media: Deionized water, purified water, water-glycol solutions, water-propylene glycol solutions, oils, and fluorinated fluids.

• Performance Curve: Optimized flow with minimal pressure drop.

• Dimensions :

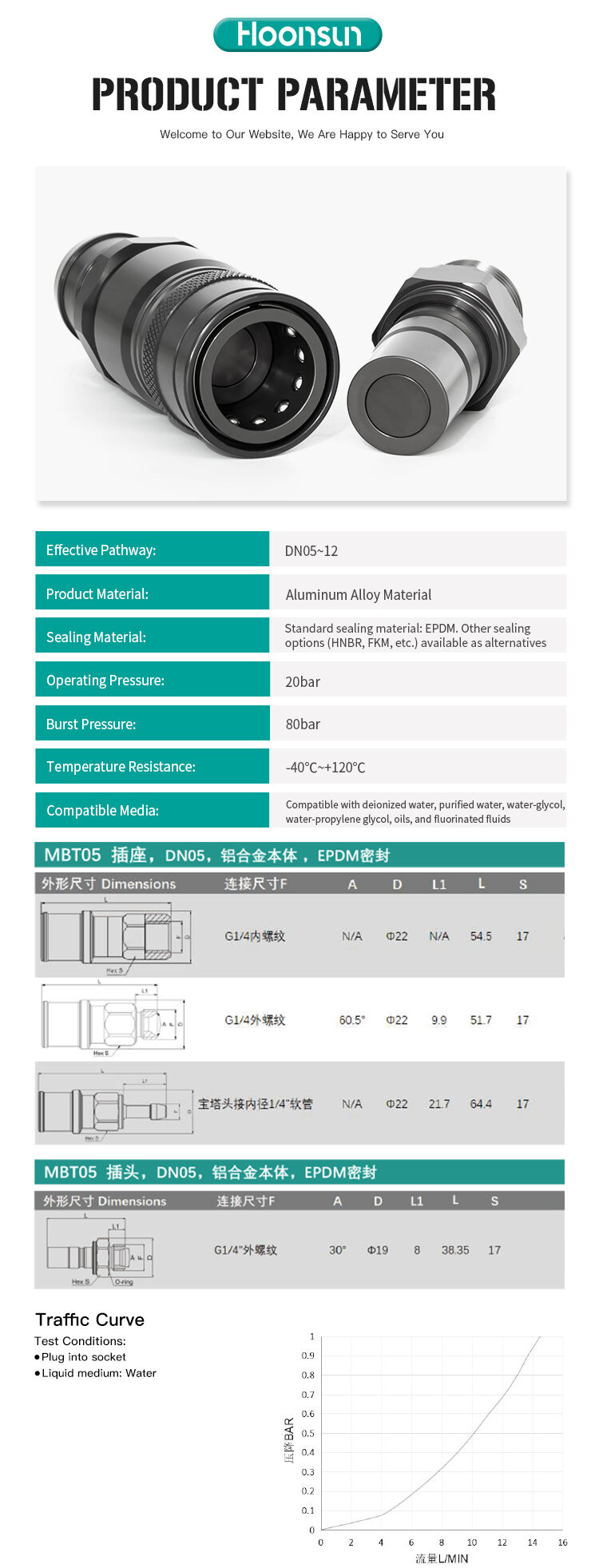

￮ MBT05: Socket length 54.5mm (G1/4" female), Plug length 38.35mm (G1/4" male)

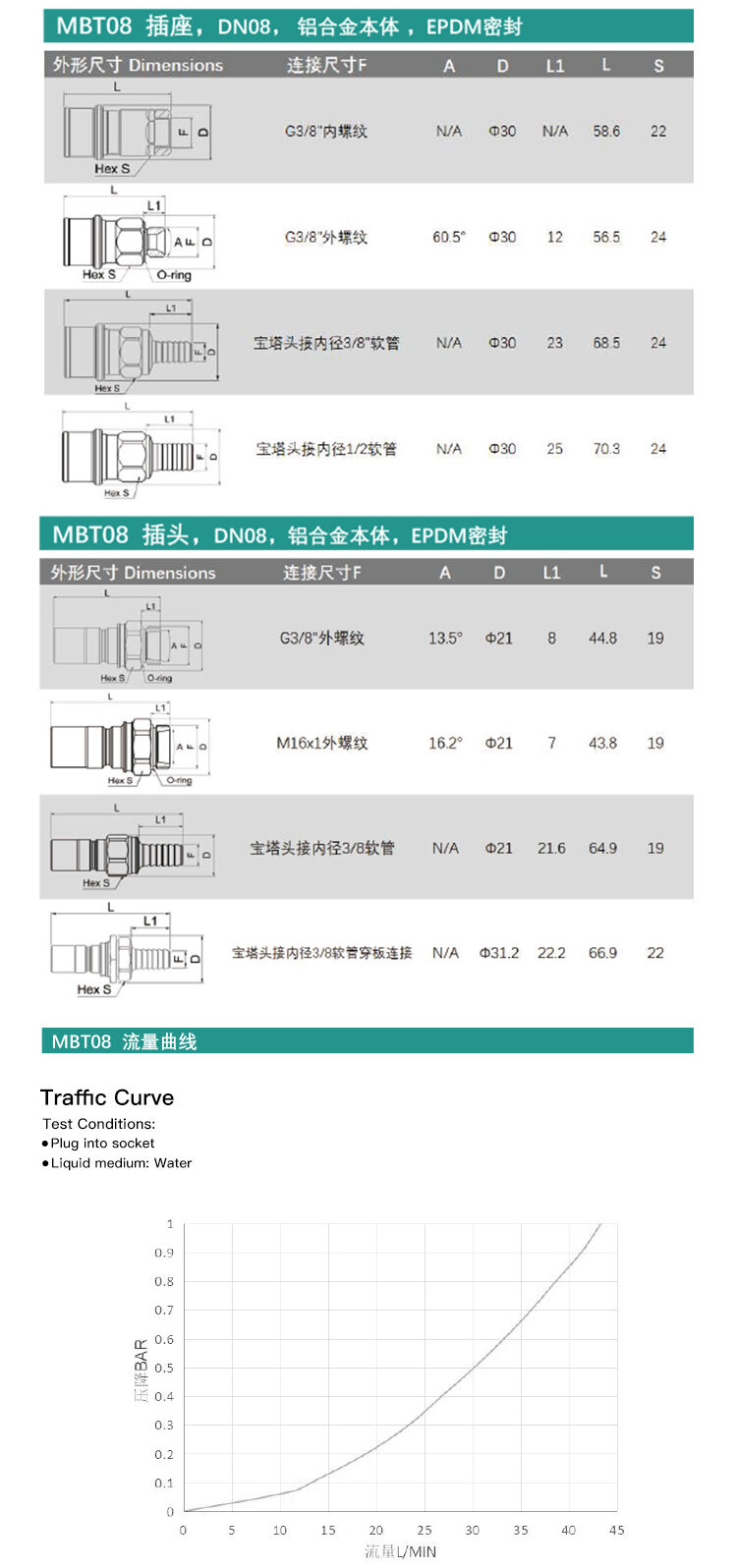

￮ MBT08: Socket length 58.6mm (G3/8" female), Plug length 44.8mm (G3/8" male)

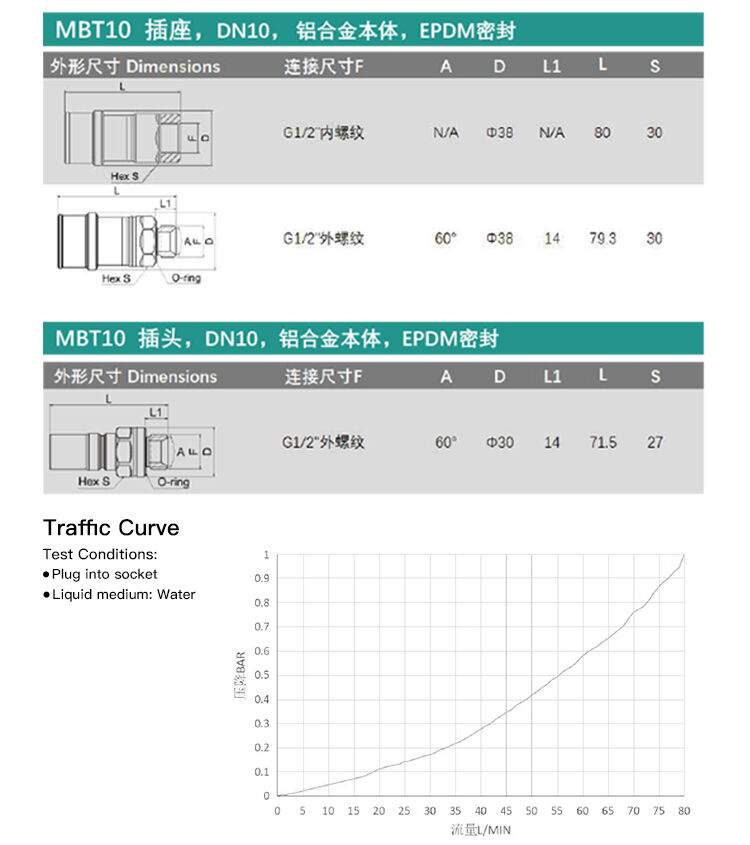

￮ MBT10: Socket length 80mm (G1/2" female), Plug length 71.5mm (G1/2" male)

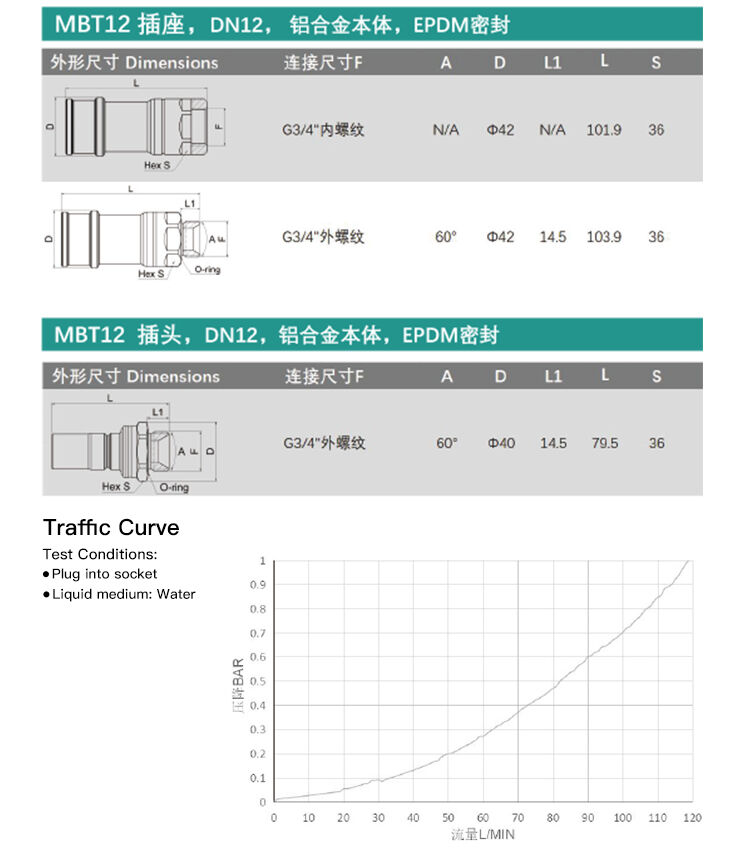

￮ MBT12: Socket length 101.9mm (G3/4" female), Plug length 79.5mm (G3/4" male)

FAQ

1. What are the advantages of the MBT series?

The MBT series features lightweight aluminum construction , multiple connection options, and a wide range of sizes (DN05-DN12), making it highly versatile for different liquid cooling applications. Additionally, the plug-and-play design and zero-leak sealing enhance usability and reliability.

2. What materials are used in these connectors?

The body is made of high-strength aluminum alloy for light weight and corrosion resistance, with EPDM seals (HNBR and FKM options available for low-temperature or special fluid compatibility). The surface treatment of the aluminum alloy effectively prevents corrosion, extending the product’s service life.

3. What fluids are compatible with these connectors?

They work with deionized water, purified water, ethylene glycol/water mixtures, propylene glycol/water mixtures, oils.

4. What is the operating pressure and temperature range?

The working pressure is 20bar (80bar burst pressure), with a temperature range of -40°C to 120°C, which is sufficient to meet the working conditions of most liquid cooling systems, including the harsh environments shown in the product’s application scenarios.

5. Are these connectors suitable for high-flow applications?

Yes. The MBT series is designed for high flow rates, with sizes up to DN12 supporting flow rates up to 120 L/min. The smooth internal structure reduces flow resistance, making them ideal for large-scale cooling systems such as data centers and AI servers.

6. Do I need tools to install or disconnect them?

No. The plug-and-play design allows tool-free connection and disconnection, simplifying maintenance and installation, which is also a key user-friendly feature shown in the product images.

7. Can these connectors be used outdoors?

Yes. They are dust-proof, salt-proof, and resistant to acid-alkaline and general solvents. The surface treatment and sealing structure enable them to adapt to harsh outdoor environments such as PV inverters and outdoor industrial equipment.

8. Do you offer customization options?

Yes. We support OEM/ODM customization for special thread sizes, sealing materials, or connection types to meet specific application requirements. The flexible design of the product facilitates customization.
