UQDB08S-1SMU122N-UQDB08P-1SMU102N
Key Features
✅ 316L Stainless Steel Construction: Excellent corrosion resistance for industrial and outdoor environments
✅ Blind-Mate, Self-Aligning Design: Enables fast, tool-free connections without visual alignment
✅ Superior Sealing Performance: EPDM seals ensure zero leakage under rated pressure
✅ Wide Operating Range: -40°C to 120°C temperature resistance, 20 bar working pressure
✅ Multiple Size Options: DN03 to DN10, supporting flow rates up to 85 L/min
✅ Harsh Environment Ready: Dust-proof, salt-proof, and resistant to acids, alkalis, and common solvents
✅ Low Pressure Drop: Optimized internal flow path for efficient fluid transfer
✅ Long Service Life: Robust construction and precision engineering for continuous use
- Overview
- Applications
- Installation Process
- Specifications
- FAQ
- About Us
- Recommended Products
Overview
PRODUCT PARAMETER
Welcome to Our Website,We Are Happy to Serve You

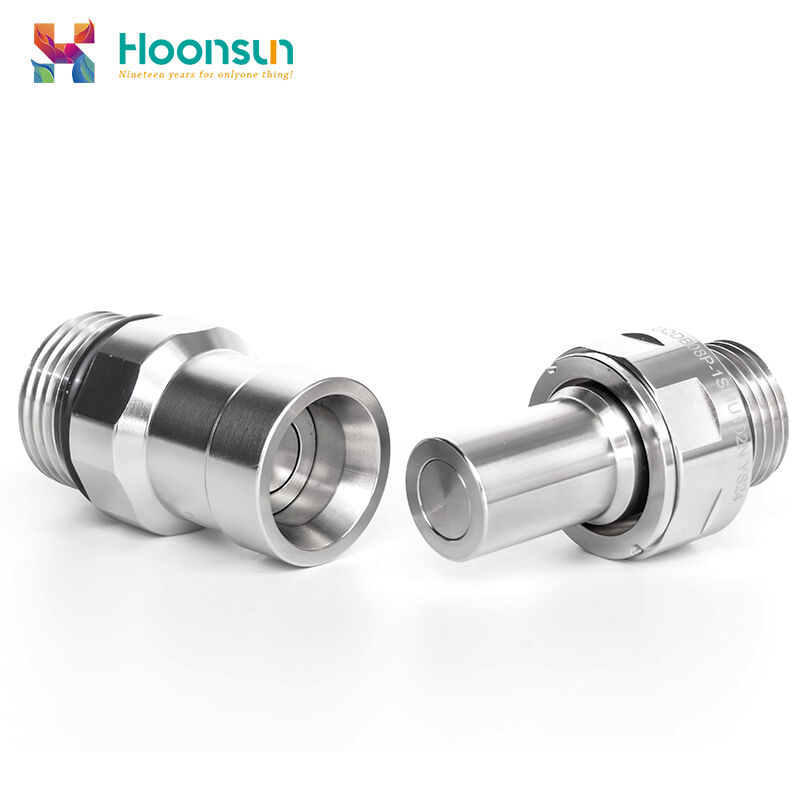

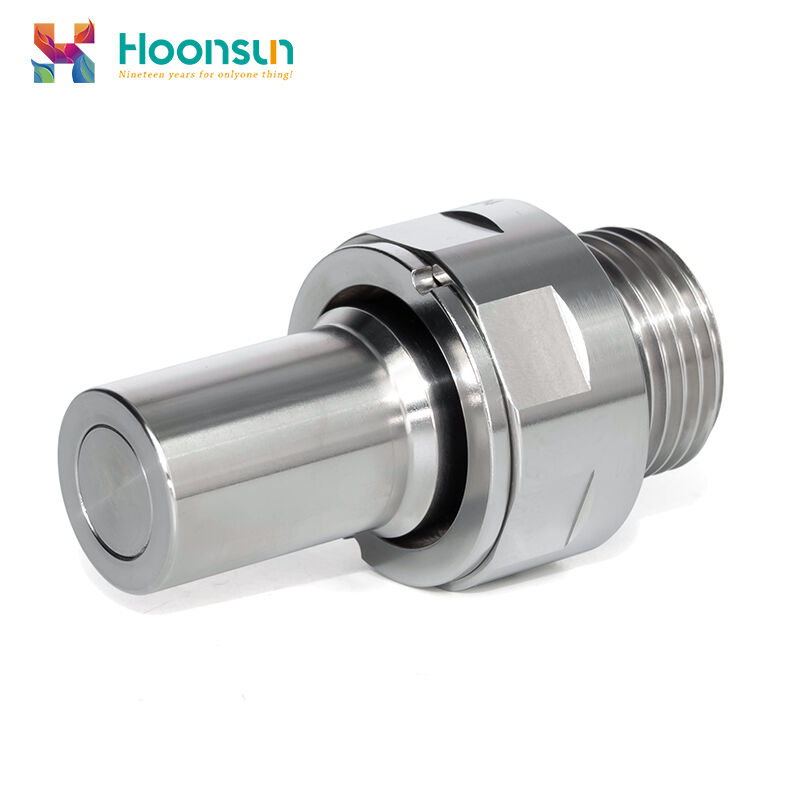

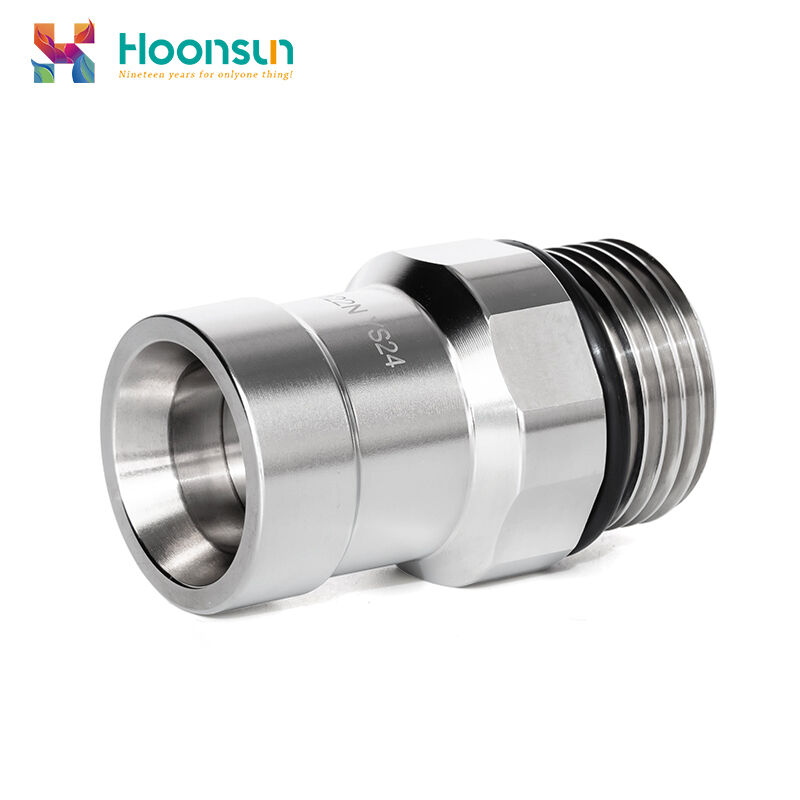

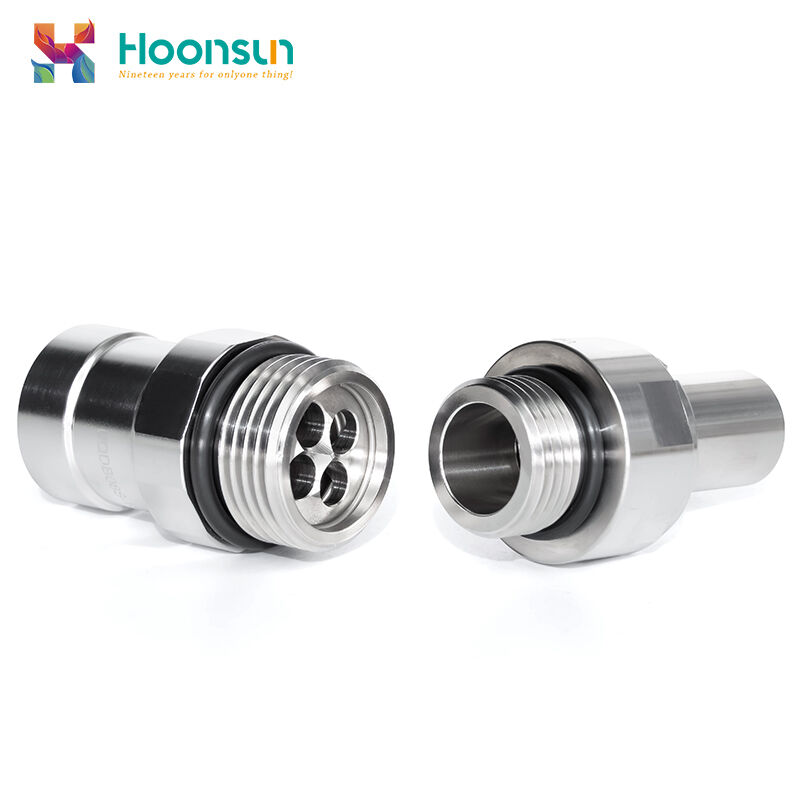

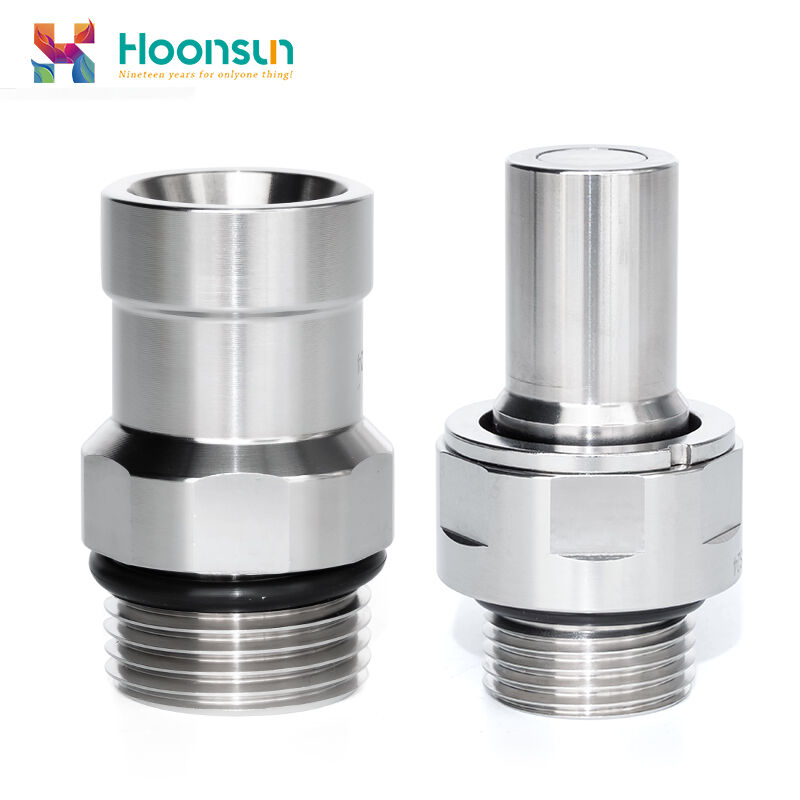

The UQDB Series Blind-Mate Quick Connector by Hoonsun is a high-precision, self-aligning fluid connection solution engineered for automated, high-density liquid cooling systems. Crafted from corrosion-resistant 316L stainless steel with an advanced EPDM sealing system, this coupling delivers leak-proof performance in blind-mating environments, eliminating the need for visual alignment or manual manipulation.
Designed for demanding industrial applications, it supports a rated working pressure of 20 bar (burst pressure 80 bar) and operates reliably across a wide temperature range of -40°C to +120°C. With four sizes (DN03 to DN10) and standard UNF thread connections, it offers versatile integration and compatibility with common liquid cooling media, including deionized water, glycol solutions, and fluorinated fluids.
Applications
• Data Center & HPC Liquid Cooling: High-density server rack liquid cooling connections
• EV Charging Piles & Thermal Management: Automated blind-mate connections for electric vehicle systems
• Industrial Laser Equipment: Precision cooling for high-power industrial lasers
• Medical Equipment: MRI machines, diagnostic devices, and precision instrument cooling
• Photovoltaic Inverters: Outdoor solar and wind power electronic cooling systems
• Automated Assembly & Test Benches: Blind-mate connections for automated fluid transfer systems
• High-Density Electronic Systems: Compact, error-proof fluid connections in limited-access environments
Installation Process
1. Preparation: Ensure the connector and mating components are clean, free of debris, and undamaged. Depressurize the fluid system before installation.
2. Blind-Mate Connection: The self-aligning design automatically guides the plug into the socket as the components are brought together. No visual alignment or manual manipulation is required.
3. Verification: Once the components are fully mated, the connector will lock into place. Perform a pressure test to confirm no leaks before bringing the system online.
4. Disconnection: Simply separate the components; the connector will automatically disengage and seal to prevent fluid loss. No tools are required.
Safety Note: Never force the connection. The self-aligning design should guide the plug into the socket smoothly. Always depressurize the system before disconnection.
Specifications

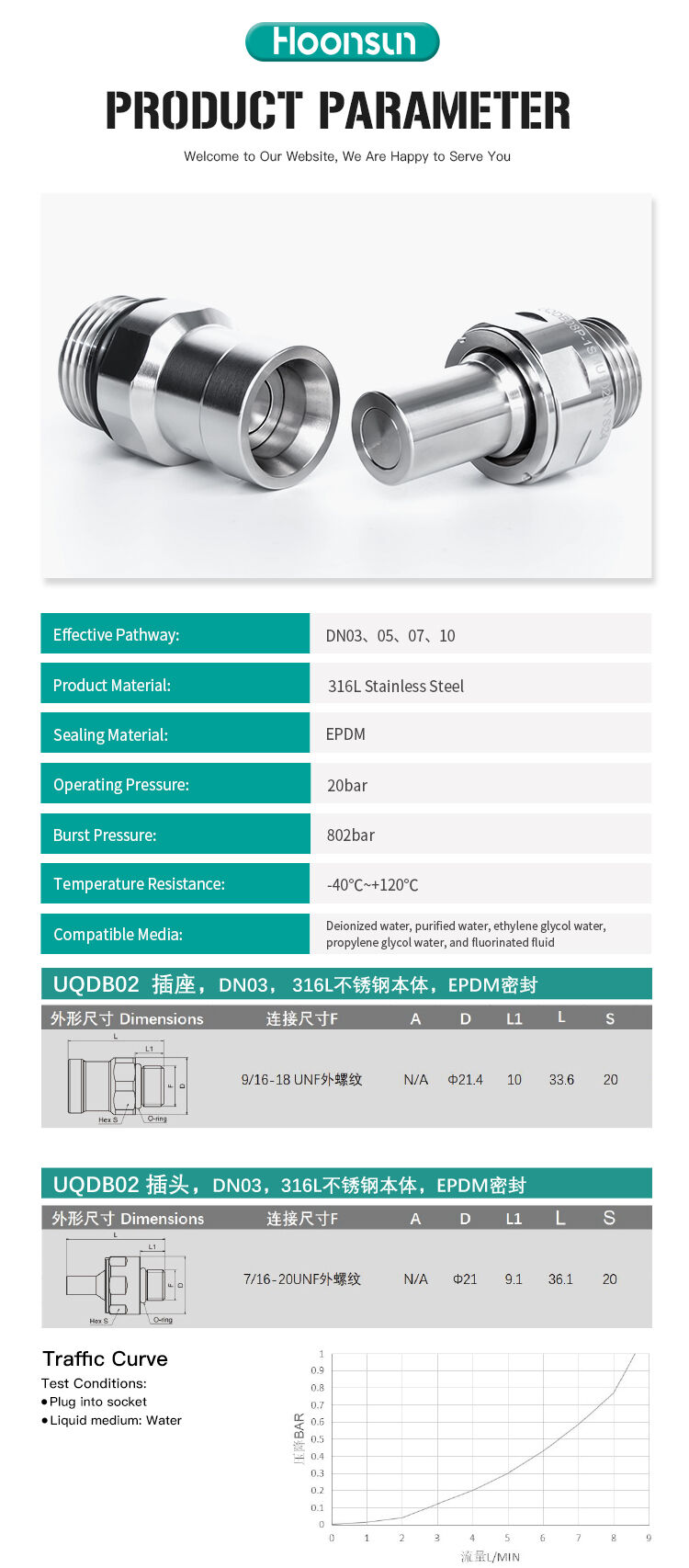

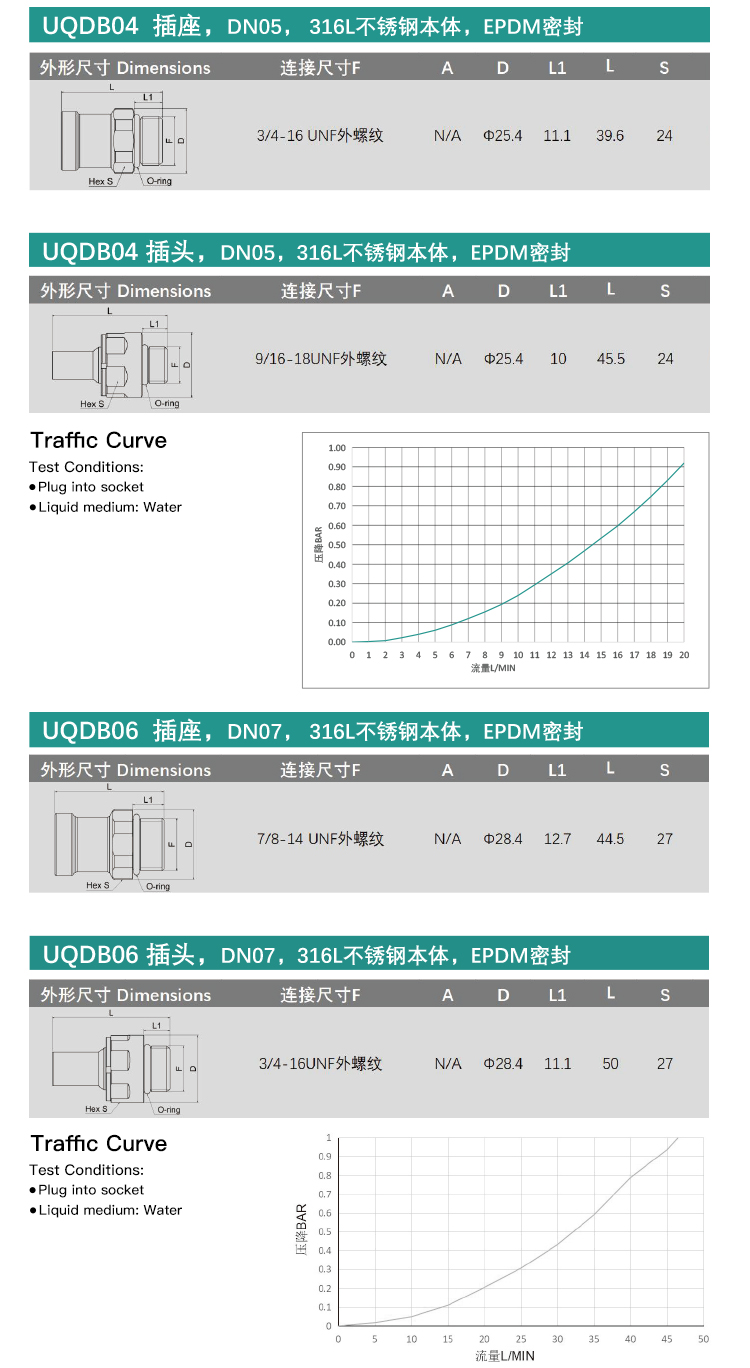

| Model | DN Size | Body Material |
Seal Material |
Socket Thread |
Plug Thread |
Working Pressure |
Temperature Range |
| UQDB02 | DN03 | 316L Stainless Steel | EPDM | 9/16-18 UNF | 7/16-20 UNF | 20 bar | -40°C~120°C |

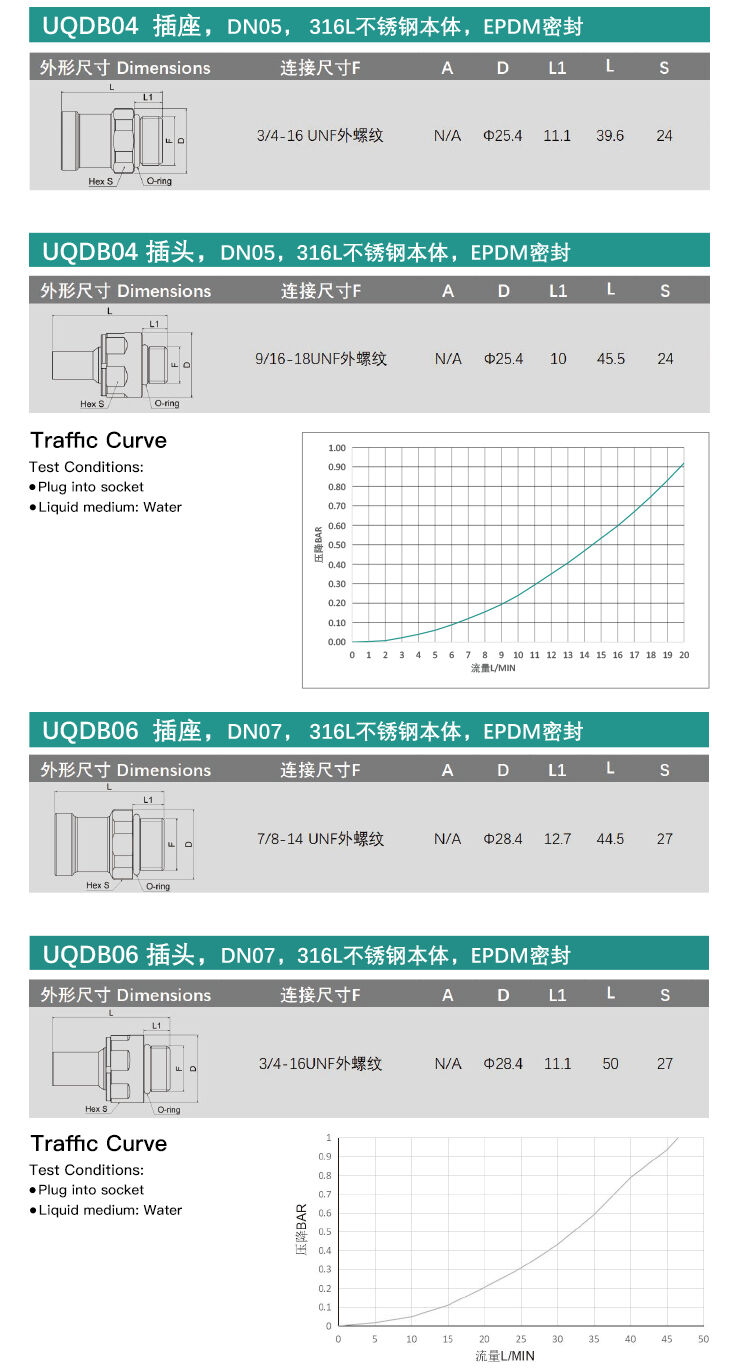

| UQDB04 | DN05 | 316L Stainless Steel | EPDM | 3/4-16 UNF | 9/16-18 UNF | 20 bar | -40°C~120°C |
| UQDB06 | DN07 | 316L Stainless Steel | EPDM | 7/8-14 UNF | 3/4-16 UNF | 20 bar | -40°C~120°C |

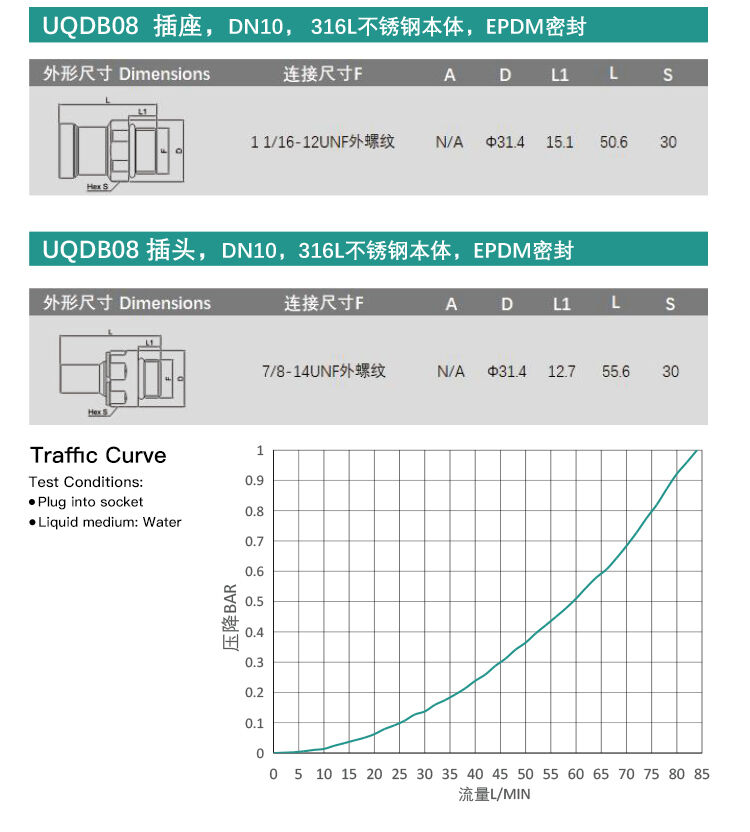

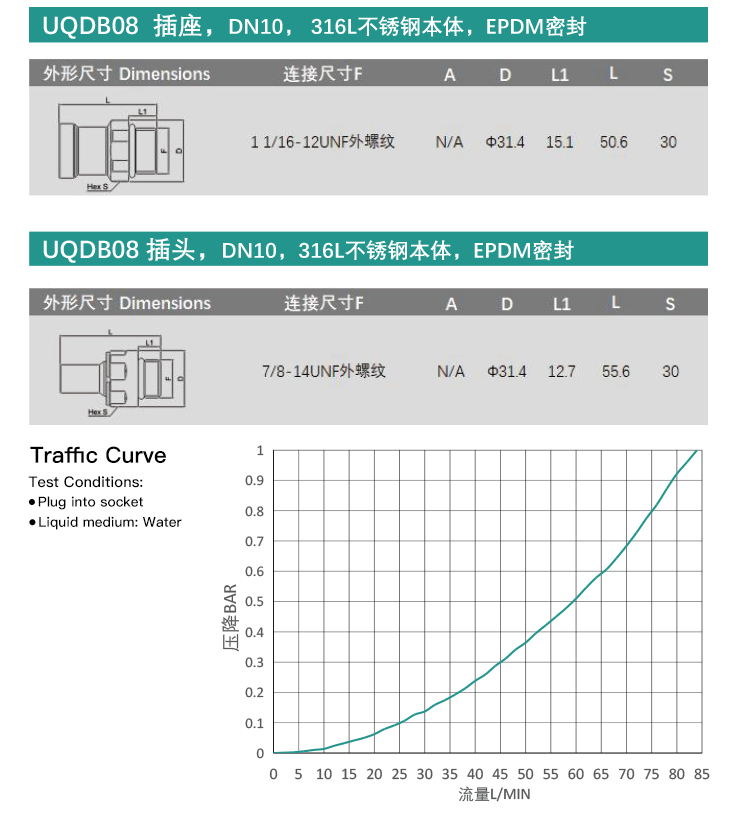

| UQDB08 | DN10 | 316L Stainless Steel | EPDM | 1 1/16-12 UNF | 7/8-14 UNF | 20 bar | -40°C~120°C |
Compatible Media: Deionized water, purified water, ethylene glycol solution, propylene glycol solution, oils, and fluorinated fluids
Flow Performance: Optimized internal flow path with minimal pressure drop, supporting flow rates up to 85 L/min
FAQ
1. What makes the UQDB series different from standard quick connectors?
The UQDB series features a blind-mate, self-aligning design, allowing for fast, error-proof connections without visual alignment. This is ideal for high-density, automated assembly environments where space is limited.
2. Can I get different sealing materials?
Standard EPDM seals are suitable for water and glycol solutions. Custom sealing materials (such as FKM for high-temperature or chemically aggressive fluids) are available upon request.
3. What fluids are compatible with these connectors?
They work with most common liquid cooling media, including deionized water, glycol mixtures, industrial oils, and fluorinated fluids.
4. What are the pressure and temperature ratings?
Rated working pressure is 20 bar (burst pressure 80 bar), with an operating temperature range of -40°C to 120°C.
5. Are these connectors suitable for outdoor use?
Yes. The 316L stainless steel construction provides excellent resistance to corrosion, salt spray, and extreme temperatures, making them ideal for outdoor and industrial applications.
6. Do I need tools to install or remove them?
No. The blind-mate design allows for tool-free connection and disconnection, simplifying installation and maintenance.
7. Can you customize these connectors?
Yes. We offer custom thread sizes, connection types, and sealing materials to meet unique system requirements.
8. How long do these connectors last?
With proper installation and maintenance, the 316L stainless steel body and high-quality seals ensure a long service life, even in continuous operation.
