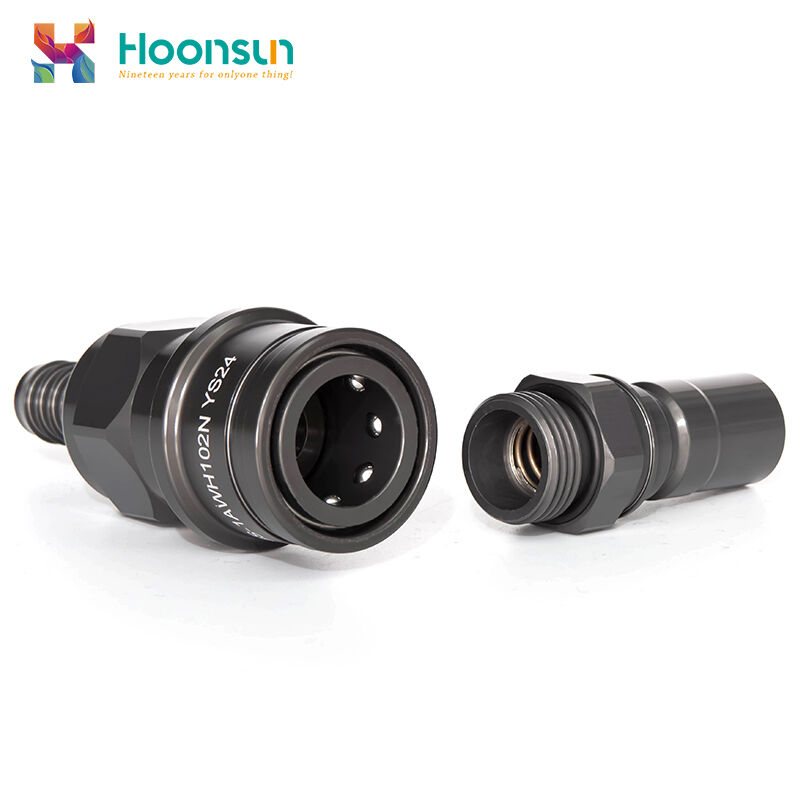

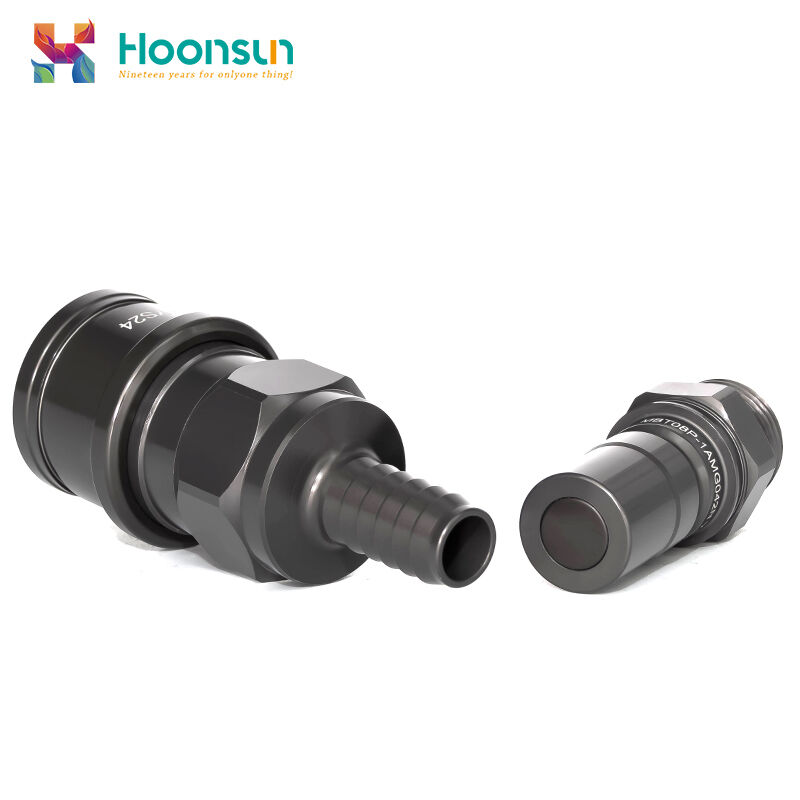

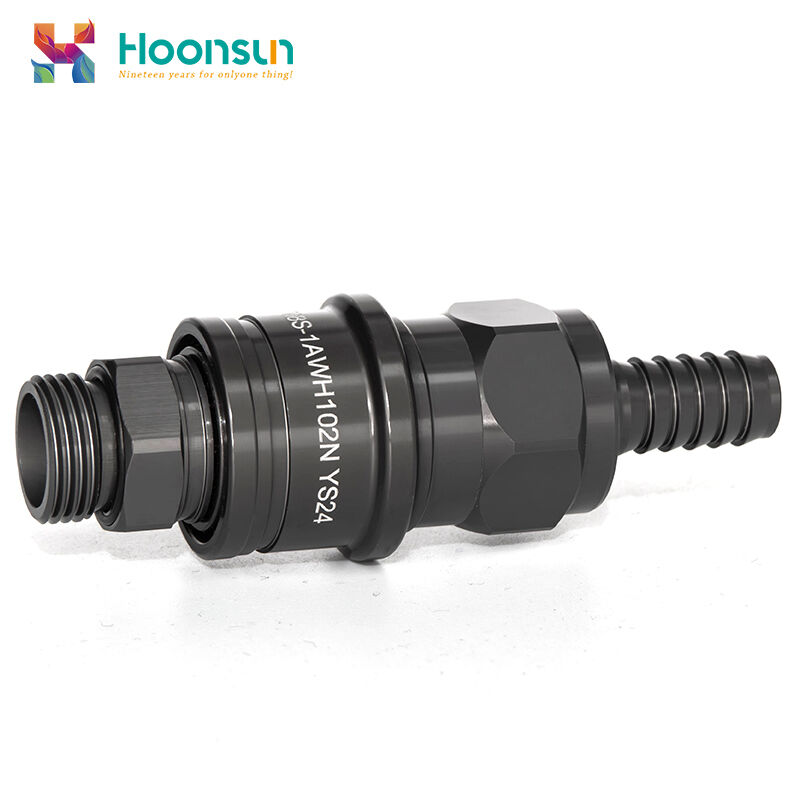

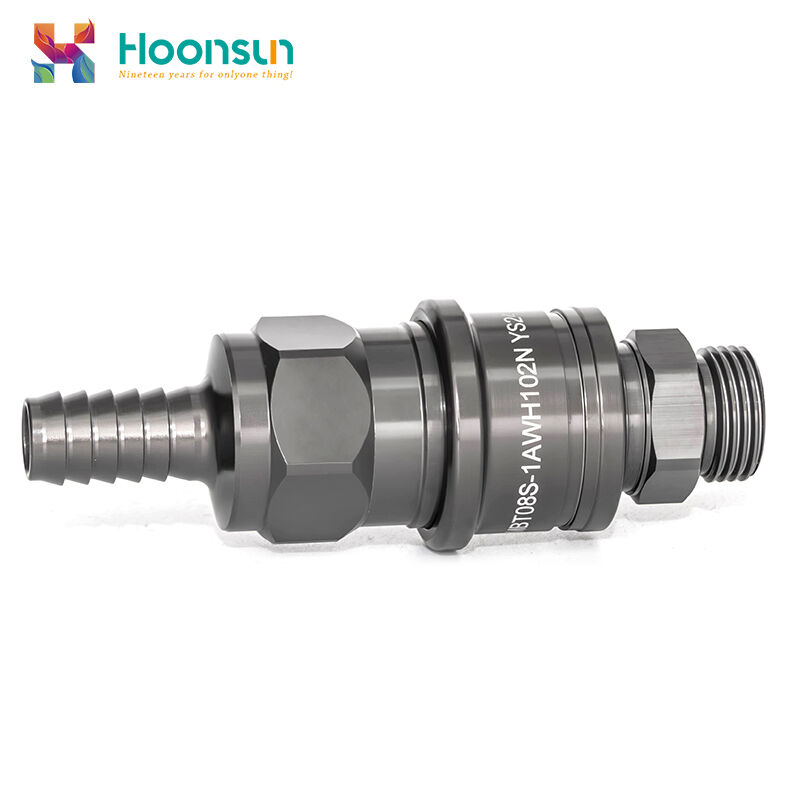

MBT08S-1AWH102N-MBT08P-1AMG042N
Key Features
✅ Lightweight Aluminum Alloy: High strength-to-weight ratio for reduced system load
✅ Superior Sealing: EPDM/HNBR/FKM seals for zero-leakage performance
✅ High Flow Rates: DN05 to DN12 sizes available for various cooling needs
✅ Wide Temperature Range: -40°C to 120°C, suitable for diverse environments
✅ High Pressure Rating: 20bar working pressure, 80bar burst pressure
✅ Multi-Fluid Compatibility: Works with deionized water, glycol solutions, oils, and fluorinated fluids
✅ Rugged Construction: Dust-proof, salt-proof, and chemical-resistant for harsh conditions
✅ Plug-and-Play: Fast, tool-free connection and disconnection
- Overview
- Applications
- Installation Process
- Specifications
- FAQ
- About Us
- Recommended Products
Overview

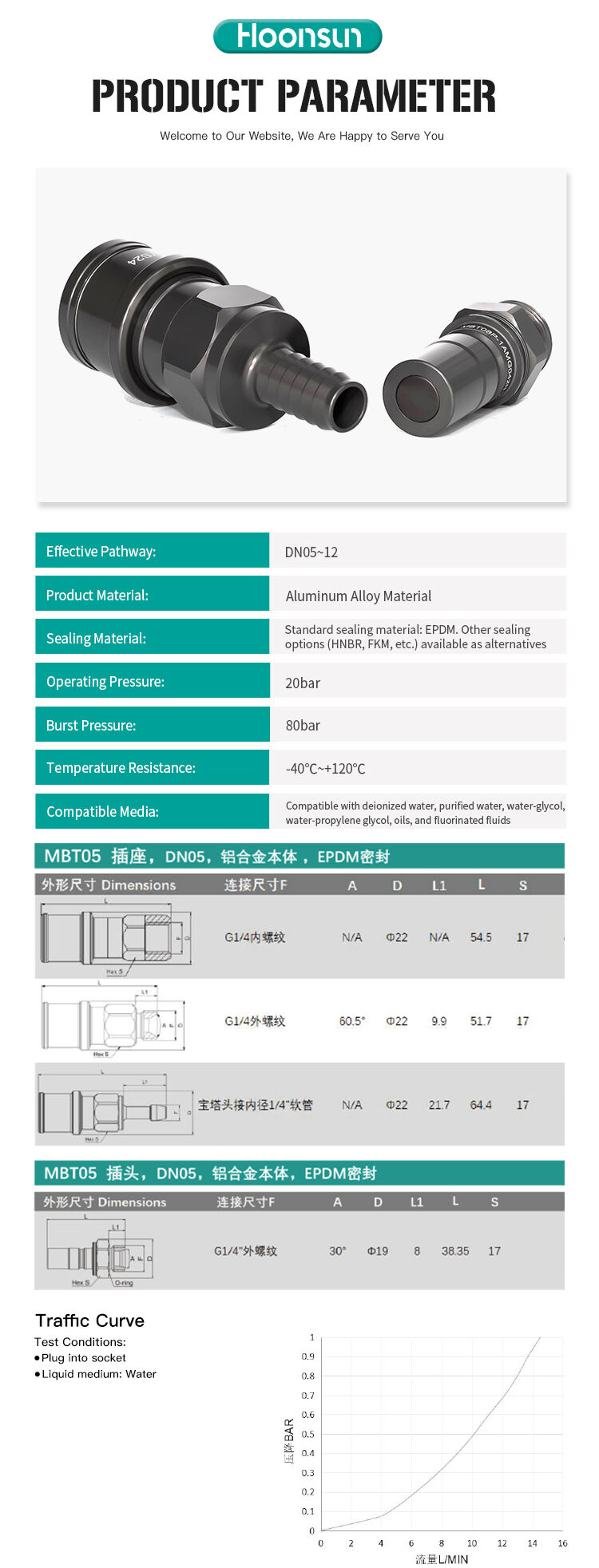

PRODUCT PARAMETER
Welcome to Our Website,We Are Happy to Serve You

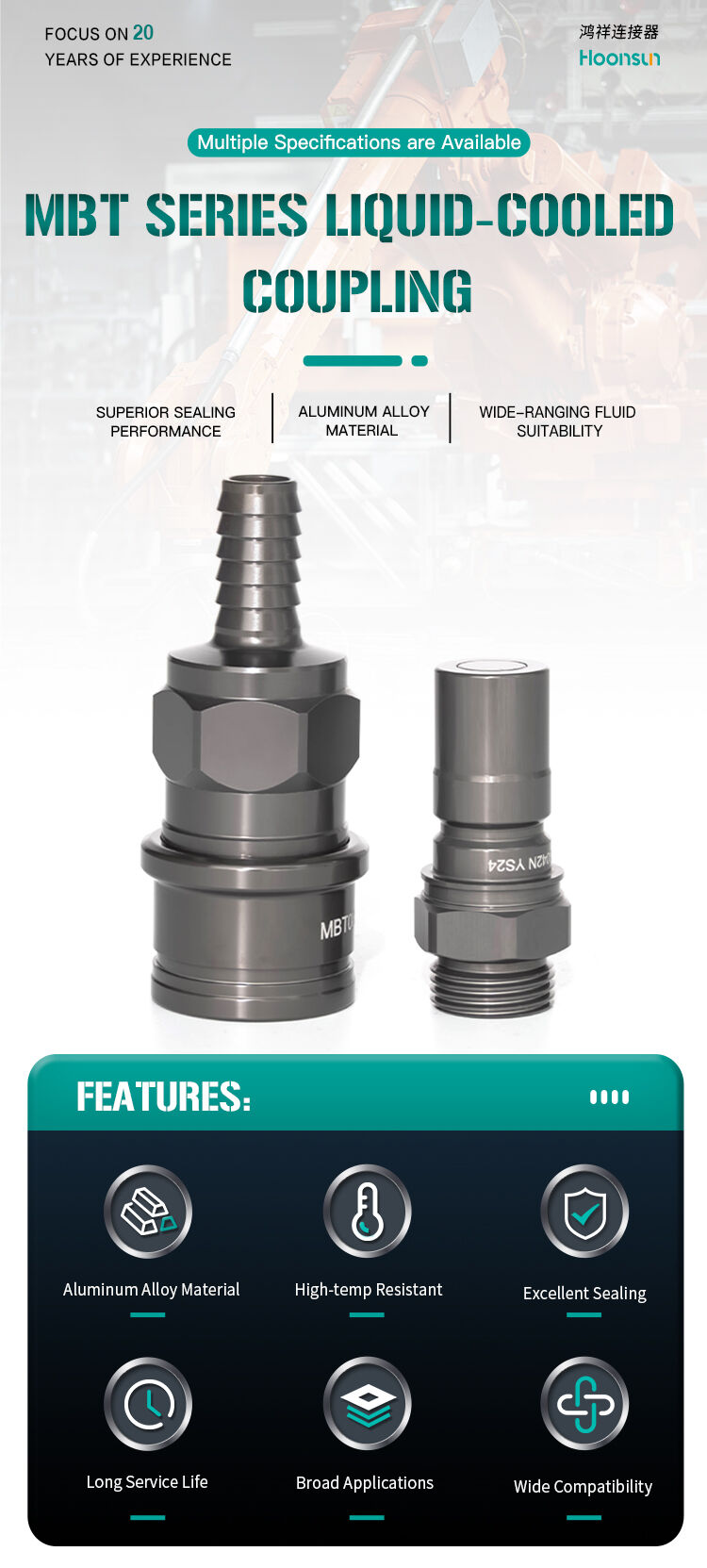

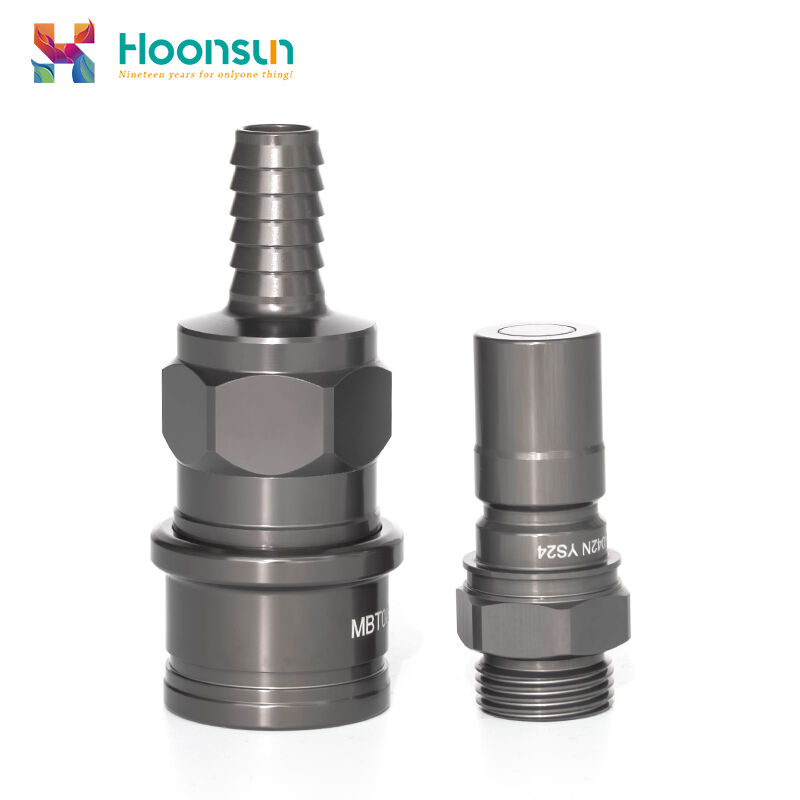

Hongxiang MBT series liquid-cooled couplings are high-performance, lightweight fluid connectors designed for liquid cooling systems. Featuring durable aluminum alloy construction, superior sealing, and wide fluid compatibility, these quick couplings are ideal for high-flow applications in data centers, AI servers, medical equipment, and new energy systems.
With an EPDM sealing system (HNBR/FKM options available), they deliver reliable, zero-leak performance across -40°C to 120°C. Rated for 20bar working pressure (80bar burst pressure), these connectors offer plug-and-play operation for fast, tool-free connection and disconnection, simplifying installation and maintenance.
Applications
• Data Center Servers: High-flow liquid cooling for server racks and HPC systems
• AI Servers & Computing: Thermal management for high-performance AI hardware
• Medical Equipment: Precision cooling for MRI machines, lasers, and diagnostic devices
• Power Electronics & EV Systems: Cooling for EV chargers, inverters, and power supplies
• Industrial Lasers & Automation: Reliable fluid connections for industrial equipment
• PV Inverters & Renewable Energy: Solar and wind energy equipment cooling
• Test Benches & Research Equipment: Lab-grade liquid cooling solutions
Installation Process
1. Preparation: Ensure the connector and mating part are clean and free of debris. Depressurize the system before installation.
2. Connection: Align the plug and socket, then push them together until you hear/feel a positive click, confirming full engagement.
3. Verification: Perform a pressure test to confirm zero leakage before full system operation.
4. Disconnection: Depressurize the system, then simply pull the plug out of the socket (no tools required) for maintenance or replacement.
Note: Never disconnect the connector while the system is under pressure to prevent fluid spray and injury.
Specifications
| Series | DN Size | Material | Sealing |
Connection Options |
Working Pressure |
Temp Range |
| MBT05 | DN05 | Aluminum Alloy | EPDM (HNBR/FKM optional) | G1/4" Male / G1/4" Female / 1/4" Hose Barb | 20bar | -40°C~120°C |
| MBT08 | DN08 | Aluminum Alloy | EPDM (HNBR/FKM optional) | G3/8" Male / G3/8" Female / 3/8" & 1/2" Hose Barb | 20bar | -40°C~120°C |
| MBT10 | DN10 | Aluminum Alloy | EPDM (HNBR/FKM optional) | G1/2" Male / G1/2" Female | 20bar | -40°C~120°C |
| MBT12 | DN12 | Aluminum Alloy | EPDM (HNBR/FKM optional) | G3/4" Male / G3/4" Female | 20bar | -40°C~120°C |
• Compatible Media: Deionized water, purified water, water-glycol solutions, water-propylene glycol solutions, oils, and fluorinated fluids
• Performance Curve: Optimized flow with minimal pressure drop (refer to the flow chart for detailed data)
• Dimensions:
￮ MBT05: Socket length 54.5mm (G1/4" female), Plug length 38.35mm (G1/4" male)

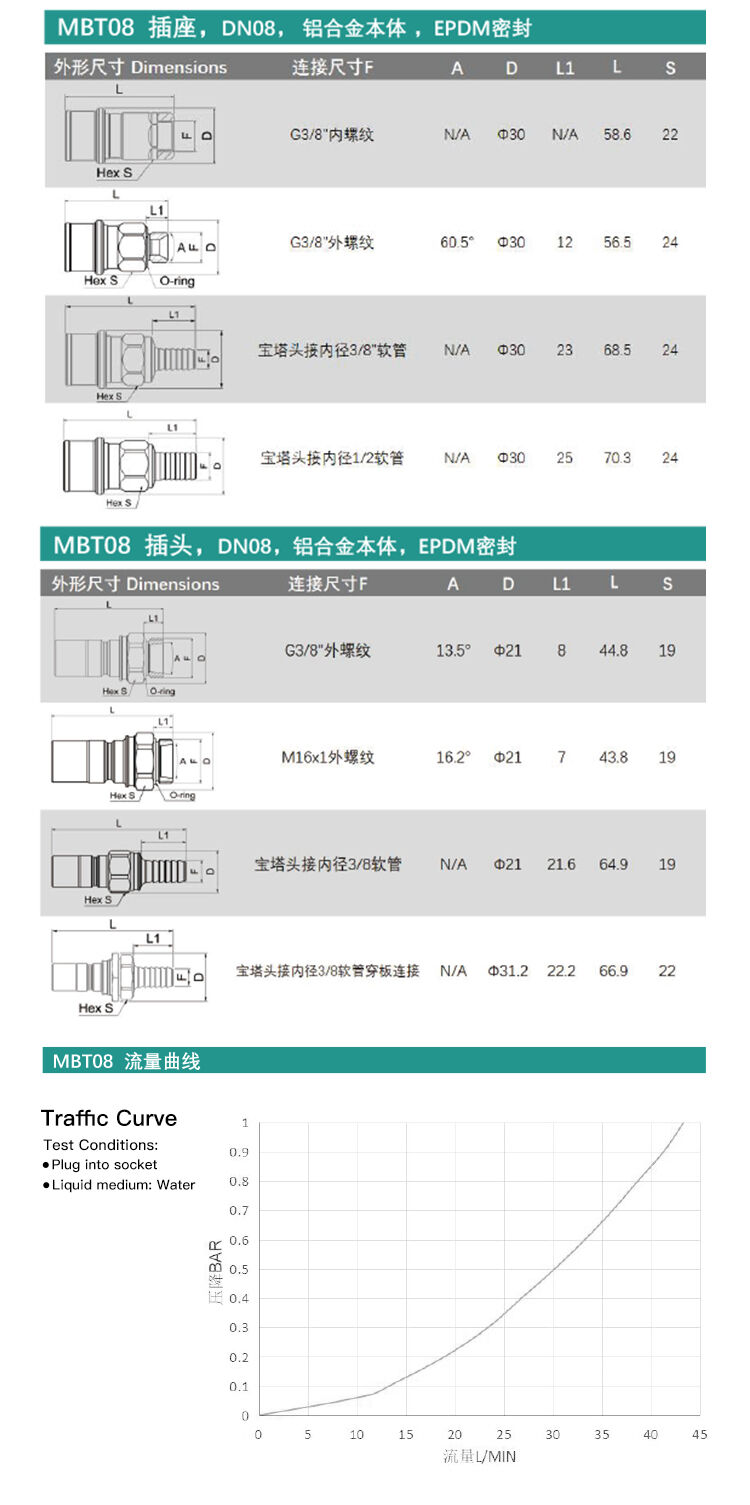

￮ MBT08: Socket length 58.6mm (G3/8" female), Plug length 44.8mm (G3/8" male)

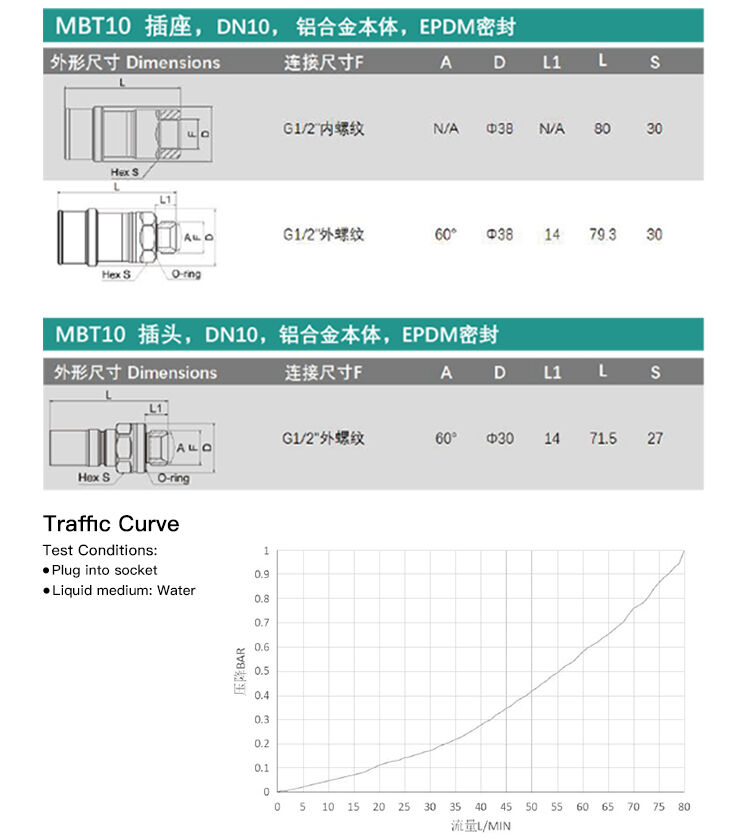

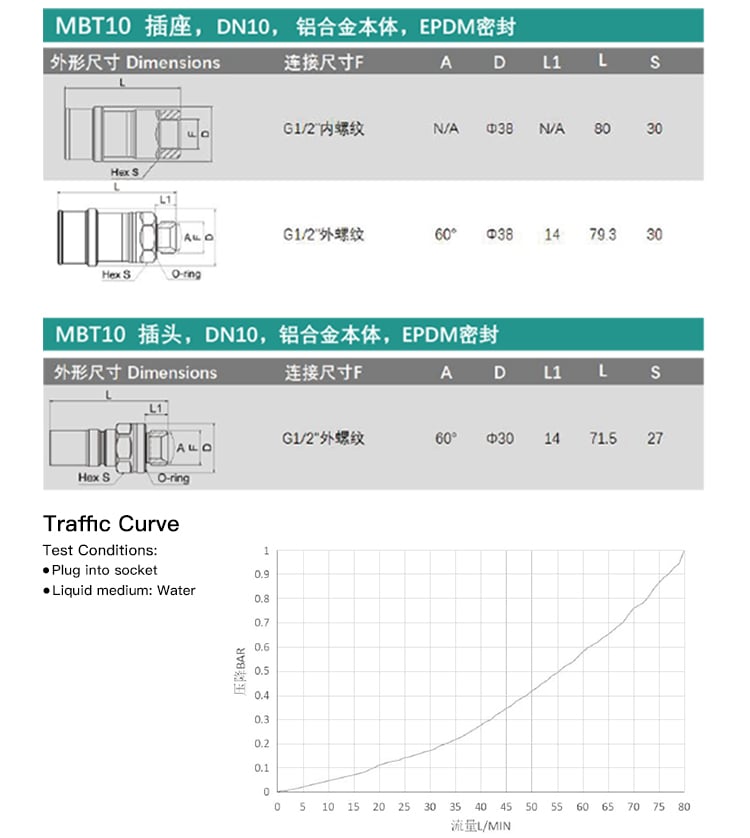

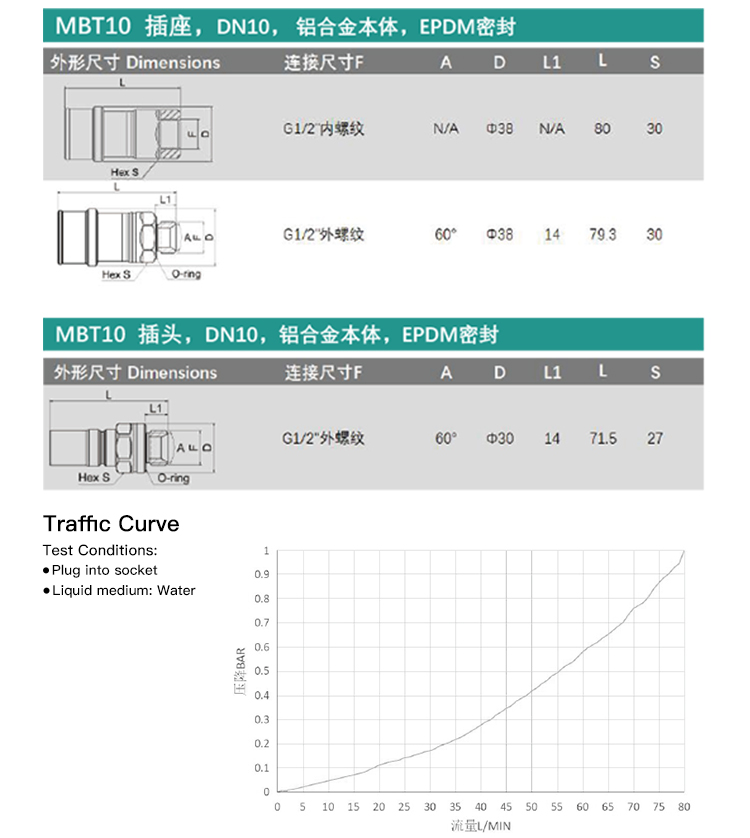

￮ MBT10: Socket length 80mm (G1/2" female), Plug length 71.5mm (G1/2" male)

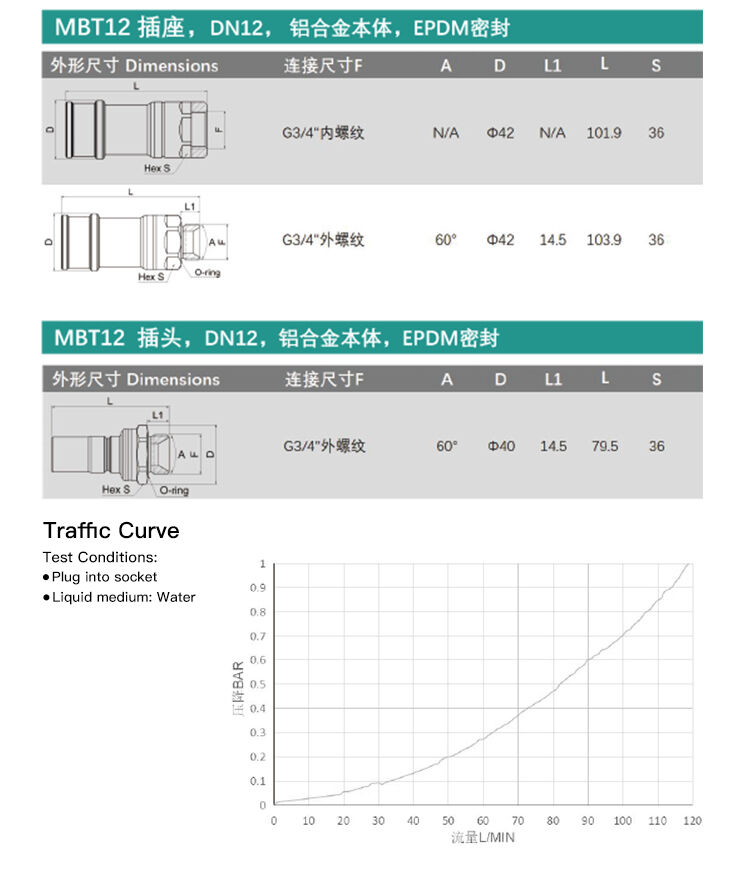

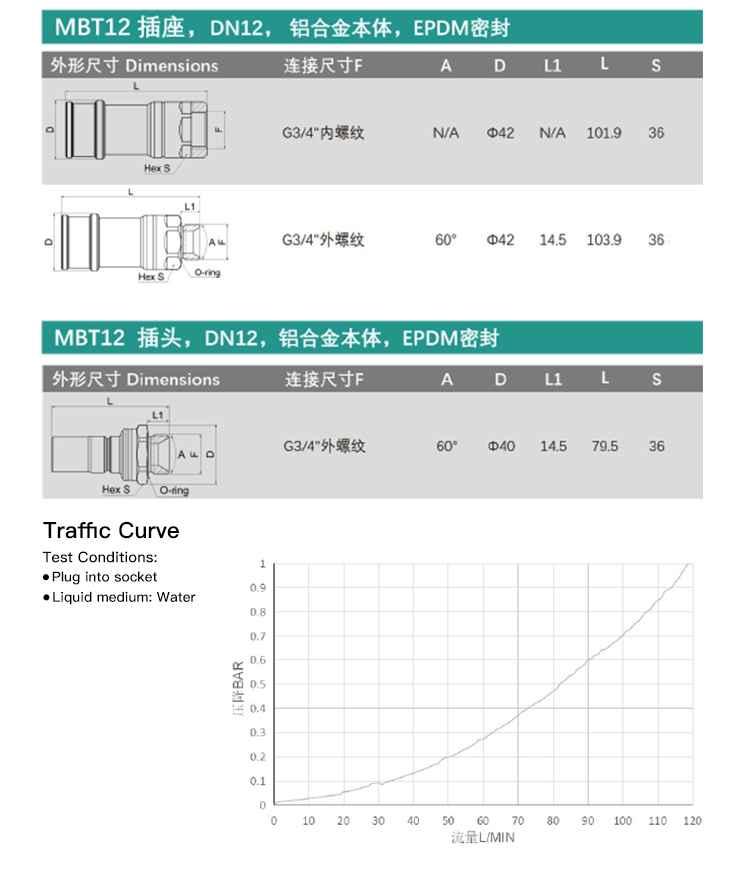

￮ MBT12: Socket length 101.9mm (G3/4" female), Plug length 79.5mm (G3/4" male)
FAQ
1. What are the advantages of the MBT series?
The MBT series features lightweight aluminum construction, multiple connection options (threaded and hose barb), and a wide range of sizes (DN05-DN12), making it highly versatile for different liquid cooling applications.
2. What materials are used in these connectors?
The body is made of high-strength aluminum alloy for light weight and corrosion resistance, with EPDM seals (HNBR and FKM options available for low-temperature or special fluid compatibility).
3. What fluids are compatible with these connectors?
They work with deionized water, purified water, ethylene glycol/water mixtures, propylene glycol/water mixtures, oils, and fluorinated fluids.
4. What is the operating pressure and temperature range?
The working pressure is 20bar (80bar burst pressure), with a temperature range of -40°C to 120°C.
5. Are these connectors suitable for high-flow applications?
Yes. The MBT series is designed for high flow rates, with sizes up to DN12 supporting flow rates up to 120 L/min, making them ideal for large-scale cooling systems.
6. Do I need tools to install or disconnect them?
No. The plug-and-play design allows tool-free connection and disconnection, simplifying maintenance and installation.
7. Can these connectors be used outdoors?
Yes. They are dust-proof, salt-proof, and resistant to acid-alkaline and general solvents, making them suitable for harsh outdoor environments.
8. Do you offer customization options?
Yes. We support OEM/ODM customization for special thread sizes, sealing materials, or connection types to meet specific application requirements.
