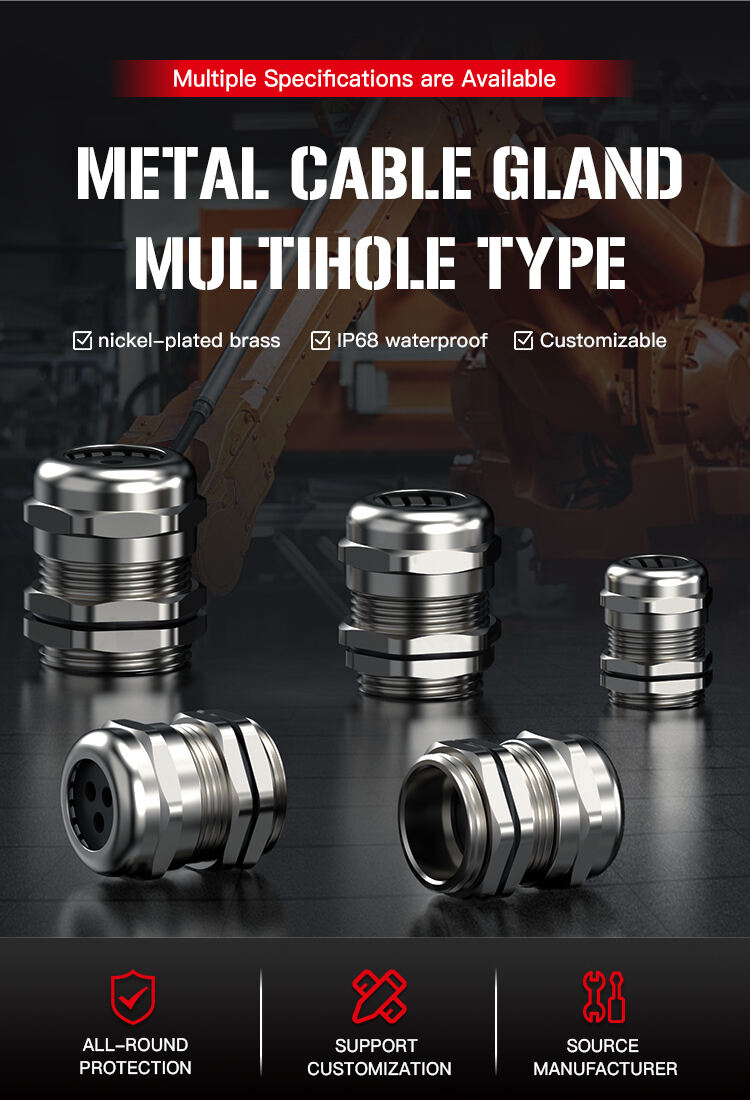

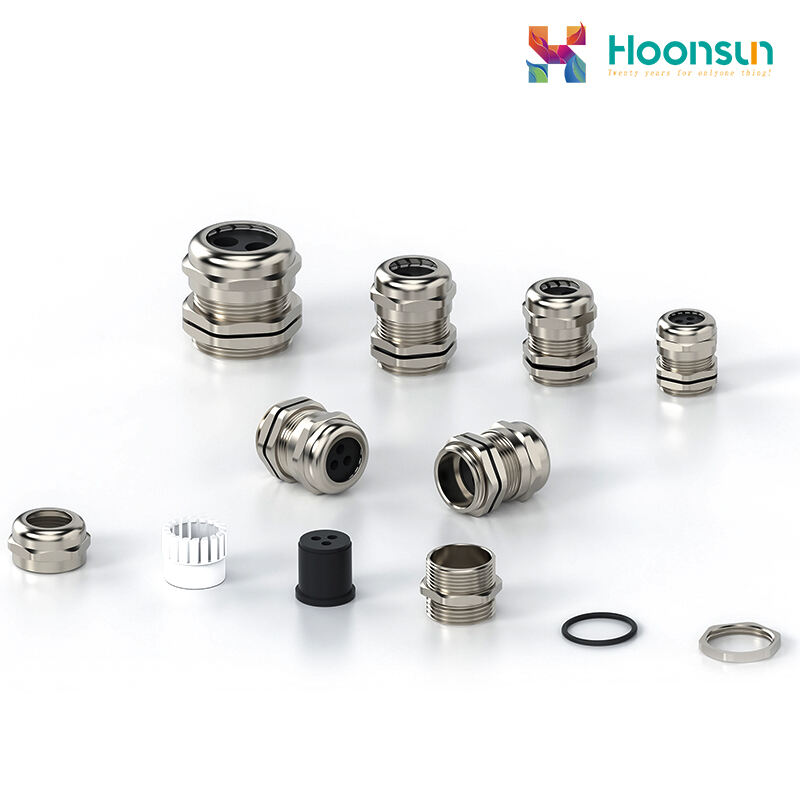

Metal Cable Gland - Multihole Type
Multi-Wire in Single Hole, Space-Saving: Integrated multi-hole design allows simultaneous threading of multiple cables, eliminating the need for multiple independent glands. Significantly reduces installation openings, suitable for space-constrained centralized wiring scenarios such as cabinets and equipment.
Durable Metal Construction: Made of high-quality metals like brass and stainless steel, featuring high mechanical strength, impact resistance, and corrosion resistance. Withstands external impacts and harsh medium erosion in industrial environments for long service life.
Full-Hole Protection, Safe and Reliable: Each hole is equipped with an independent sealing structure, achieving an overall IP65+ protection rating. Fully dustproof, waterproof, and oilproof to ensure safe simultaneous transmission of multiple cables.
Wide Compatibility & Easy Installation: Compatible with various cable specifications, supporting flexible combination of different wire diameters. Adapts to metric, imperial, and other thread standards, and can be assembled manually. Suitable for automation equipment, distribution boxes, communication cabinets, and other scenarios.
- Overview
- Specifications
- Description
- Recommended Products
Overview
PRODUCT PARAMETER
Welcome to Our Website,We Are Happy to Serve You

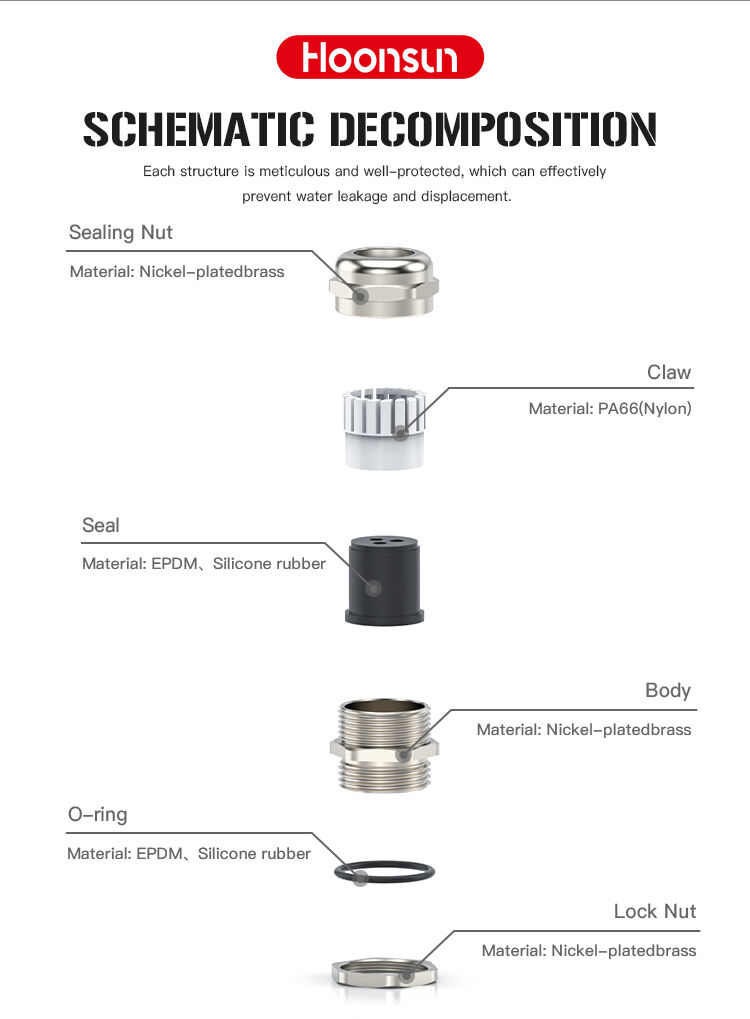

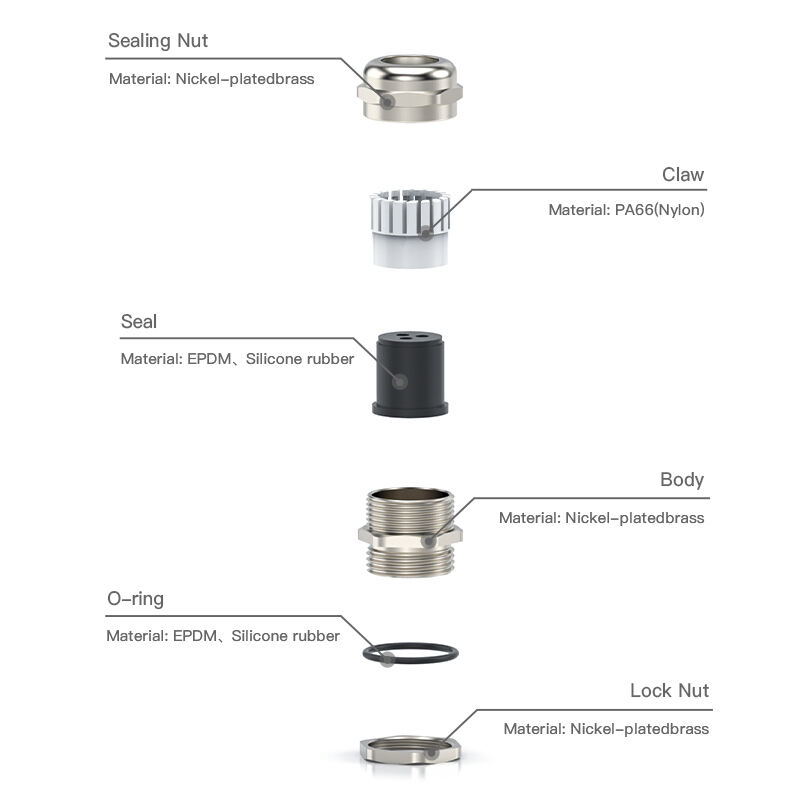

| Fitting Material: | Nickel-platedbrass | |||||
| Material For Clamping Jaws: | PA66(Nylon),UL94-V2 | |||||
| Material For Sealing Components: | EPDM,Silicone rubber | |||||
| O-ring Material: | EPDM,Silicone rubber | |||||
| Protection Degree: | IP66-10 bar | |||||
| Temperature: |

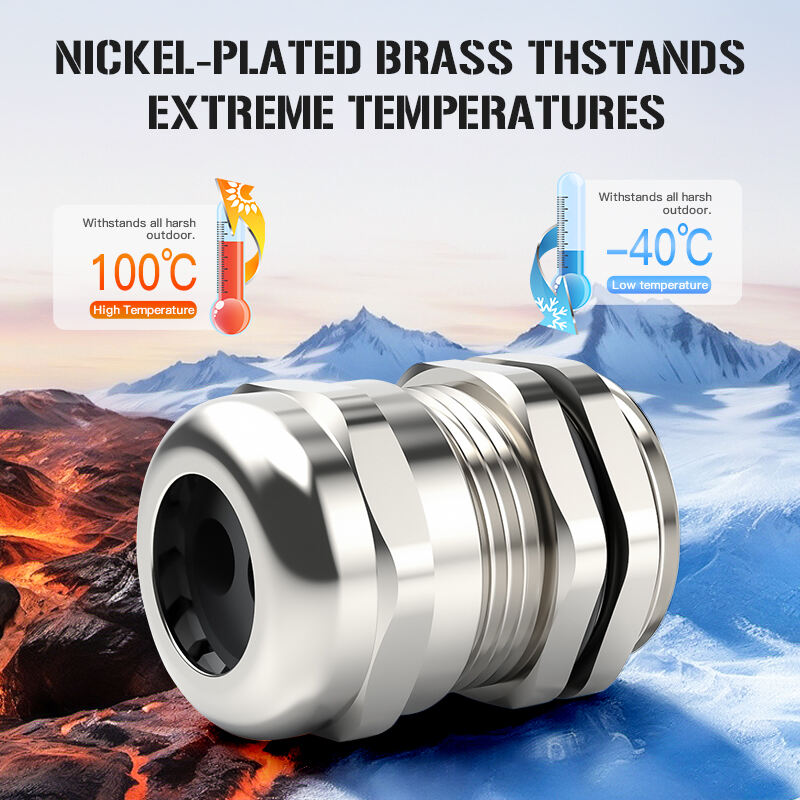

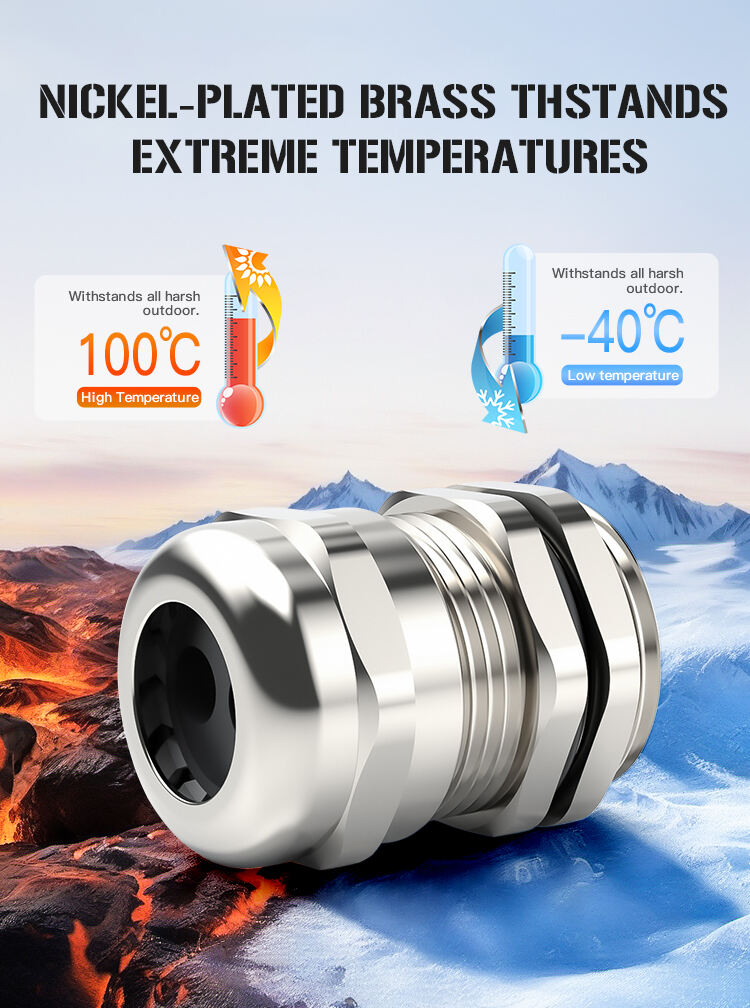

Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃ |
|||||
The Metal Multi-Hole Cable Gland is designed for applications requiring multiple cables to pass through a single entry while maintaining reliable sealing and mechanical protection. Its precision-engineered multi-aperture design allows several cables to be clamped and sealed individually, preventing dust, moisture, and vibration from affecting electrical connections.
Constructed from nickel-plated brass or stainless steel, it offers superior strength, corrosion resistance, and long-lasting performance in harsh industrial and outdoor environments. The gland ensures IP68 waterproof protection and provides excellent strain relief for all inserted cables.
Ideal for control panels, automation equipment, machinery, and marine systems, this multi-hole gland optimizes space efficiency and simplifies installation. Its compact structure reduces the need for multiple glands, improving overall wiring aesthetics and safety.
With PG, NPT, and Metric threads available, the Metal Multi-Hole Cable Gland is compatible with international standards, providing a durable, professional solution for modern multi-cable management.
Specifications
unit: mm
| Item | F | M2 | M3 | M4 | M5 | M6 | M7 | M8 | Code |
| M12×1.5 | / | 2.5 | / | / | / | / | / | / | HX-ND.M12/* |
| M16×1.5 | / | 2.5 | / | / | / | / | / | / | HX-ND.M16/* |
| M18×1.5 | / | 3 | / | 2.5 | / | / | / | / | HX-ND.M18/* |
| M20×1.5 | 5*12 | 5 | / | / | / | / | 2.5 | / | HX-ND.M20/* |
| M22×1.5 | / | 6 | 3 | 2.5 | / | / | 3.4 | 1 | HX-ND.M22/* |
| M25×1.5 | / | / | / | / | / | / | / | / | HX-ND.M25/* |
| M27×1.5 | / | 1 | / | 5 | 1 | / | / | 1 | HX-ND.M27/* |
| M32×1.5 | 7*19 | 8 | 8 | 7.5 | / | / | / | / | HX-ND.M32/* |
| M37×1.5 | / | 9.5 | 9.5 | / | 1 | / | 7.5 | 1 | HX-ND.M37/* |
| M40×1.5 | 8*23 | / | / | / | / | / | / | / | HX-ND.M40/* |
| M47×1.5 | / | / | 13.3 | / | / | / | / | / | HX-ND.M47/ |
| M50×1.5 | / | / | / | / | / | / | / | 10 | HX-ND.M50/ |
| M63×1.5 | / | / | 18 | / | / | / | / | / | HX-ND.M63/ |
| Can be customized porous,welcome to lnquire | |||||||||
