Complete Analysis of Cable Gland Application Scenarios and Suitable Products

As the "safety gatekeeper" of electrical systems, cable glands' core value lies in realizing multiple functions such as sealing, fixing, and protection by accurately adapting to scenario requirements. Different industries and environments have significantly different requirements for protection levels, materials, and structures. Choosing the right suitable products can avoid potential safety hazards from the source and extend the service life of the system. This article will focus on mainstream application scenarios, analyze the adaptation logic combined with actual needs, and match high-suitable product models of Hoonsun to provide direct reference for selection.

I. Industrial Automation Scenarios (Control Panels/Cabinets/Automation Equipment)

Core Scenario Requirements

Mainly focusing on indoor cabinets, control panels, and automation production line equipment, the core requirements are concentrated in three aspects: first, high wiring density, needing to adapt to pre-terminated cables (with connectors) to avoid cable clutter; second, convenient installation, adapting to narrow spaces of equipment for quick assembly; third, meeting basic protection standards to resist indoor dust and slight moisture, with a protection level of IP54 or above; at the same time, needing to adapt to wiring accessories such as corrugated pipes and hoses to cope with slight vibration of equipment.

Highly Suitable Product Recommendations (Hoonsun)

Hoonsun Stainless Steel Multi-hole Cable Waterproof Connector (HX-SS): Focusing on "multi-hole integrated wiring", the 3-hole design can connect multiple small-diameter cables at the same time, effectively improving cabinet wiring density and avoiding cable tangling. Made of 304 stainless steel with high strength, it is suitable for installation in narrow equipment spaces. The IP68 protection level exceeds basic requirements, which can resist dust and splashing moisture. It has excellent insulation performance and is perfectly suitable for centralized wiring of multiple cables in control panels of automation equipment.

Hoonsun Brass Nickel-plated Metal Cable Waterproof Connector (M32*1.5): Optimized for wiring scenarios at cabinet corners and edges, it is suitable for medium and large-diameter cables with connectors (18-25mm) and can be flexibly fixed with corrugated pipes. The brass nickel-plated material has good corrosion resistance and electrical conductivity. The double sealing structure (nitrile rubber seal) ensures the quality of the terminal components, meets EN 62444 stress relief requirements, can effectively cope with slight vibration during equipment operation, and avoid excessive bending and wear of cables.

Hoonsun Nylon Single Compression Cable Gland (M12-M32): A cost-effective choice for industrial automation scenarios, with a simple structure and controllable cost, suitable for wire inlets of small equipment on automation production lines. Made of nylon 66 with good insulation performance, the IP54 protection level meets indoor basic dust and moisture prevention requirements, and can be adapted to unarmored control cables. It can be manually tightened without professional tools during installation, greatly improving wiring efficiency.

II. Flammable and Explosive Environment Scenarios (Chemical/Mining/Oil and Gas Platforms)

Core Scenario Requirements

Mainly concentrated in chemical workshops, mine downholes, oil and gas drilling platforms and other areas, the core requirements are explosion-proof, corrosion-resistant, and high-temperature resistant: must pass international explosion-proof certifications such as ATEX and IECEx, meet Ex d/Ex e explosion-proof levels to prevent sparks from leaking and causing explosions; protection level not lower than IP66 to resist dust, corrosive gases/liquids; materials need to be high-temperature resistant and corrosion-resistant, adapting to extreme temperatures of -60℃~200℃; at the same time, need to adapt to armored cables to improve mechanical protection capabilities.

Highly Suitable Product Recommendations (Hoonsun)

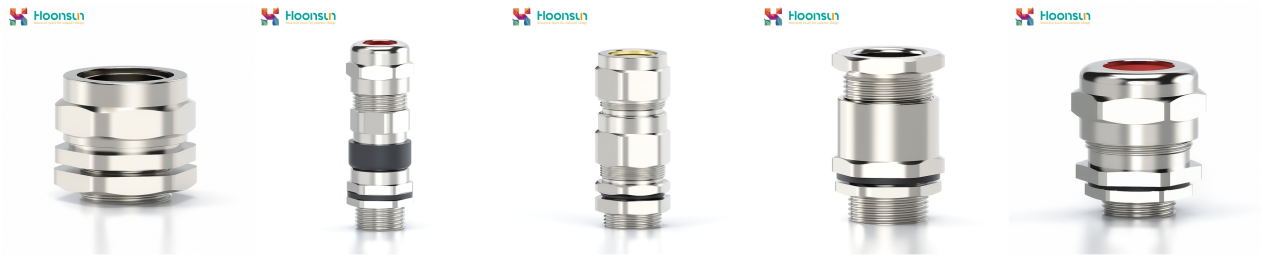

Hoonsun 304 Stainless Steel Explosion-proof Armored Cable Gland (M20*1.5): A benchmark product for explosion-proof scenarios, passing Ex d/Ex e double explosion-proof certifications, suitable for Zone II flammable and explosive environments (chemical, mining). The 304 stainless steel material is high-temperature resistant and corrosion-resistant, with a temperature resistance range of -60℃~180℃, which can cope with the environment around high-temperature equipment. The IP68 protection level realizes deep waterproof and dustproof, meets BS 6121 standards, and the double clamping structure is suitable for armored/unarmored cables. It can be used for sealing equipment wire inlets to tightly block flammable and explosive gases from entering the equipment.

Hoonsun 304 Stainless Steel Double Compression Explosion-proof Cable Gland (M30*2): Designed for chemical strong acid and alkali scenarios, the 304 stainless steel material has extreme corrosion resistance, which can resist corrosion of chemical raw materials and acid-base solutions. The double compression structure fixes the outer sheath and inner core of the cable respectively, with strong tensile resistance, suitable for armored cables to avoid cable damage due to pulling. It passes IECEx explosion-proof certification, has IP66 protection level, and is matched with explosion-proof seals, which can effectively block sparks and flammable and explosive gases, suitable for wiring of chemical reactors and mine downhole equipment.

Hoonsun Explosion-proof Cable Sealing Connector (G1-1/2): Designed specifically for heavy equipment in mines and oil and gas platforms, with Ex d explosion-proof level, which can withstand high temperature and high pressure environments. The armored clamping structure is firm, which can effectively fix heavy armored cables (wire diameter 25-38mm), and has good grounding performance to reduce the risk of electric leakage. The temperature resistance range is -50℃~180℃, with IP67 protection level, suitable for mine hoists, oil and gas drilling platform equipment, resisting dust, oil pollution and humid environments.

III. Construction/Clean Room Scenarios (Commercial Buildings/Clean Workshops/Medical Facilities)

Core Scenario Requirements

Covering wiring of commercial building sandwich panels and thick walls, clean workshops (electronic, food, medical), medical equipment rooms, etc., the core requirements are: first, adapting to the installation of thick walls/sandwich panels, with adjustable thread length without damaging the wall structure; second, clean rooms need to have no dust-collecting grooves to avoid dust accumulation and meet hygiene standards; third, protection level of IP54 or above to ensure indoor environment cleanliness; flexible installation to facilitate later system upgrade and maintenance.

Highly Suitable Product Recommendations (Hoonsun)

Hoonsun Extended Thread Brass Nickel-plated Cable Gland (M36*1.5): A dedicated product for thick wall wiring, with extended thread design (suitable for 30mm~120mm thick walls/sandwich panels), which can realize wiring on both sides of the wall without additional adapters. The brass nickel-plated material has high strength and good texture, and the wall surface is flat after installation without affecting the appearance. The IP54 protection level remains stable, suitable for the wiring needs of building strong and weak electricity.

Hoonsun 304 Stainless Steel Separable Cable Gland (M25*1.5): A dedicated model for clean rooms, with no dust-collecting groove design, smooth surface and easy to clean, meeting the hygiene standards of food and medical industries. The IP68 protection level can resist humid environments (such as disinfection moisture in medical clean rooms). The separable structure facilitates later cable maintenance and replacement without damaging the wall or equipment. The temperature resistance range is -40℃~100℃, suitable for wiring of medical equipment rooms and electronic clean workshops, with excellent insulation performance to avoid electromagnetic interference.

Hoonsun Nylon Adjustable Cable Gland (M16-M40): A preferred choice for light-load wiring in commercial buildings, with adjustable thread length (0~50mm), suitable for walls and decorative panels of different thicknesses. Made of nylon 66 with light weight and good insulation performance, the IP54 protection level meets indoor cleanliness requirements, and it is easy to install, which can be directly embedded into the reserved holes of the wall. It is suitable for wiring of office buildings and commercial complex distribution boxes, with controllable cost and high appearance.

IV. Small Equipment/Instrument Scenarios (Household Electrical Appliances/Small Instruments/Electronic Equipment)

Core Scenario Requirements

Covering household distribution boxes, small instruments (laboratory equipment, detectors), electronic equipment (routers, small controllers), etc., the core requirements are: compact size, adapting to narrow wire inlets of equipment; good insulation performance to reduce the risk of electric shock; low cost and high cost performance; convenient installation without professional tools; adapting to small-diameter cables (diameter 2mm~11mm) to meet light-load wiring needs.

Highly Suitable Product Recommendations (Hoonsun)

Hoonsun Brass Nickel-plated Cable Waterproof Connector (PG9): A dedicated model for small equipment, with compact size (suitable for wire diameter 5-10mm), suitable for wire inlets of small instruments and household distribution boxes. The brass nickel-plated material has good insulation performance and high safety, with a temperature resistance range of -20℃~80℃, suitable for 1-2 small-diameter cables. The IP54 protection level meets indoor basic protection requirements, and it does not occupy internal equipment space after installation. The 10-piece pack has higher cost performance.

Hoonsun Nylon Single Compression Cable Gland (M12-M20): A cost-effective choice for household/small equipment, with simple structure and low cost, suitable for unarmored small-diameter cables (such as household lighting cables, instrument control cables). The nylon material has excellent insulation performance, which can effectively avoid the risk of electric shock. The IP54 protection level resists indoor dust and slight moisture, and it can be manually tightened without professional tools during installation, suitable for household DIY wiring and small equipment assembly.

Hoonsun Mini Plastic Cable Gland (M8-M14): Dedicated for electronic equipment, with ultra-small size (diameter 8mm~14mm), suitable for wire inlets of precision electronic equipment such as routers and small controllers. Made of ABS plastic with light weight and good insulation performance, it is suitable for small-diameter data cables and power cables (diameter 1mm~6mm). The IP54 protection level can prevent dust from entering the equipment and ensure the normal operation of electronic components.

V. Core Summary of Scenario-Product Adaptation

The core logic of selection is "demand-driven": first clarify the scenario's protection level (IP level), environmental medium (humid/corrosive/flammable and explosive), cable type (armored/unarmored/small-diameter/large-diameter), installation space (narrow/thick wall/corner), then match Hoonsun products with corresponding materials (stainless steel/brass/nylon), structures (single compression/double compression/separable), and functions (explosion-proof/waterproof/adjustable).

All Hoonsun cable glands have passed CE and ROHS certifications, meet international standards such as EN 62444 and BS 6121, and explosion-proof series products have passed ATEX and IECEx certifications, which can be safely adapted to various scenarios. In any scenario, priority should be given to products that meet standards and special certifications to avoid potential safety hazards caused by uncertified products. If your application scenario is relatively special (such as extreme low temperature, strong electromagnetic interference), please leave a message in the comment area to further discuss the precise adaptation plan of Hoonsun products!
