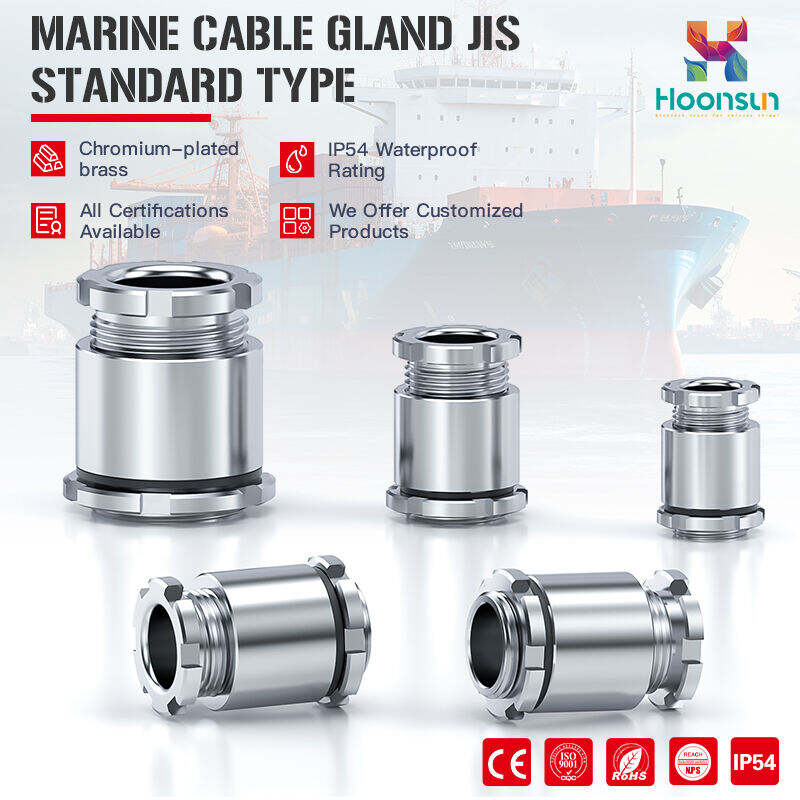

JIS Series Marine cable gland: The "Guardians of the Ocean" for Shipboard Electrical Safety

In the turbulent ocean, ships serve as mobile "floating homes," and the stability of their electrical systems directly impacts navigational safety, crew well-being, and equipment operation. Within a ship's electrical network, cable gland act as the "nerve center," facing numerous harsh challenges compared to land-based applications, including high salt spray, strong vibrations, fluctuating humidity, and confined spaces. Among the many marine cable connector products available, the JIS series, compliant with Japanese Industrial Standards (JIS), has become a mainstream choice in the global marine industry due to its precise adaptability and reliable protective performance. Today, we will delve into this "oceanic guardian" of ship electrical safety.

Understand why the JIS standard is the "quality pass" for marine connectors.

When discussing JIS series marine cable gland, it's essential to understand their core basis—Japanese Industrial Standards (JIS). As Japan's authoritative industrial standardization system, JIS is particularly stringent in its standards for the marine industry, with detailed requirements for marine cable gland across all dimensions, including materials, structure, performance, and testing, far exceeding the standards for ordinary land-based connectors.

Why does the shipbuilding industry highly value the JIS standard? This is inextricably linked to the unique operating environment of ships. During navigation, cable gland not only withstand continuous mechanical vibrations (such as engine operation and wave impact), but are also exposed to highly saline droplets and spray for extended periods, while simultaneously facing alternating extreme environments such as high engine room temperatures, low cargo hold temperatures, and deck immersion in rainwater. The JIS standard addresses these scenarios by explicitly requiring connectors to meet stringent standards such as "salt spray corrosion resistance ≥1000 hours," "vibration frequency resistance 10-500Hz," and "waterproof rating IP68 or higher." Only after undergoing multiple rounds of rigorous testing, including salt spray tests, vibration tests, and high/low temperature cycling tests, can they meet these standards. It is precisely this "tailor-made" stringent standard that makes JIS series connectors a "quality passport" for ship electrical systems.

Core Advantages of JIS Series Marine cable gland: Four Key Features for Adapting to Marine Environments

Compared to ordinary marine or land-based connectors, the JIS series has four core advantages due to its deep adaptation to the marine environment, fundamentally ensuring the safe and stable transmission of power on ships.

1. Superior corrosion resistance: A "golden shield" against marine salt spray.

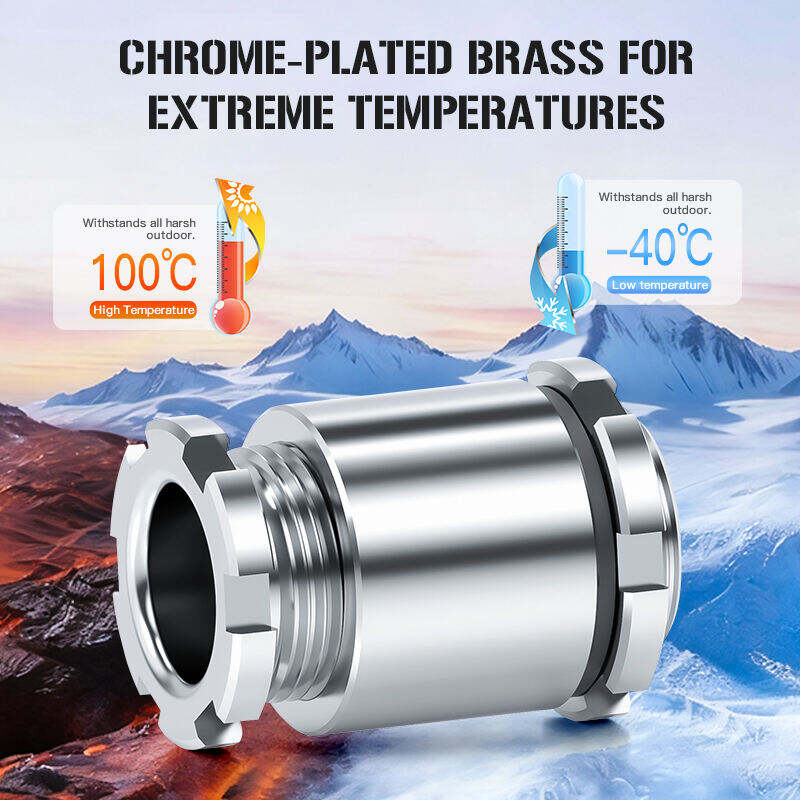

Marine salt spray is the number one killer of metal components. The metal shell of ordinary connectors will rust in a salt spray environment within just a few months, leading to sealing failure and decreased conductivity. JIS series connectors solve this problem from the source of materials: the shell is made of JIS standard 316L stainless steel or special anti-corrosion aluminum alloy, and undergoes multiple anti-corrosion treatments such as passivation and spraying, which can effectively isolate salt spray corrosion; the internal insulation components are made of highly weather-resistant EPDM (ethylene propylene diene monomer rubber) or silicone rubber, which is not only corrosion-resistant, but can also withstand extreme temperature changes from -40℃ to 120℃, adapting to the full range of needs of ships from polar routes to tropical waters.

2. Ultimate Sealing: A "Waterproof Lock" to Prevent Water Ingress

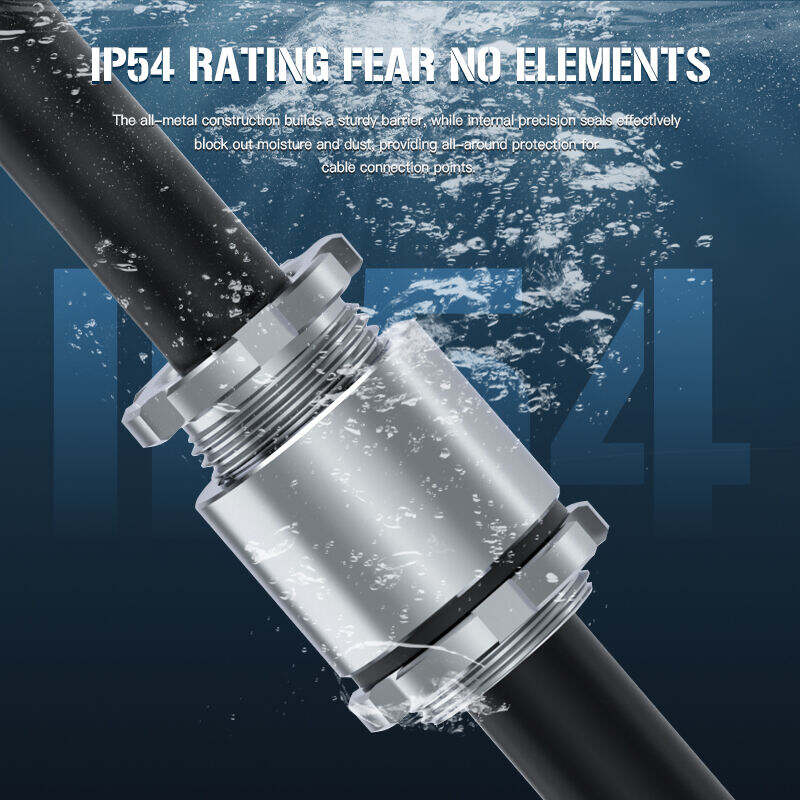

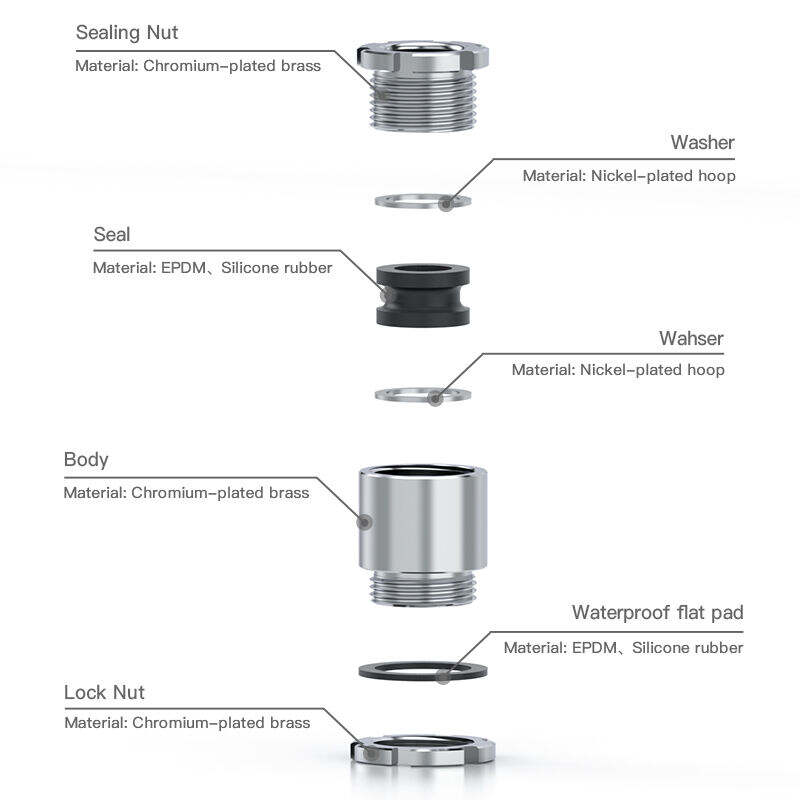

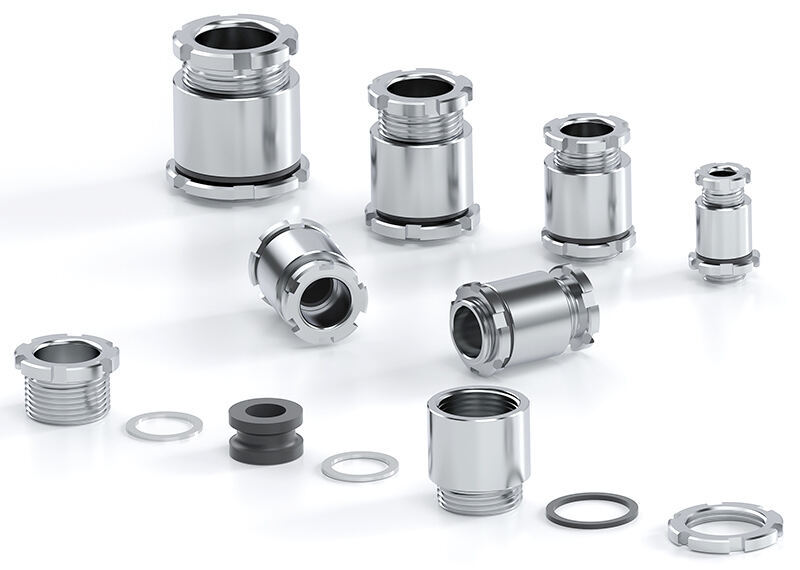

During ship navigation, deck joints may be exposed to waves, while engine room joints face the intrusion of oil fumes and condensate. Water ingress can have disastrous consequences—from short circuits to equipment malfunctions and fires. JIS series joints employ a "double seal + pressure compensation" design: the first seal uses a dedicated sealing ring to tightly fit the cable, while the second seal uses a cold-shrink or prefabricated structure for complete enclosure. Some high-end models are also equipped with a pressure compensation valve to balance the internal and external air pressure of the joint, preventing seal loosening due to temperature changes. Testing has shown that JIS-compliant joints maintain excellent insulation performance even after immersion in 10 meters of water for 24 hours, fully meeting the requirements for use in humid environments such as underwater compartments and decks.

3. Shock and vibration resistant: A "stabilizer" for dealing with bumpy rides.

Ships experience continuous vibrations in wind and waves, with the engine room experiencing even more severe vibrations. Ordinary connectors are prone to loosening of conductor connections due to vibration, leading to increased contact resistance, overheating, and burnout. The JIS series connectors address this issue with an optimized structural design: the conductor connection employs a dual "crimping + locking" fixation method. The crimp terminals are made of high-strength copper alloy and use specialized crimping tools to achieve a tight fit. A buffer layer is incorporated at the connection between the connector shell and the cable, using elastic material to absorb vibration energy. This ensures that the conductor contact resistance change rate does not exceed 5% at vibration frequencies of 10-500Hz, structurally guaranteeing conductivity stability under vibration conditions.

4. Standardized Adaptation: "Universal Components" for Simplified Selection

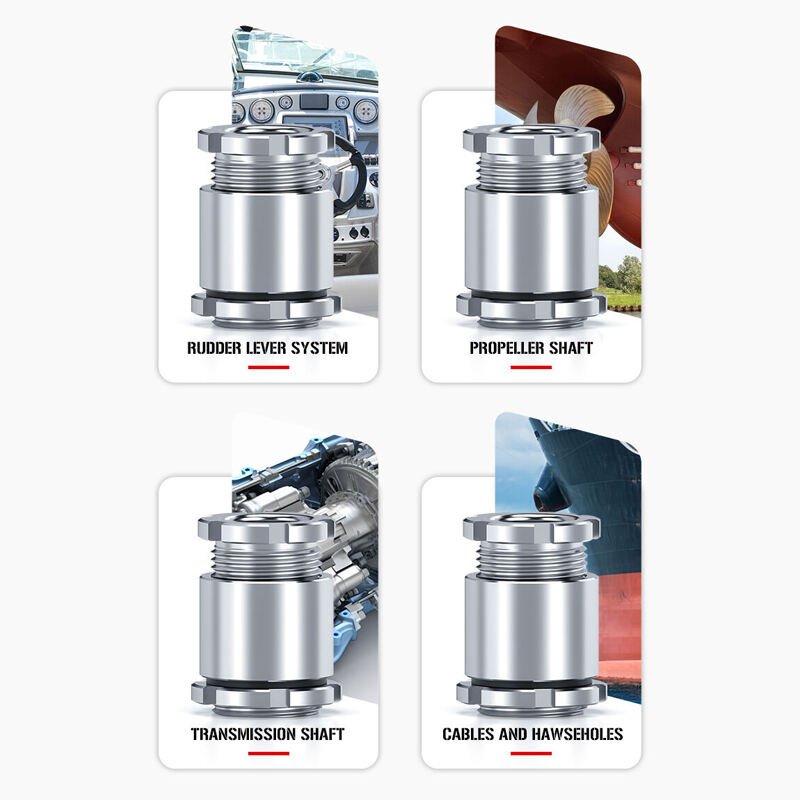

Marine cables come in a variety of specifications, with different equipment (such as navigation radar, power systems, and communication equipment) having varying cable diameters and voltage ratings. The compatibility of the connectors directly impacts construction efficiency. JIS series connectors follow standardized designs, covering cable cross-sectional areas from 1.5mm² to 240mm² and adaptable to voltage levels from 1kV to 35kV. Whether for low-voltage control lines or high-voltage power lines, a suitable model can be found. Furthermore, the JIS standard standardizes interface dimensions and installation methods, and JIS series connectors from different brands are interchangeable, greatly simplifying the selection and replacement process during ship maintenance and reducing spare parts inventory costs.

JIS Series Connector Selection and Installation: Details Determine Adaptability for Marine Environments

Even the best connectors cannot perform to their full potential if they are not properly selected or installed correctly. For JIS series marine cable gland, it is crucial to pay close attention to the selection principles and installation points to ensure they are suitable for the specific conditions of a vessel.

1. Selection: Three core principles cannot be ignored

Environmental matching principle : Select the model with the corresponding protection level according to the installation location—for decks and open cabins, select models with IP68 or above for waterproof and corrosion protection; for high-temperature and vibration environments such as engine rooms, select models with high temperature resistance (≥120℃) and high shock resistance; for flammable and explosive environments such as fuel tanks, select explosion-proof JIS connectors (compliant with JIS C 0920 explosion-proof standard).

Parameter matching principle : Strictly match the cross-sectional area and voltage level of the cable. For example, 10kV high-voltage power cables should use high-voltage connectors of JIS C 3660 standard, while 2.5mm² control cables should use corresponding small-specification low-voltage connectors to avoid safety hazards caused by "using large materials for small materials" or "using small materials for large materials".

Certification Compliance Principles : The shipbuilding industry has strict requirements for equipment certification. It is necessary to select JIS series connectors with classification society certification (such as NK, LR, ABS, etc.) to ensure that the products meet the specifications of international shipping vessels and avoid affecting ship inspection due to lack of certification.

2. Installation: Four standardized steps to ensure performance

Although the installation of JIS series connectors follows standardized procedures, the special characteristics of the marine environment still require attention to detail:

Pre-treatment: Cleaning and rust removal are fundamental : Oil and salt stains easily adhere to the surface of marine cables. Before installation, the cable conductors and insulation layers must be thoroughly cleaned with a special cleaning agent. The oxide layer on the conductor surface must be sanded until shiny to avoid increasing contact resistance. At the same time, check whether there are impurities inside the joints and ensure that the installation environment is dry and clean.

Conductor connection: Crimping force must be precise : Use JIS standard matching crimping pliers and adjust the crimping force according to the cross-sectional area of the cable. After crimping, check whether the terminal and conductor are tightly fitted, without looseness or deformation, to ensure stable conductivity.

Sealing Assembly: Double Inspection for Leakage Prevention : When installing the sealing ring, apply special waterproof silicone grease to ensure that the sealing ring fits tightly with the cable and connector housing; for cold shrink joints, the support strip must be pulled out at a uniform speed to ensure uniform shrinkage without air bubbles; after installation, a simple waterproof test (such as water spray test) can be performed to check for potential sealing problems.

Reinforcement and Fixation: Mitigating Vibration Risks : After installation, the connector must be fixed to the ship's structure with a special bracket, at least 15cm away from the cable bend, to prevent the connector from being stressed by the cable's own weight or vibration; in areas with strong vibrations, such as the engine room, buffer pads must be installed to further absorb vibrations.

Routine Maintenance: The Key to Extending the Lifespan of JIS Connectors

The complex navigation environment of ships means that even JIS series connectors require regular maintenance to extend their service life. Routine maintenance should focus on the following three points:

Regular inspections: Focus on corrosion and sealing : Conduct monthly visual inspections of joints in open-air and humid environments to check for rust on the outer shell and aging or cracking of the sealing rings; use an infrared thermometer to check the joint temperature quarterly, and if the temperature exceeds the ambient temperature by 30°C, disassemble and check the contact condition in time; conduct a random inspection of the joint sealing performance under salt spray conditions once a year to ensure that the protective performance has not deteriorated.

Cleaning and maintenance: Targeted removal of contaminants : Deck joints need to be rinsed with fresh water regularly to remove surface salt stains, and then wiped dry with a dry cloth; Engine room joints need to be cleaned of surface oil stains to prevent oil stains from corroding insulation components; If slight corrosion is found on the joint surface, it can be repaired by applying special anti-corrosion coating.

Timely replacement: Strictly adhere to the lifespan : JIS series marine connectors are typically designed for a lifespan of 15-20 years, but this lifespan may be shortened in environments with strong corrosion and high vibration. When problems such as insulation aging, seal failure, or poor conductor contact occur, the connector must be replaced with the same model of JIS connector in a timely manner to avoid malfunctions caused by "operating with defects."

Conclusion: JIS Series Connectors – A Reliable Partner for Shipboard Electrical Safety

The harshness of the marine environment places extreme demands on every component of a ship's electrical system. JIS series marine cable gland, with their stringent standards and core advantages of being suitable for marine environments, have become a reliable partner in ensuring the safe transmission of electricity on ships. Whether it's a merchant ship, fishing vessel, or special-purpose vessel, choosing compliant JIS series connectors, along with standardized selection, installation, and maintenance, is essential to ensure the stable operation of the electrical system in rough seas, safeguarding the ship's navigation.

If you have any questions about selecting JIS series marine connectors, installation tips, or maintenance experience, please feel free to leave a comment in the comment section to discuss the "way to protect" marine power safety!
